DESCRIPTION
FEATURES & BENEFITS
- Powerful RGBW LEDs: Customize clear white, pure amber, and various colors.
- Integrated Turn Signals: Enhance safety and style with switchback feature.
- OEM Compatible: Direct replacement with retained daytime running lights.
- Easy Control: Customize lighting via the included app.
- Enhanced Options: Morimoto XBT Controller for smartphone control.
WHAT’S INCLUDED

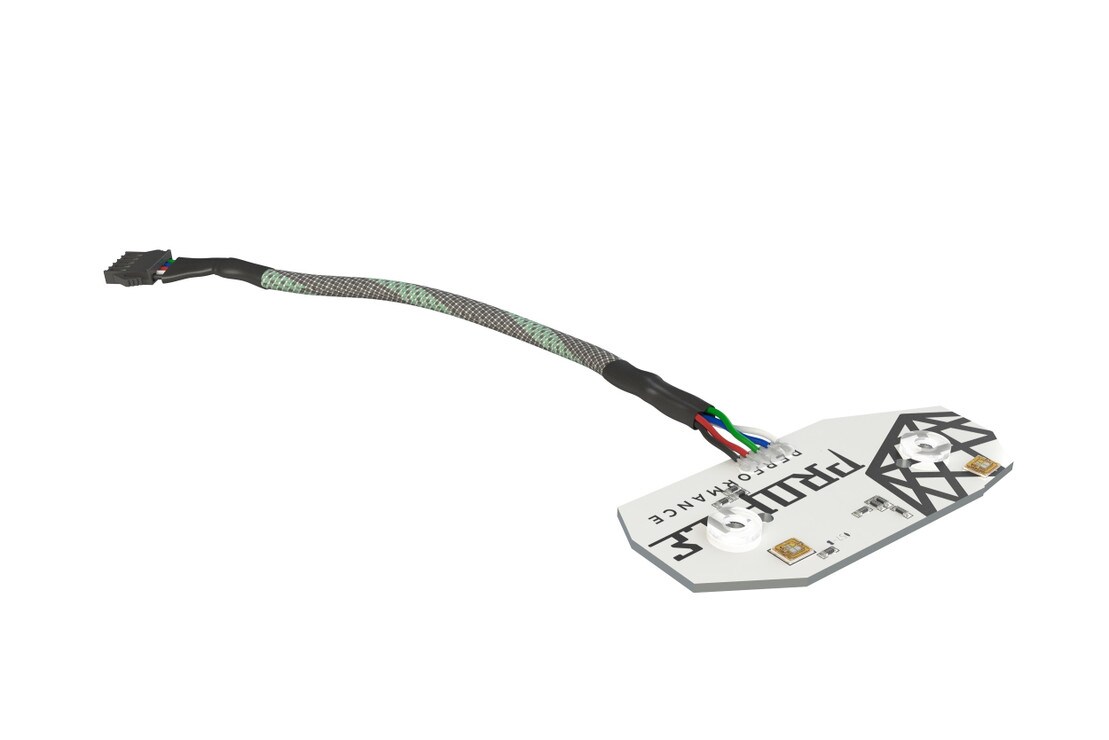

DRL Boards: 1x Set 13-14 Mustang Profile Pixel RGBW DRL Boards
Wiring: 2x Pixel Drivers, Sub-Harness w/ Factory Connections
Optional Controller: 1x Morimoto XBT Bluetooth RGBW Controller
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Functions: White, Amber, RGB
Signal: Switchback (interrupts white or RGB)
Material: Aluminum (PCB), Anodized Aluminum (Driver), Hard Epoxy Potting
Note: Advanced Installation (Headlights must be opened)
COMPATIBILITY
Ford Mustang: 2013-2014
Controller: XBT Bluetooth RGBW (Required)
INSTALLATION DOCUMENTS
Profile Performance: The automotive aftermarket's best name in LED Lighting and when it comes to upgraded LED DRL Boards, their new tech and it's features make it a no brainer! Fact is that while the rest of the industry is busy sticking their name on a generic or standing still with the same-old same-old; Profile is working hand-in-hand with the industry's experts to produce products with the performance and features that we all expect. Our customers are loving the new Pixel DRL Boards that they're cranking out, and here's why!
RGBWA: With their powerful RGBW LEDs, The Profile Pixel Mustang DRL boards are capable of producing an amazingly clear neutral white, a pure amber, and every other color in the spectrum for that matter.. Reds, blues, greens, teals, purples, pinks...you name it! The system is designed to run in white mode until you activate the RGB system through your app controller, at which point you can tune their color exactly to your liking. Turn the RGB system off, and they'll automatically default back to white to keep you street legal. All that aside, and these things are just plain bright...easily outshining the factory LED setup. Pixel = Perfection!
Switchback: Profile's specially designed drivers have a separate input wire for your turn signal circuit. When triggered, the LED driver will automatically interrupt the RGB/white mode and flash the integrated amber LED chips for a modern switchback turn signal in your DRL position. When the turn signal stops, the RGB or white mode will automatically return to its previous setting. Functional
OEM Functionality: All Pixel LED DRLs are 100% direct swaps in place of the original boards, and even though they also add a full RGB and turn signal function - they will also retain the factory low/high intensity white daytime running light functionality too. All wiring is lined with TechFlex mesh for an OEM-like appearance and reliability. The LED drivers are housed inside an aluminum housing that's been anodized with an attractive matte black finish and laser engraved with the Profile Pixel graphics.
Installation: Are the Pixel DRL boards just too good to be true? No, not really. But lets be real, you have to take the headlights off your vehicle, open them up (which often times isn't so easy), and then carefully take them apart and re-assemble the internals to finish the install. Is it rocket science? No. But if you're not so handy or simply impatient, we do recommend professional installation.

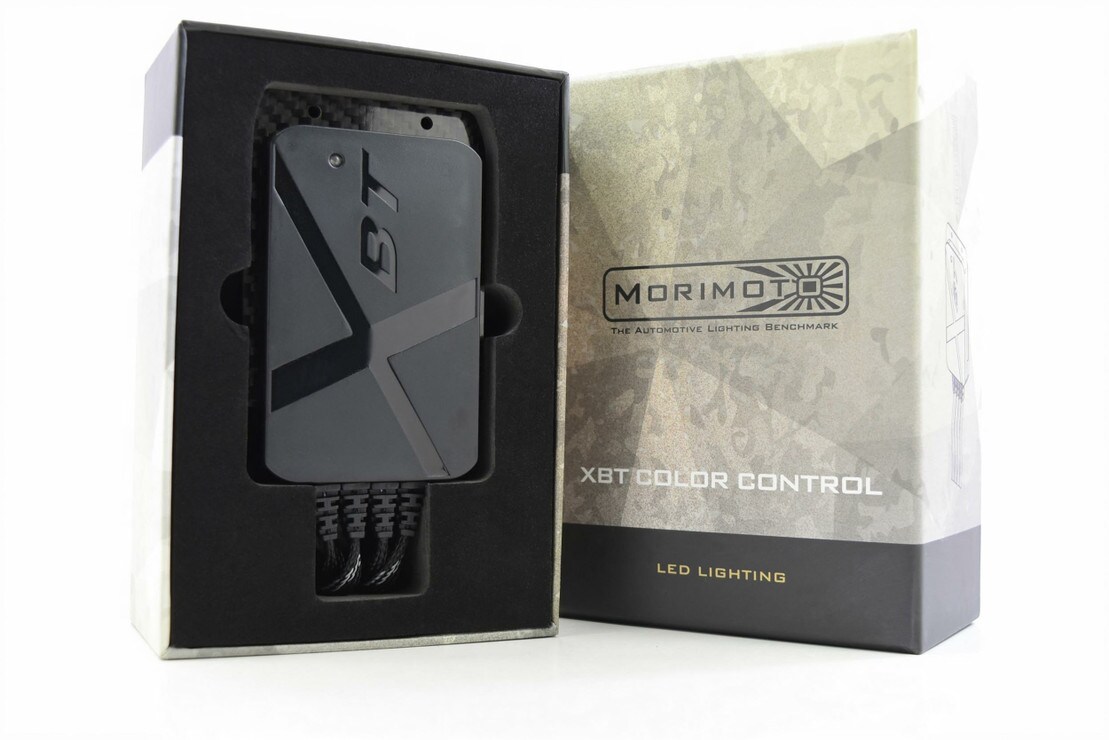

Remote Control: First-time users will need to purchase an optional RGBW Controller. The Morimoto XBT is required for the Pixel DRL boards, has a killer Iphone/Android Bluetooth app, and three channels, which can be controlled independently.
