DESCRIPTION
FEATURES & BENEFITS
- Enhanced Illumination: Panamera Switchback LED 1.0 shrouds feature built-in Type II White/Amber LEDs for superior lighting.
- Premium Construction: High-quality plastic and durable chrome finishes ensure longevity and sleekness.
- Easy Installation: Mounts onto projectors effortlessly, with recommended accessories for stability.
- Customizable Retrofit: Personalize with Profile Pivot and Profile Pixel LED Halos for a unique touch.
- Trim-Friendly Design: Easily trimmable to fit various projectors, simplifying customization.
WHAT’S INCLUDED

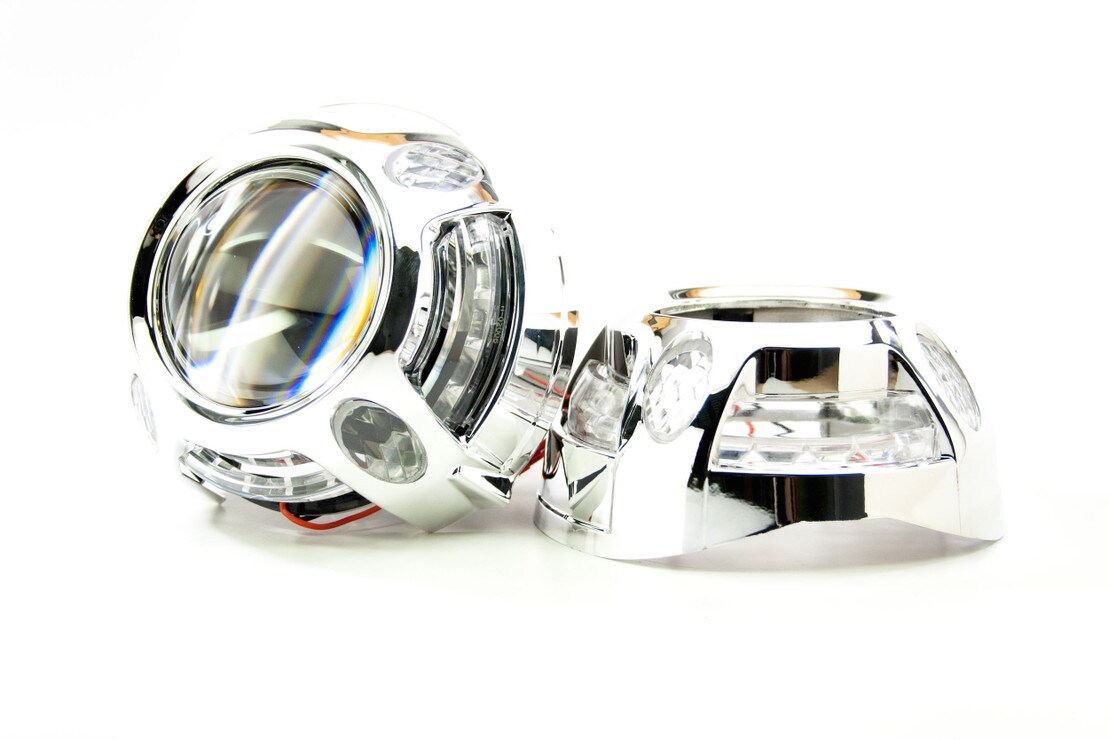

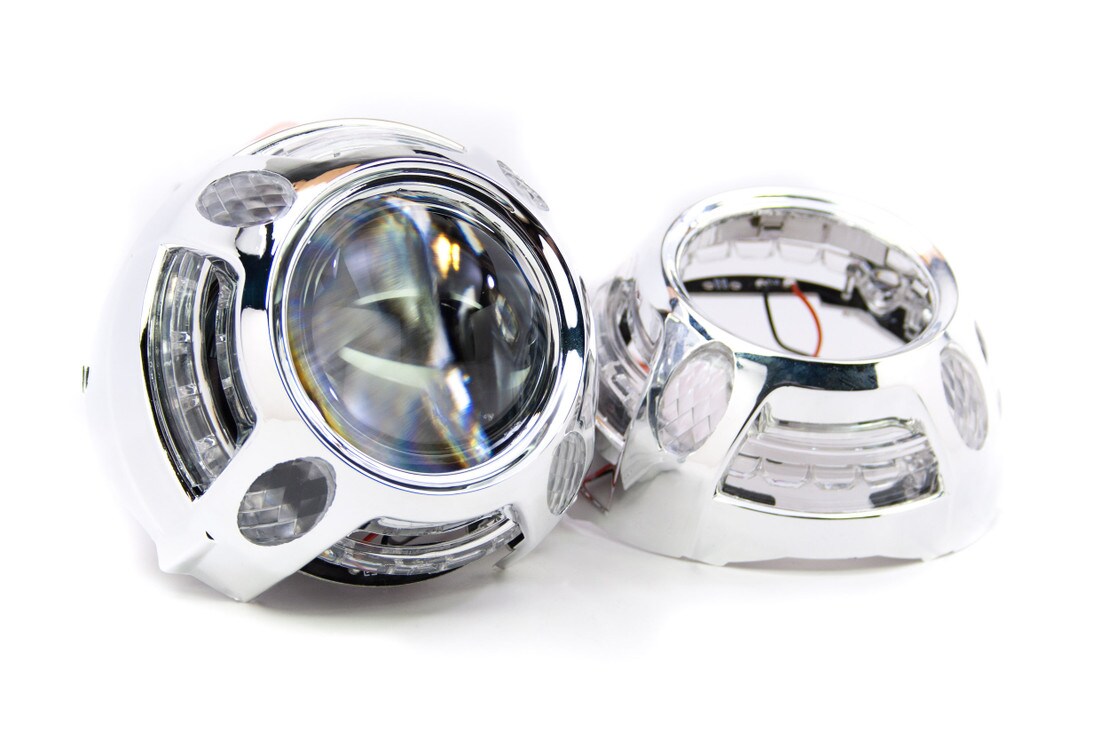

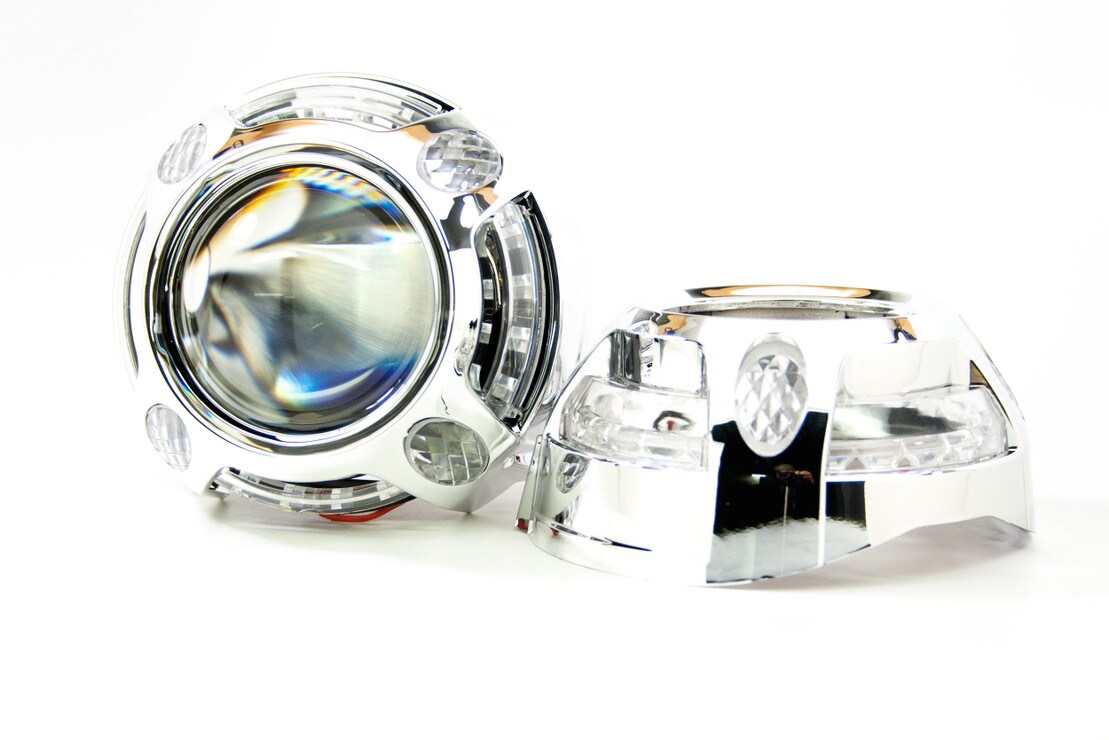

Shrouds: 2x (One Pair) Panamera Switchback LED 1.0 w/ Integrated LEDs
Optional Accessories: Centric Rings
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Dimensions: 134mm DIA, 64mm D

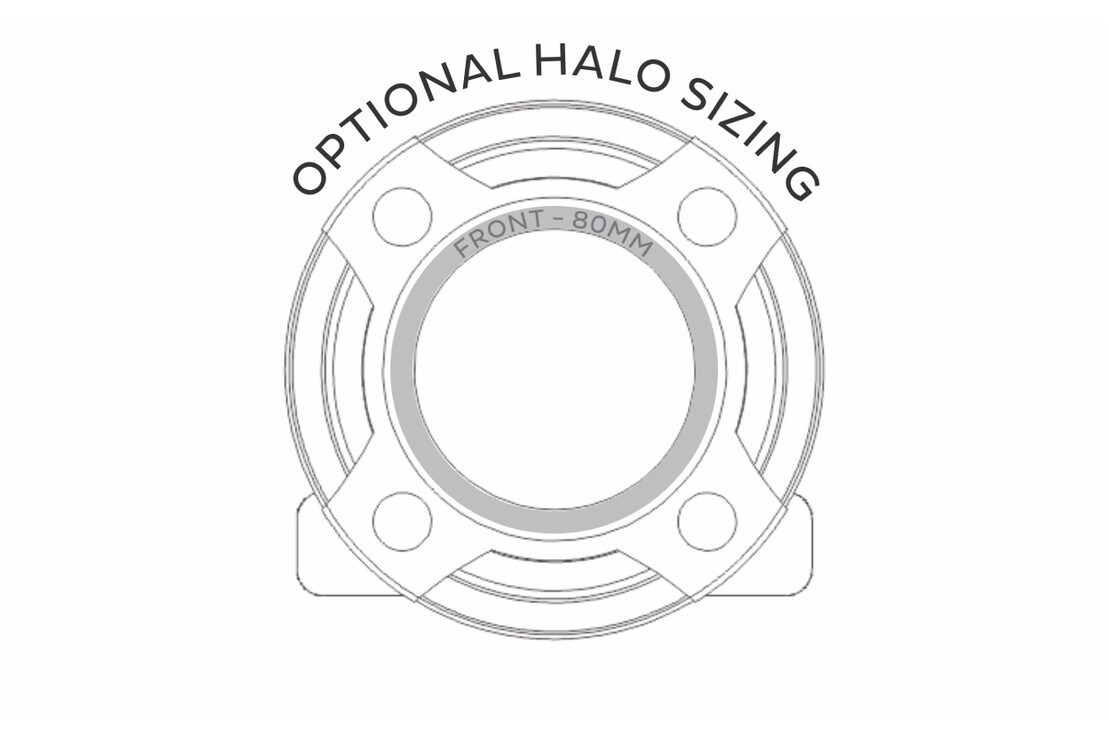

Halo Sizing: 80mm (Front)
Finish: Forever Finish Chrome

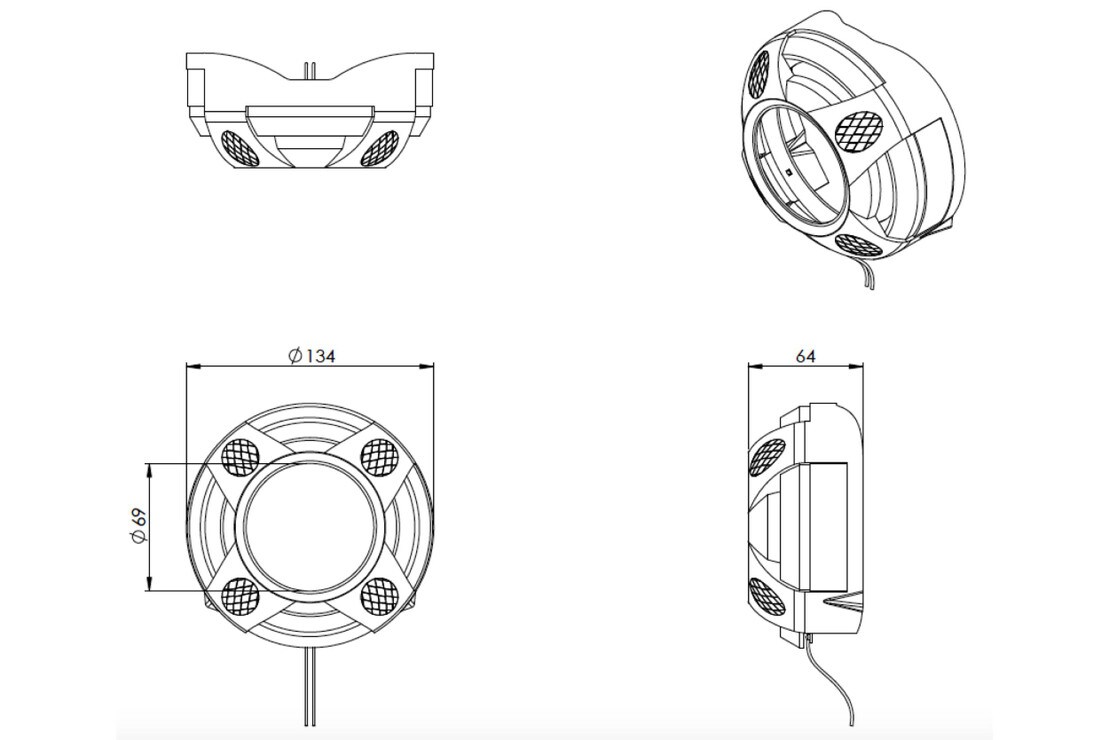

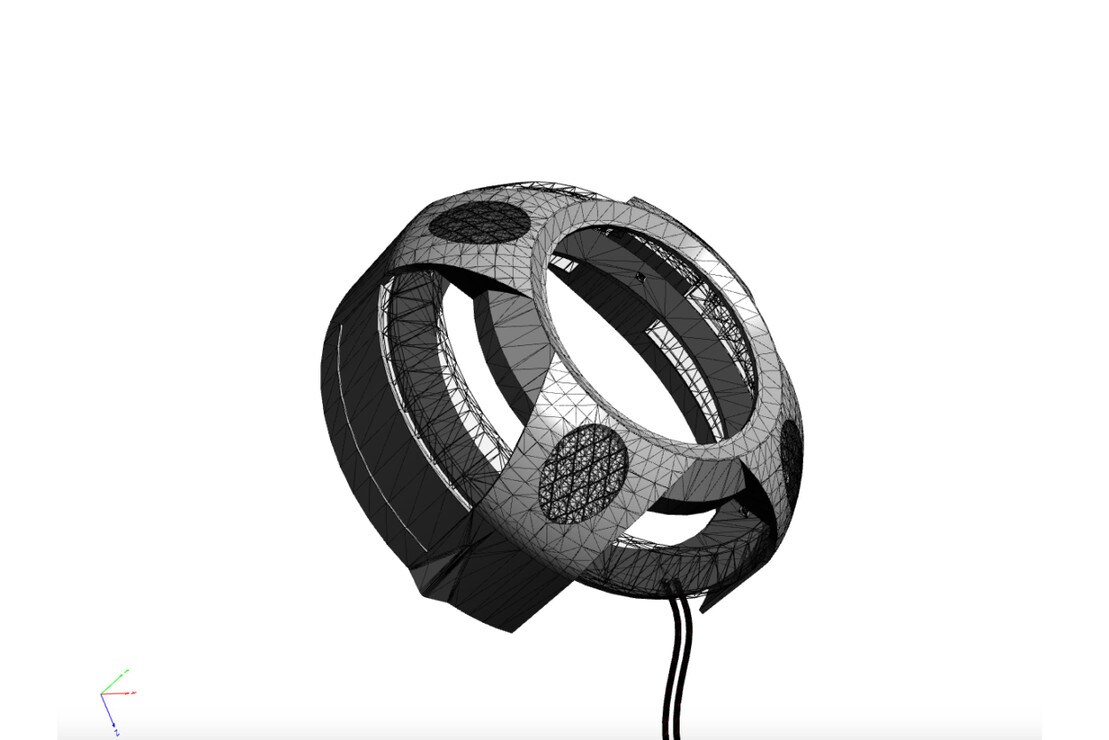

LINE DRAWINGS
COMPATIBILITY
MORIMOTO PROJECTORS: All except Matchbox and FX-R
OEM PROJECTORS: Most except TL, LS430, LS460, Q45
LENS DIAMETERS: 2.5in and 3in Compatible
MOUNTS WITH: Centric Rings and/or JB Quik Weld
INSTALLATION DOCUMENTS

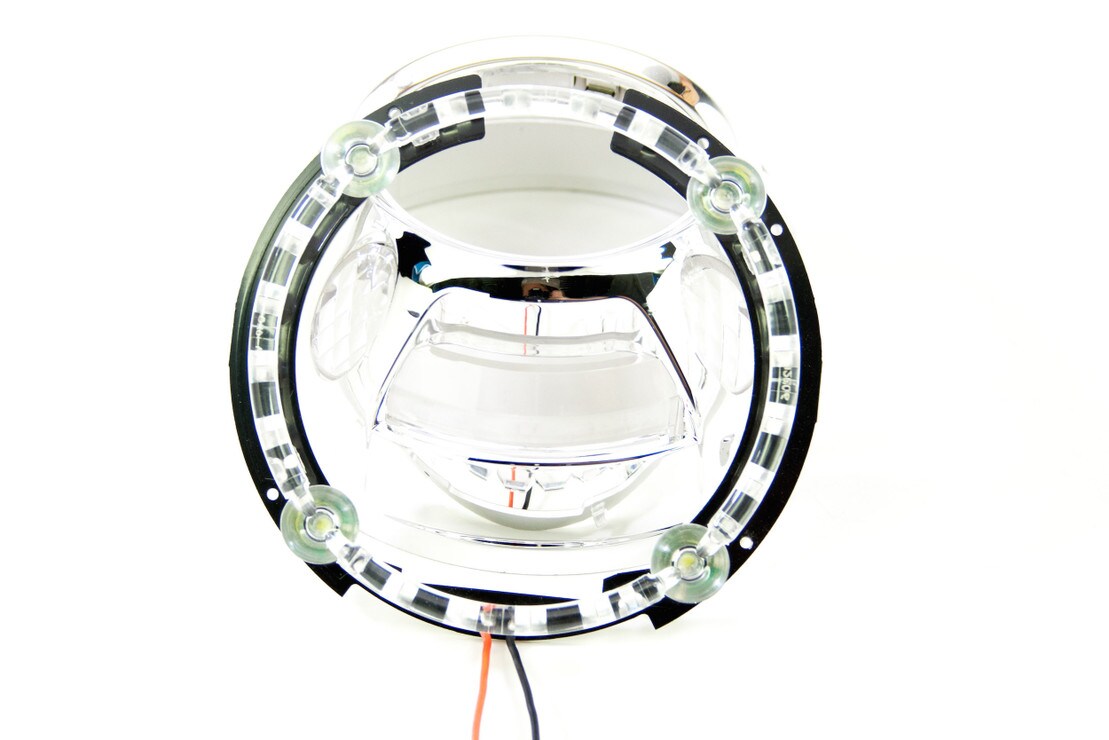

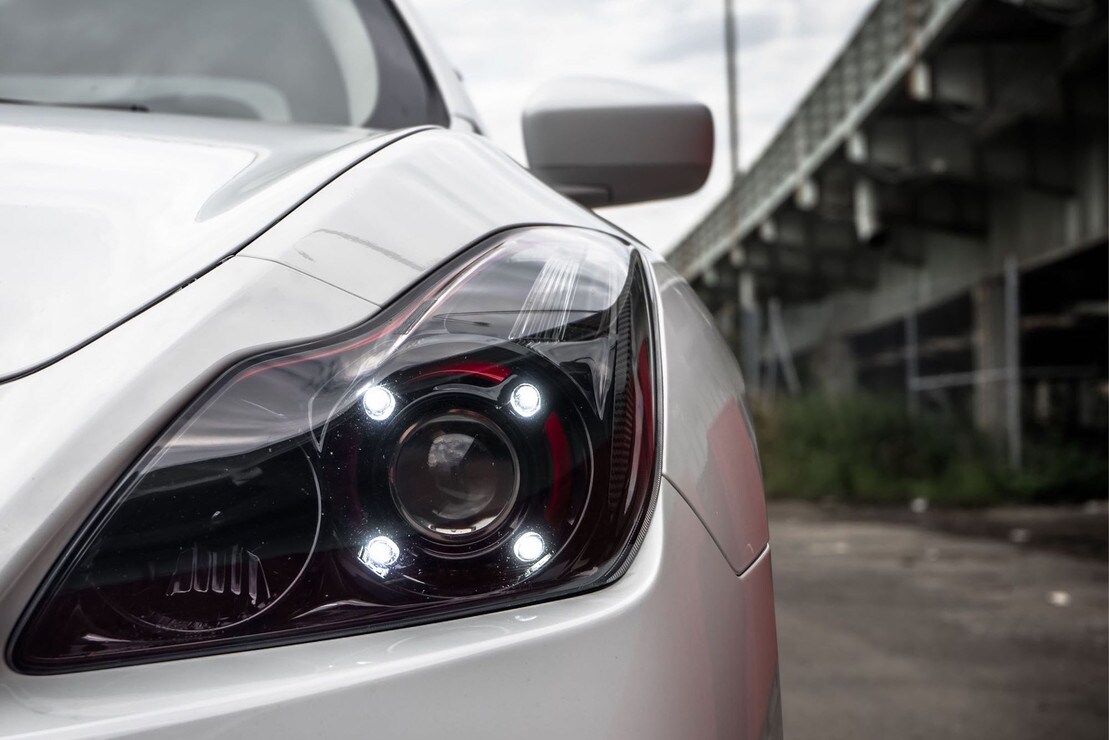

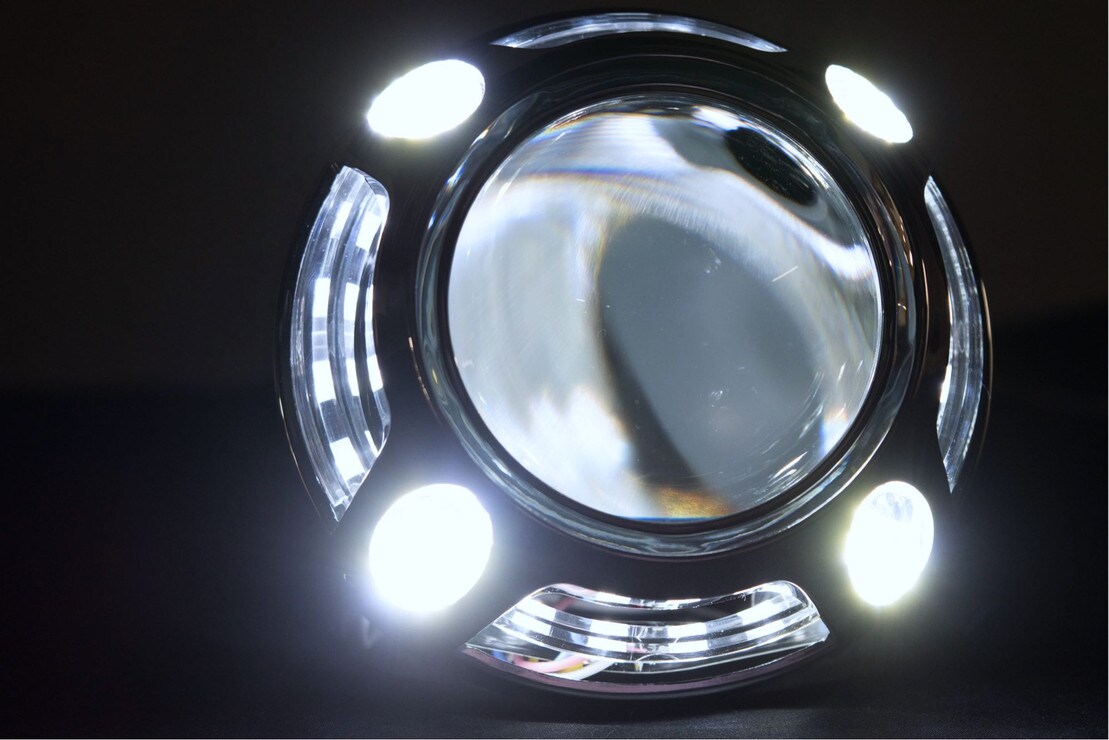

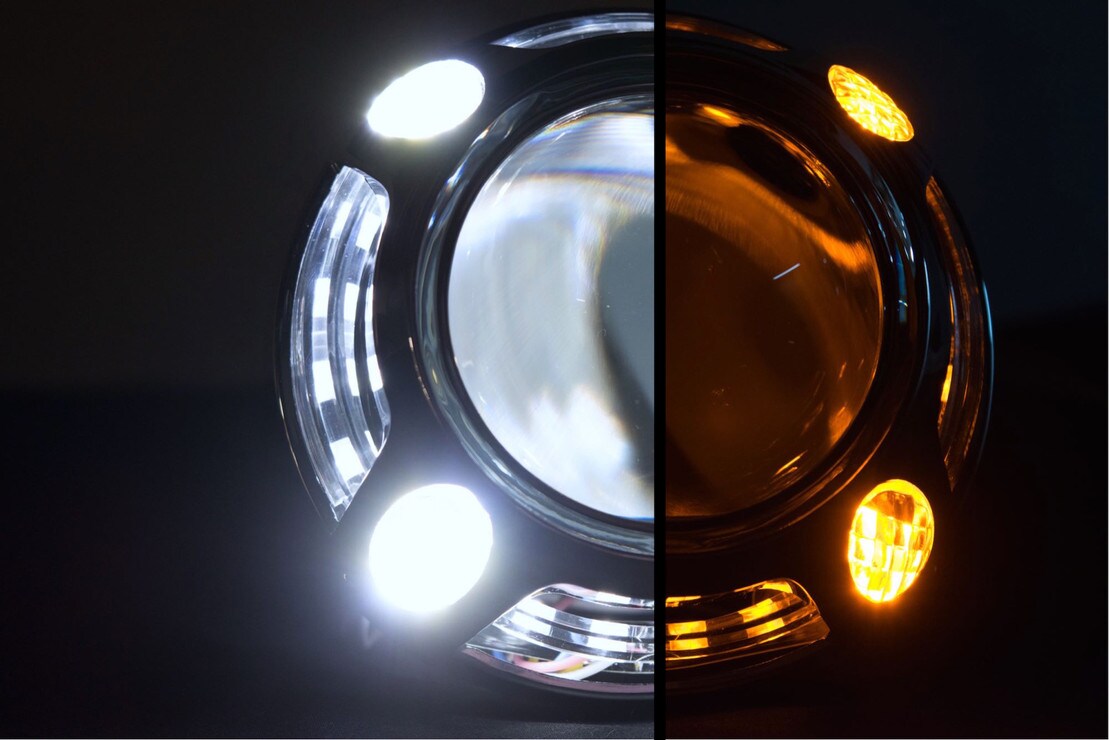

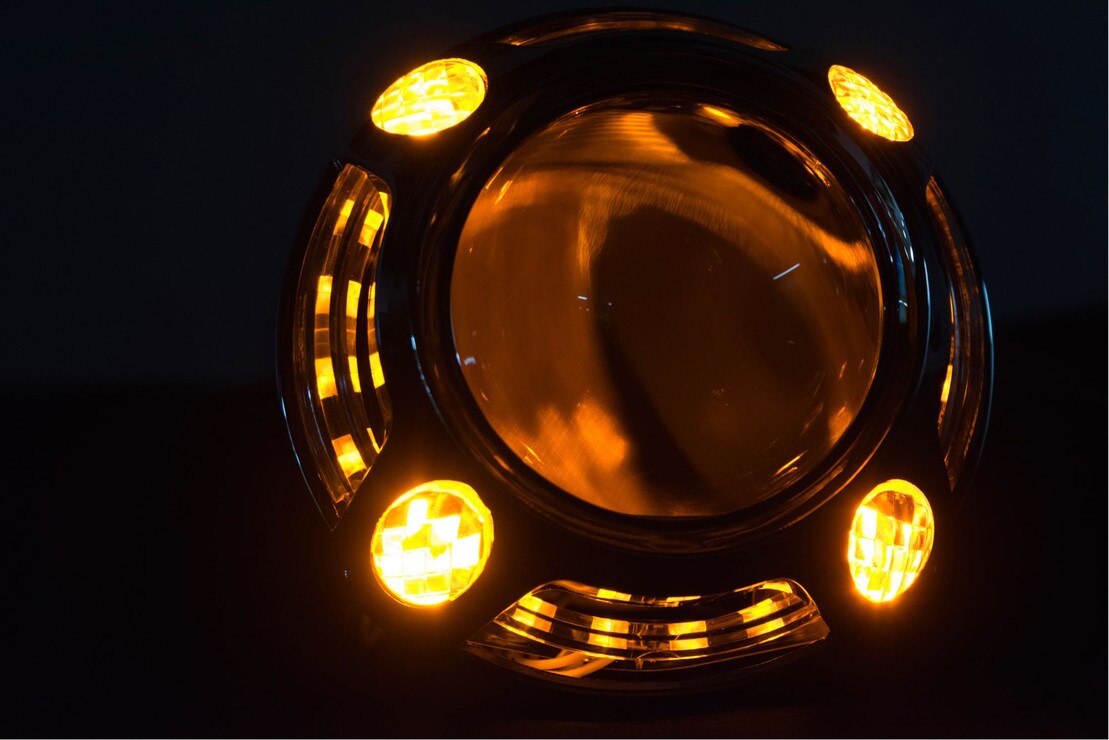

Panamera-LED: takes the original Panamera shrouds to an all new level of OEM plus! With a Type II White/Amber Switchback LED circuit built into the backside of the shroud that illuminates the four lenses on each corner, these are undoubtedly the most baller status shrouds we've ever offered. With excellent coverage for most projectors too, they're also very functional.
In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto Panamera LED's use an XSB Switchback driver and high quality LED PCB in place of the cheap crap found in the generics. Their shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.

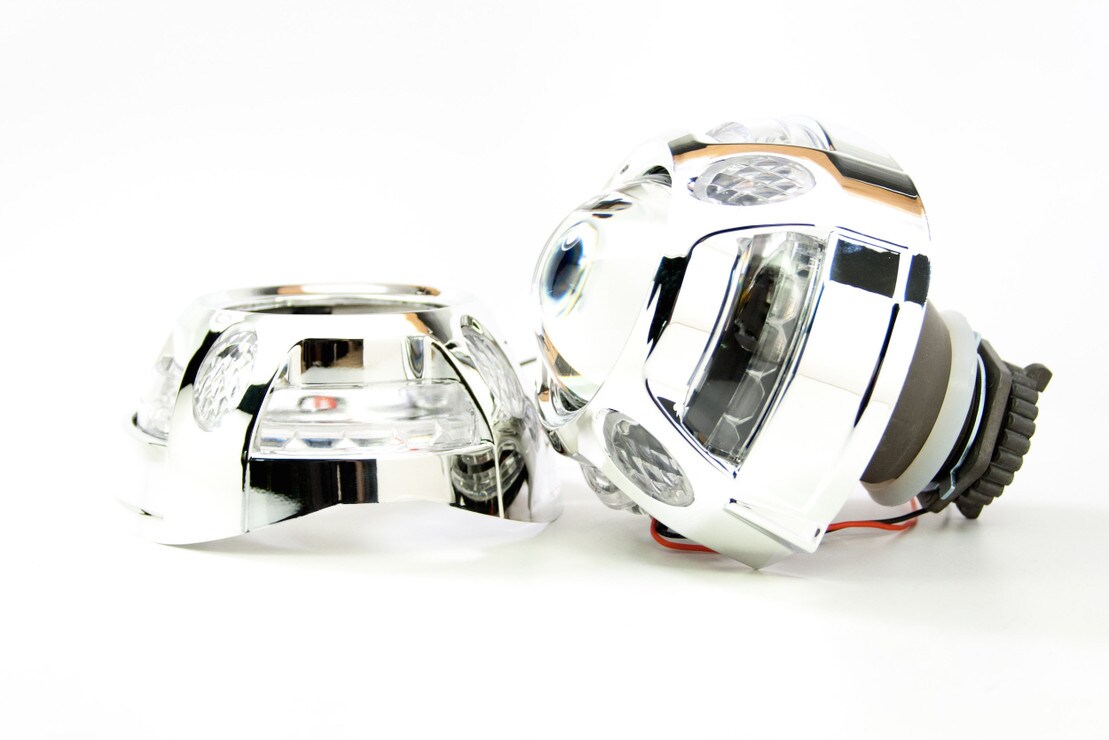

Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.
LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below.
Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
