DESCRIPTION
FEATURES & BENEFITS
- High Performance: Produces up to 3000 lumens in low and high beam modes, and nearly 4000 lumens in high beam mode.
- Advanced Optics: Uses Nichia LEDs and Morimoto's Kuria Optic projector lens for efficient light distribution.
- DRL and Turn Signal: Quad-optic setup acts as a high-intensity white daytime running light and switchback turn signal.
- Durable: Shatterproof UV-coated Polycarbonate lens and heavy-duty die-cast housings.
- Easy Installation: 3-wire DRL/Signal input connects to existing lights, with an anti-flicker LED driver.
WHAT’S INCLUDED

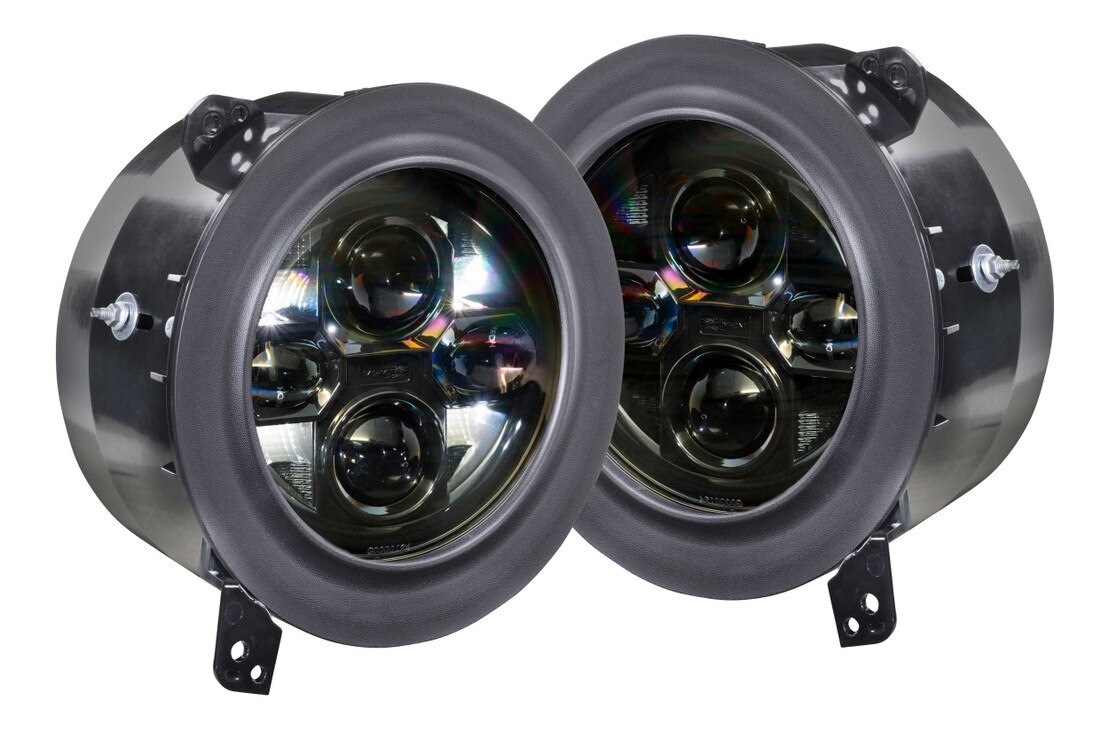

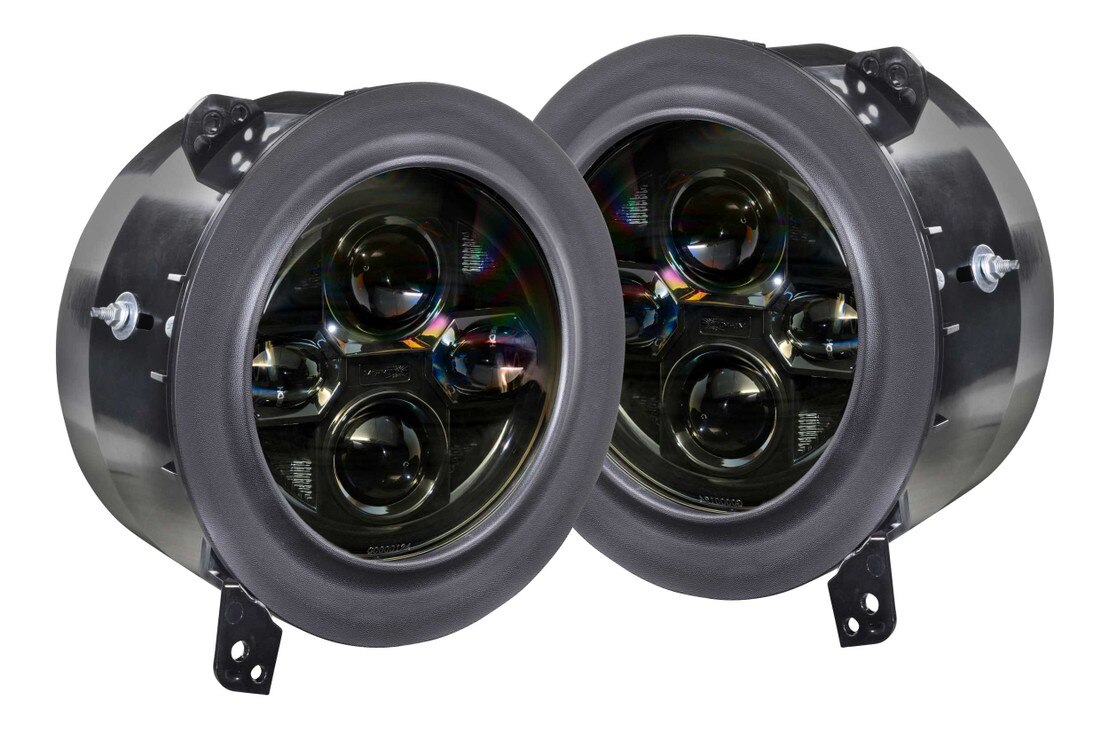

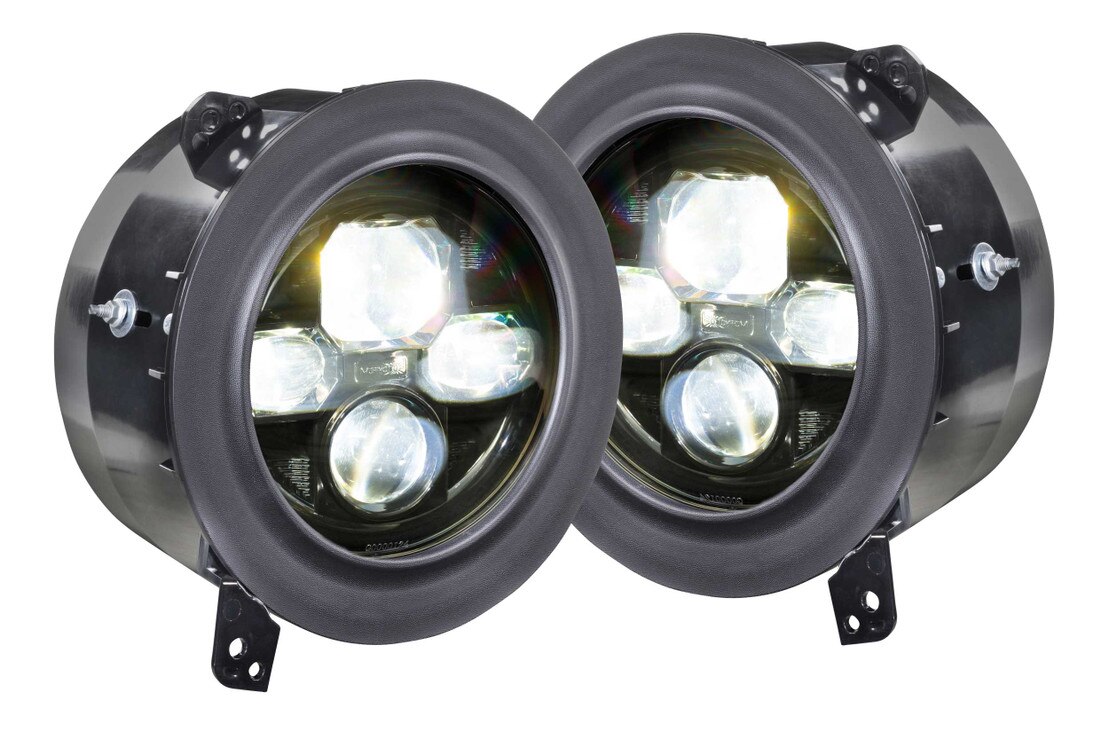

Headlights: 2x (One Pair) 2020+ Jeep Gladiator JT Sealed7 Headlights
Wiring: Plug and Play Wire Harness
Taps: For DRL/Turn Signal Operation
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Traffic Pattern: LHD Only
Input: Delphi Multi-Pin OE Connection
Functions: Low and High Beam
Material: Power-coated Die-Cast Housing, UV-Treated Polycarbonate Lens
Optic: Kuria Optic Hi/Lo
Intensity: 2,860 Lumens (Low), 1020 Lumens (High)
LED: Nichia NCSW170C, Philips Luxeon 3535L
Kelvin Rating: 6300K
UV Coating: Momentive UVHC3000
LINE DRAWINGS
COMPATIBILITY
Jeep JT Gladiator: 2020-2024
Jeep JL Wrangler: 2018-2024
COMPLIANCE
INSTALLATION DOCUMENTS

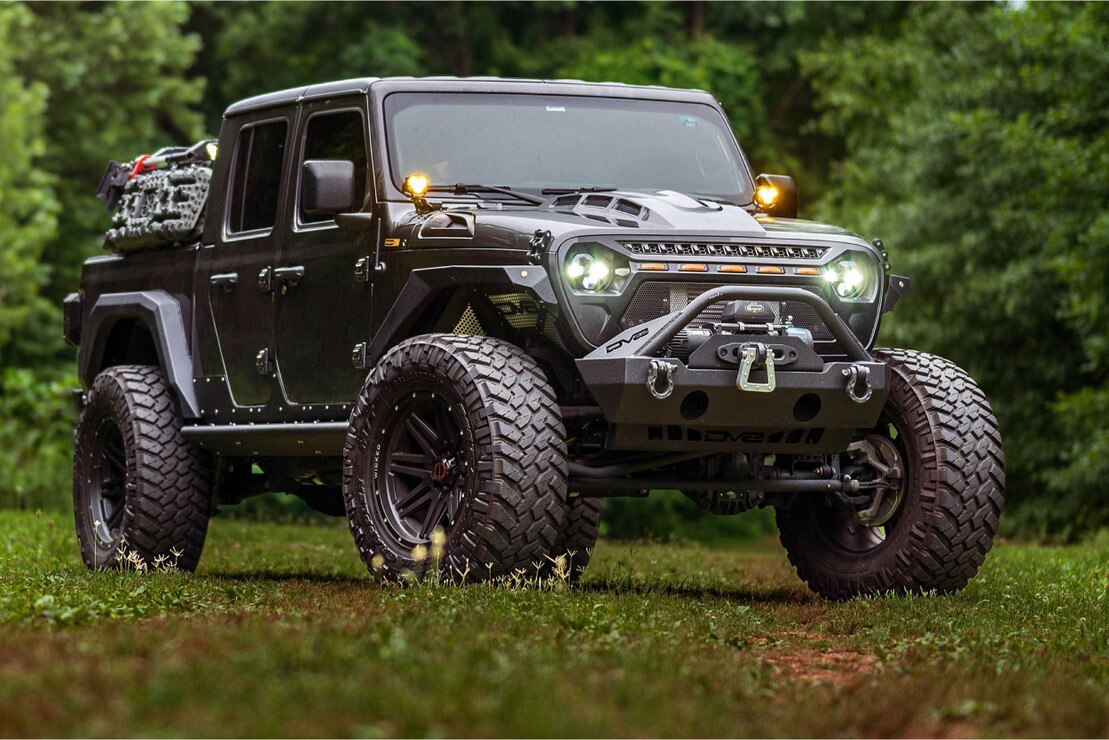

Gladiator JT: While every biz in the aftermarket has a catalog full of products for the new Gladiators, including headlights, somehow no brand has yet to deliver anything worthy of replacing the OEM headlights. When it comes to style, performance, features, quality, and compatibility: the Morimoto Sealed7 headlights are the category killer that every JT owner has been waiting for!

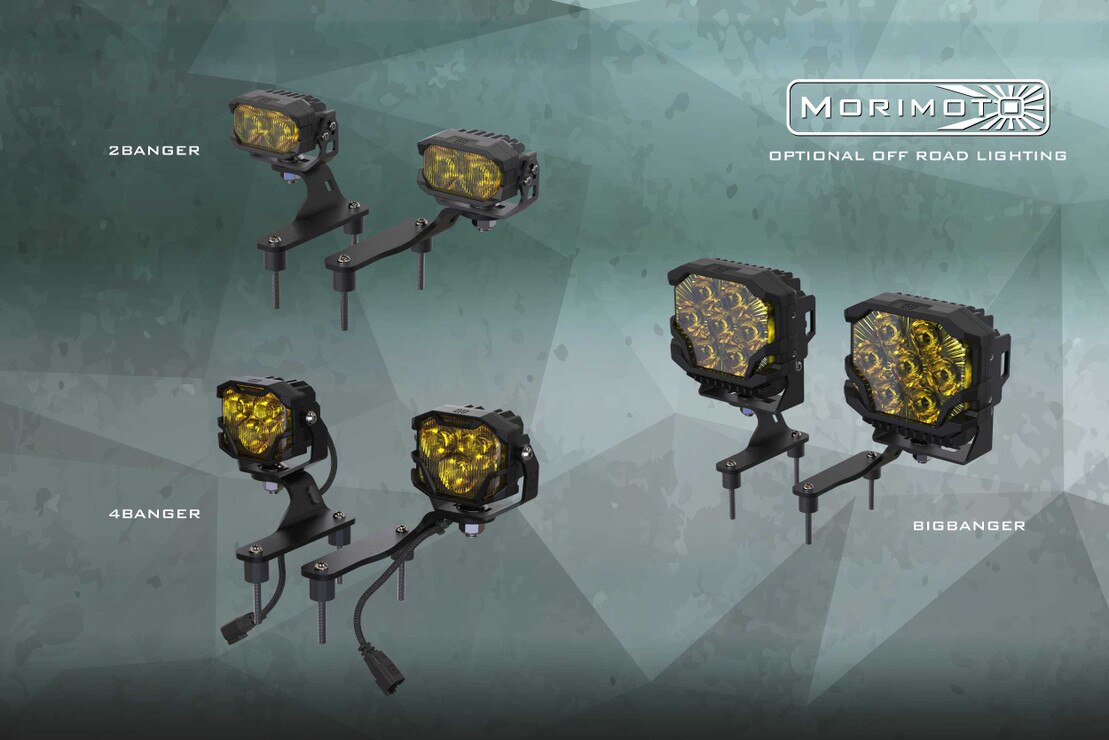

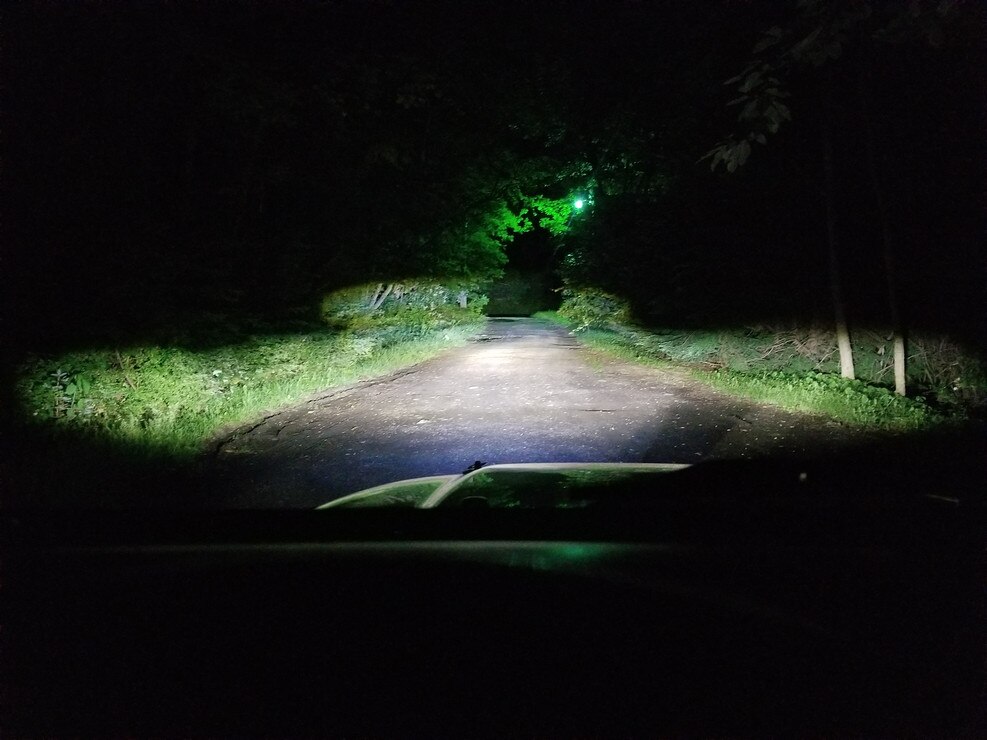

Output: The low and high beam optics are powered by the same LEDs used in the new 4Banger offroad LED pods (Nichia NCSW170--pair that with Morimoto's advanced Kuria Optic projector lens and the Sealed7 efficiently distributes roughly 3000 lumens on the road in a properly LHD-stepped beam pattern. Because the Sealed7 runs all optics together in high beam mode, the output is intensified to nearly 4000 mosquito-melting lumens there!

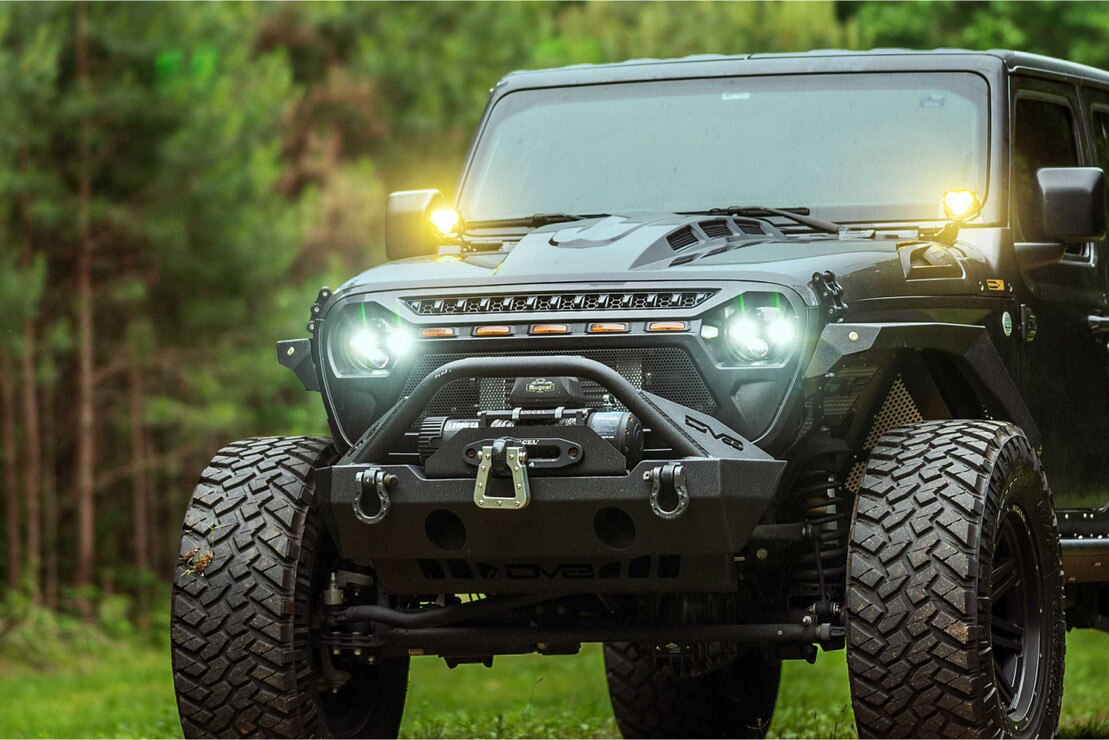

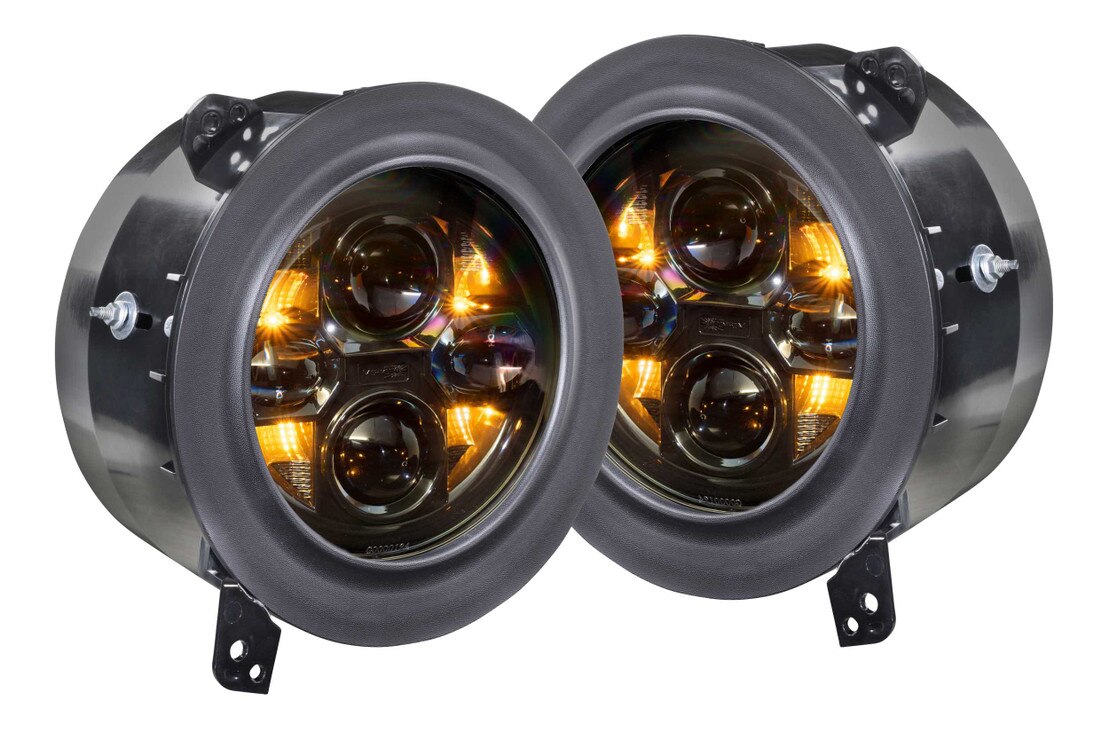

DRL / Switchback: The quad-optic setup at the corners acts as a high-intensity white daytime running light as well as a switchback turn signal to compliment the blinkers in the lower grille. The switchback setup on the turn signal will automatically interrupt the white DRL, flash, and then return to white once the signal stops. The 3-wire DRL/Signal input makes setup on your Gladiator easy too, since it can be tapped into the turn signals / parking lights that live nearby.

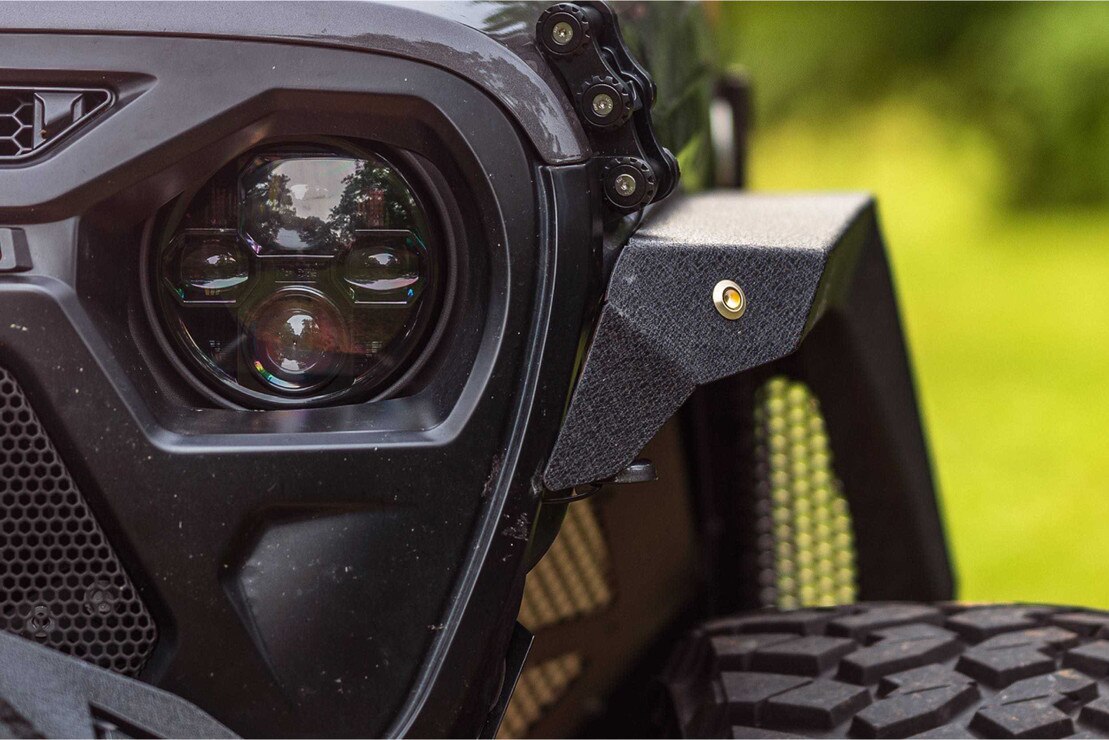

Quality: No expense was spared on the Sealed7 Spec sheet. At their core, Japanese LEDs from from Nichia and Philips-Lumileds. The UV coated Polycarbonate lens is shatter proof and will take years of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink for the powerful LEDs. A special anti-flicker LED driver resides inside of the headlight to keep the LED's running strong despite inconsistent power-supply from the headlight circuit.
