Morimoto DIY Relay Kit

(0) No Reviews yet
Questions?

Brand: Morimoto

B-ACC-DIYRELAY-HR

$8.22 Original Price:$11.7530% OFF

PRODUCT OPTIONS

PART #: 1 x WP310

Easy Return

DESCRIPTION

Morimoto's 4-pin automotive relays offer high-quality performance at a cost-effective price point. Designed for DIY enthusiasts and professionals alike, these relays are built to last with three layers of silicone seals, providing protection against the elements. They adhere to industry standards with a layout that includes switch, ground, power input, and power output pins. Internally, these relays can handle up to 12V at 40 Amps, thanks to their high-quality copper coils, and feature an integrated flyback diode to prevent back-feeding. They are a standard component in Morimoto's HD Relay Harness, allowing users to create their own custom harnesses. Additionally, optional brackets are available for combining multiple relays on a single mount, simplifying complex setups. Trust Morimoto for reliable, cost-effective automotive relays.

FEATURES & BENEFITS

  • High-Quality Relays: Morimoto offers 4-pin automotive relays.
  • Weatherproof: Features three layers of silicone seals for reliability in all conditions.

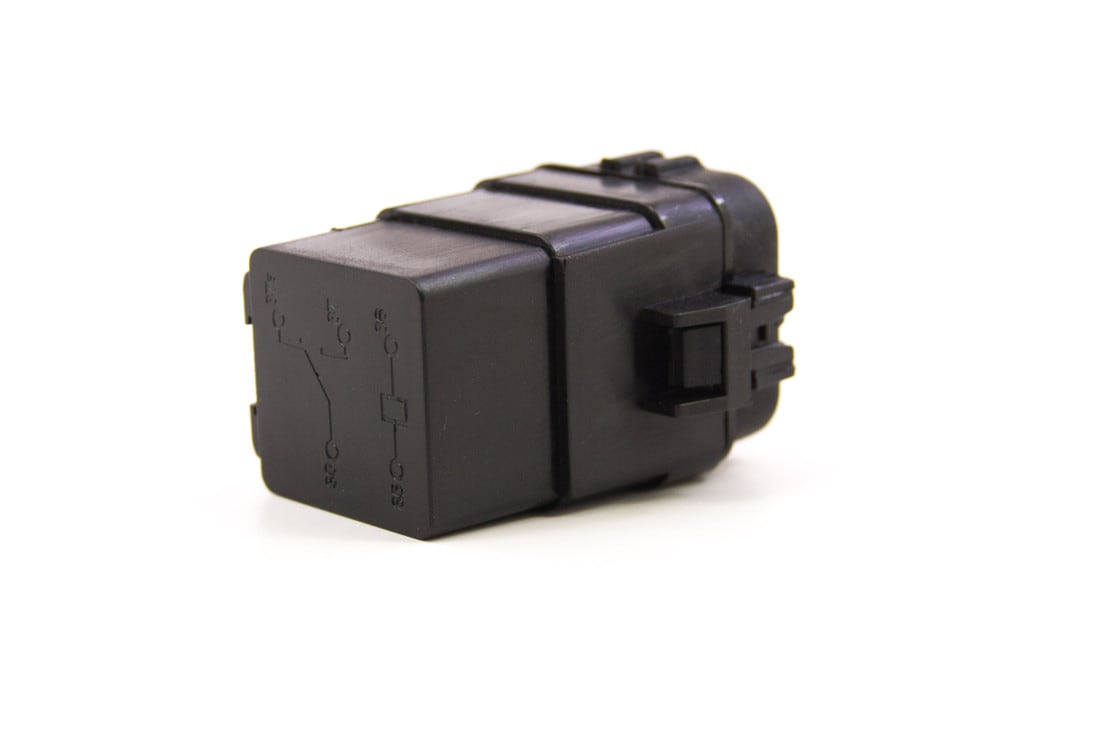

  • Standard Layout: Includes switch (85), ground (86), power input (87), and power output (30).
  • Powerful Performance: Handles 12V at up to 40 Amps with a built-in flyback diode.
  • Easy Customization: Standard in the HD Relay Harness, with optional brackets for flexible mounting.

WHAT’S INCLUDED

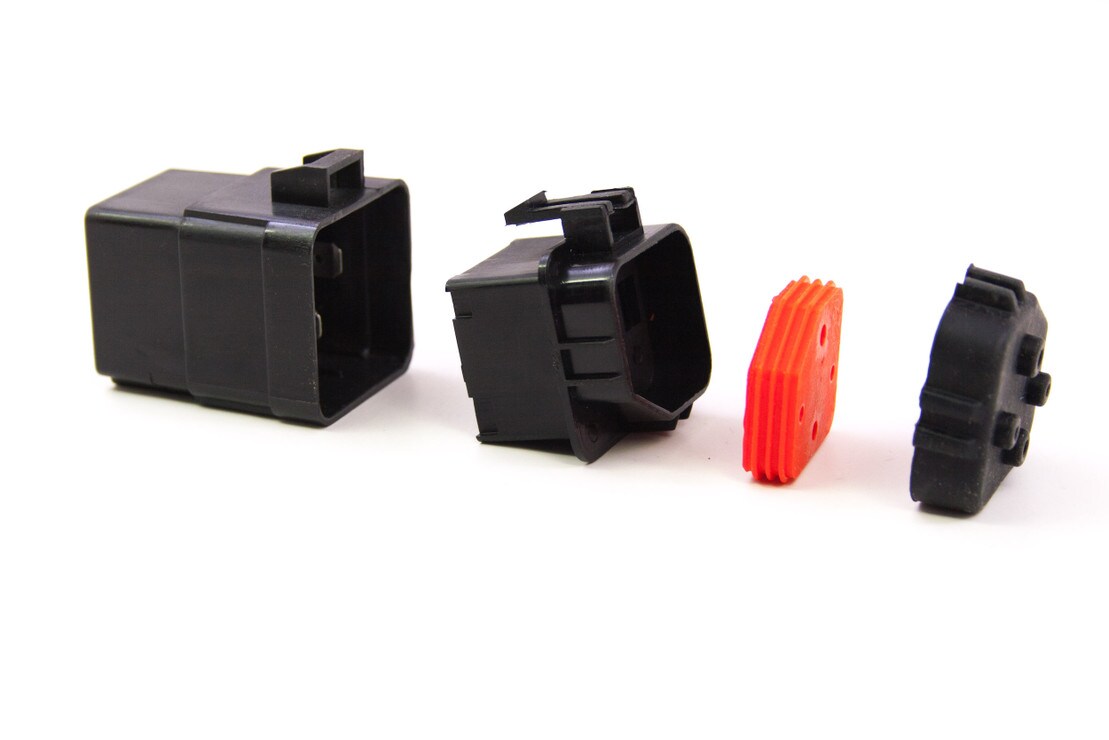

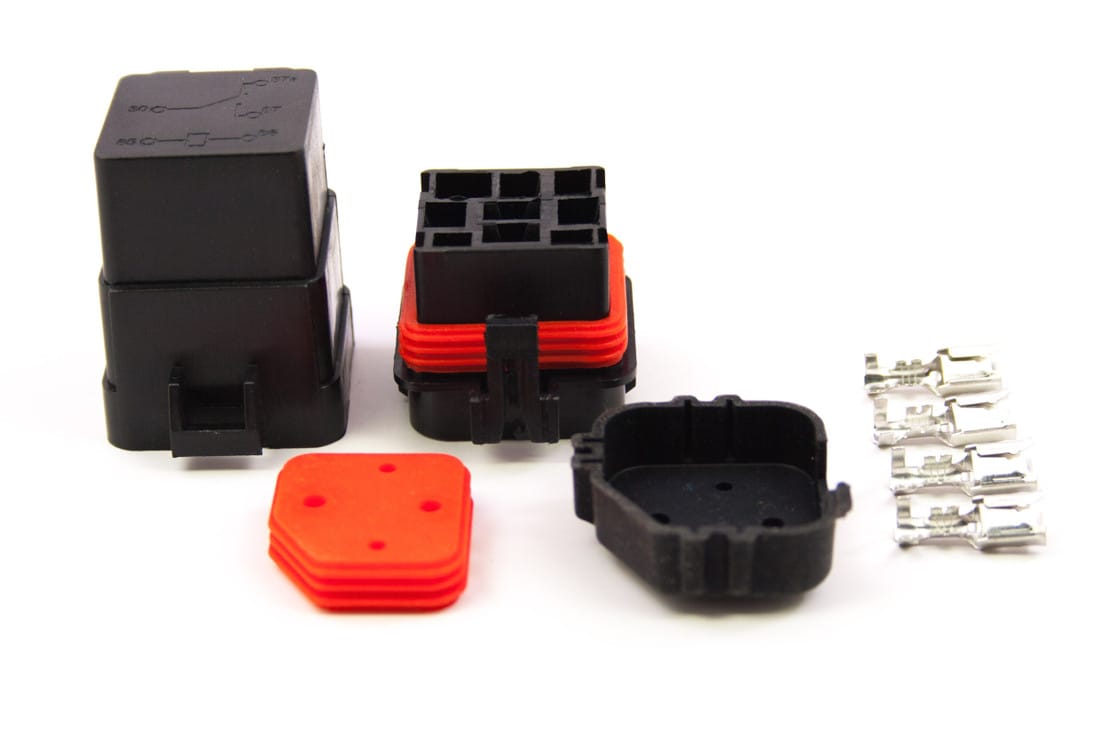

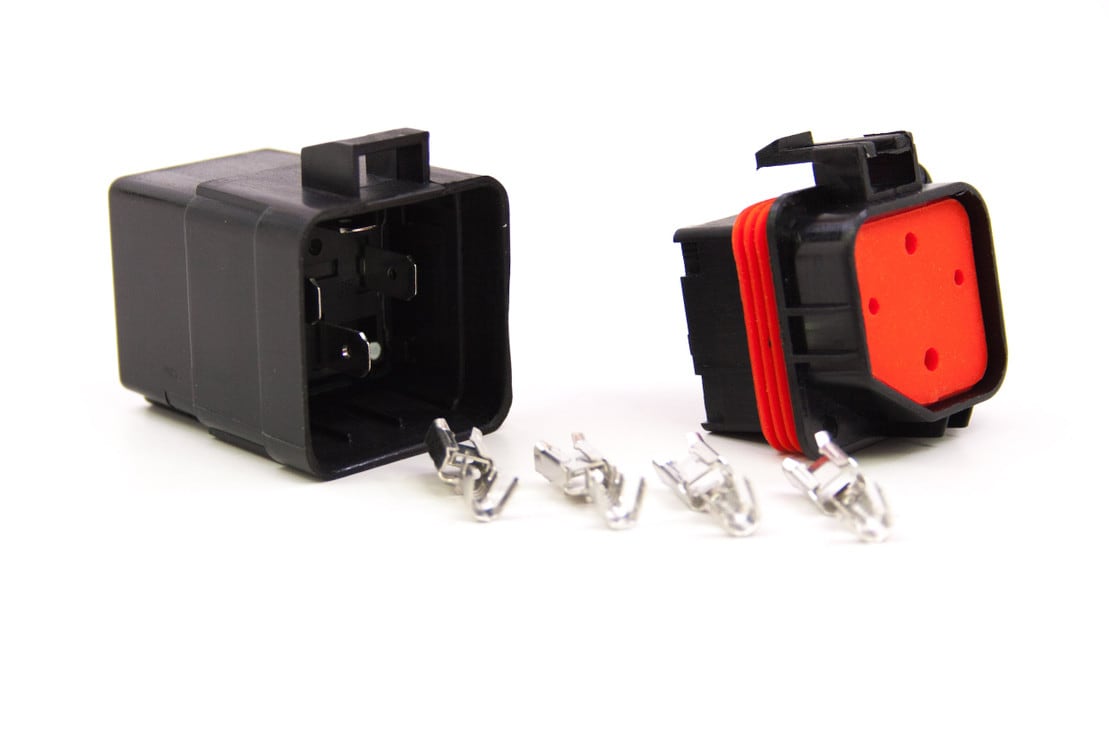

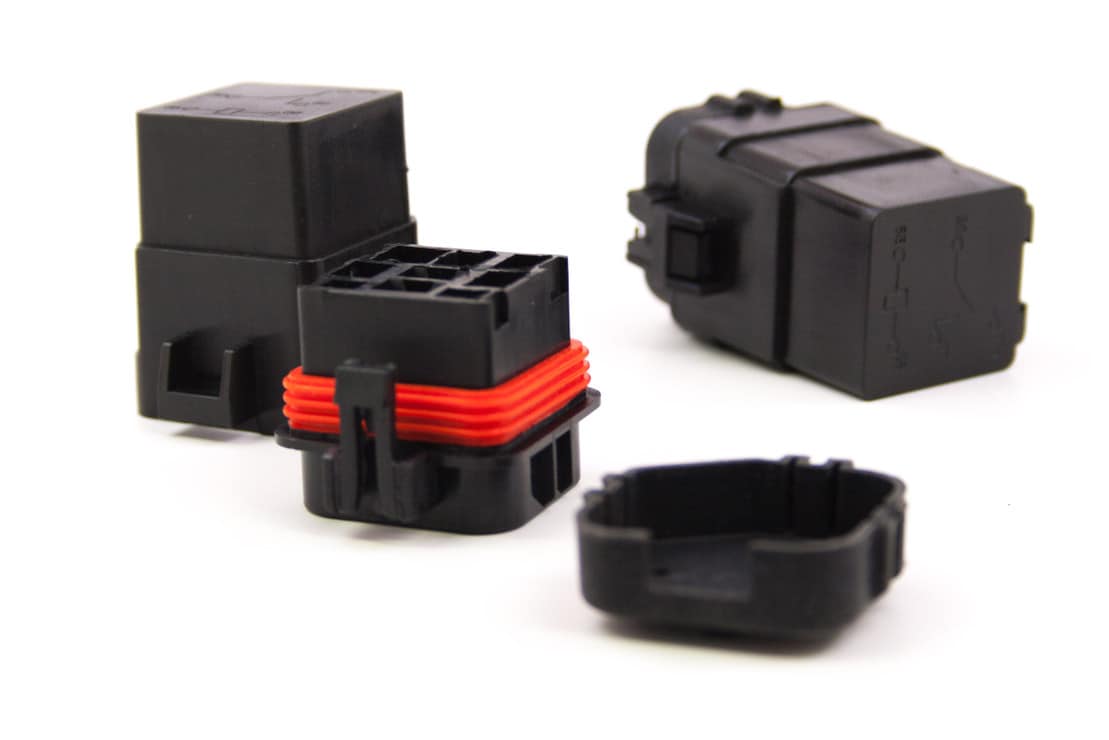

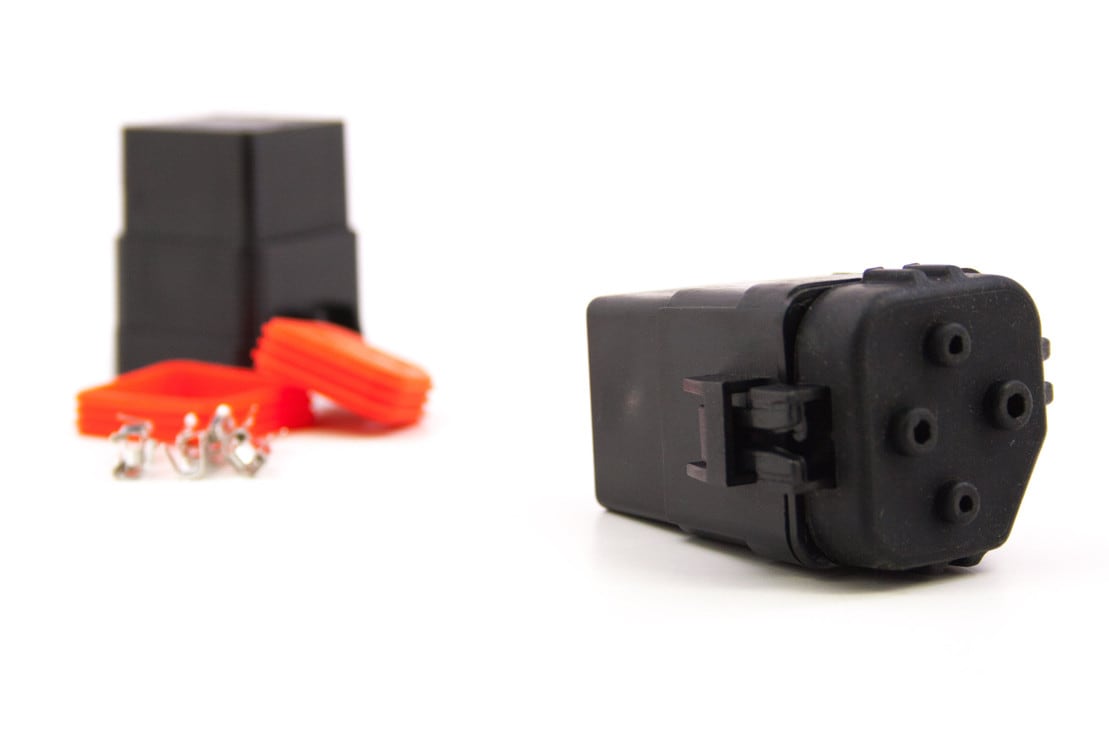

  • RELAY: 1x 4-Pin Relay + Shell

  • BASE: 1x 4-Pin Inlet

  • SEALS: 2x Upper + Lower

  • CONTACTS: 4x Coated Copper

  • OPTIONAL BRACKET: 1x Hanging

WARRANTY INFORMATION

This product includes a 1 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

TECHNICAL SPECIFICATIONS

  • Capacity: 40A @ 12V DC

  • Power Capacity: 600w

  • Wire Needed: 14-16AWG

COMPATIBILITY

  • ELECTRICAL SYSTEMS: 12-24V DC

  • WIRE THICKNESS: 14-16AWG

INSTALLATION DOCUMENTS

DIY: These high quality 4-pin automotive relays are great for spares or for those looking to build their own relay harness. Don't bother spending two or three times as much for the same thing, or getting less for the same amount of money. Buy Morimoto.


Protected: from the elements with 3 layers of silicone seals! Don't trust unsealed relays under the hood that are prone to fail due to moisture. These things are basically impenetrable both rain or shine.


Industry Standard: layout includes the switch (85), ground (86), power input (87), and power output (30)


Internally: they are rated to pass 12V at up to 40 Amps through their high quality copper coils. Integrated flyback diode prevents potential back-feeding.


Standard: Equipment on the HD Relay Harness by Morimoto, you can now build your own harnesses like the pros.

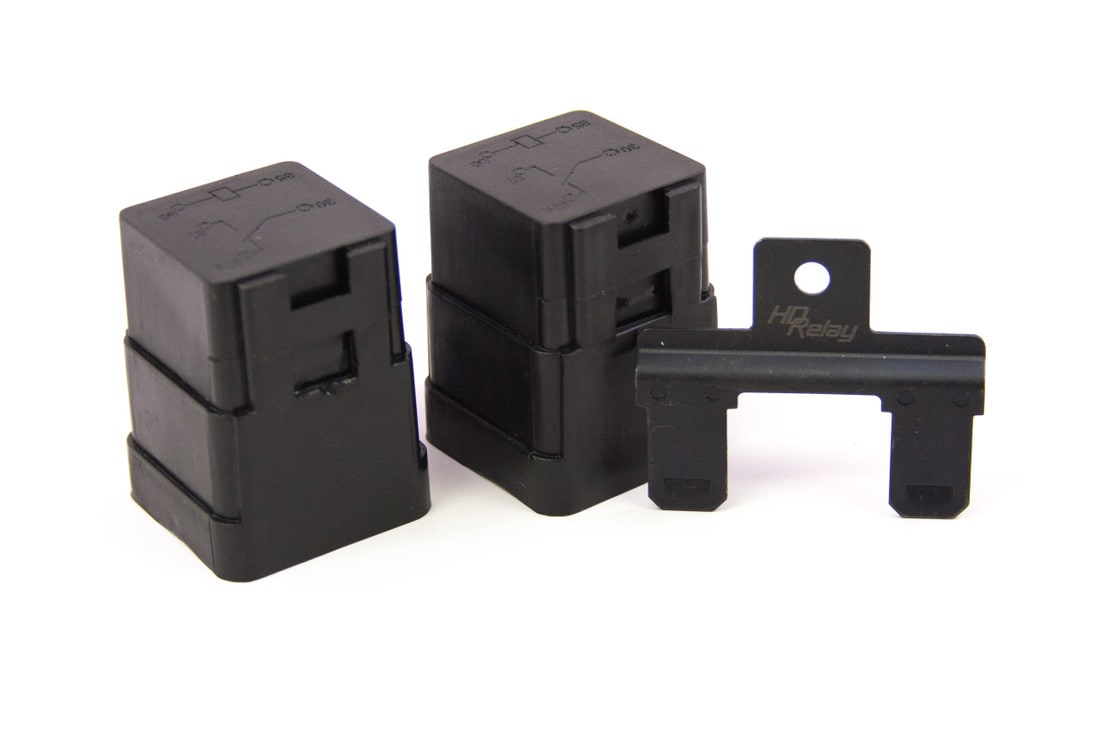

Optional: brackets allow you to combine two relays together on a single mount for a clean setup that designed around more than one relay.
