DESCRIPTION
FEATURES & BENEFITS

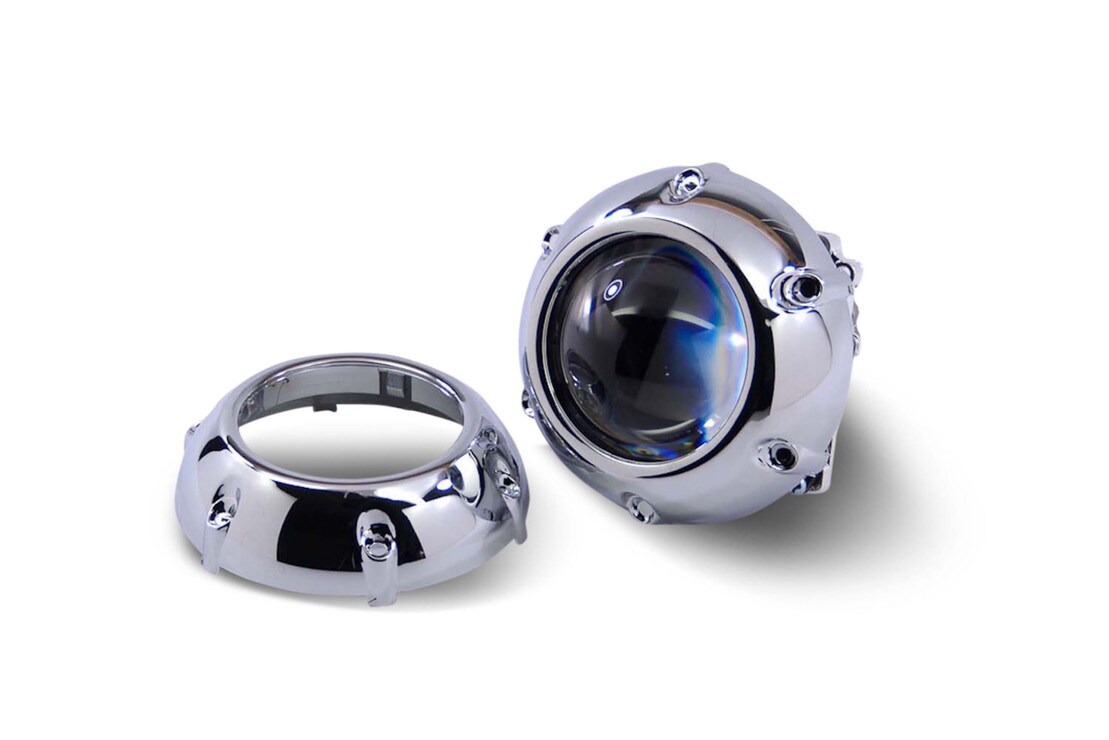

- Compact Design: Sleek circular design with evenly spaced dimples inspired by VW GTI.
- Effective Concealment: Covers many projector types, ideal for smaller headlights or quad retrofits.

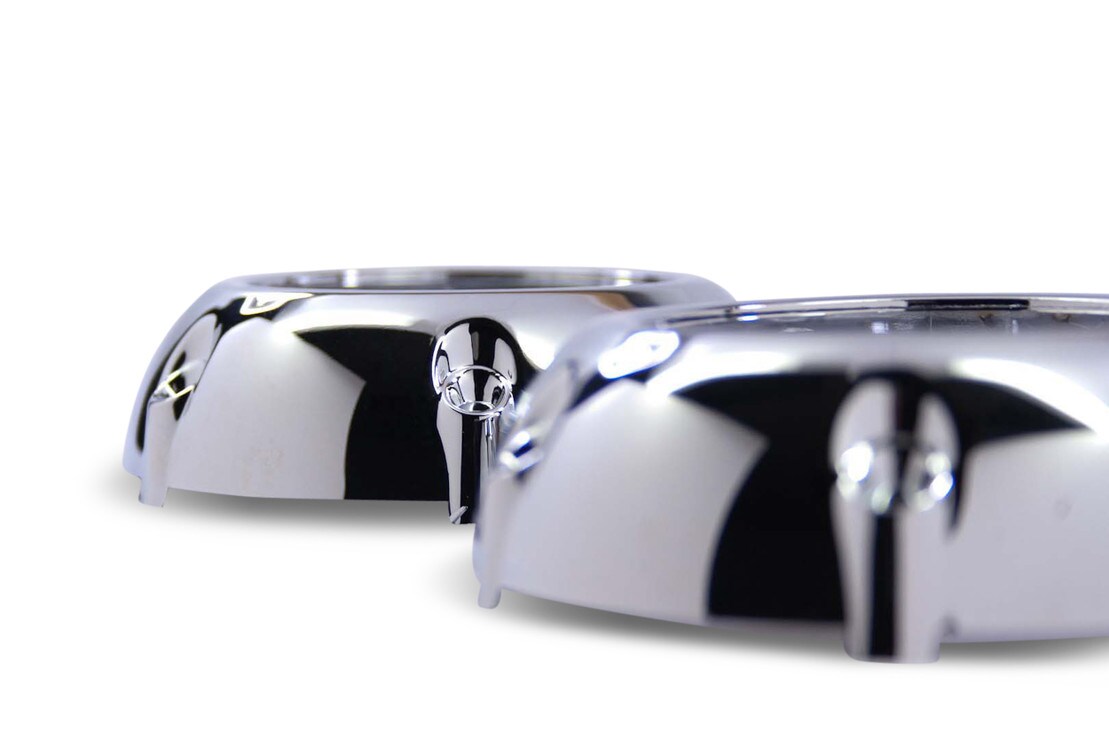

- Premium Materials: High-quality plastic with durable metalized chrome finishes.
- Customization Options: Supports easy customization with LED Halos for enhanced aesthetics.
- Trim-Friendly: Easily adaptable to various projector and headlight housing geometries.
WHAT’S INCLUDED

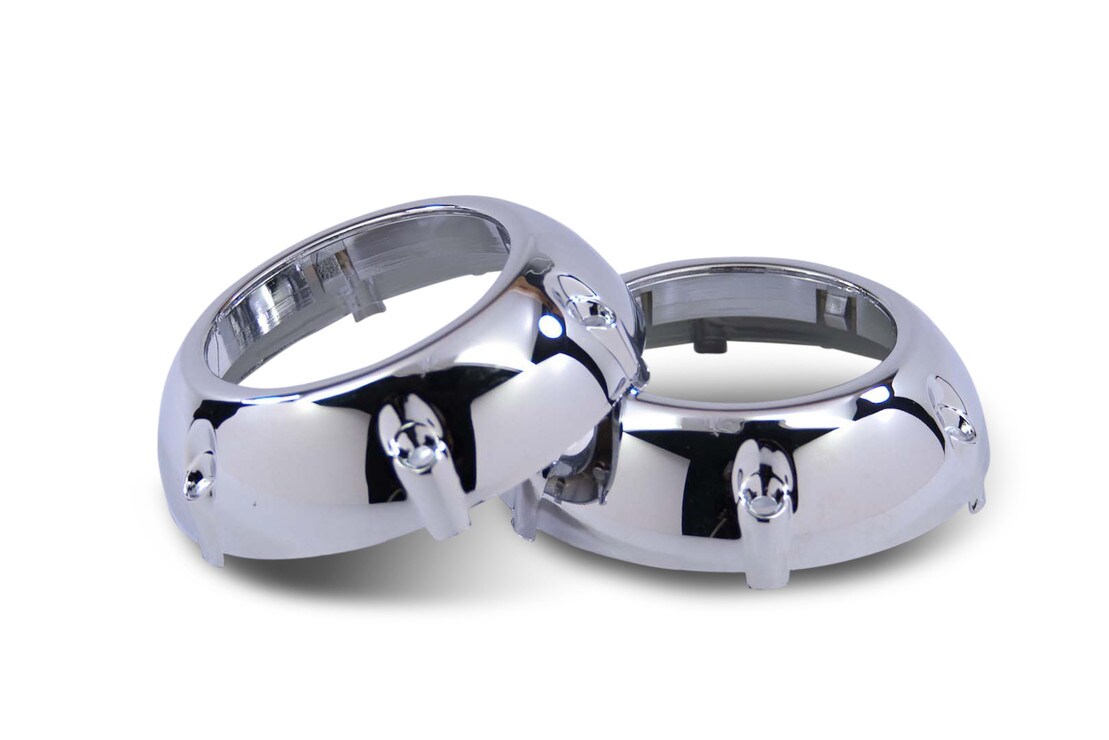

Shrouds: 2x (One Pair) GTi-r 1.0 Projector Shrouds
Optional Accessories: Centric Rings and Halos
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Dimensions: 112mm DIA, 36mm D

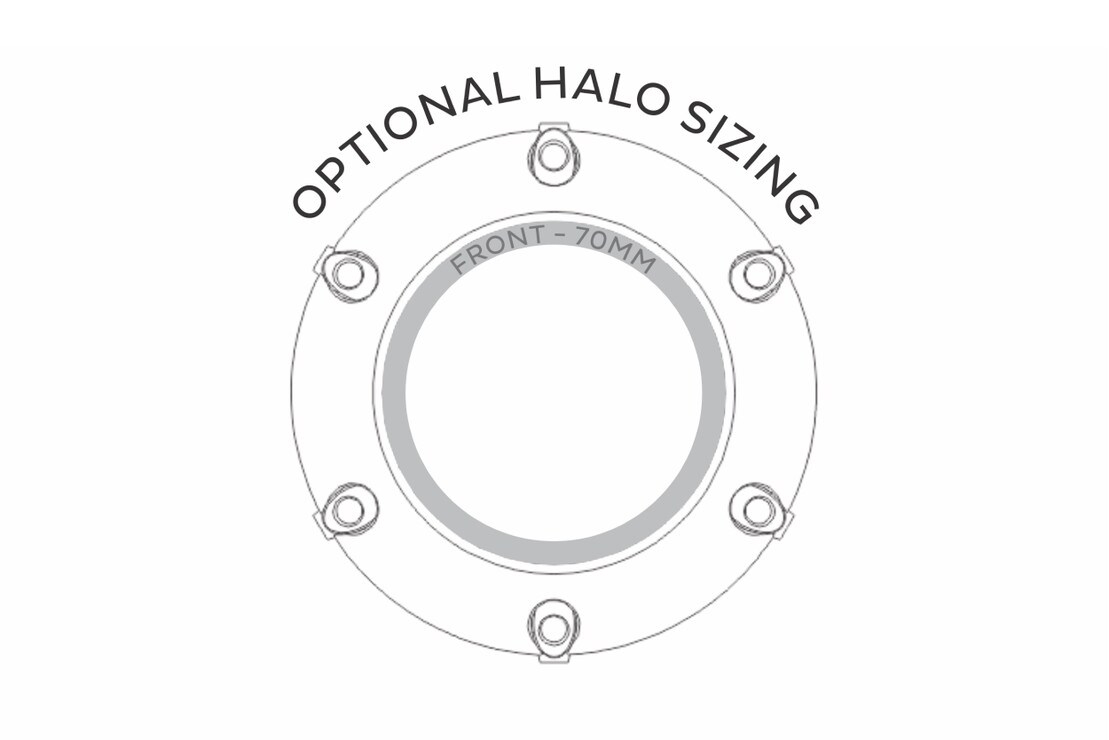

Halo Sizing: 70mm (Front)
Finish: Forever Finish Chrome

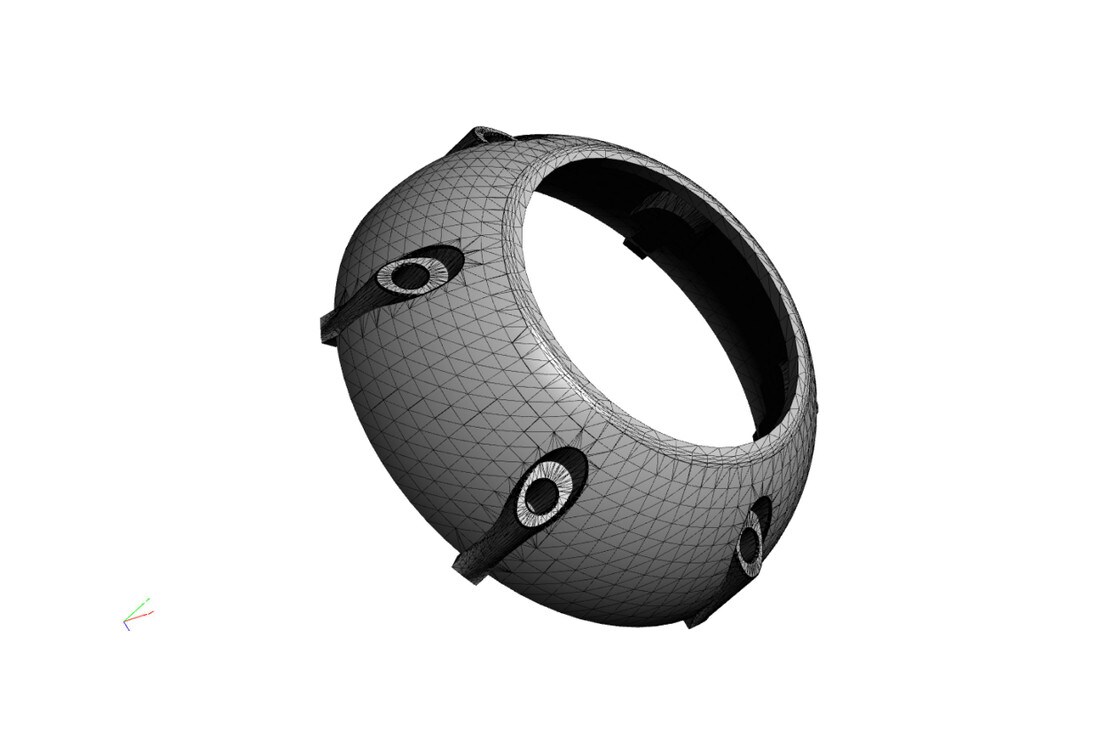

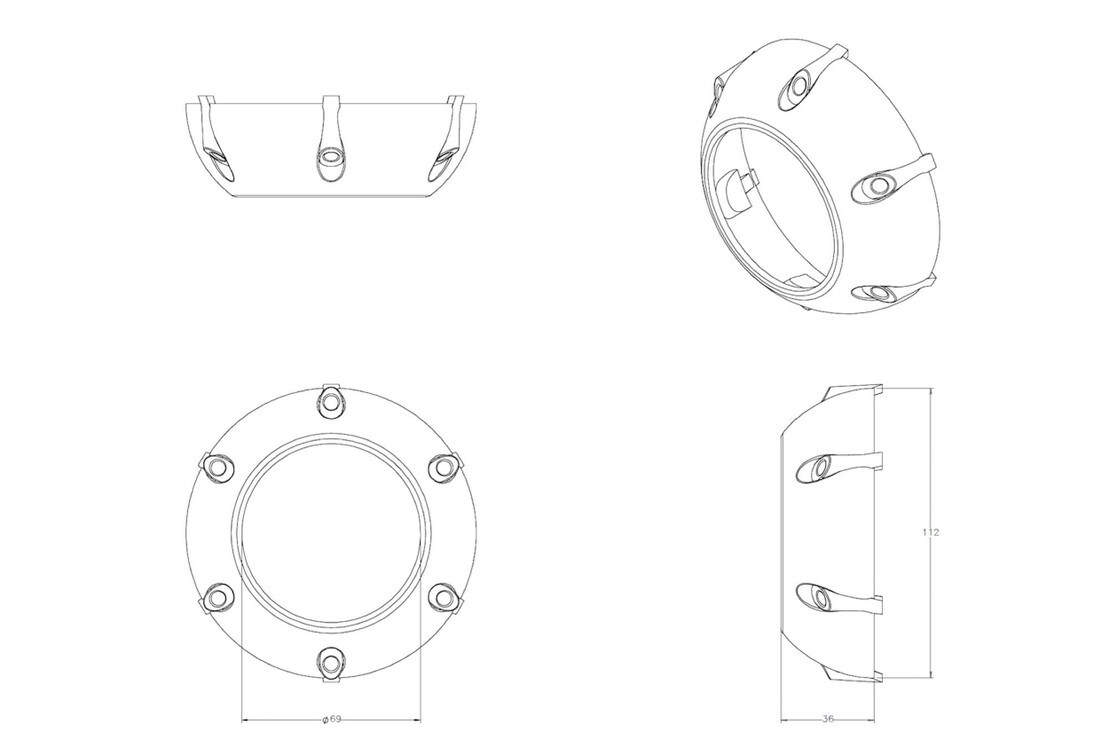

LINE DRAWINGS
COMPATIBILITY
MORIMOTO PROJECTORS: All except Matchbox
OEM PROJECTORS: Most except TL, LS430, LS460, Q45
LENS DIAMETERS: 2.5in and 3in Compatible
MOUNTS WITH: Centric Rings and/or JB Quik Weld
INSTALLATION DOCUMENTS

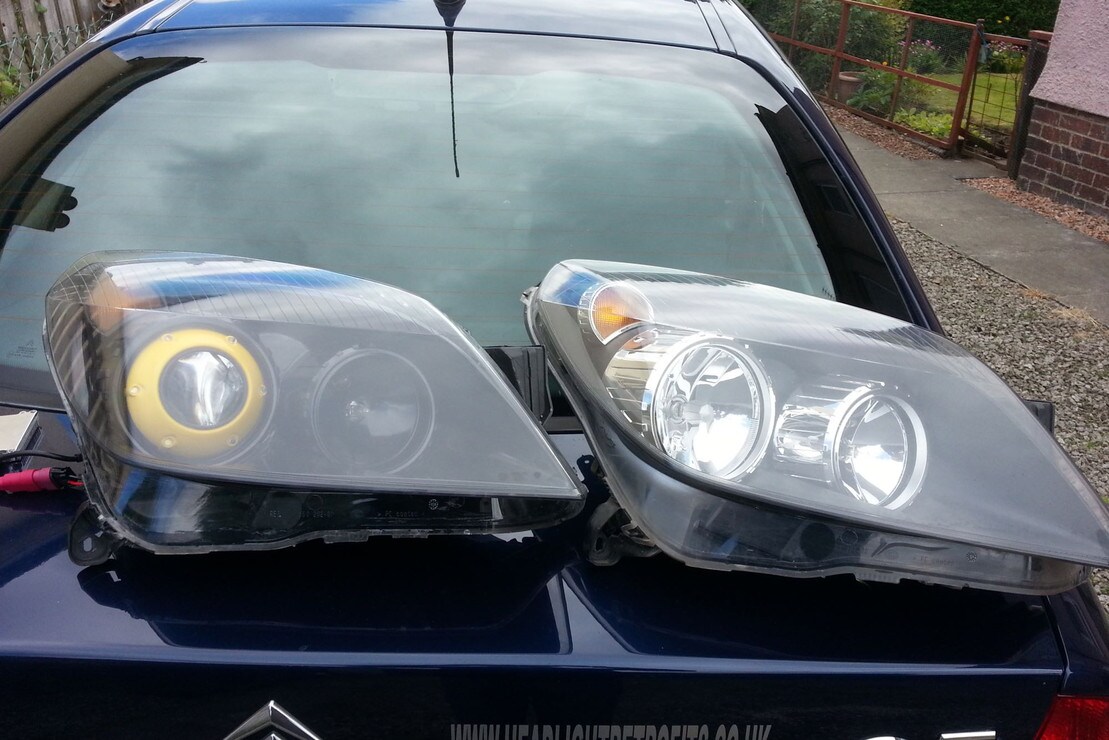

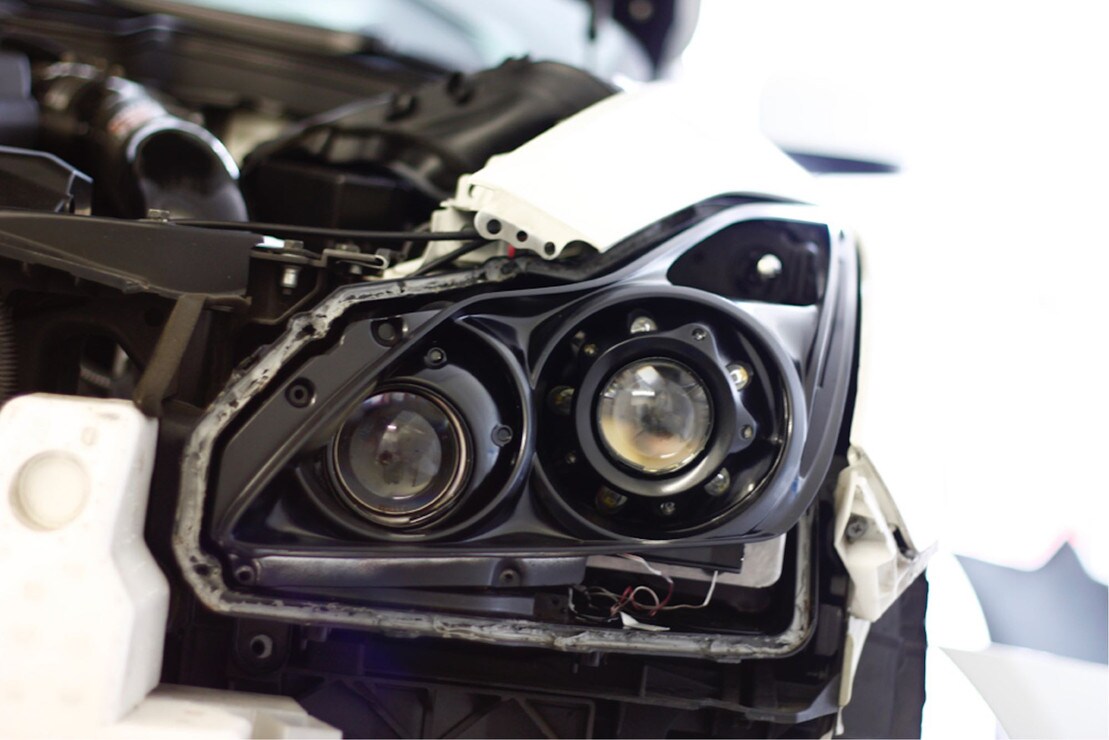

GTi-R: A smaller fully circular shape coupled with a series of dimples evenly arrayed around the face define the look of this clean design. Inspired by the VW GTI. Though small in size, these bezels still manage to completely cover many projectors from view, making them popular for smaller headlights or quad retrofits.
In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.

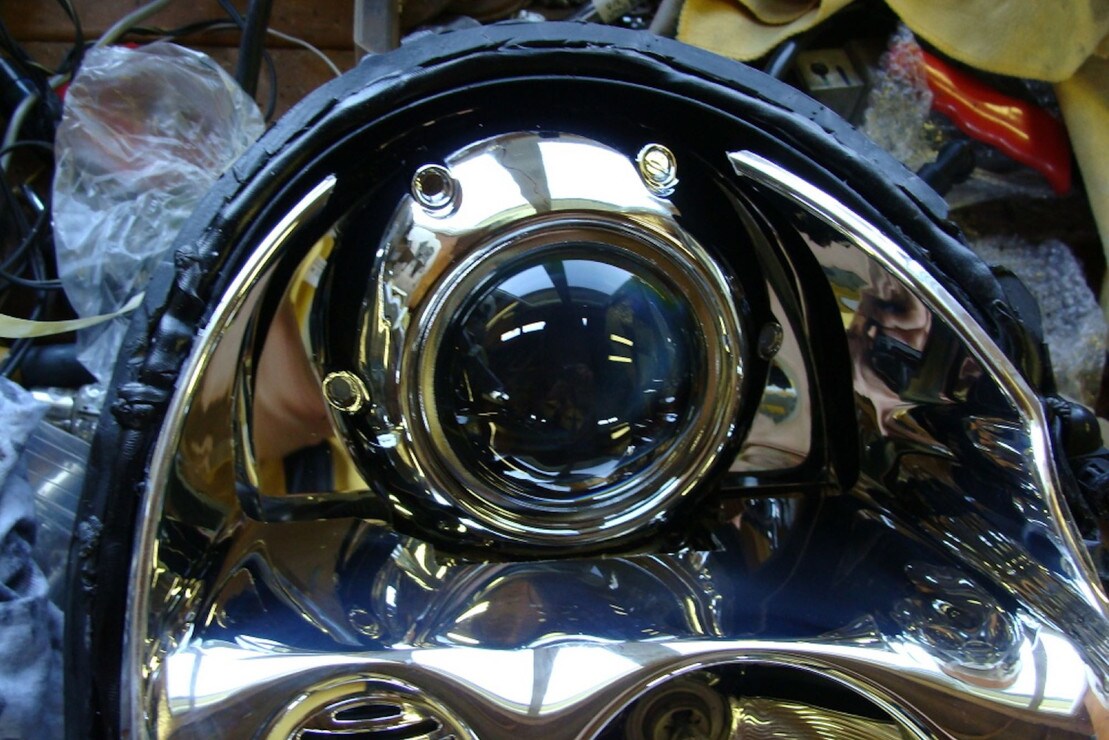

Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.

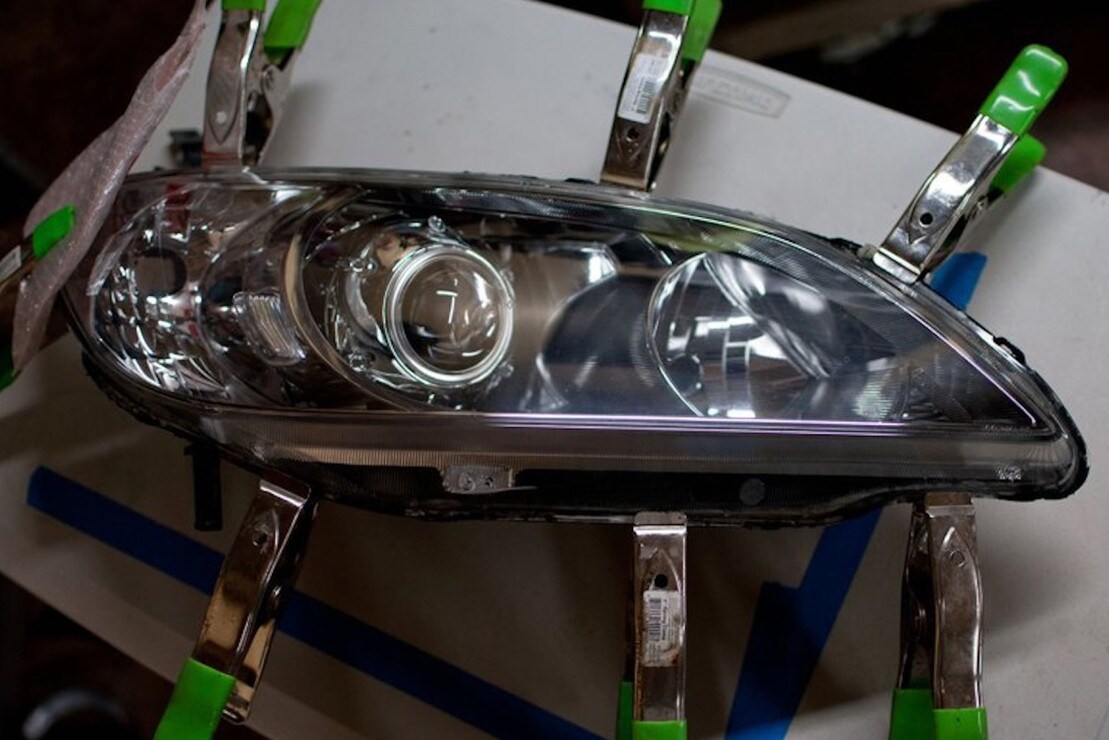

LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below.
Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
