  • Subaru WRX (15-21) Elite Series LED Fog Lights

Subaru WRX (15-21) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD105-HR

$219.95

PRODUCT OPTIONS

PART #: 1 x DD5128P



DESCRIPTION

Elevate your Subaru WRX driving experience with Diode Dynamics' Elite Series Fog Lamps, designed specifically for 2015-2021 models. These advanced LED fog lights go beyond factory and aftermarket options, offering a patent-pending optic, multi-die emitters, and full-copper circuit boards for a remarkable output that's 5 times brighter than halogens. Installation is a breeze thanks to the plug-and-play design, granting you enhanced visibility in a matter of minutes. Crafted with precision, the single-piece PMMA lens ensures a wide, glare-free light pattern that adheres to legal on-road standards. You can opt for a cool white 6000K or a high-contrast selective yellow 3000K light, both delivering exceptional efficiency. The fog lamps also feature an integrated amber accent light for an extra touch of elegance, all backed by Diode Dynamics' renowned commitment to quality and innovation.

FEATURES & BENEFITS

  • Enhance WRX Driving: Diode Dynamics' Elite Series Fog Lamps for 2015-2021 models.

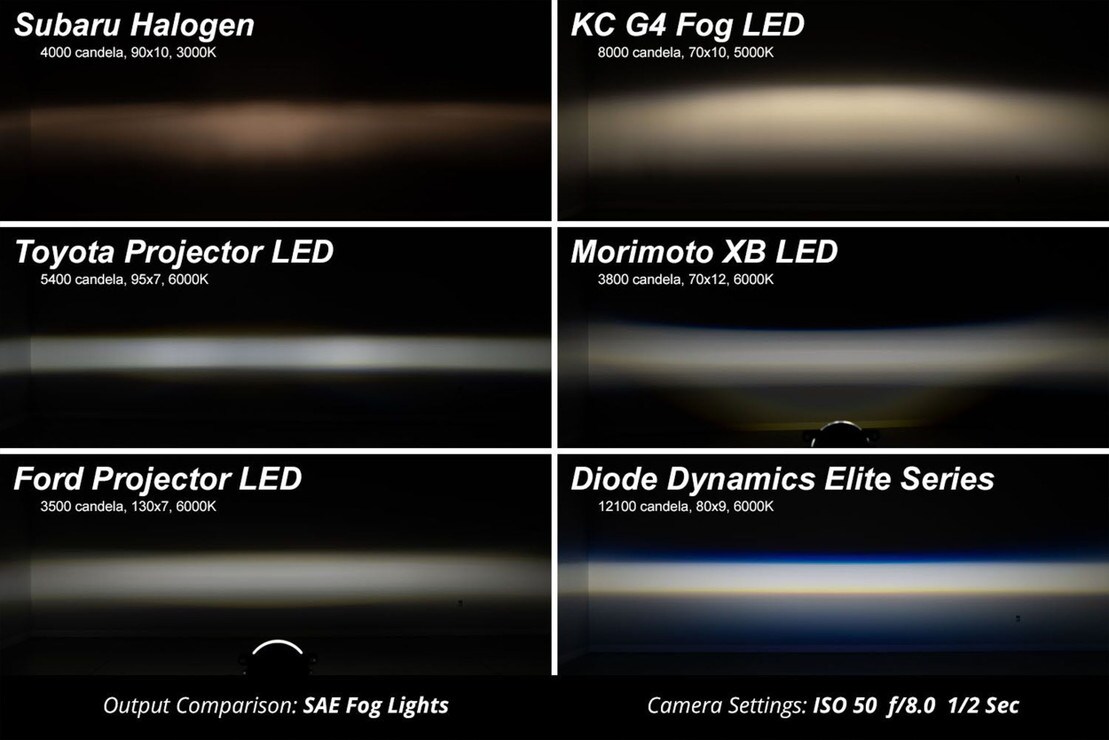

  • Bright & Efficient: Advanced LED technology, 5x brighter than halogens.
  • Easy Install: Plug-and-play setup for quick installation.
  • Compliant Design: Legal road norms, 6000K white or 3000K yellow options.

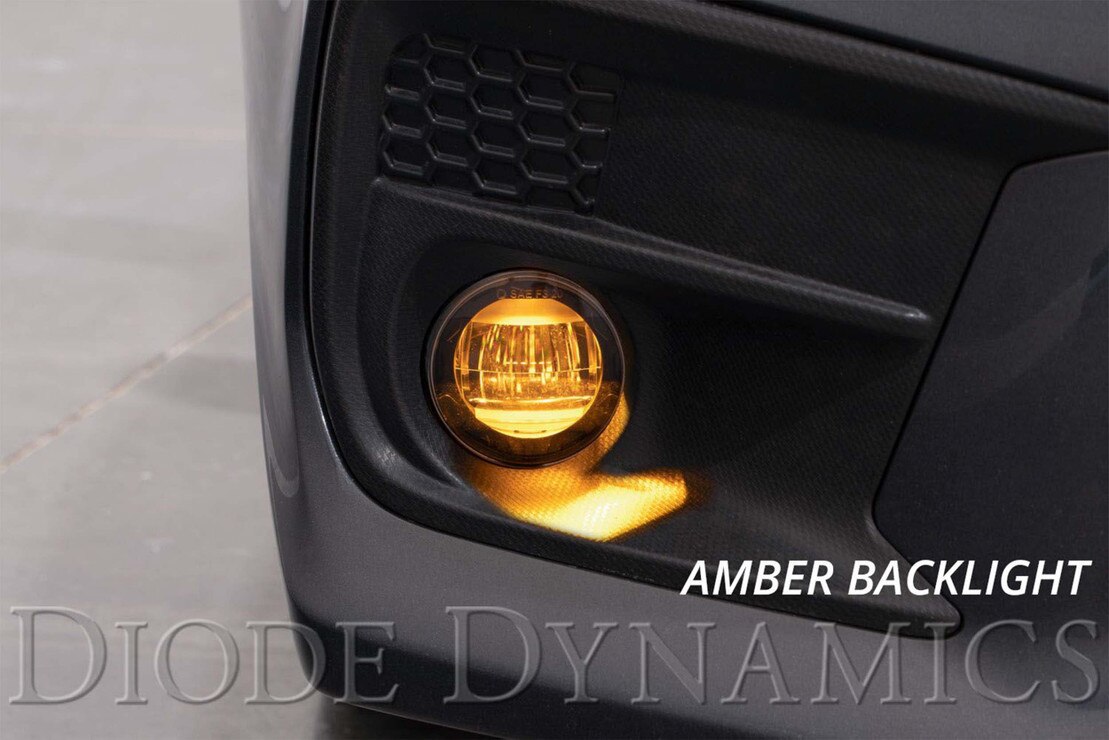

  • Innovative Quality: Includes amber accent light, showcasing innovation.

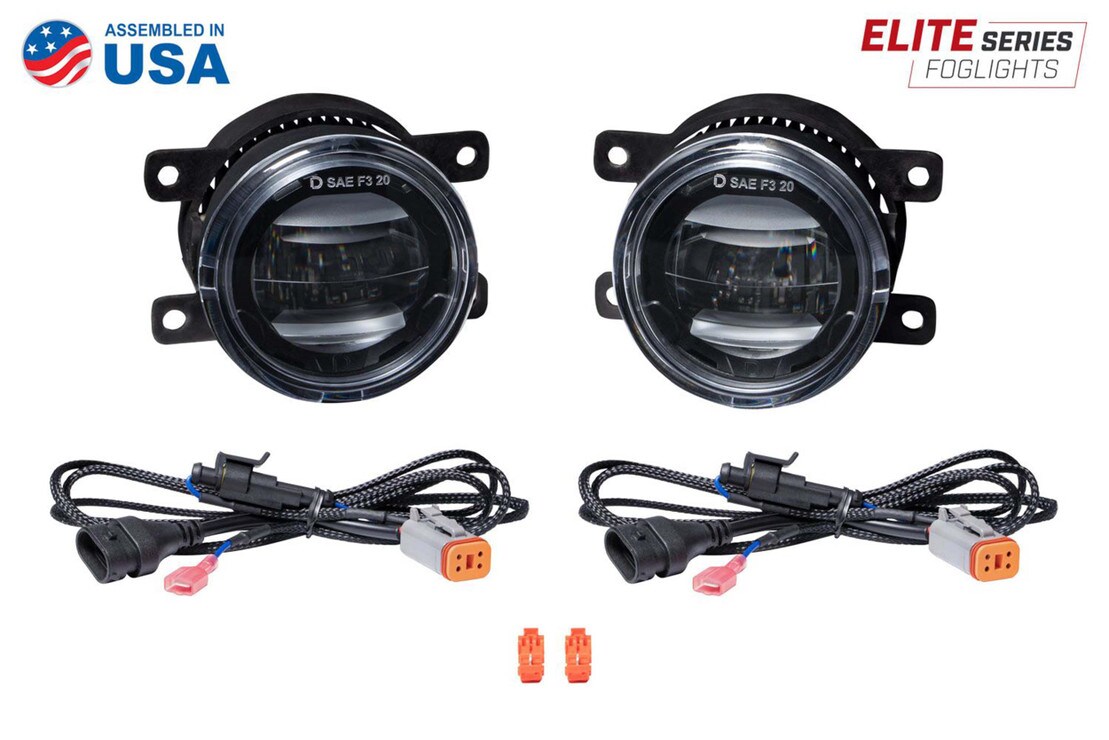

WHAT’S INCLUDED

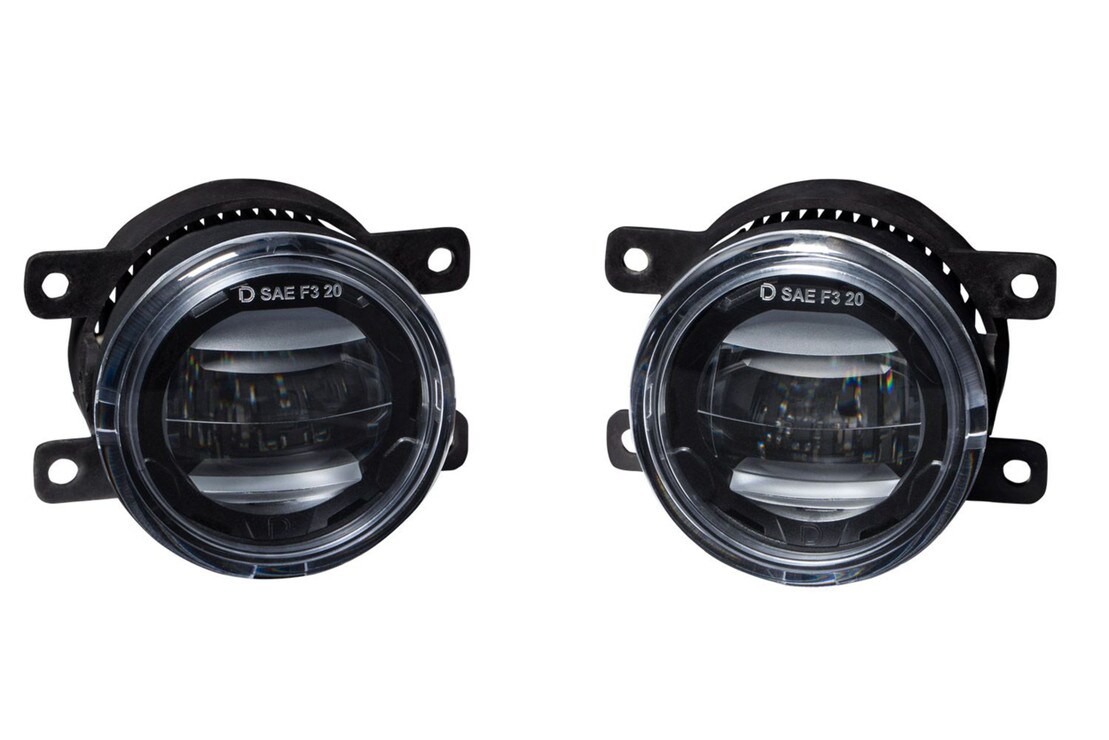

  • Fog Lights: 2x (One Pair) Elite Series Type A Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

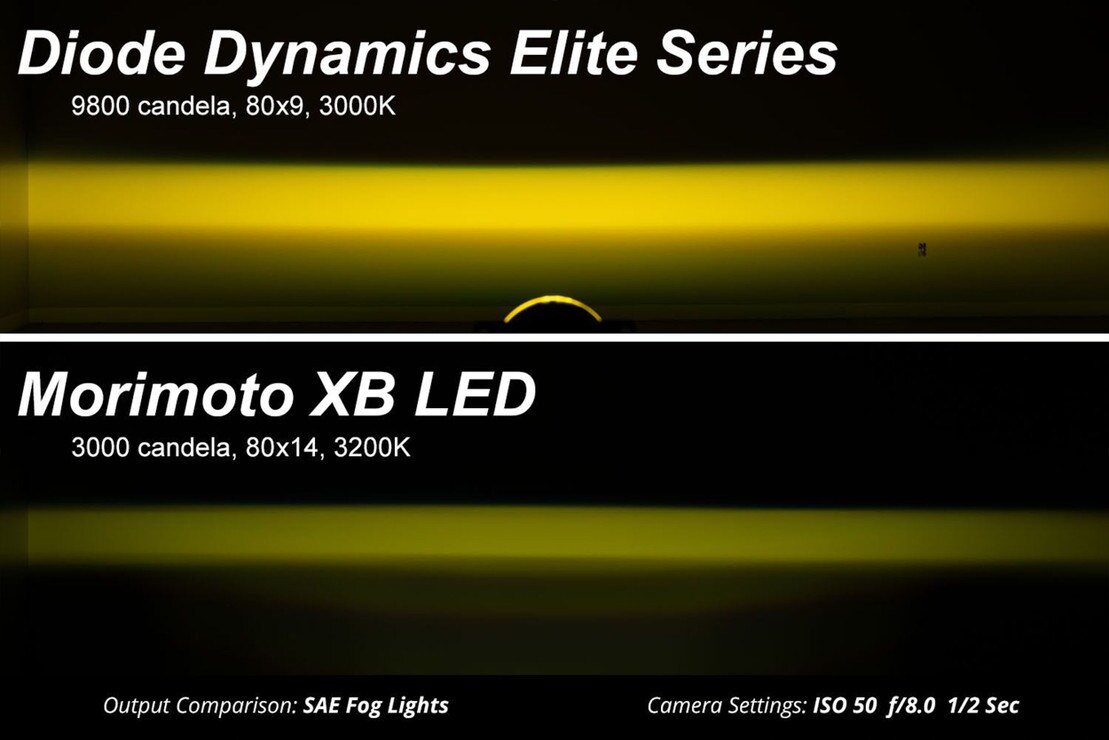

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

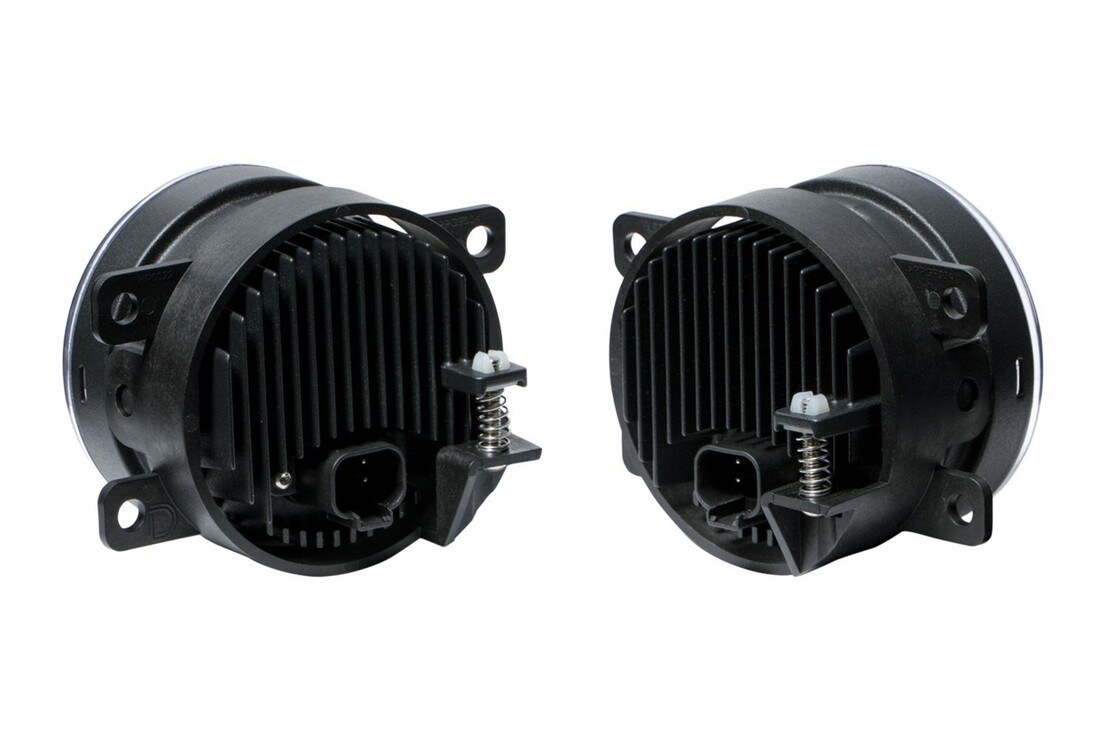

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

  • Subaru WRX: 2015-2021

  • Subaru WRX Sti: 2015-2017

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
