  • Ford Ranger (19-22) Elite Series LED Fog Lights

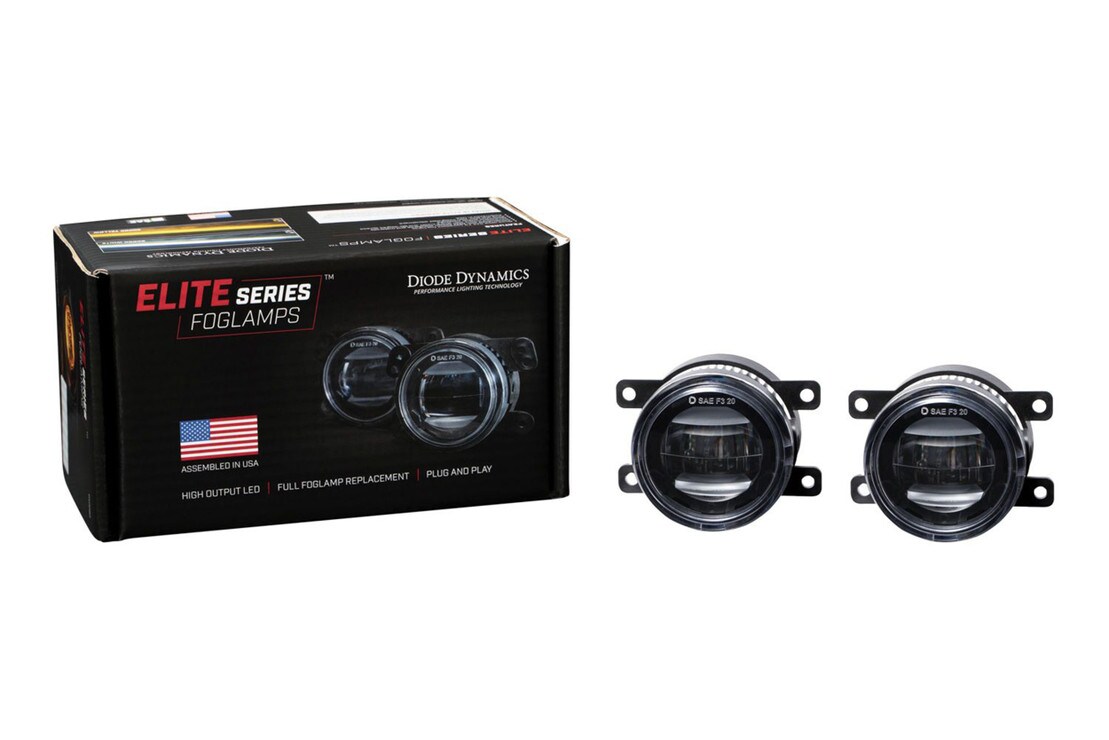

Ford Ranger (19-22) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD89-HR

$219.95

PRODUCT OPTIONS

PART #: 1 x DD5128P



DESCRIPTION

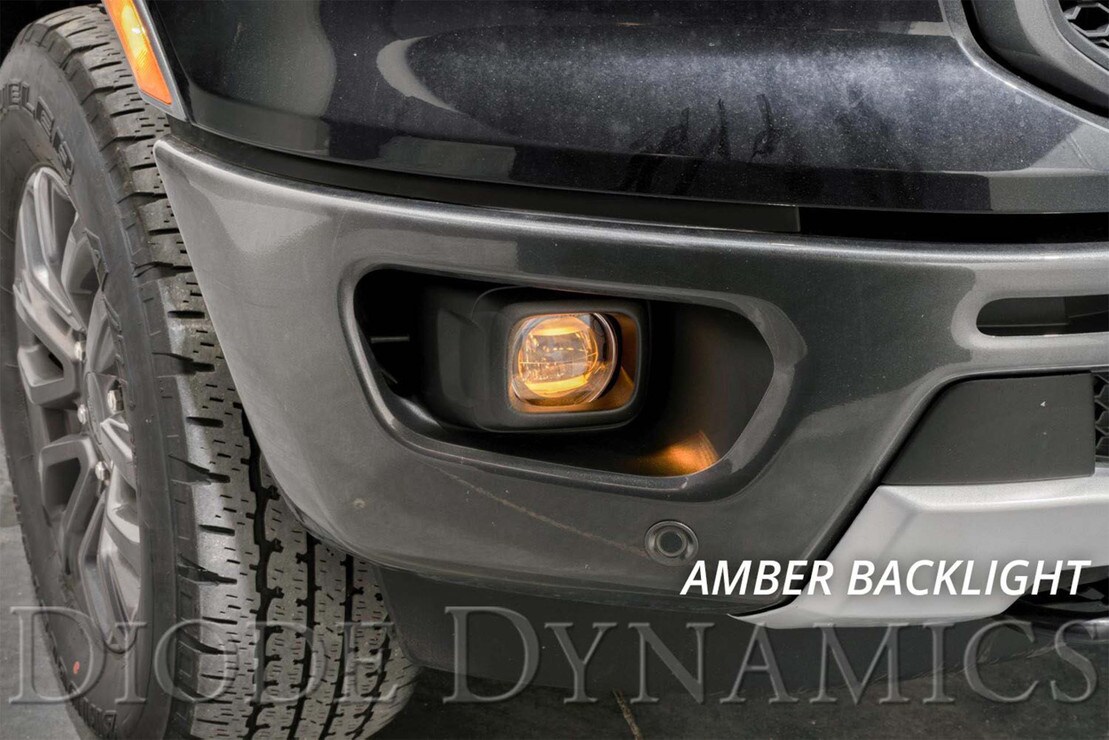

Elevate your driving experience with Diode Dynamics' Elite Series Fog Lamps, tailor-made for 2019-2022 Ford Ranger vehicles. These cutting-edge LEDs redefine fog light performance, boasting a 5 times brighter output compared to traditional halogens. Their innovative design includes a patent-pending optic, multi-die emitters, and full-copper circuit boards, ensuring top-tier illumination quality. With a hassle-free plug-and-play setup, you can enjoy enhanced visibility in challenging conditions within minutes of installation. These lamps feature a precision-engineered single-piece PMMA lens that delivers a wider, smoother, and glare-free light pattern, meeting legal on-road standards. Choose between a cool white 6000K or a high-contrast selective yellow 3000K option, both providing unparalleled efficiency. The lamps also come with an integrated amber accent light, adding a touch of sophistication to your vehicle. Crafted in the USA, these lamps include an impressive 8-year limited warranty, solidifying Diode Dynamics' reputation as a trusted innovator in automotive LED lighting.

FEATURES & BENEFITS

  • Elevate Your Drive: Diode Dynamics' Elite Fog Lamps for 2019-2022 Ford Ranger vehicles.

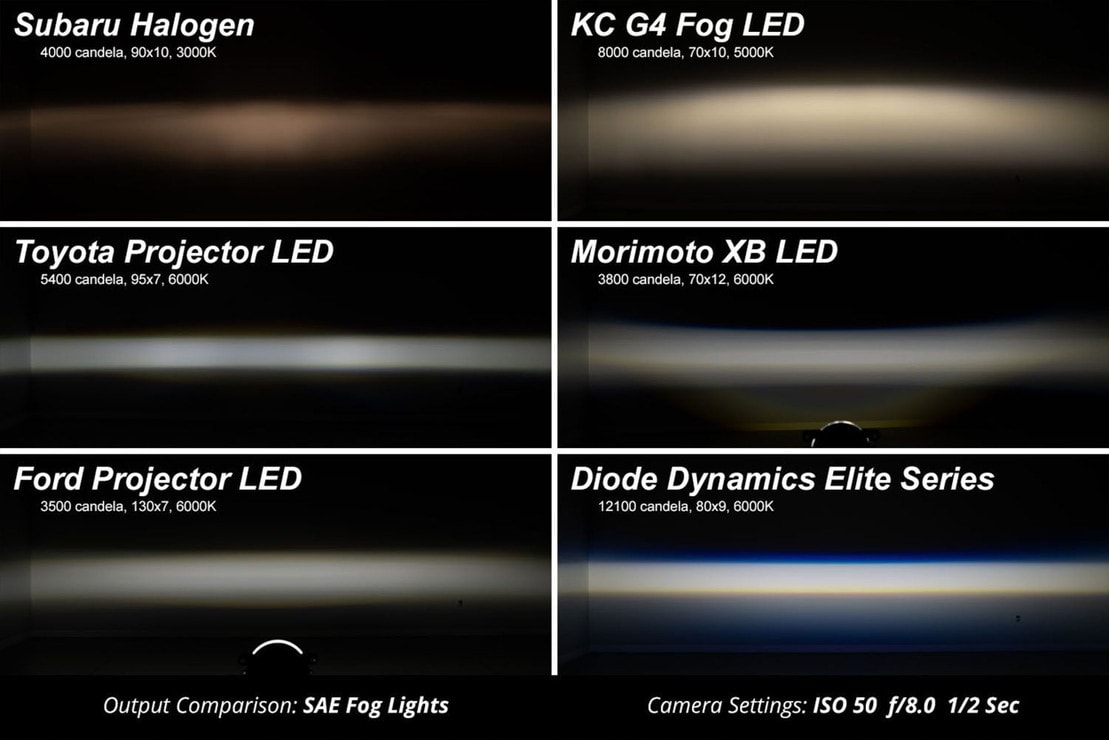

  • 5x Brighter: LEDs outshine halogens, patented optics for top-tier illumination.
  • Easy Install: Hassle-free plug-and-play setup for enhanced visibility in minutes.
  • Color Options: Choose 6000K or 3000K light, with integrated amber accent.
  • 8-Year Warranty: Crafted in the USA, backed by Diode Dynamics' trust.

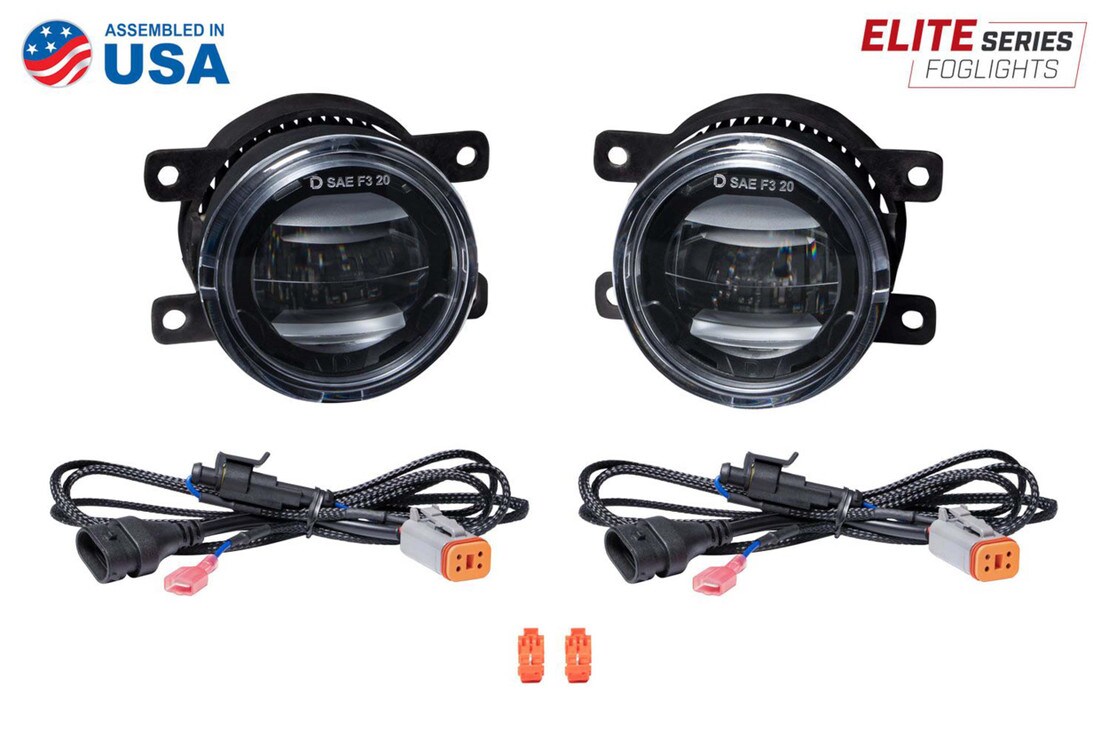

WHAT’S INCLUDED

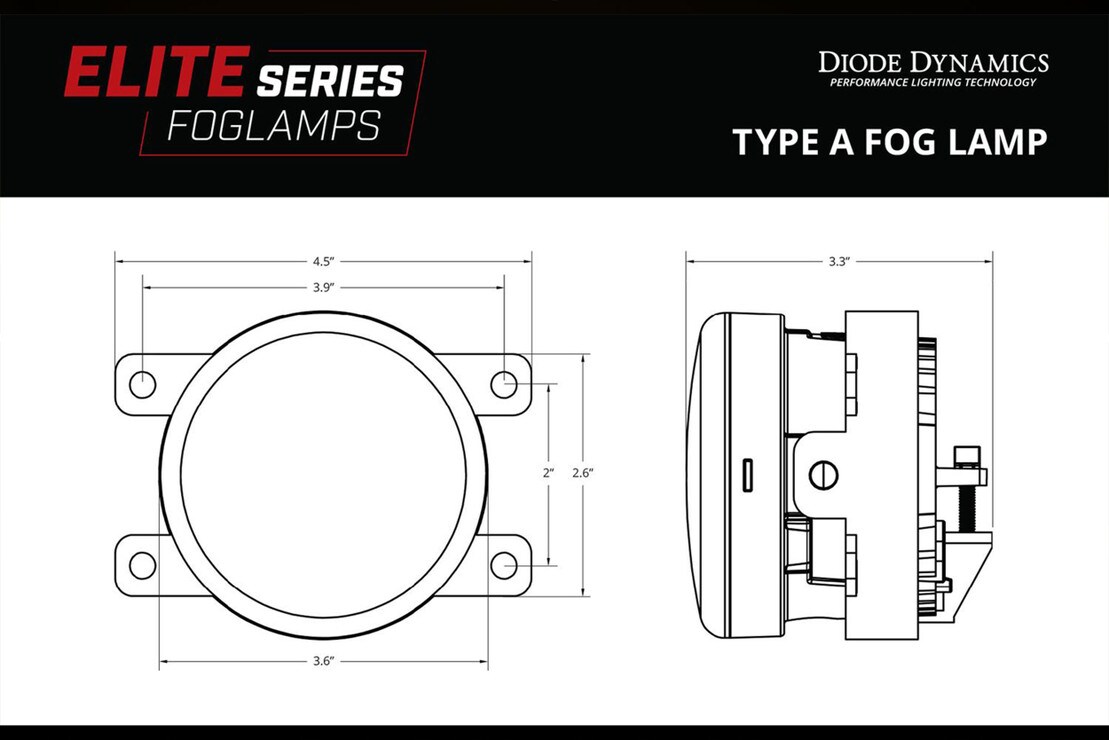

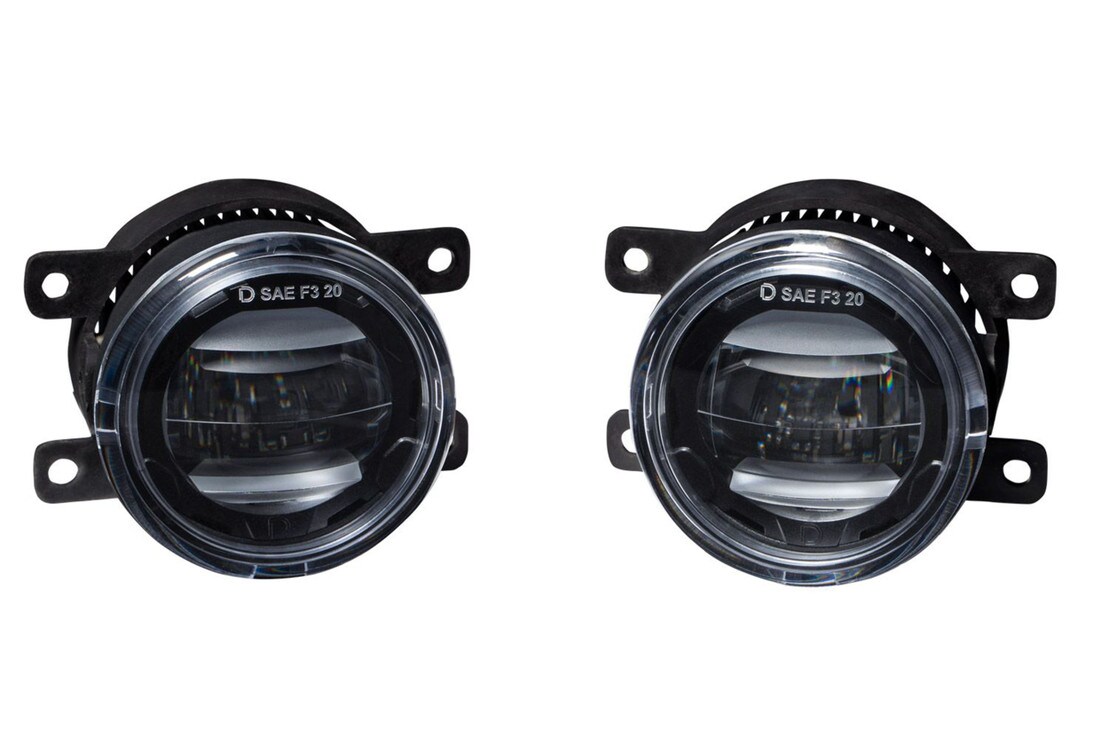

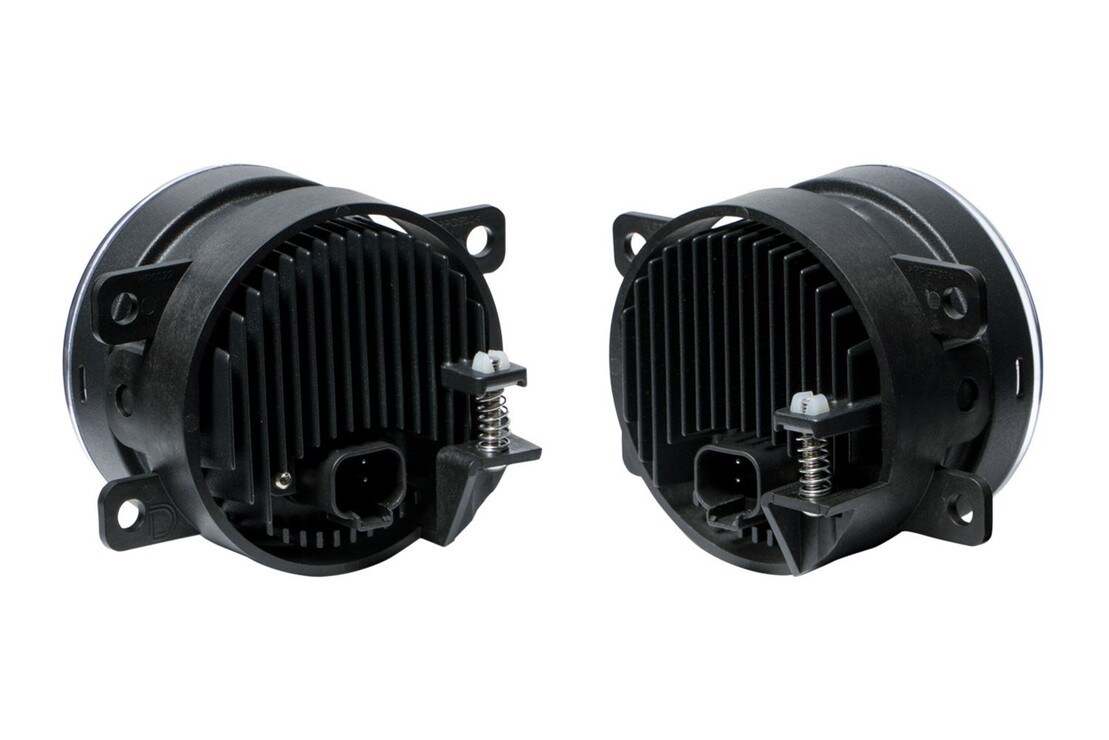

  • Fog Lights: 2x (One Pair) Elite Series Type A Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

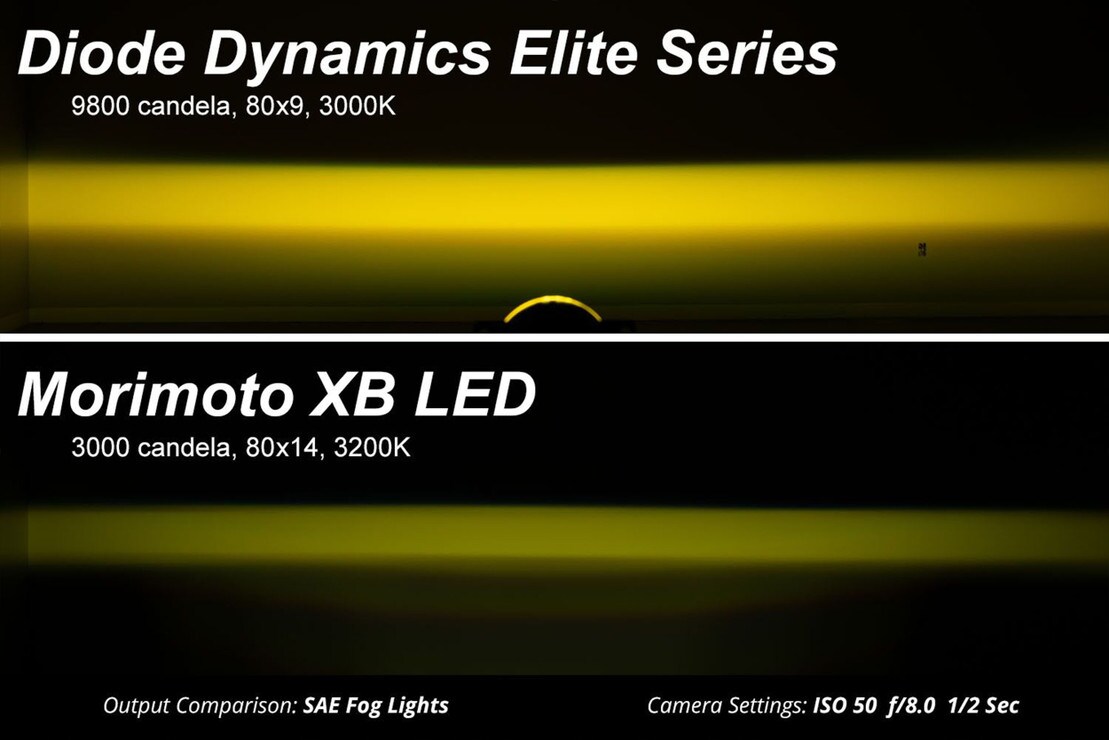

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

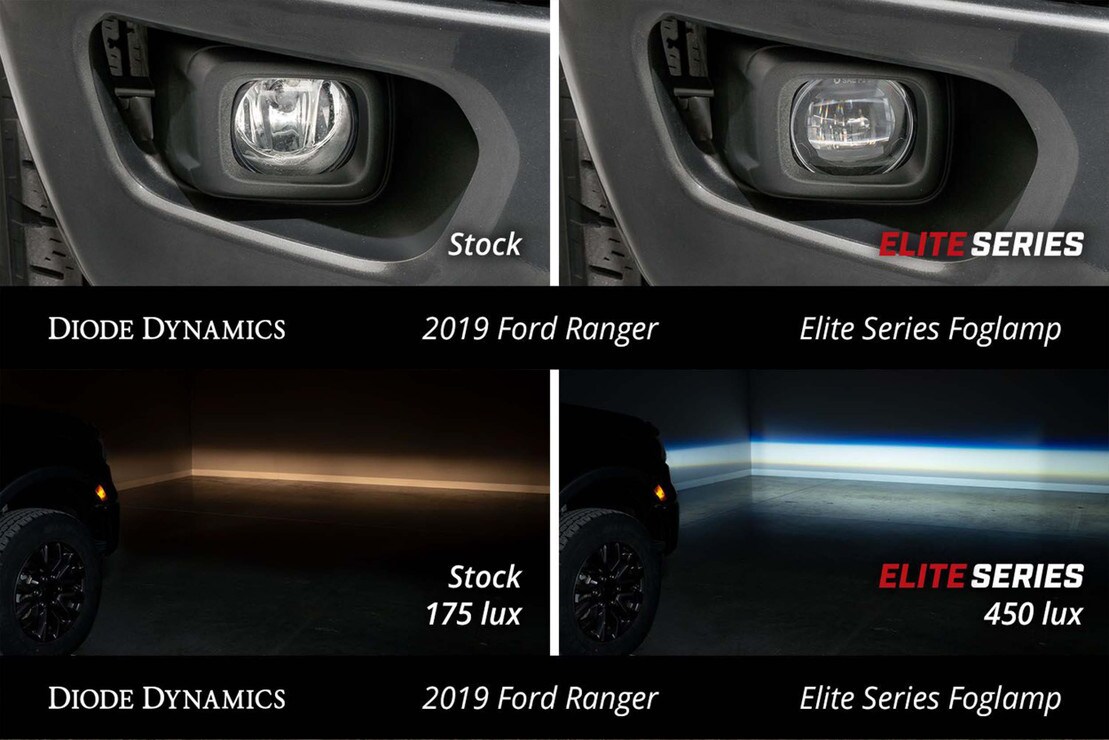

  • Ford Ranger: 2019-2023

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
