Ford F-150 (15-20) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD86-HR

$219.95

PRODUCT OPTIONS

PART #: 1 x DD5171P



DESCRIPTION

Transform your 2015-2020 Ford F-150 driving adventure with the Elite Series Fog Lamps by Diode Dynamics. These cutting-edge LED fog lamps have redefined the standard for performance and style, surpassing both factory and aftermarket alternatives. Boasting features such as patent-pending optics, multi-die emitters, and full-copper circuit boards, these lamps produce an astonishing output that's five times brighter than traditional halogens. Designed for effortless plug-and-play installation, they provide instant visibility improvement in even the most challenging conditions. Experience an unparalleled light pattern through the precisely engineered single-piece PMMA lens, meeting legal on-road standards while offering broader coverage and reduced glare. Tailor your illumination with a choice between the cool white 6000K or high-contrast selective yellow 3000K option, both promising peak efficiency. The seamlessly integrated amber accent light adds a touch of refinement, and these USA-assembled lamps are backed by an impressive 8-year limited warranty.

FEATURES & BENEFITS

  • Enhanced Driving: Diode Dynamics' Elite Series Fog Lamps for 2015-2020 Ford F-150 trucks.

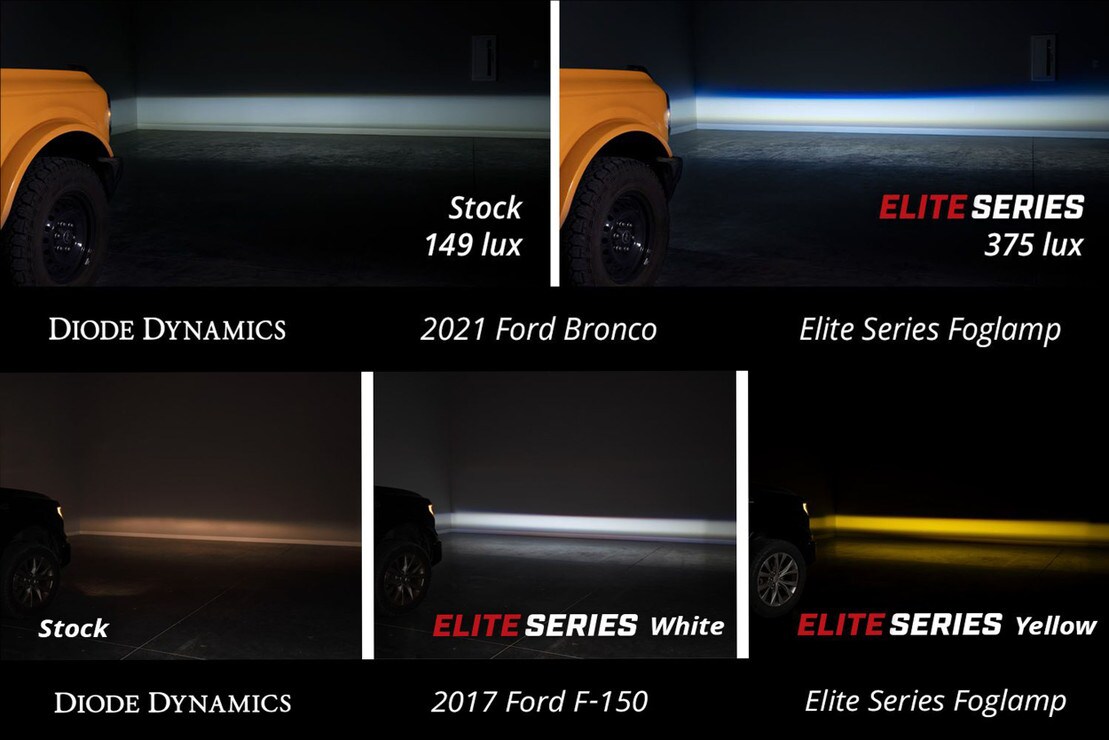

  • Superior Illumination: LED lamps outshine others with patent-pending optics and 5x brightness.
  • Easy Setup: Plug-and-play installation, compliant on-road light pattern, and color options.
  • Premium Quality: Crafted in the USA, backed by an 8-year warranty.

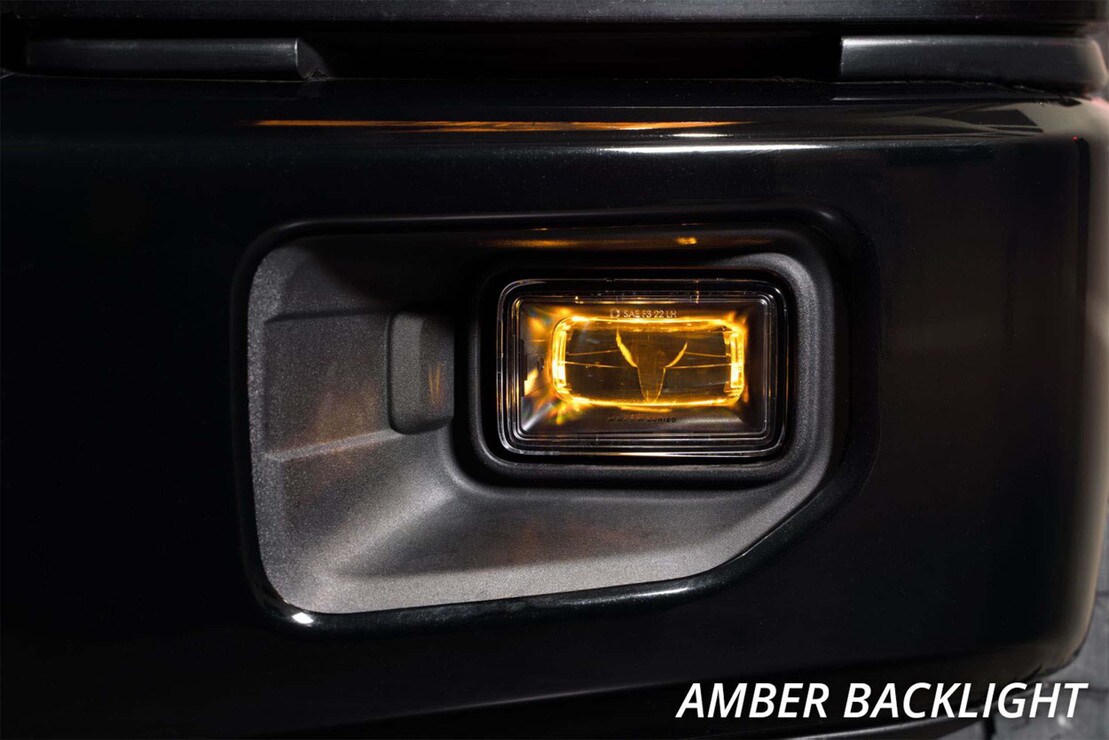

  • Distinctive Style: Integrated amber accent light adds refinement to your vehicle.

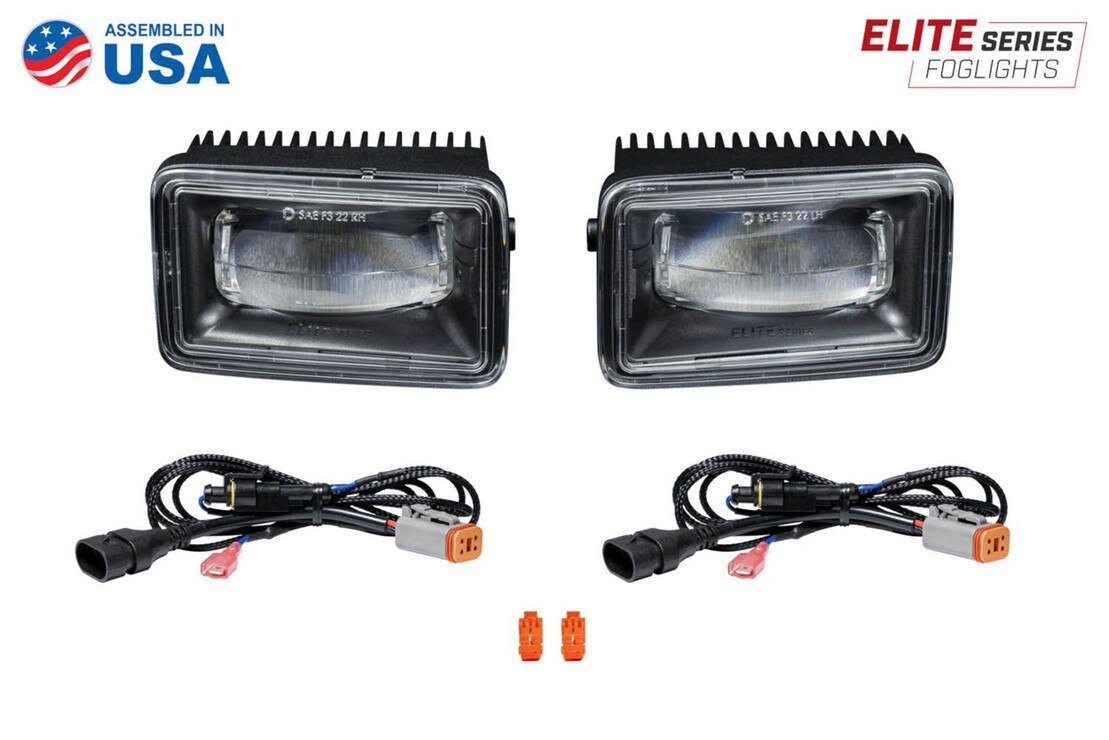

WHAT’S INCLUDED

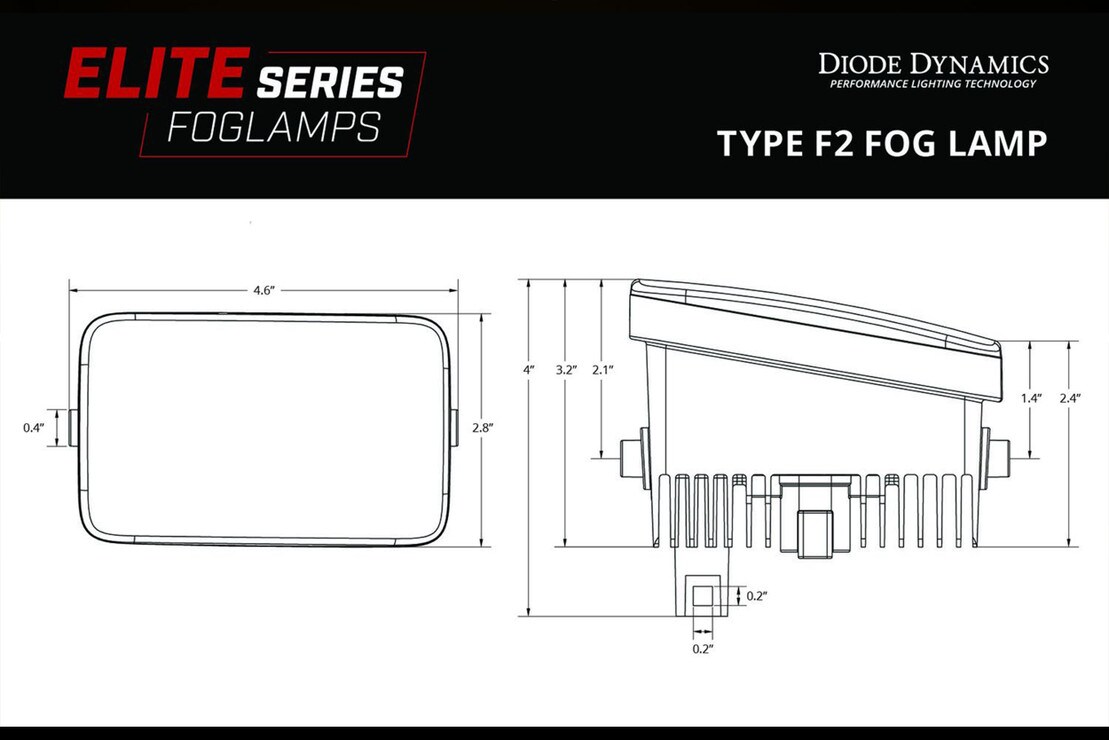

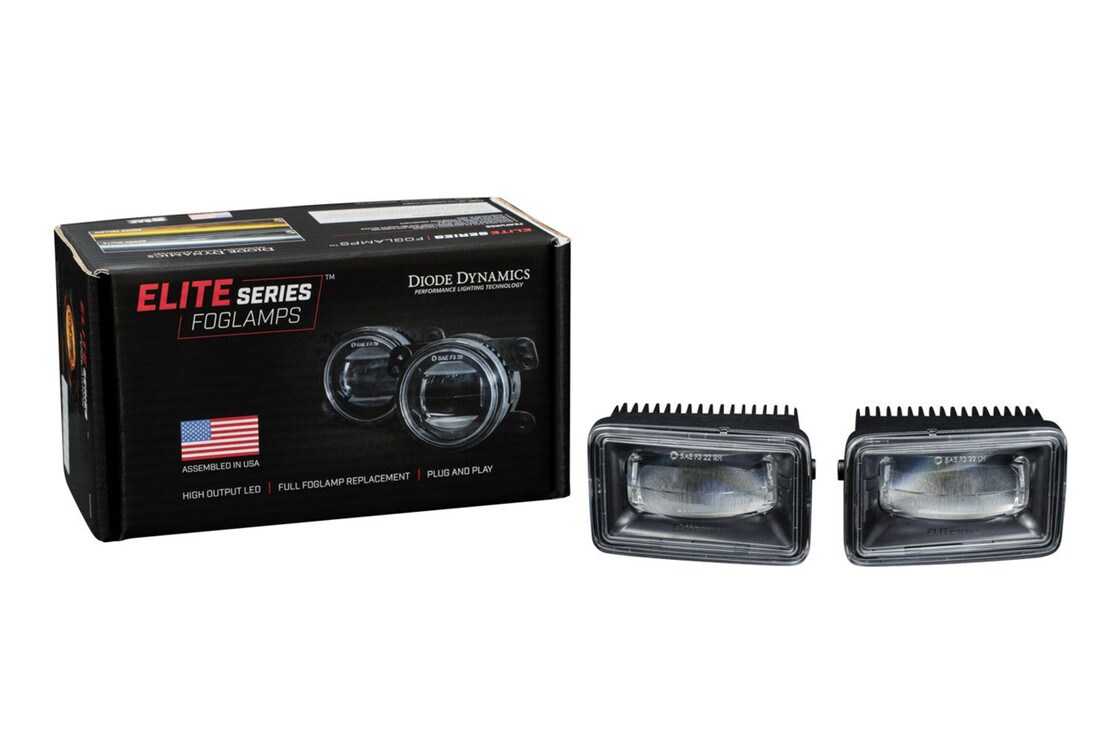

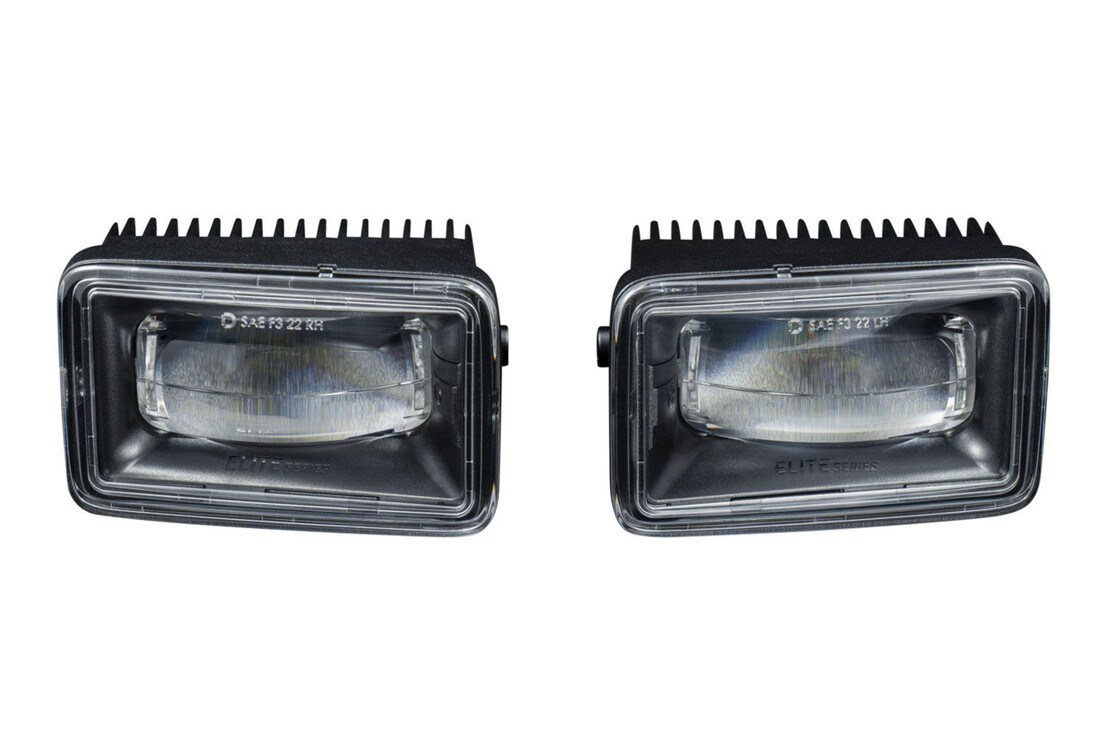

  • Fog Lights: 2x (One Pair) Elite Series Type F2 Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play 9005/9006 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

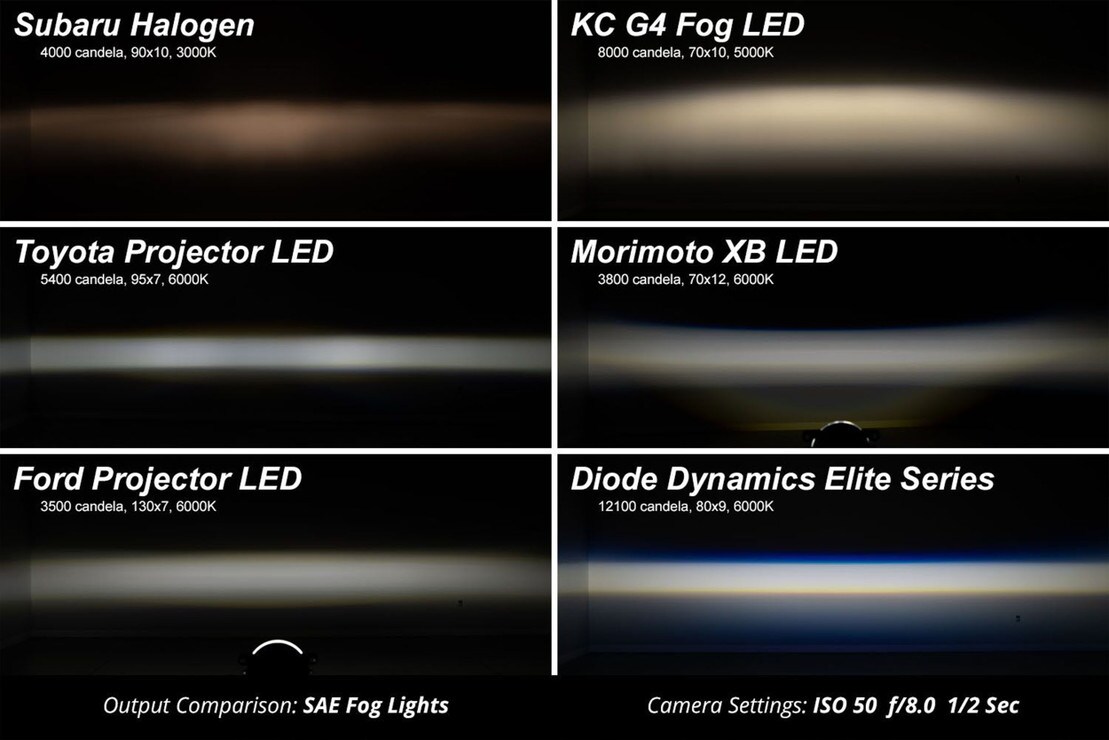

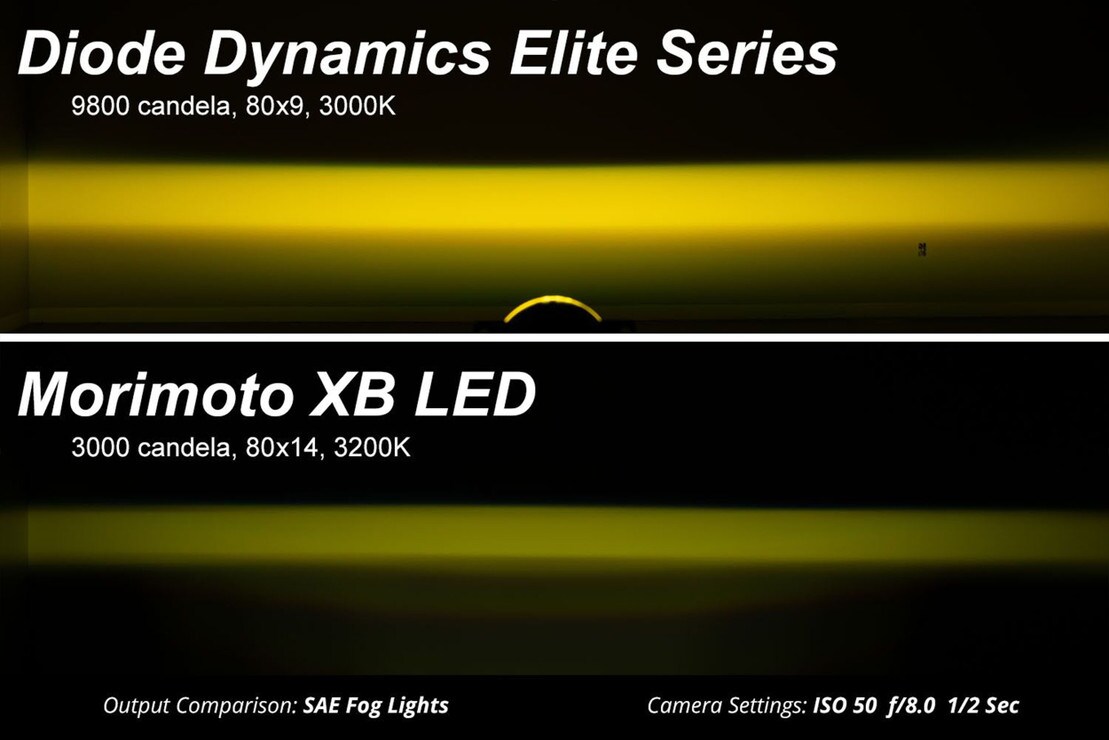

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

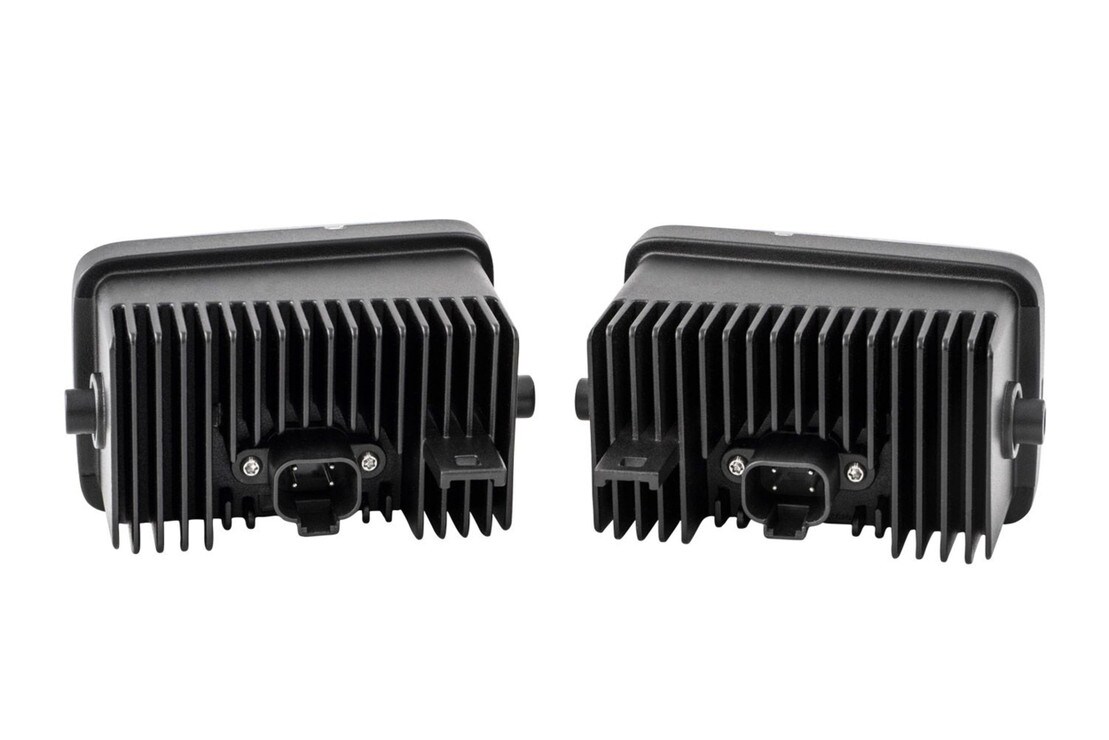

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

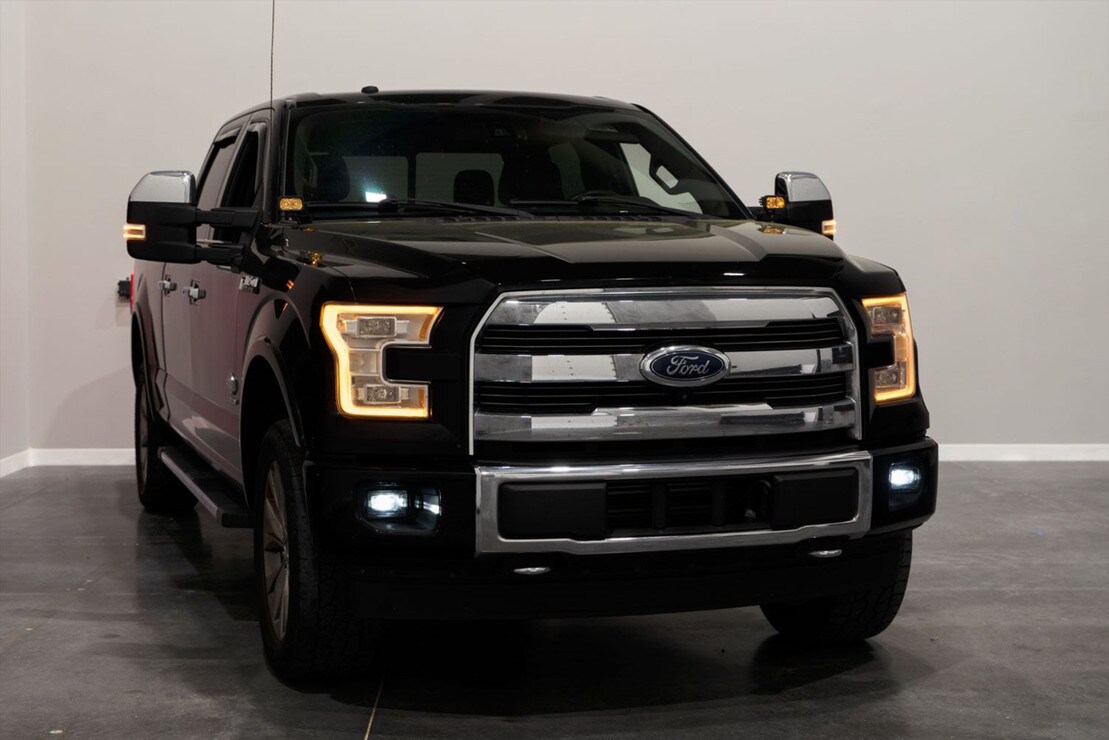

  • Ford F-150: 2015-2020

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
