Ford Bronco (21-24) Elite Series LED Fog (White / Yellow)

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD88-HR

$219.95

PRODUCT OPTIONS

PART #: 1 x DD5128P



DESCRIPTION

Upgrade your 21-24 Ford Bronco with Diode Dynamics' revolutionary Elite Series Fog Lamps, designed to set new benchmarks in fog light performance. Featuring cutting-edge LEDs, these lamps surpass industry standards with a patent-pending optic, multi-die emitters, and full-copper circuit boards. Experience a striking 5-fold increase in brightness compared to conventional halogens, providing unparalleled visibility in challenging conditions. The hassle-free plug-and-play installation ensures quick enhancement to your driving environment. These lamps boast a meticulously engineered single-piece PMMA lens, delivering a wider, smoother, and glare-free light pattern that aligns with legal on-road requirements. Select between a cool white 6000K or a high-contrast selective yellow 3000K option for optimal efficiency. Adding a touch of elegance, the integrated amber accent light complements the overall design. Crafted in the USA, these lamps come with an impressive 8-year limited warranty, solidifying Diode Dynamics' reputation as a trailblazer in automotive LED innovation.

FEATURES & BENEFITS

  • Upgrade Your Bronco: Diode Dynamics' Elite Series Fog Lamps offer revolutionary LED performance.

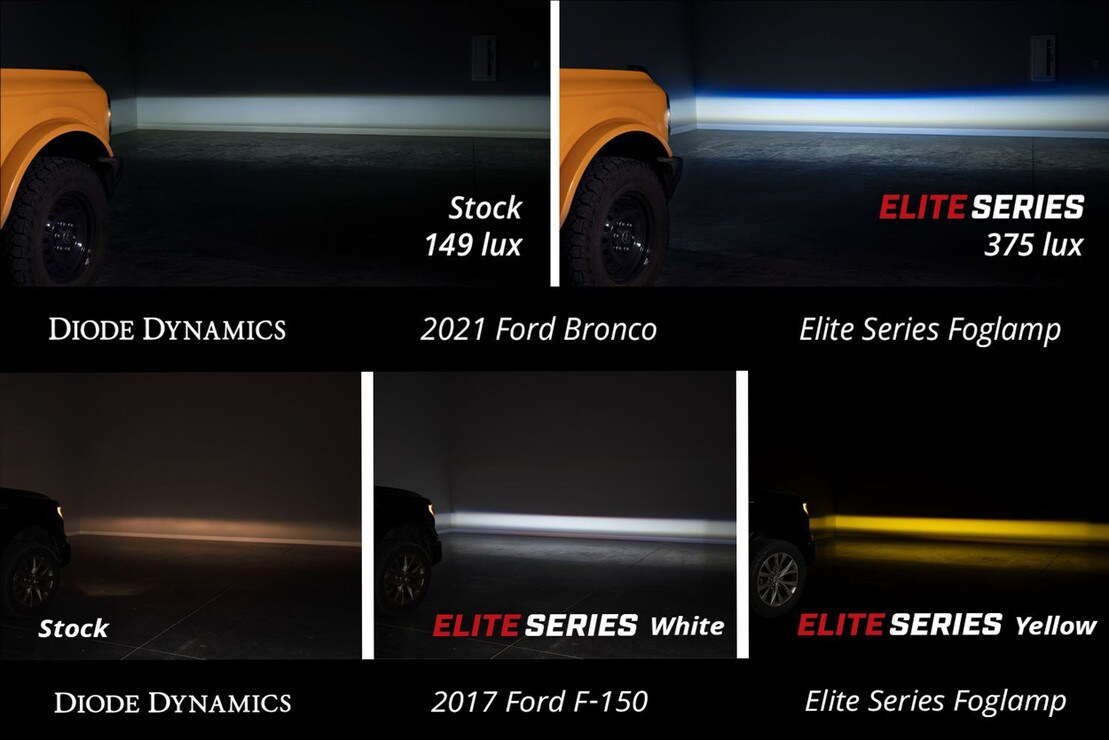

  • 5x Brighter: Outshine halogens with 5-fold increased brightness for exceptional visibility.
  • Easy Installation: Hassle-free plug-and-play setup for quick enhancement.

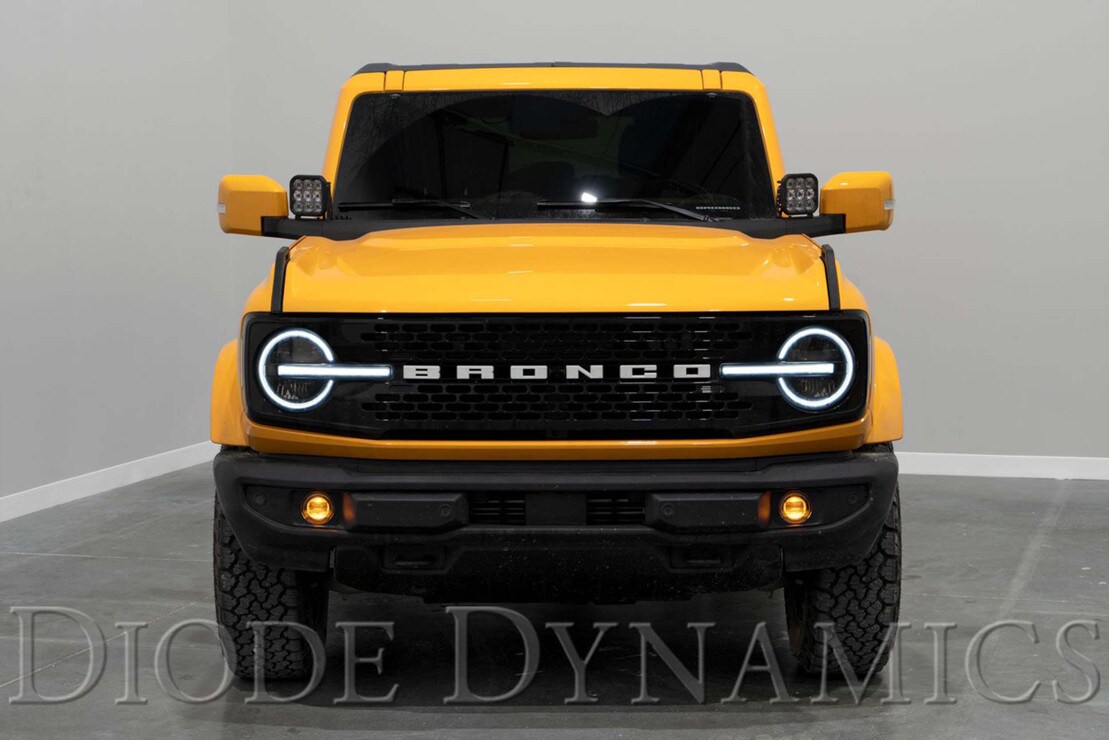

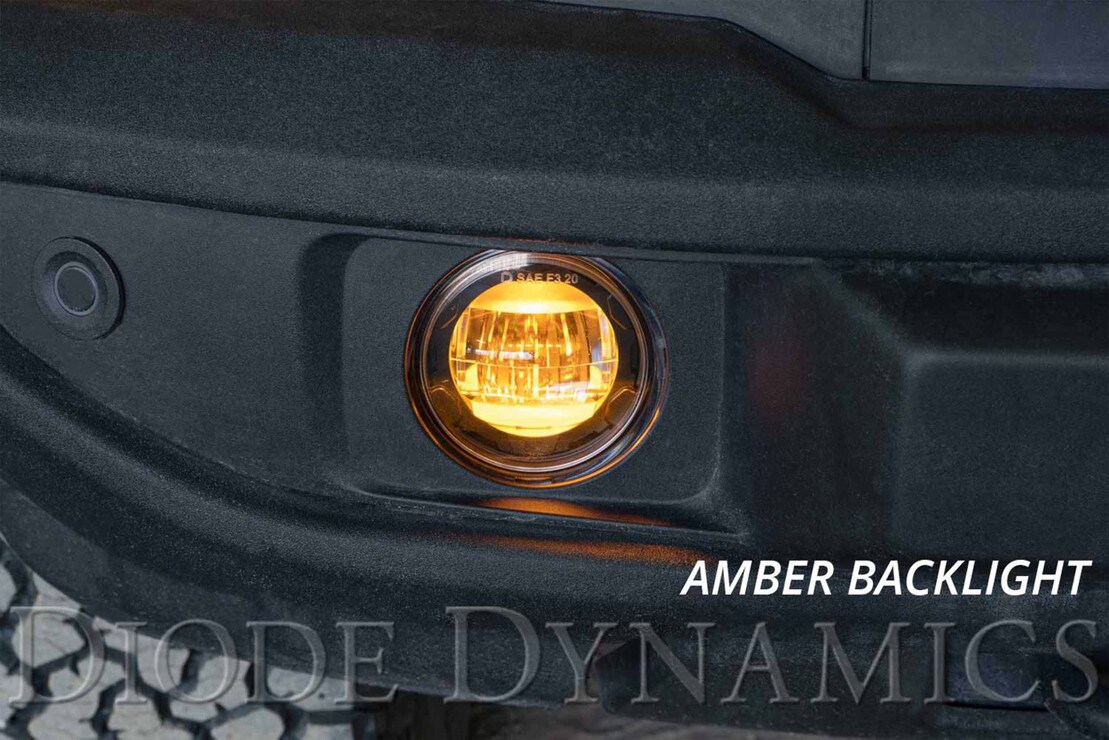

  • Customizable Options: Choose from 6000K white or 3000K yellow light with an elegant amber accent.
  • Made in the USA: Crafted in the USA with an impressive 8-year limited warranty.

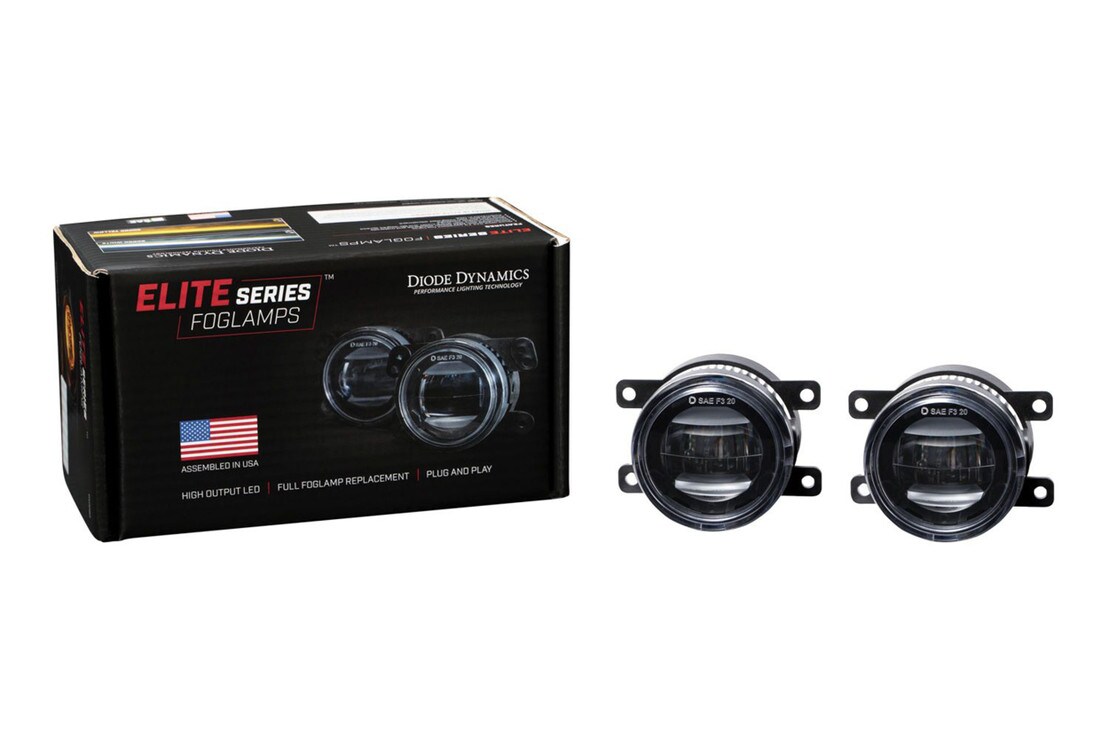

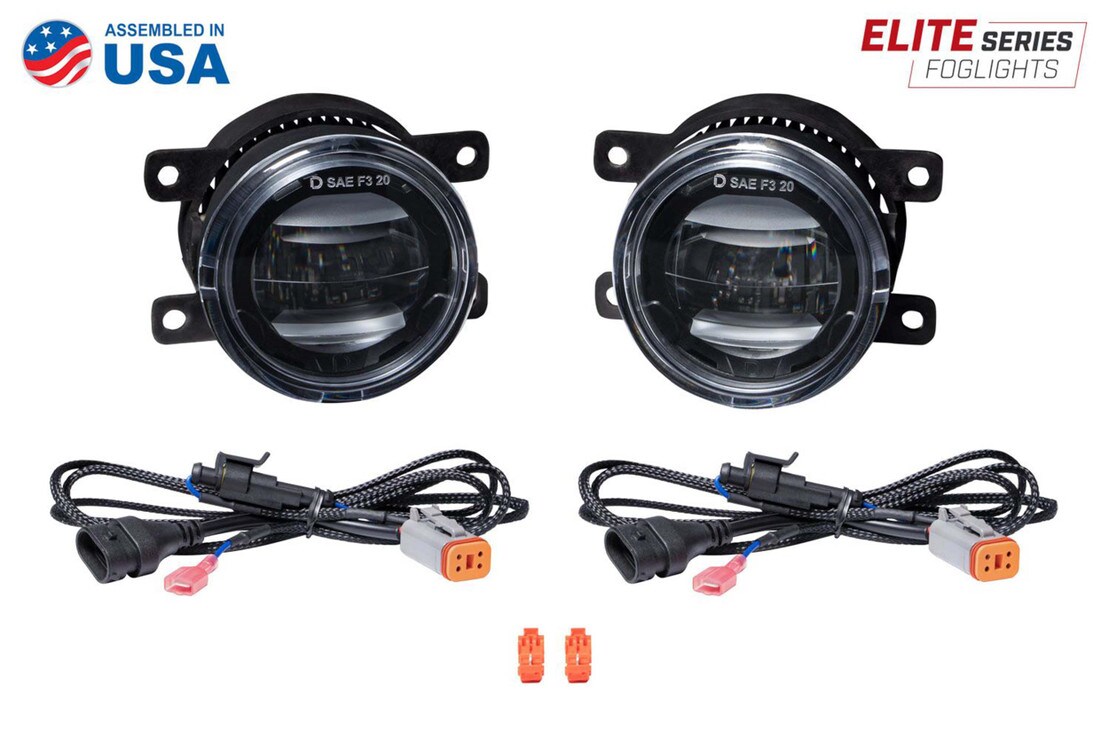

WHAT’S INCLUDED

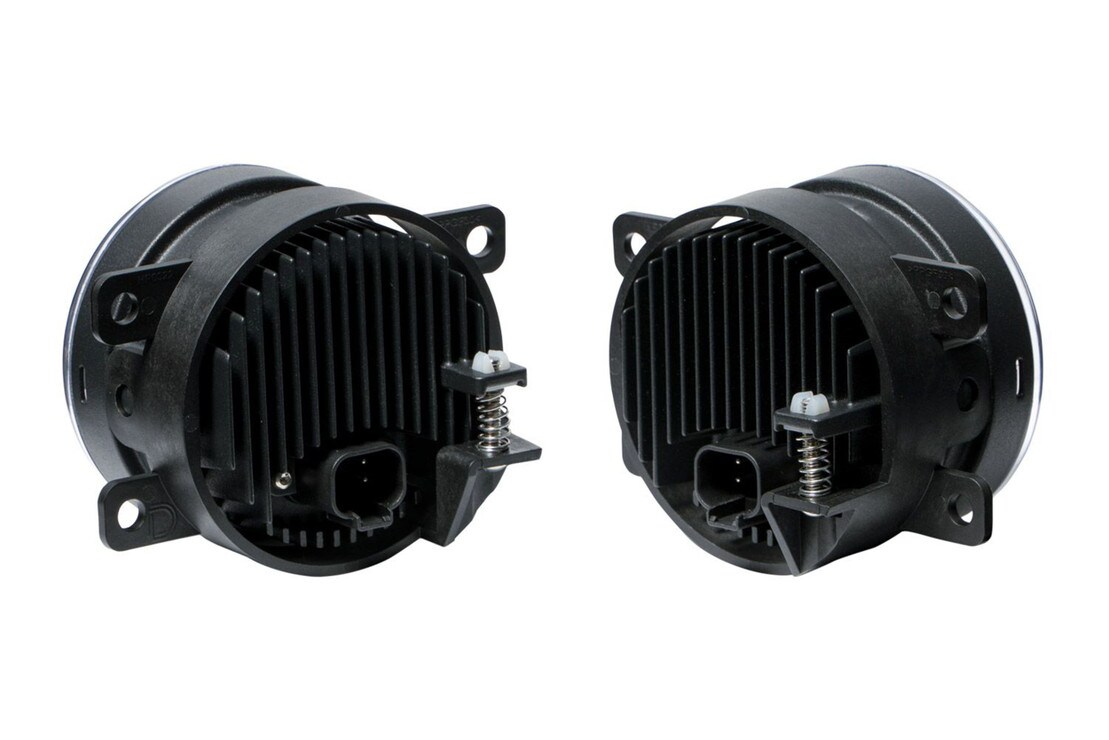

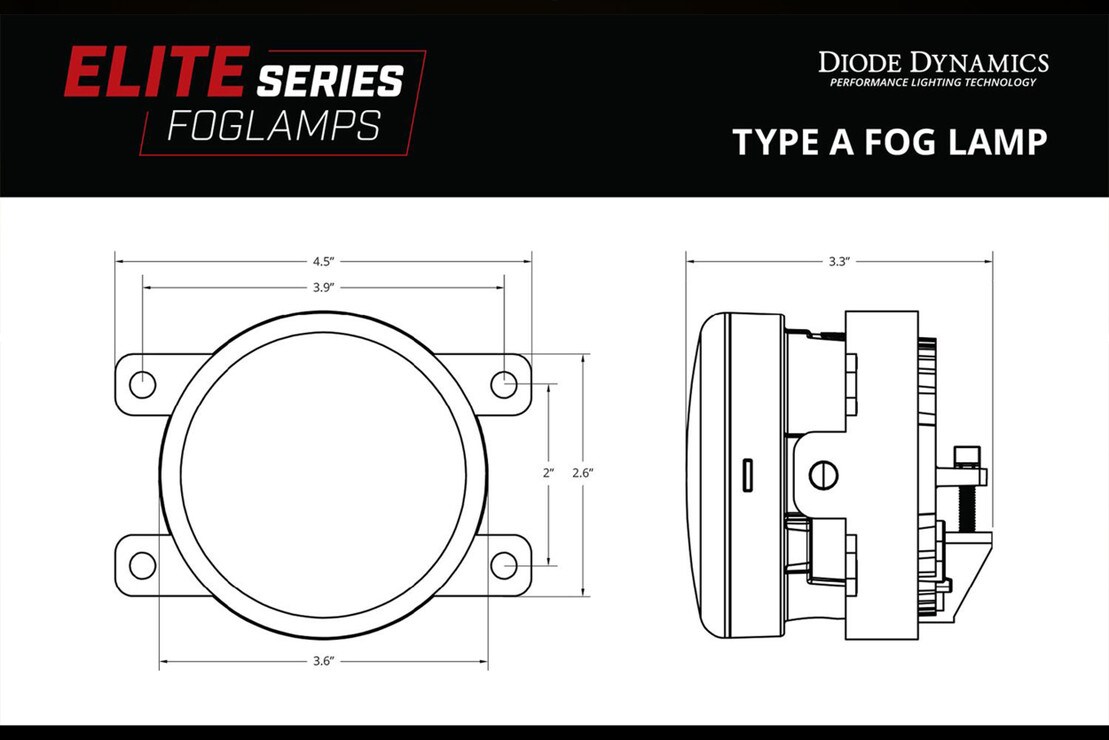

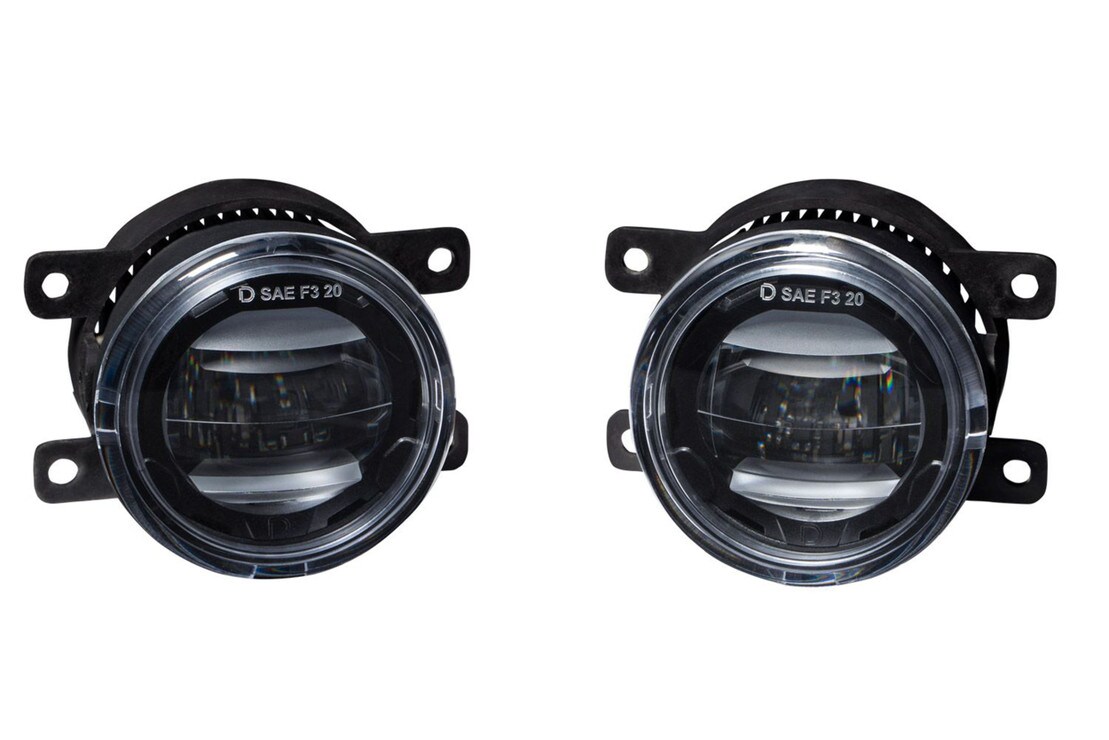

  • Fog Lights: 2x (One Pair) Elite Series Type A Fog Lights

  • Wiring: 2x (One Pair) Plug-n-Play H11 4-pin DT Backlight Tap Wires with T-taps

WARRANTY INFORMATION

This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

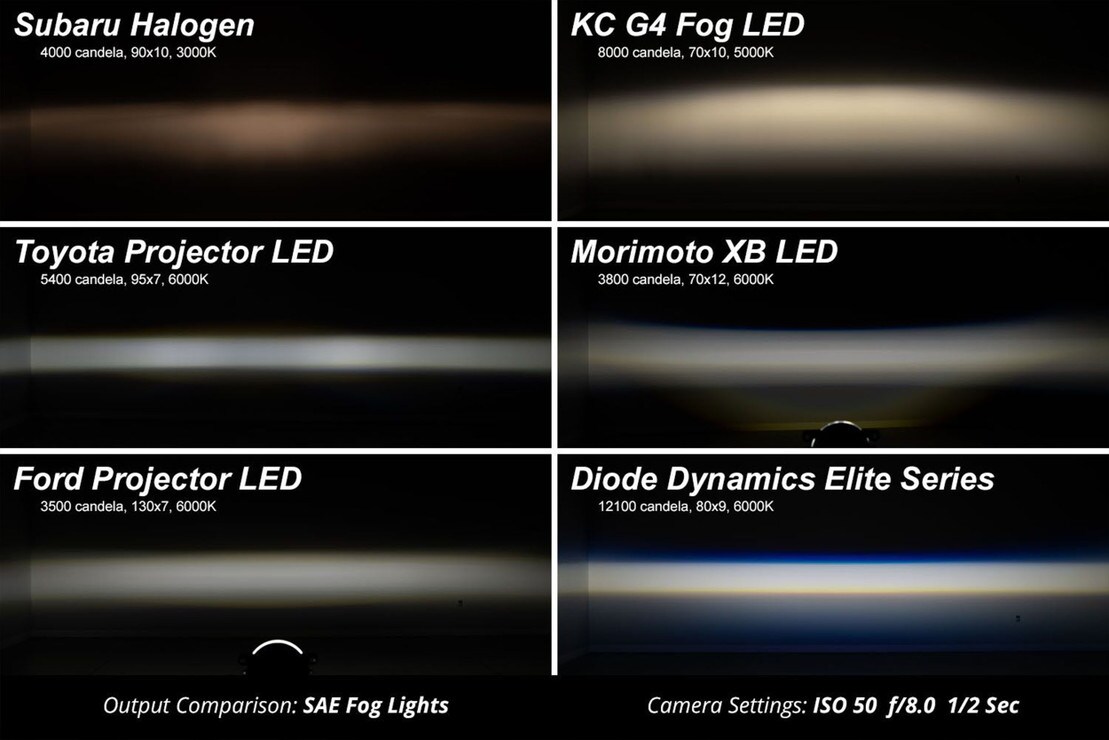

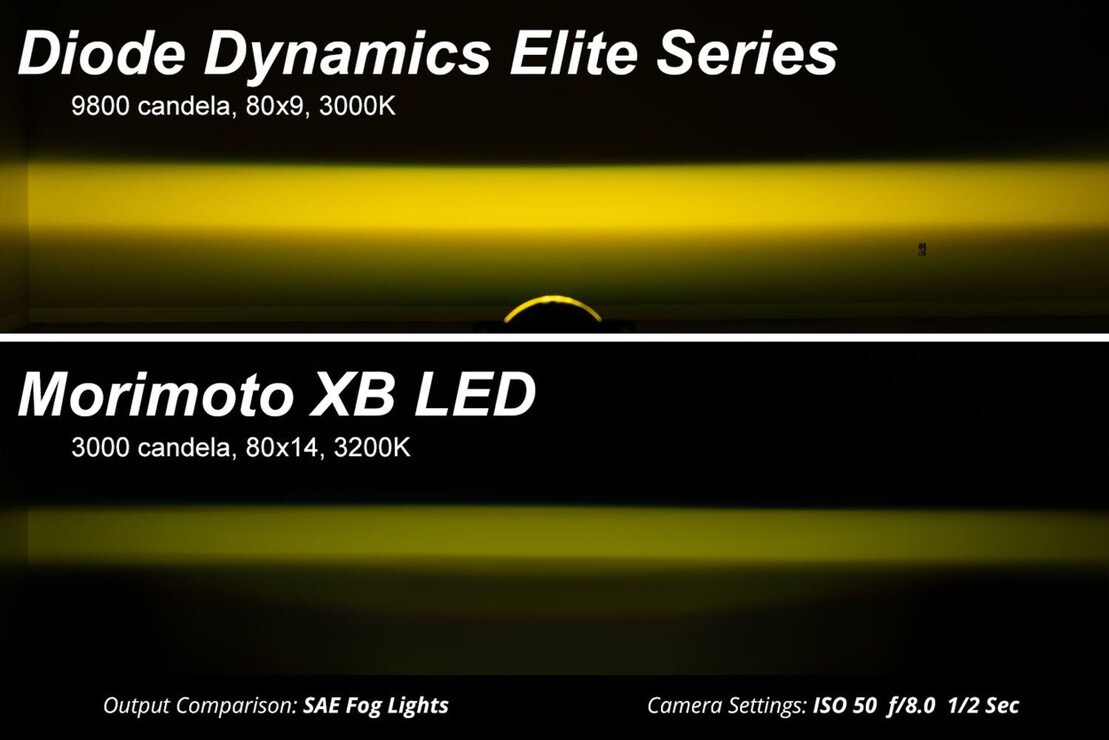

  • Intensity: 1,850 lm / 10,200 cd (White), 1,650 lm / 8,700 cd (Yellow)

  • Color Temp: 6000K (White), 3000K (Yellow)

  • Power: Main Beam White: 17w, Main Beam Yellow: 15w, Backlight: 0.3w

  • Input Voltage: 9-16v

  • Current: Main Beam White: 1.3A, Main Beam Yellow: 1.2A, Backlight: 0.025A

  • Input: Deutsch DT Input (Polarity Specific)

  • Material: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

  • Compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern

  • IP Rating: IP68 Waterproof

COMPATIBILITY

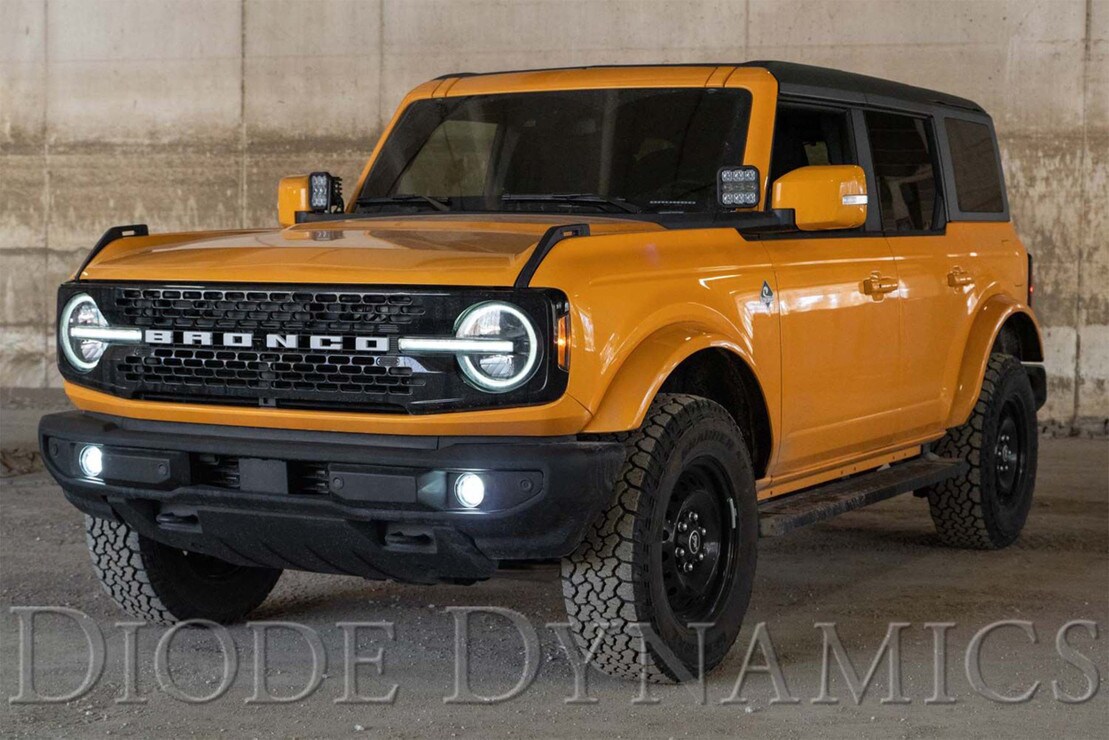

  • Ford Bronco: 2021-2024

  • NOTE: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
