DESCRIPTION

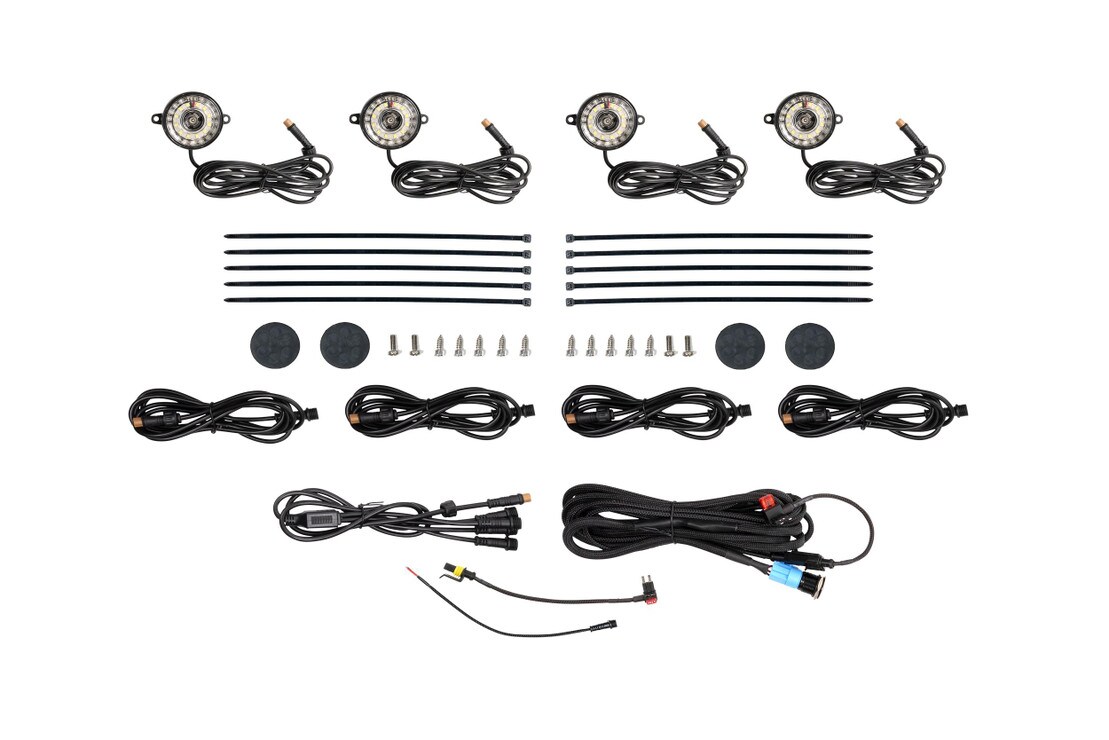

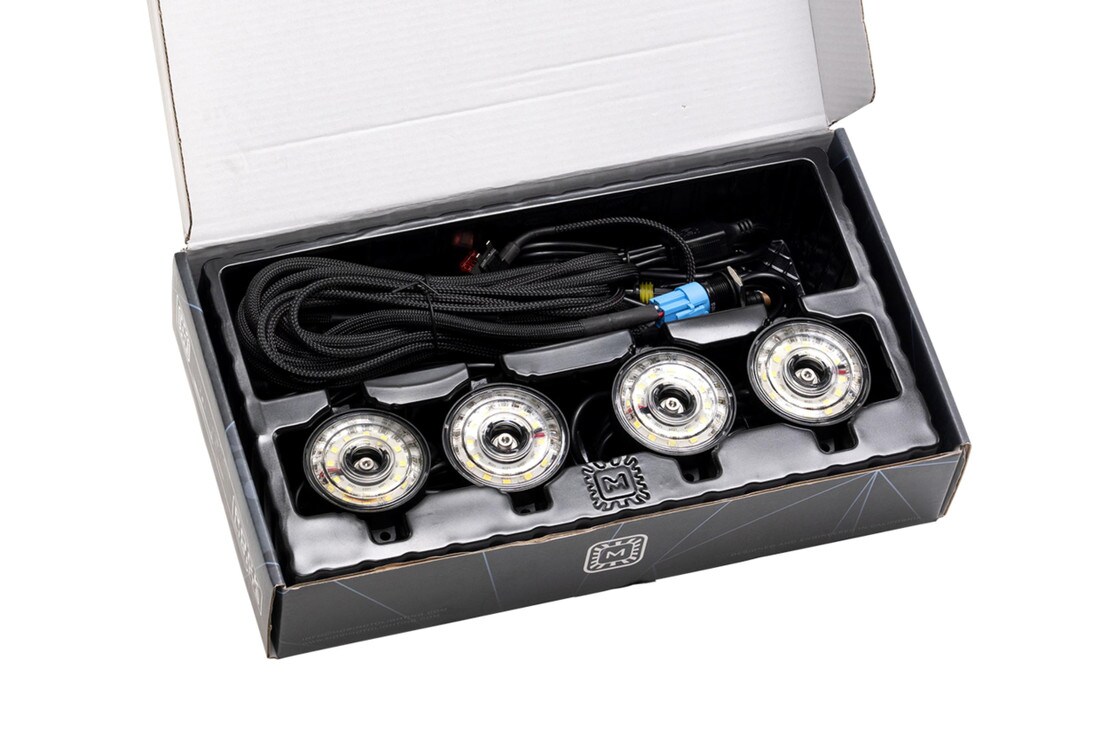

WHAT’S INCLUDED
Rock Lights: 4x Morimoto V2 (White Light)

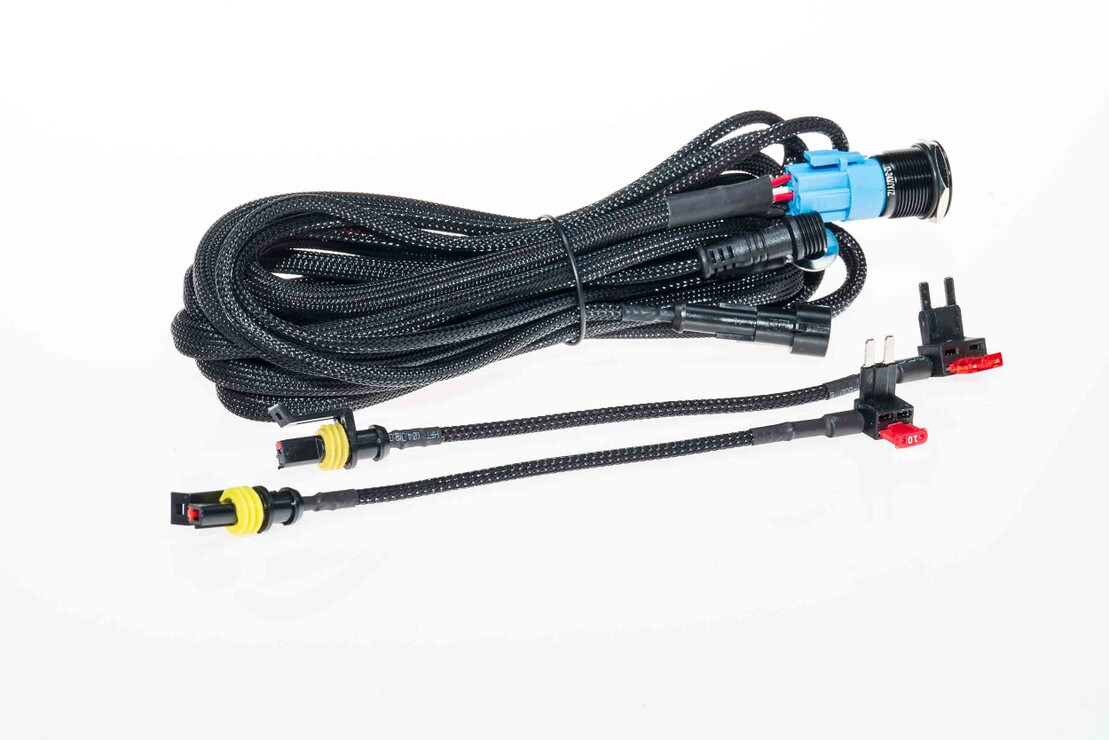

Main Harness: Plug n Play w/ In-Cabin push button
Fuse Box Harness: Mini and Micro Fuse Adapters

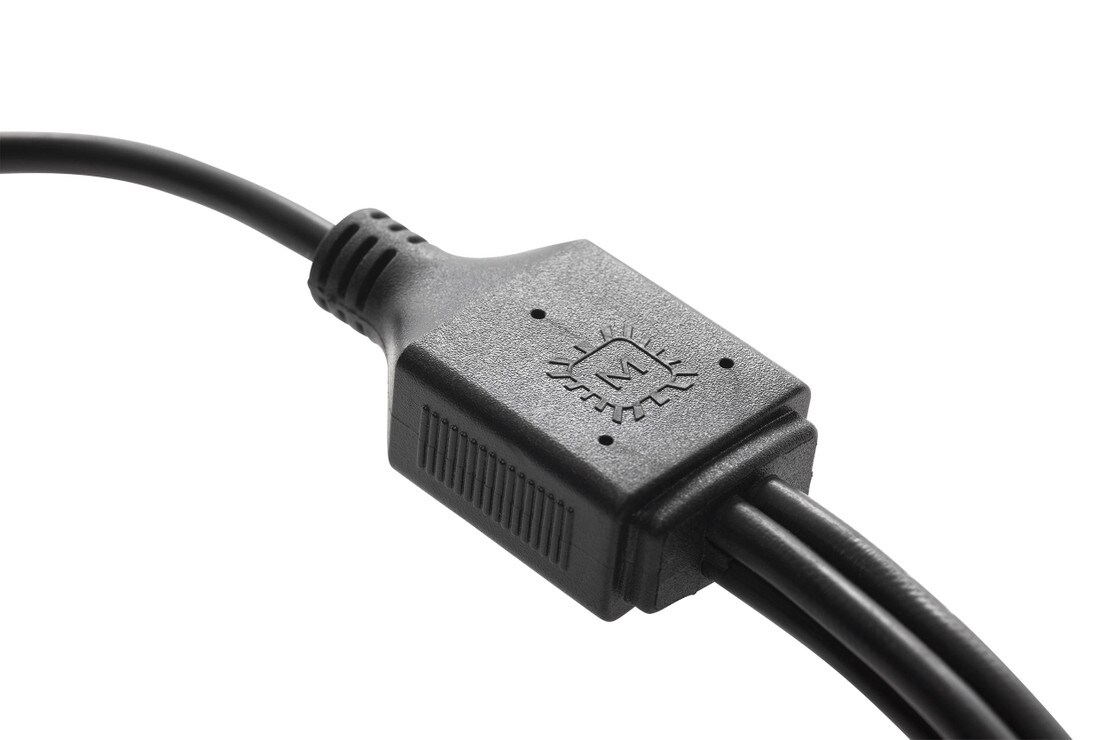

Splitter: 1x Over-molded two-way splitter
Extensions: 2x Over-molded Extension Cables (6ft / 185cm)
Magnetic Mounts: 4x Screw-on 8kg Magnet mounts
Accessories: Screws, Zip Ties, User-Guide
Warranty: Limited Lifetime
TECHNICAL SPECIFICATIONS
Housings: Black Powdercoated Cast AL
Lenses: Makrolon Polycarbonate
LEDS: 12x 1W White LED
Lifespan: 50,000 hours
12V Inputs: Mini or Micro fuse taps
Switch: Illuminated Push Button / Black CNC Face
Switch Wiring Length: 150in / 381cm
Splitter Wiring Length: 40in / 101cm (total)
Extension Length: 6ft / 183cm (each)
LINE DRAWINGS
COMPATIBILITY
Perfect For: Trucks, Jeeps, SUVs and Powersports
Cars too?: Yes, but only because neon Underglow is so 2002
Wheel Wells: Yes
Frame Rails: Yes
Engine Compartment: Yes
Interior Lighting: Yes
Electrical Systems: 09-18V
INSTALLATION DOCUMENTS
Rock On: This is the setup that delivers the performance, intensity, and reliability that Morimoto customers have come to expect. Designed and engineered for the most popular trucks and SUVs here in the USA, our rock light system includes everything needed to complete the install, but without the guess work that plagues too many big brand rock light kits on the market today.

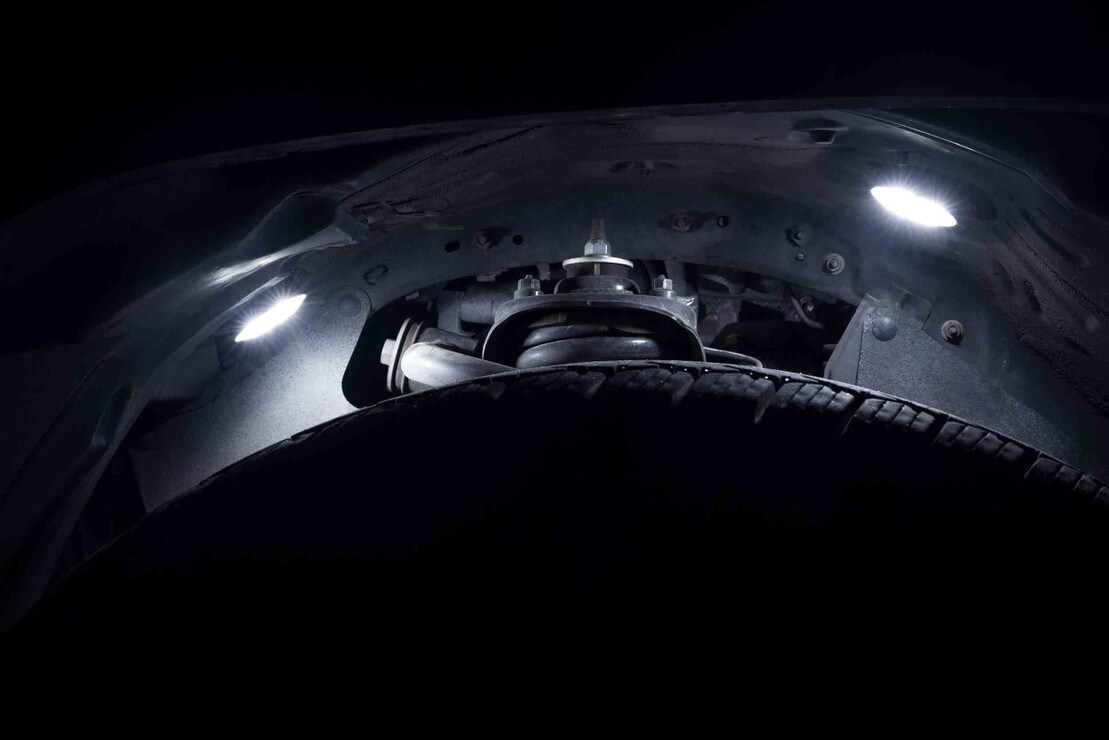

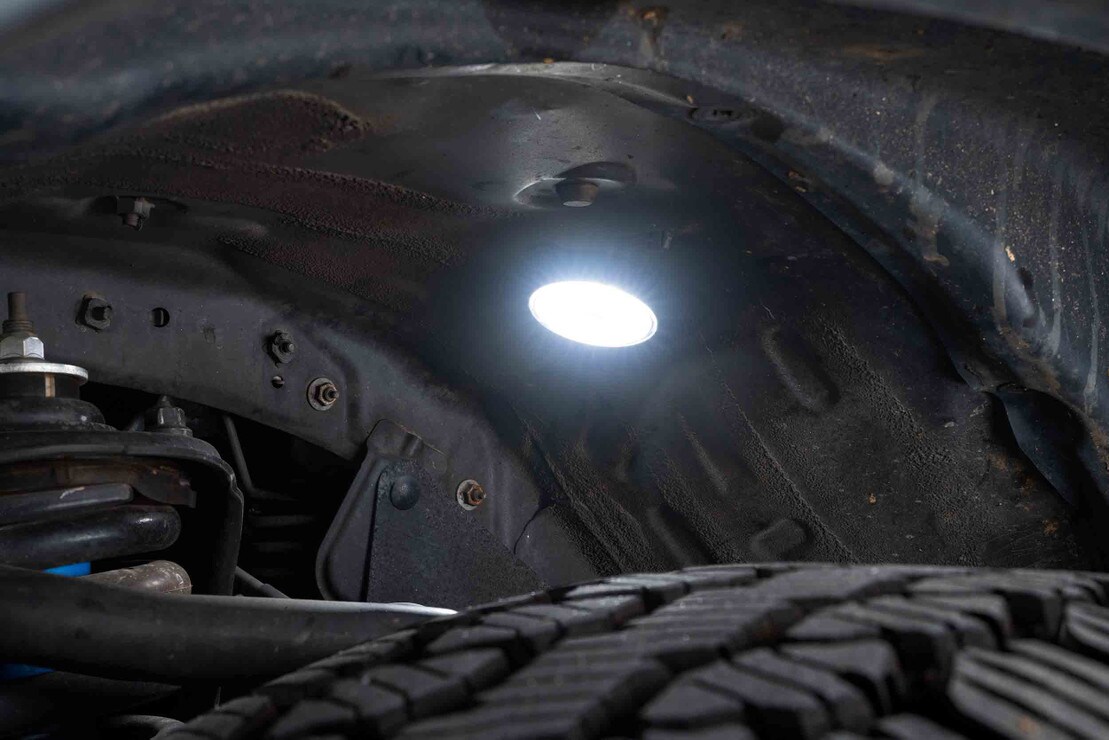

Brighter: Our proprietary second gen rock lights are designed to maximize intensity for well-lit trails and city streets alike. Each puck uses 12x 1W LEDs projecting through a high clarity polycarbonate lens, so no matter how you are using them, you can easily see and be seen. While theres nothing wrong with two, one puck will easily illuminate the entire wheel well with nothing but pure white light.

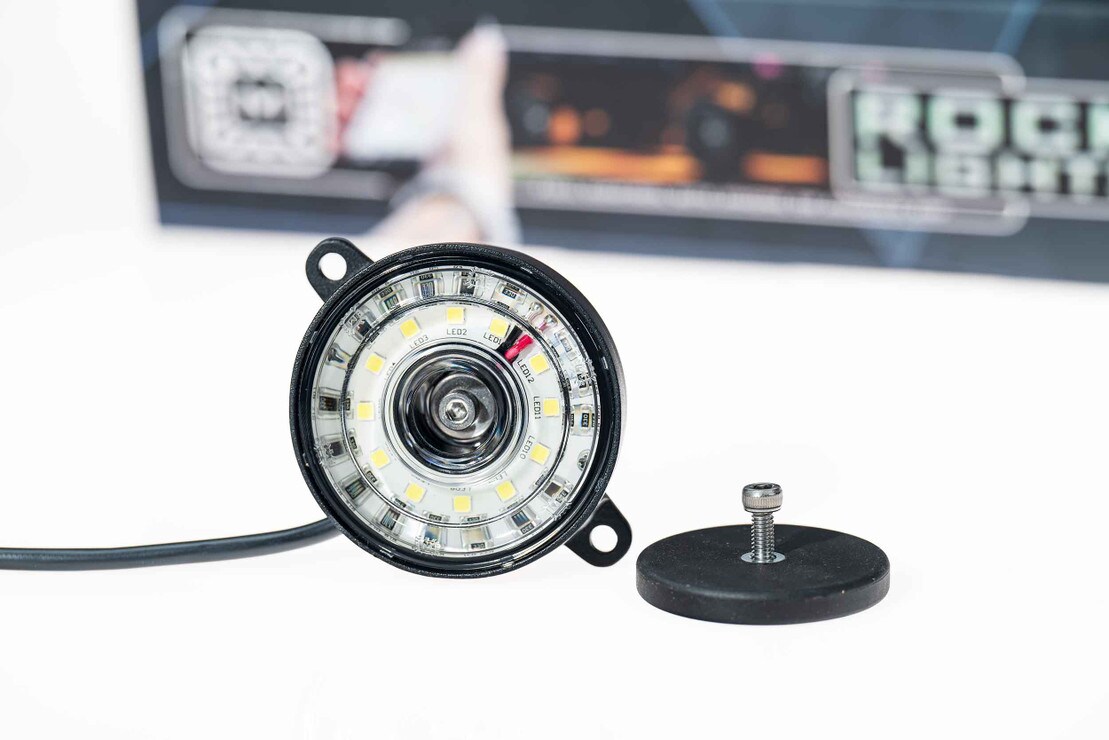

Easy Install: We've integrated two different mounting options to make for an easy-install. The shell has integrated mounting points on each side if you have a hard surface to screw into. Each kit includes also rubberized magnetic mounts that are easily strong enough to make for a reliable no-drill installation. Each magnet is rated for an 8kg load, which is approximately 40 times more than the weight of each rock light.
Plug n Play: The kit comes complete with a wire harness to control the system. Controlled by an in-cabin push button switch, the harness will pull 12V from any position inside the fuse box, and includes all splitters and extensions to neatly route the wiring to each corner of your vehicle. Each kit also includes a set of convenient extension cables to help ensure your wiring lengths are just right, regardless of an install on a two-door Jeep or modern HD truck. With over-molded splitters and fully sealed barrel connections from end to end, long-term reliability won't be a concern either.
Bash Proof: Backed with a lifetime limited warranty, the Morimoto Rock Light system is built to last. The beefy diecast housings have been powder-coated with the same finish as our Banger off road LED pods, and the 2mm thick lens is molded from Makrolon Polycarbonate, known for its strength in tough automotive applications.
