DESCRIPTION
FEATURES & BENEFITS
- Adaptive Lighting Adjust to varying conditions with the flick of a switch.
- VRT Technology Experience broad spot beams that shine across vast distances.
- PLC Technology Combat fog and dust with Amber LED lighting that reduces white-out.
- Race-Ready Mounts Durable side mounts offer vertical light angle adjustments.
- Dual Beam Output Choose between standard and race output for tailored illumination.
WHAT’S INCLUDED
Light Bar: 1x Shocker LED Light Bar
Hardware: Mounting Brackets, Hardware
Wiring: 1x Wire Harness
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity: 3,550-6,420lm (12in), 7,100-12,840lm (20in), 10,650-19,260lm (30in), 14,200-25,680lm (40in)
Power: 60-70w (12in), 125-140w (20in), 195-220w (30in), 250-300w (40in)
Current: 5.0-5.8A (12in), 10.42-11.67A (20in), 16.25-18.33A (30in), 20.83-25.0A (40in) @ 12V DC
COMPATIBILITY

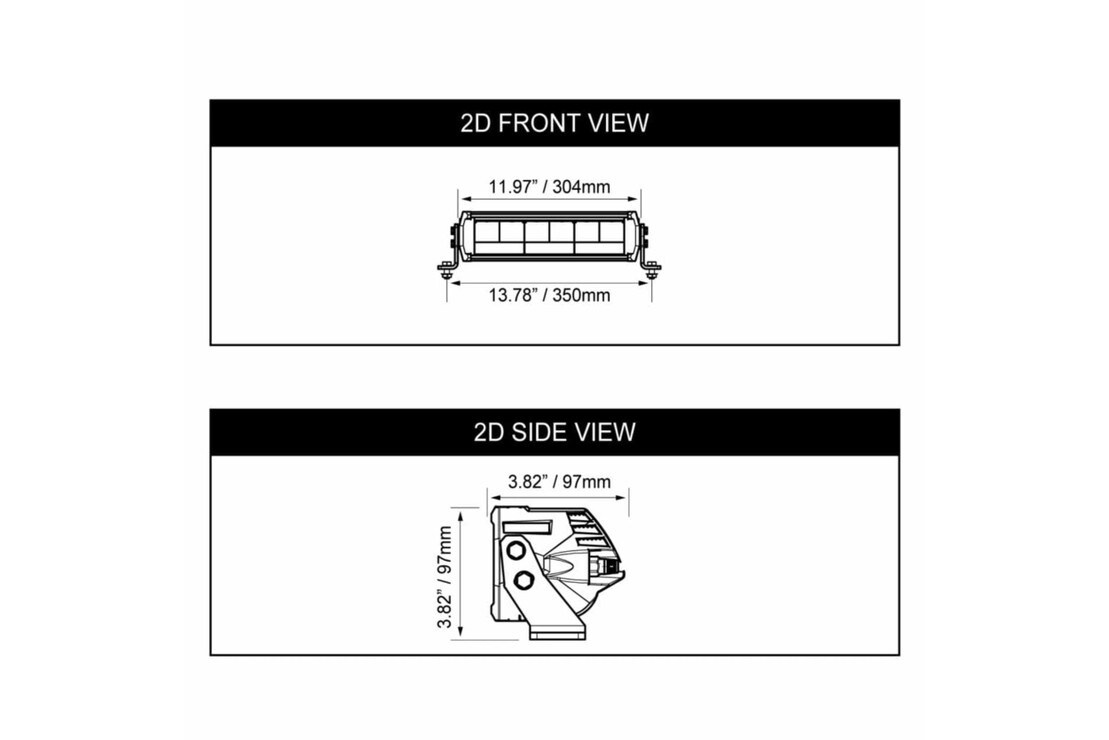

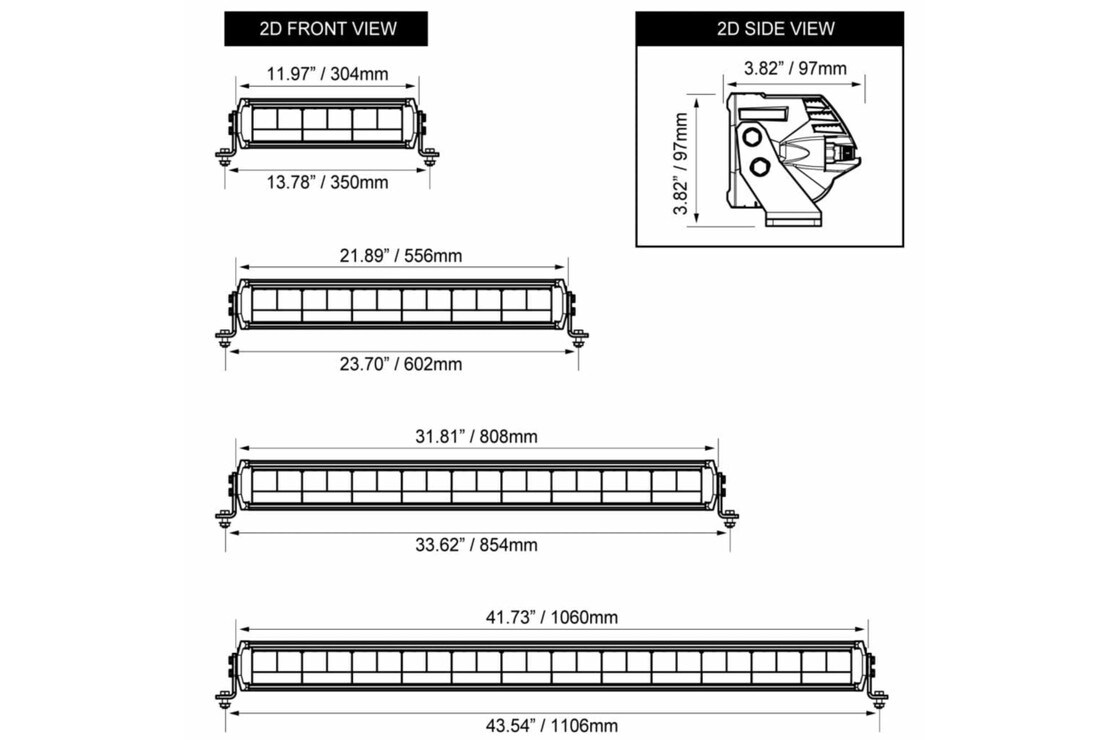

SHK-BV6WPA: Vision X Shocker LED Light Bar: 11.97" (Amber Photon Light Pipe / With Harness)
SHK-BV6WPW: Vision X Shocker LED Light Bar: 11.97" (White Photon Light Pipe / With Harness)
SHK-BV6WRA: Vision X Shocker LED Light Bar: 11.97" (Amber Photon Light Pipe / With Harness / Race Version)
SHK-BV12WPA: Vision X Shocker LED Light Bar: 20" (Amber Photon Light Pipe / With Harness)
SHK-BV12WPW: Vision X Shocker LED Light Bar: 20" (White Photon Light Pipe / With Harness)
SHK-BV12WRA: Vision X Shocker LED Light Bar: 20" (Amber Photon Light Pipe / With Harness / Race Version)

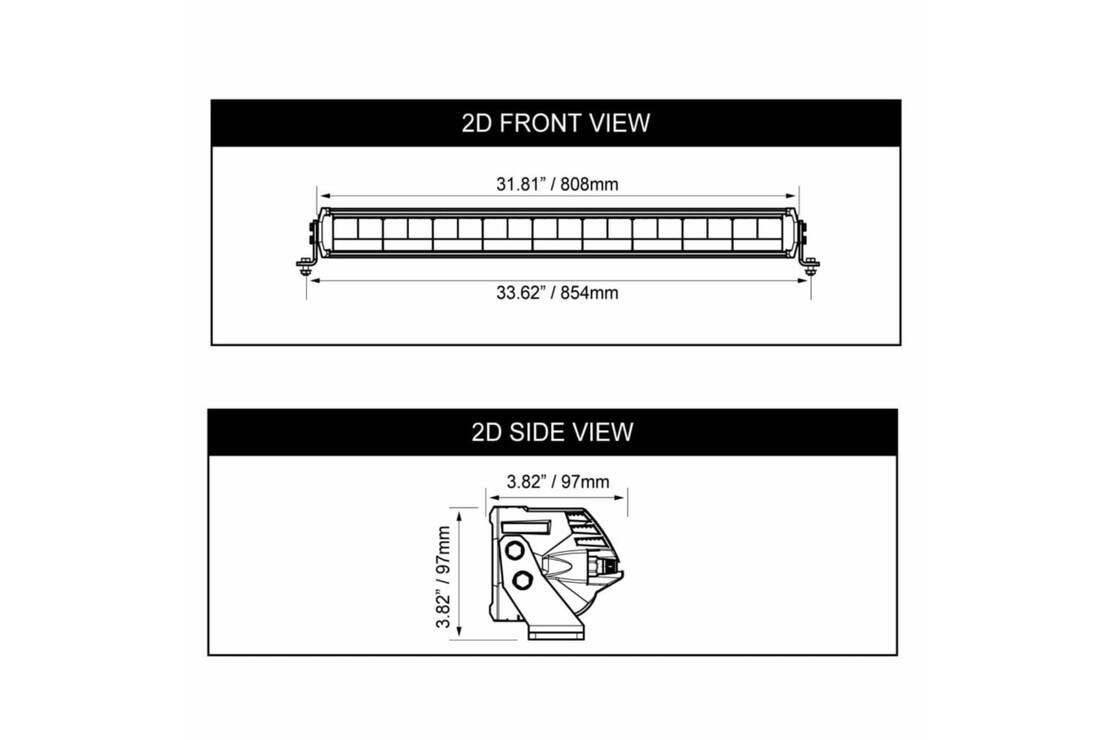

SHK-BV18WPA: Vision X Shocker LED Light Bar: 30" (Amber Photon Light Pipe / With Harness)
SHK-BV18WPW: Vision X Shocker LED Light Bar: 30" (White Photon Light Pipe / With Harness)
SHK-BV18WRA: Vision X Shocker LED Light Bar: 30" (Amber Photon Light Pipe / With Harness / Race Version)
SHK-BV24WPA: Vision X Shocker LED Light Bar: 40" (Amber Photon Light Pipe / With Harness)
SHK-BV24WPW: Vision X Shocker LED Light Bar: 40" (White Photon Light Pipe / With Harness)
SHK-BV24WRA: Vision X Shocker LED Light Bar: 40" (Amber Photon Light Pipe / With Harness / Race Version)

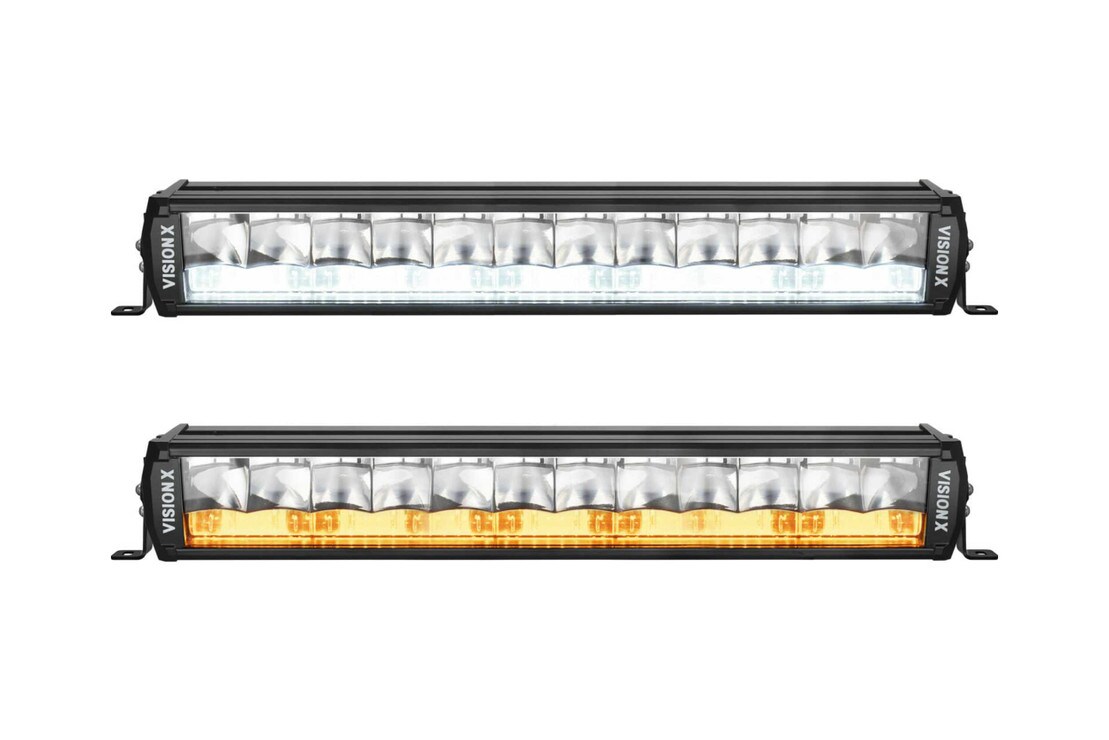

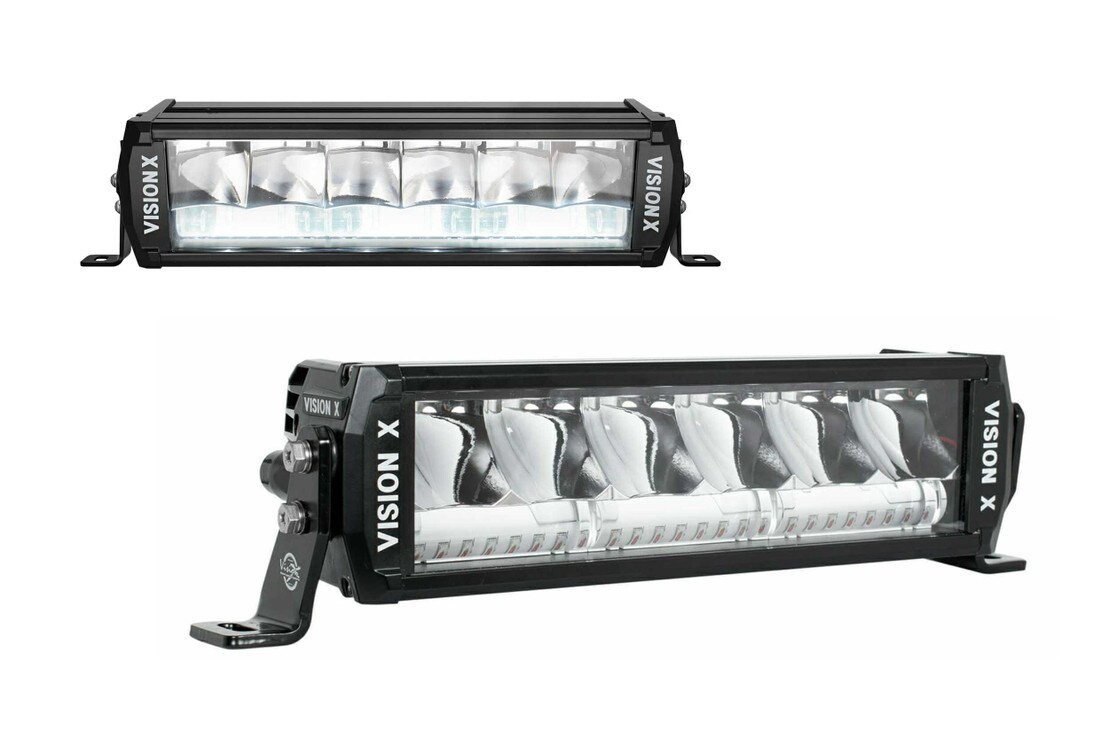

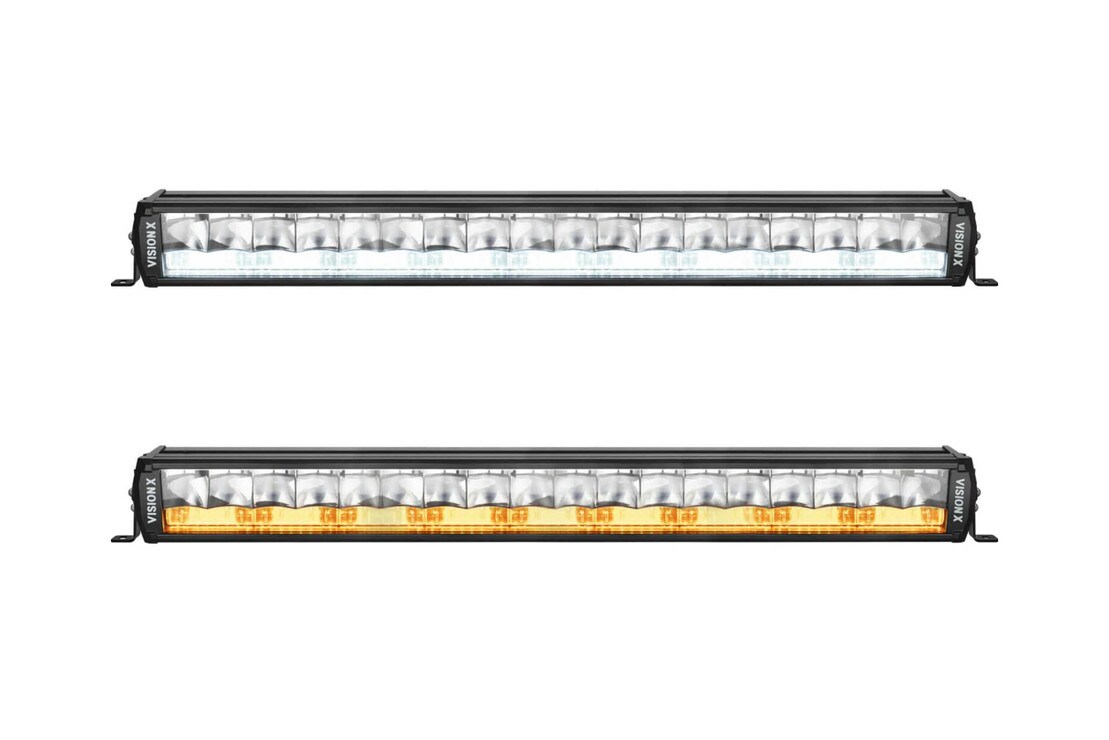

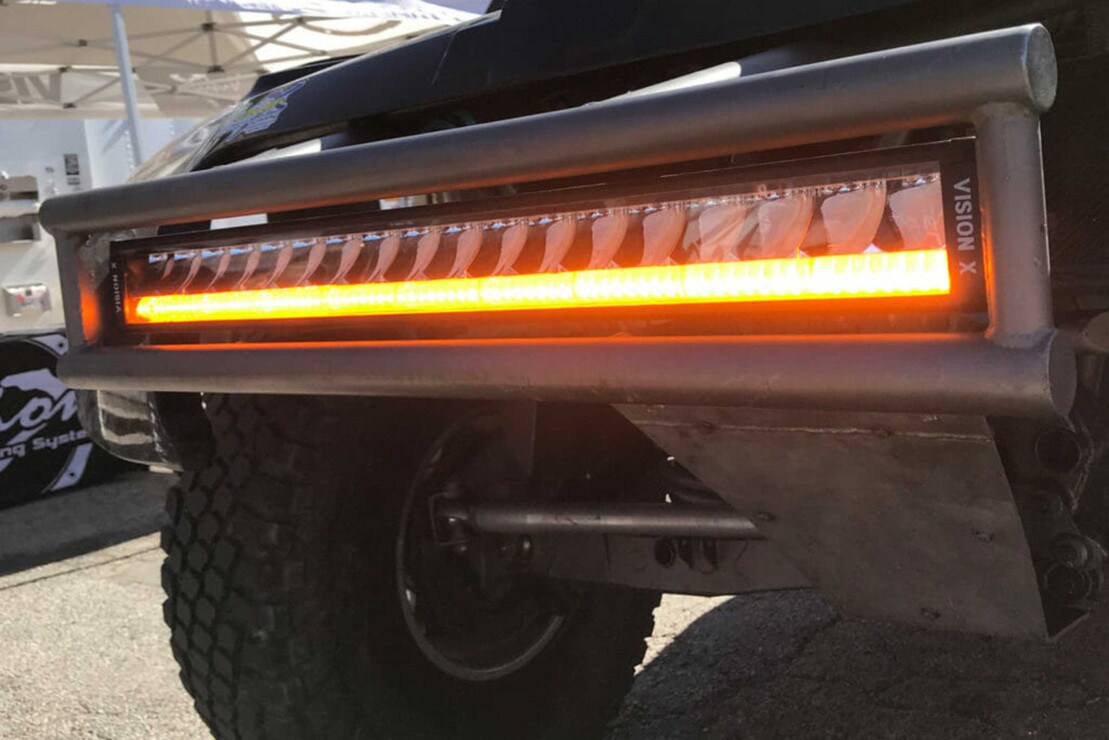

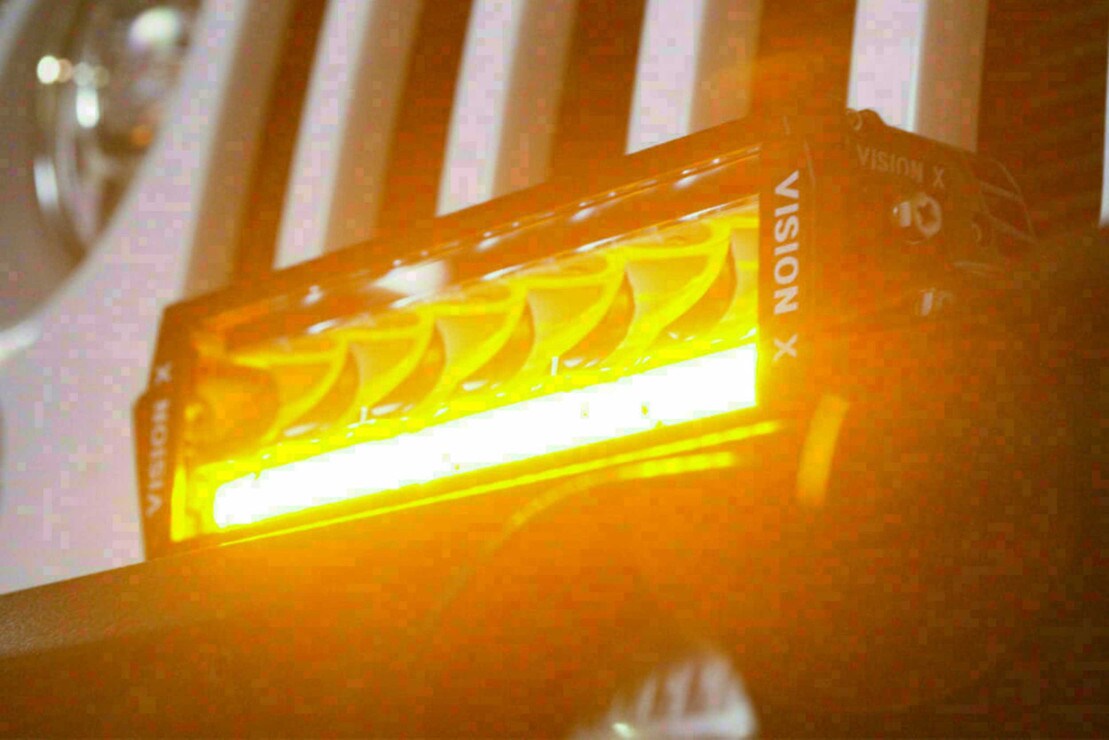

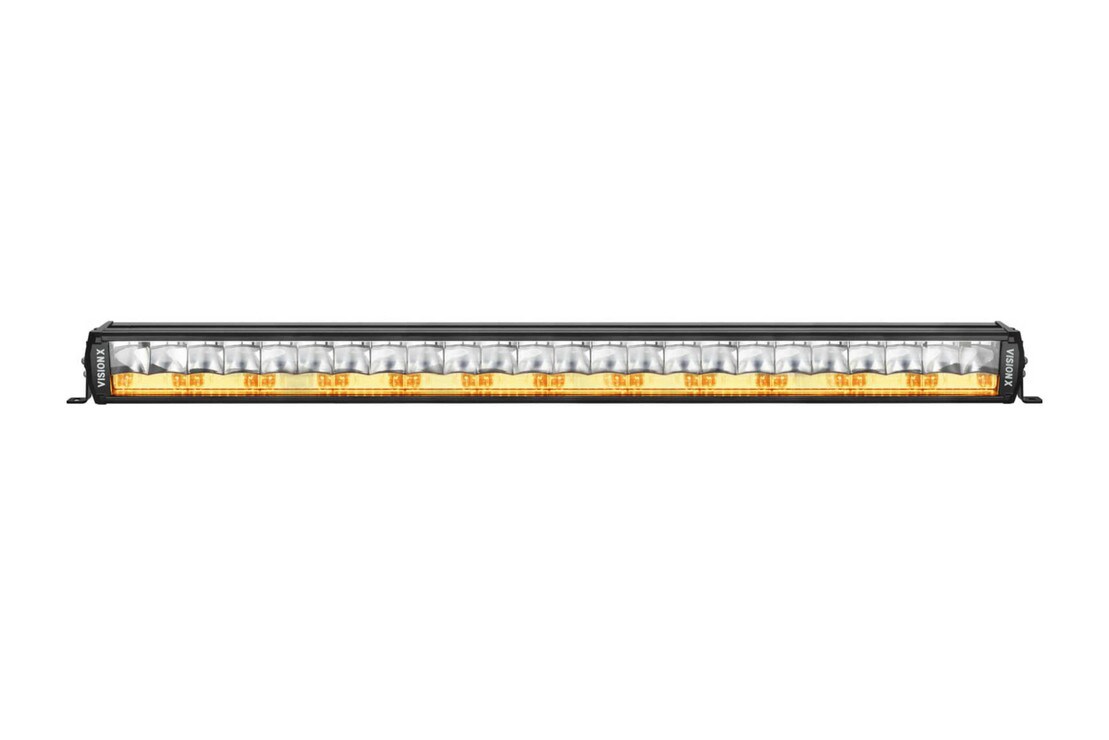

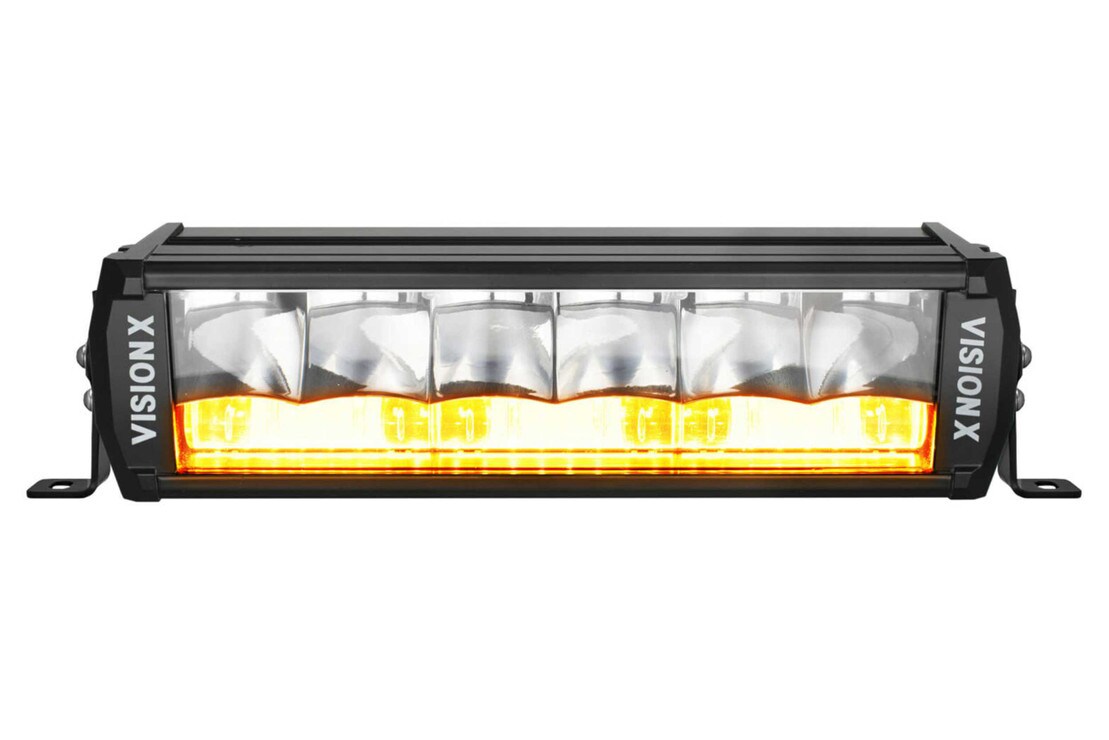

Shocker Dual-Action LED Light Bar: The Shocker Dual Action LED Light Bar brings versatility and lighting power to the forefront by allowing you to adjust your lighting to the ever-changing driving conditions with the flick of a switch. Experience the all-new VRT (Vector Reflector Technology) at high speeds by shining a long distance, broad spot beam that fans across the trail. When dust and fog tries to slow you down, engage the Amber PLC (Photon Light Core Technology) to pierce the night by reducing shadows and white-out through the proper Amber LED lighting spectrum and wide-elliptical shaped beam. For added dust & fog penetration, the Shocker Race model utilizes a special LED Chip configuration which emits maximum Amber brightness while still offering an extremely wide elliptical driving pattern. The Shocker LED Light Bar is also available in White PLC (Photon Light Core Technology) models which will ignite a bright white ultra-wide beam to clearly see the trails and roads edges with over 170deg of illumination.
Dual Function Lighting Technology: The Shocker Bars all-new VRT (Vector Reflector Technology) and PLC (Photon Light Core) provide both a distance spot beam and an elliptical wide spread beam into a single dual functioning light bar.

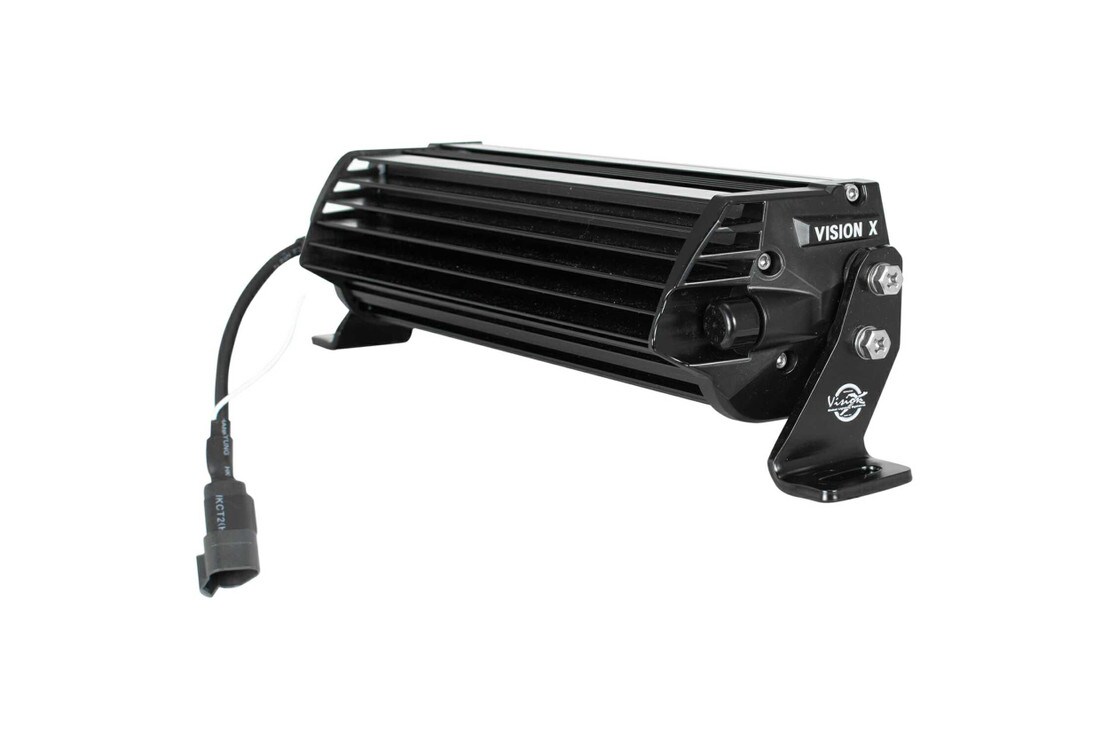

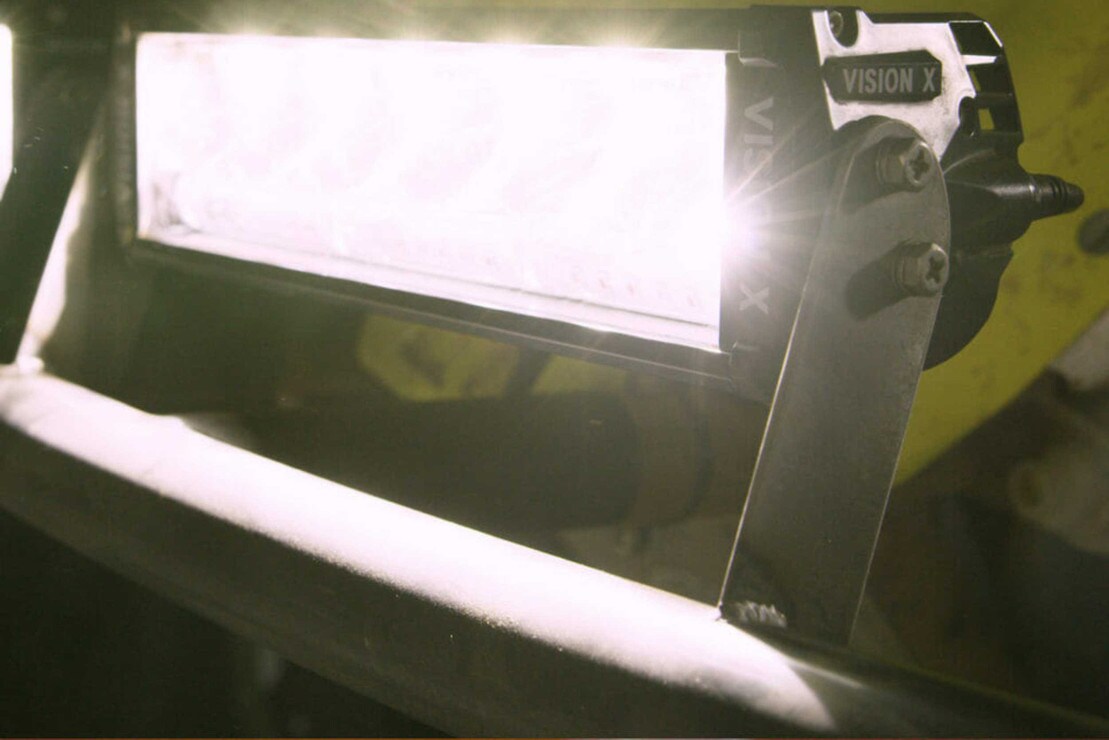

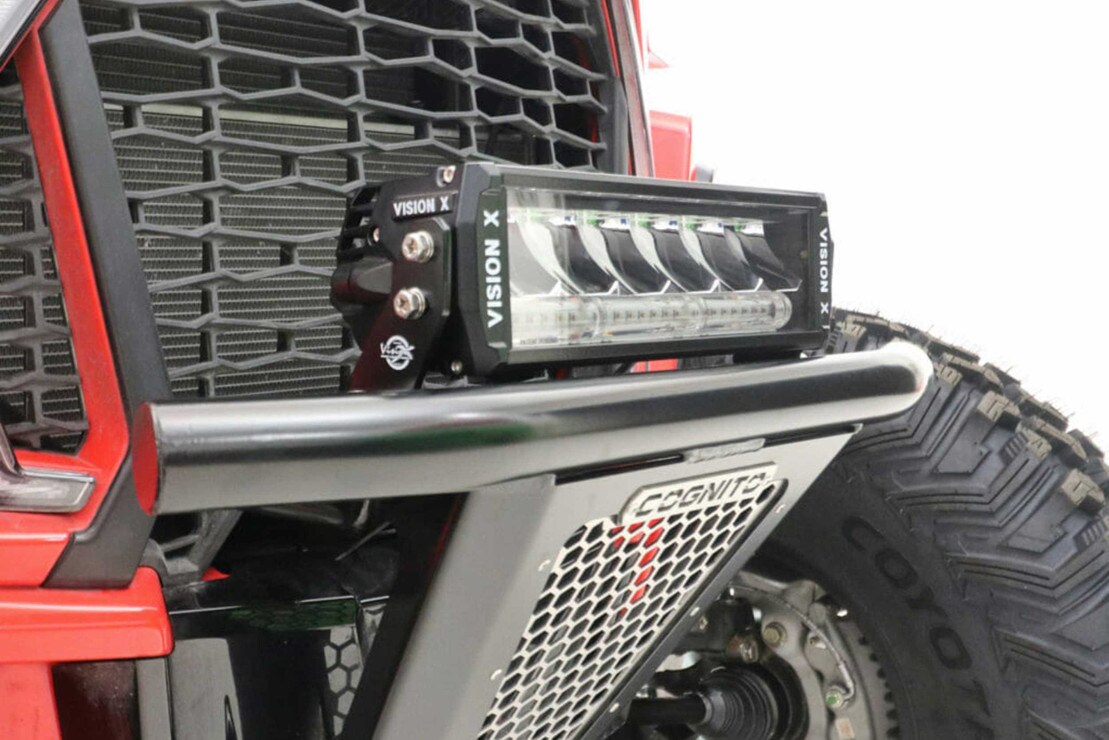

Race Inspired Side Mounts: The extremely durable race-ready side mounts are built to outlive any abuse and provide the Shocker with vertical light angle adjustment.

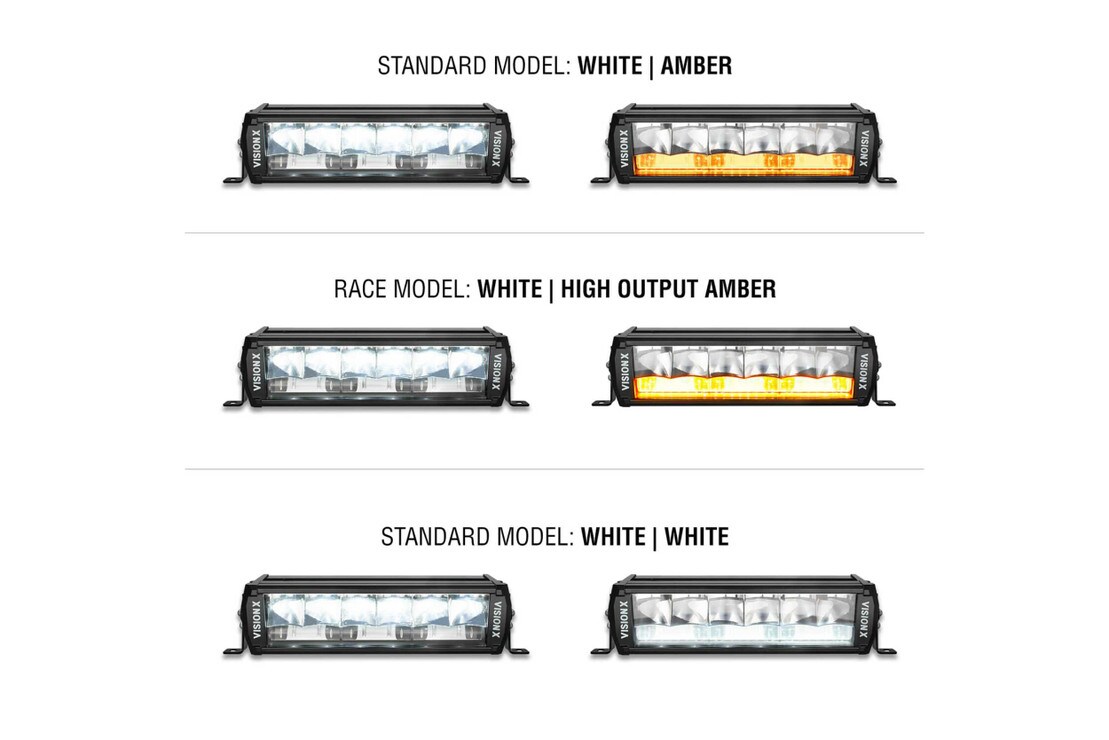

Standard & Race Elliptical Beam Output Options: Standard Output Shocker: Available with White LEDs for the Broad Spot Beam (Vector Reflector) and Amber LEDs for the Elliptical Beam (Photon Light Core) OR White LEDs on both functions. Race Output Shocker: Available with White LEDs for the Broad Spot Beam (Vector Reflector) and features upgraded High-Output Amber LEDs for the Elliptical Beam (Photon Light Core).
