DESCRIPTION
FEATURES & BENEFITS
- Compact Design: With a height of just 7/8 inches, it fits effortlessly into most lighting setups.
- Multiple Flash Patterns: Features 10 different flash patterns, including synchronized and alternating flashing options.
- Self-Contained: No need for additional lamp drivers, flashers, ballasts, or power supplies.
- Omni-Directional: Can be mounted in any position for maximum visibility.
- Vibrant Choices: Available in White, Blue, and Red to suit various requirements.
WHAT’S INCLUDED
Strobe: 1x (Each) Oracle LED Strobe Light (As Selected)
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Dimensions (3507- Models): 1.5in DIA, 7/8in H, 160in (Cord Length)
Dimensions (3510- Models): 1in W, 3.75in L,0.12in H
Dimensions (3512- Models): 1in W, 3.75in L,0.12in H
Dimensions (3511- Models): 1in W, 4.36in L,0.12in H
Dimensions (3504- Models): 28.75in W, 2.75in L,2.0in H
3508-002: Oracle LED Strobe: 9-LED / Emergency / Blue
Dimensions (3508- Models): 1.5in DIA, 7/8in H, 160in (Cord Length)
Input Voltage: 10-16V DC
COMPATIBILITY
3507-002: Oracle LED Strobe: 4-LED / Emergency / Blue
3507-003: Oracle LED Strobe: 4-LED / Emergency / Red
3507-001: Oracle LED Strobe: 4-LED / Emergency / White
3510-005: Oracle LED Strobe: 4-LED / Slim / Amber
3510-002: Oracle LED Strobe: 4-LED / Slim / Blue
3510-003: Oracle LED Strobe: 4-LED / Slim / Red

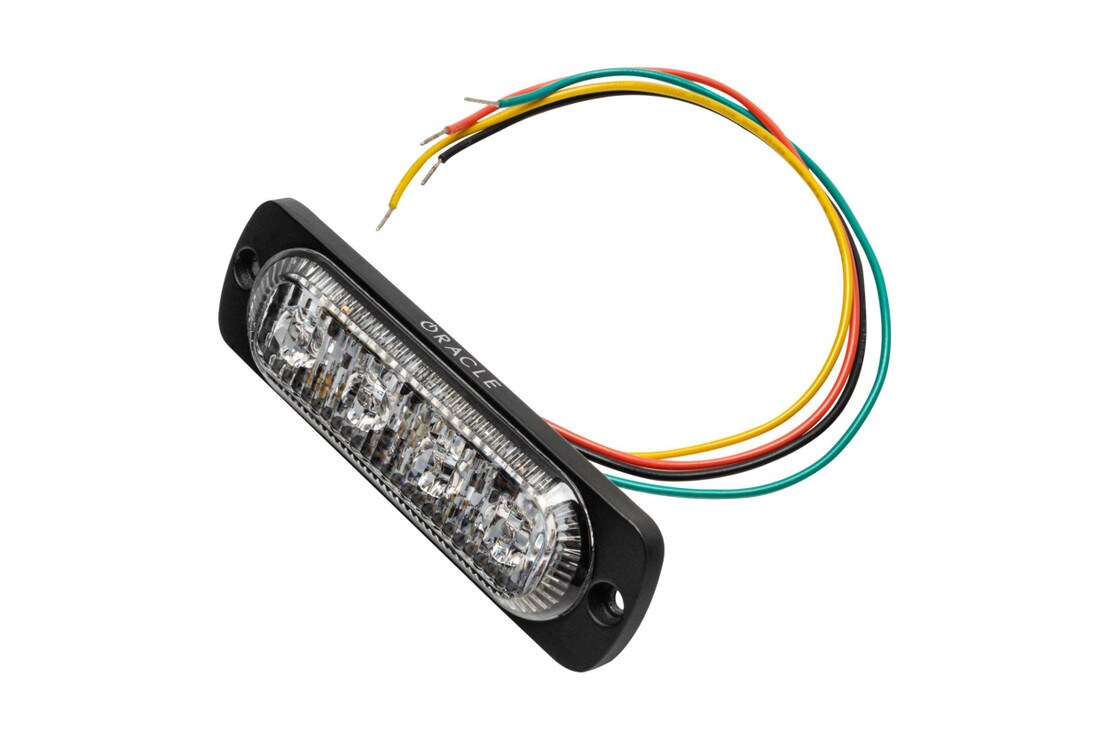

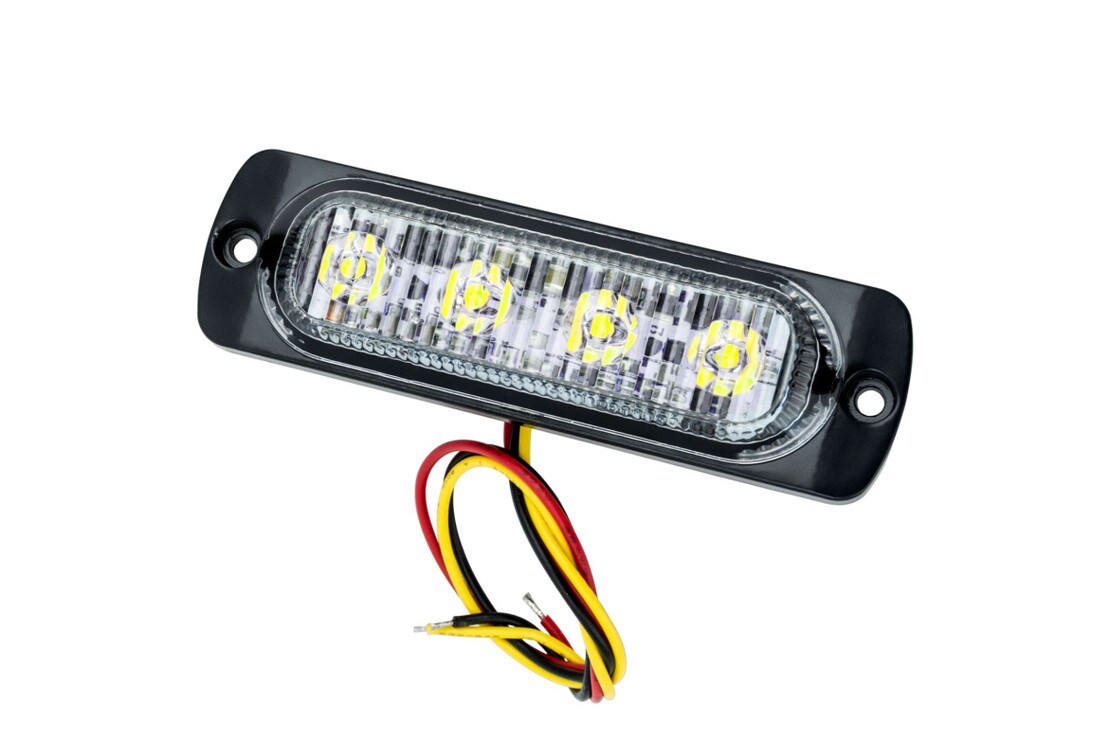

3510-001: Oracle LED Strobe: 4-LED / Slim / White
3512-023: Oracle LED Strobe: 4-LED / Slim / White/Amber
3501-005: Oracle LED Strobe: 6-LED / Interceptor / Amber
3501-002: Oracle LED Strobe: 6-LED / Interceptor / Blue
3501-004: Oracle LED Strobe: 6-LED / Interceptor / Green
3501-003: Oracle LED Strobe: 6-LED / Interceptor / Red
3501-001: Oracle LED Strobe: 6-LED / Interceptor / White
3511-005: Oracle LED Strobe: 6-LED / Slim / Amber
3511-002: Oracle LED Strobe: 6-LED / Slim / Blue
3511-003: Oracle LED Strobe: 6-LED / Slim / Red

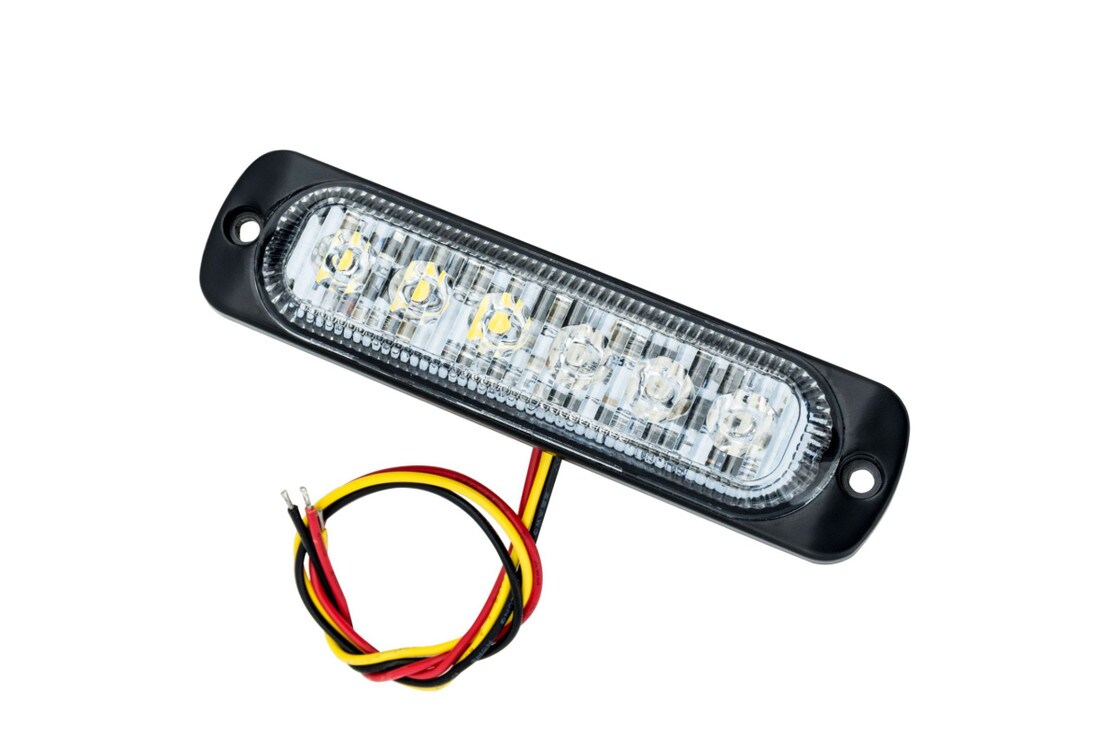

3511-001: Oracle LED Strobe: 6-LED / Slim / White
3513-023: Oracle LED Strobe: 6-LED / Slim / White/Amber
3404-002: Oracle LED Strobe: 6-LED / Undercover / Blue
3404-004: Oracle LED Strobe: 6-LED / Undercover / Green
3404-001: Oracle LED Strobe: 6-LED / Undercover / White
3508-002: Oracle LED Strobe: 9-LED / Emergency / Blue
3508-003: Oracle LED Strobe: 9-LED / Emergency / Red
3508-001: Oracle LED Strobe: 9-LED / Emergency / White
COMPLIANCE
New from Oracle:Only 7/8 inches in height, the ORACLE SMD Omni-Directional Emergency Strobe is perfect for most applications where size and intensity are important. This sleek self-contained LED requires only a one inch hole in any style head light, cornering light or tail light assembly. Can also be mounted on the outside of your vehicle as well. Product Features:- 10 flash patterns, includes a synchronized feature for alternating and synced flashing of multiple LED Lights. - Includes power, pattern and synchronization wires. - 4 LED Version and 9 LED Version available. - 10-16VDC Operation. - IP65 Rating. - Omni-directional LED Light mounts in any position. - Available in White, Blue, and Red. - Meets SAE J1113-41 Class 5. - No need for separate lamp drivers, flashers, ballast or power supplies to install. - LED Dimensions:1 1/2in W X 7/8in H - Driver Dimensions:4 3/4in L X 15/16in W X 7/16in H - Overall length: 160in or 13.3 ft. Wiring Explanation: - Red Wire - Power - Black Wire - Constant Ground - White Wire - Sync Wire used to sync other SMD Emergency Strobes - Yellow Wire- Used to select different modes, simple switch is needed Mode Explanation: - Steady On - Mode Cycle - SOS - 2 Round Burst - 3 Round Burst - 4 Round Burst - Fast Flash Steady - Fast Flash Burst - Fast Flash Burst + 12 SOS Flashes - Fast Flash Burst + 6 SOS Flashes Package includes: 1 x LED Light with driver 2 x Screws 1 x Gasket
