DESCRIPTION
FEATURES & BENEFITS
- Easy Installation: Plug-&-Play kit for Wrangler JL/Gladiator JT with no fabrication or complex wiring required.
- Adjustable Lighting: Vertical and Horizontal headlight adjustment for precise beam control.
- Rugged Design: Solid-state LED design ensures high-quality, durable performance.
- Customization Options: Optional colored Halos available for personalized style.
- Enhanced Visibility: Improved night-time visibility for safer driving experiences.

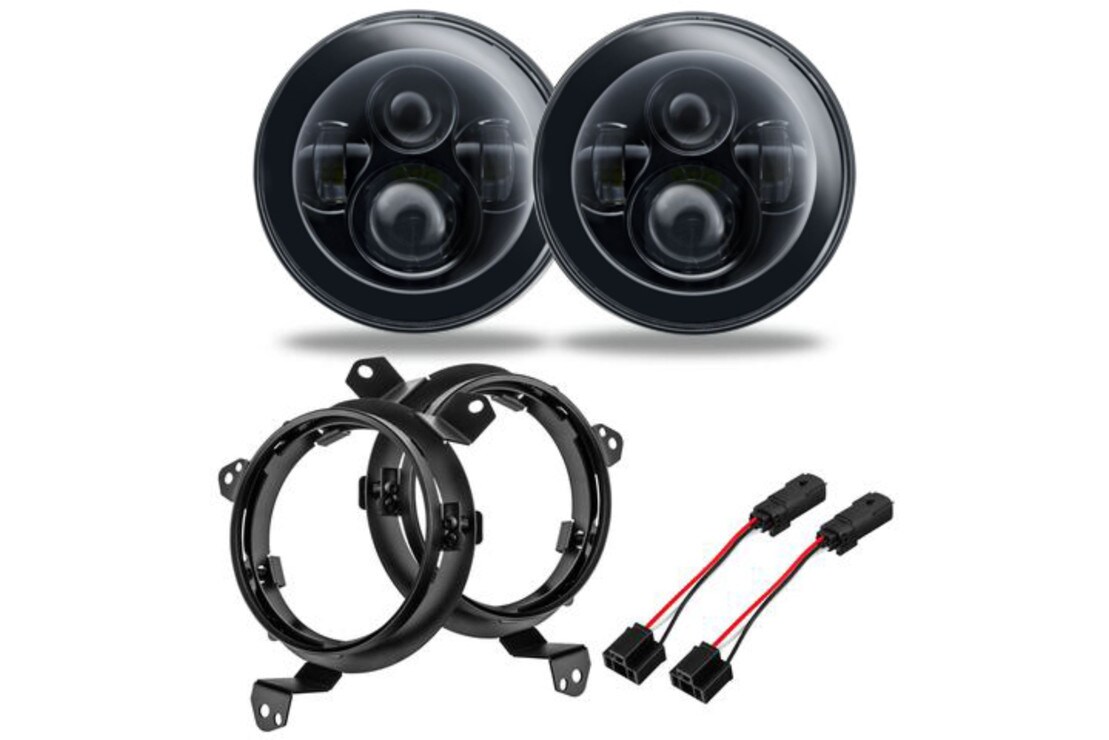

WHAT’S INCLUDED

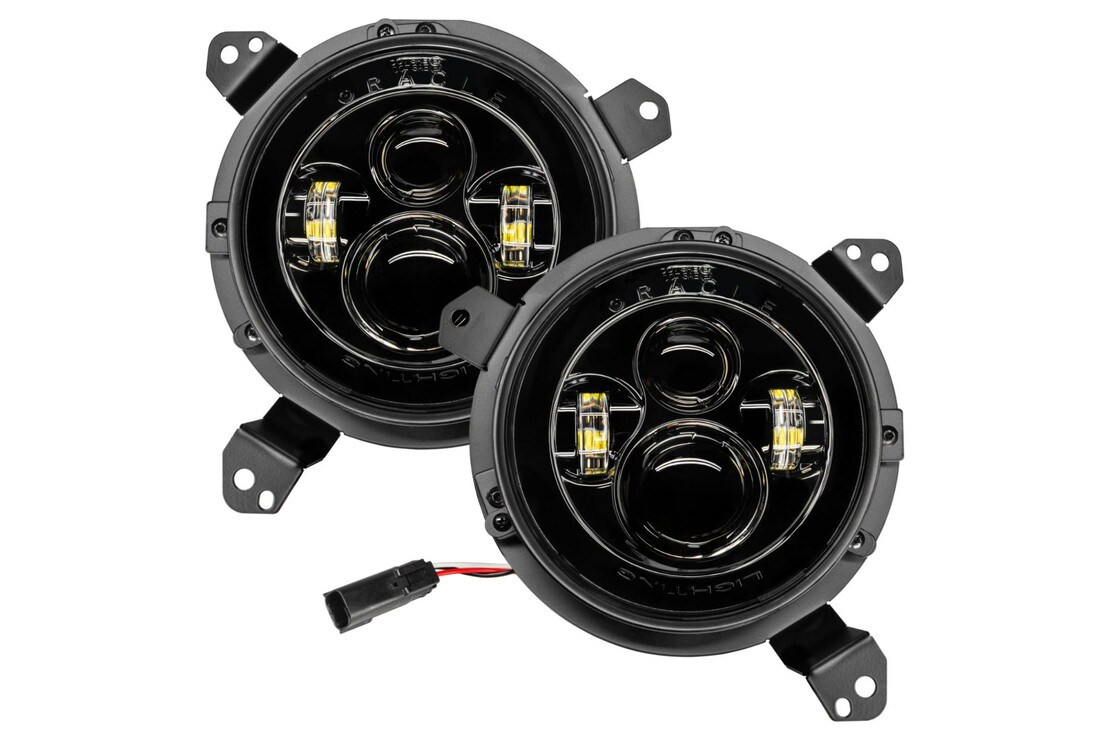

Headlights: 2x (One Pair) Oracle LED 7in Sealed Beam Headlights

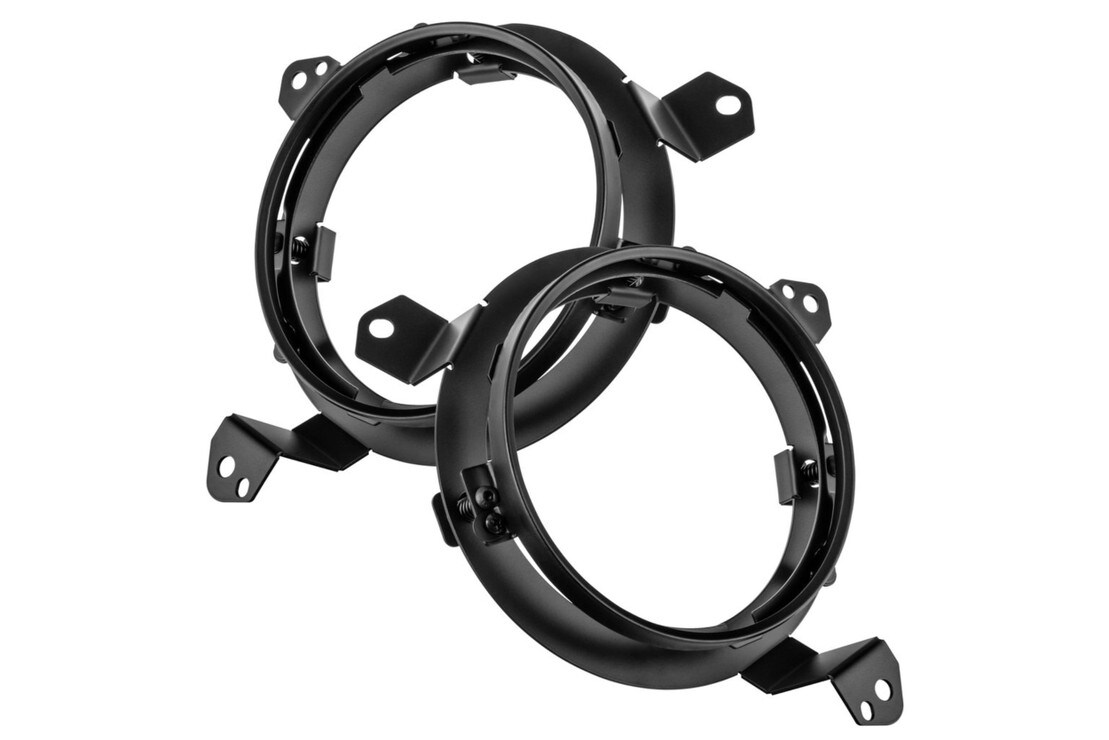

Adapter Brackets: 2x (One Pair) 7in JL/JT Adapter Brackets
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Input: H13
Input Voltage: 12-24V DC
Power: 36w Low / 48w High
Current DRaw: 2.5A @ 12V DC
Light Source: Philips Luxeon Z ES 6000K (Cool White)
Material: Hard-Coated Polycarbonate (Lens), Die Cast Aluminum (Housing)
COMPATIBILITY
5769J-504: Oracle LED Headlights: 7in Jeep JL / JT / Black / No Halo (Pair)
COMPLIANCE

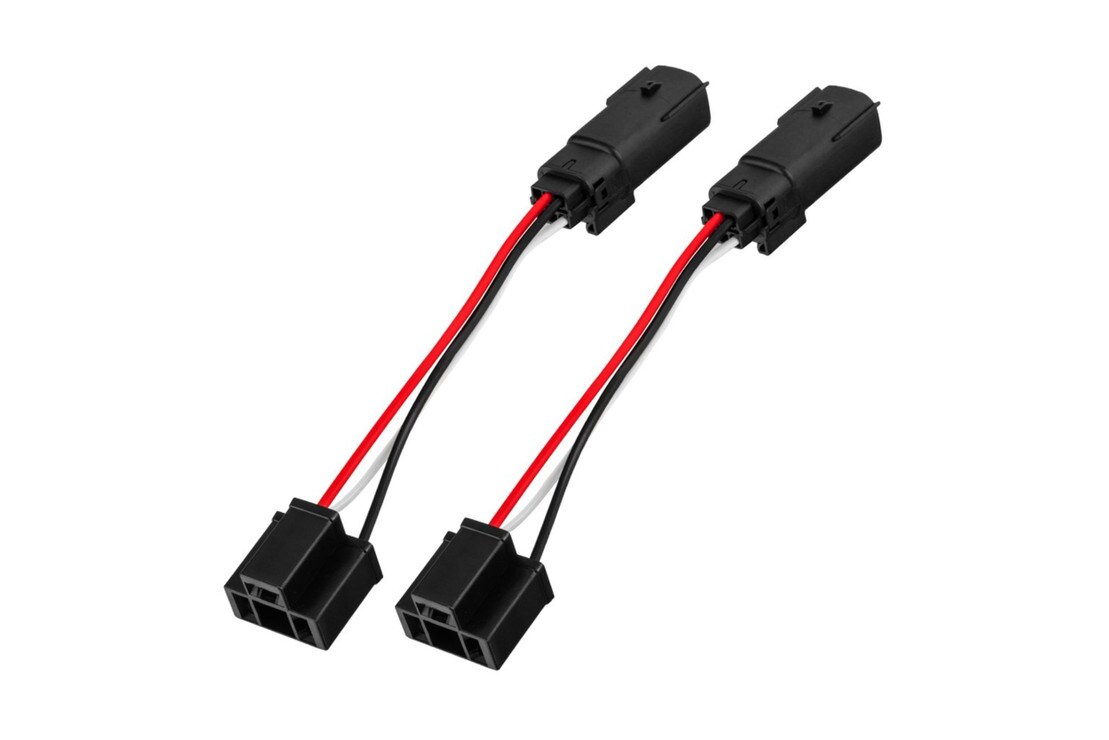

New from Oracle:Complete Package for adding High-Performance 7in LED Headlights to your Wrangler JL/Gladiator JT without any fabrication or cutting your factory wiring. This complete Plug-&-Play kit also features Vertical and Horizontal headlight adjustment so you can put the light on the road (where you need it) and not blind oncoming traffic. The Ultimate 7in LED replacement headlight option for the Wrangler JL/Gladiator JT. This rugged solid-state LED design is perfect for the Jeep owner looking for high-quality lighting for better night time visibility without overpaying. Installation is very easy with the included JL/JT-specific Plug and Play connectors. You can even choose optional colored Halos for even more customization!
Wiring: White or Amber Halo **Additional wire may be needed** Note: DRL wire cannot be used as a power source - Tapping into Park Lights will give manual control over LED accessory during daytime driving - LED accessory will turn on automatically in night mode when switch is set to AUTO - For full automatic control over the LED accessory use fuse F52 in the engine compartment fuse panel.
Wiring: Red, Blue, or Green Halo Extend Red (+) wire to controller, to toggle switch, existing headlight halo. Extend Black (-) wire to common ground.
