DESCRIPTION
FEATURES & BENEFITS
- Seamless Integration: Fits perfectly in your 2019+ RAM 1500 TRX or Rebel.
- Custom Lighting: Choose white or yellow LEDs for your unique style.
- Rugged Durability: Built tough for all conditions, ensuring longevity.
- Optimal Illumination: 8 flood and 12 spot LEDs for wide vision and long-range focus.
- Easy Install: Quick setup with rivet nuts; connects to factory AUX switches.
WHAT’S INCLUDED

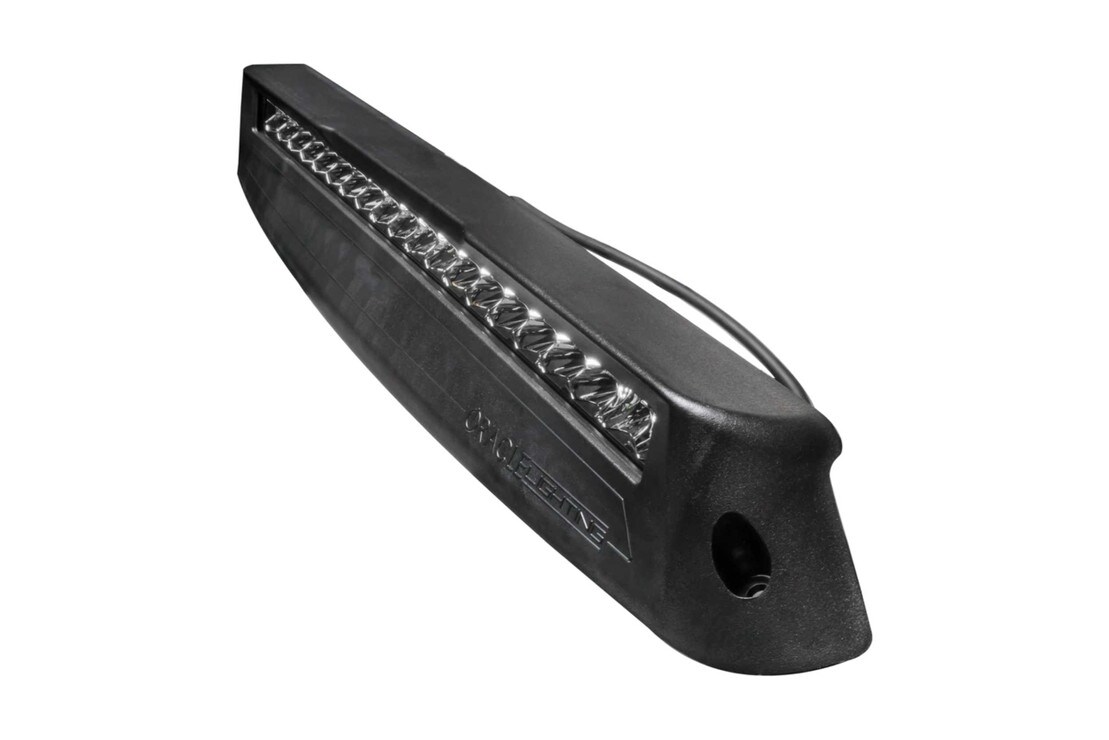

Light Bar: 1x Oracle Flush Grille Light Bar
Hardware: Mounting Hardware
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Output: 12,000lm (Raw)
Power: 100w
Current: 7.5A @ 12V DC
Input Voltage: 9-36V DC
Material: Polycarbonate Lens
COMPATIBILITY
Ram 1500 Rebel: 2019-2024
Ram 1500 TRX: 2021-2024
COMPLIANCE

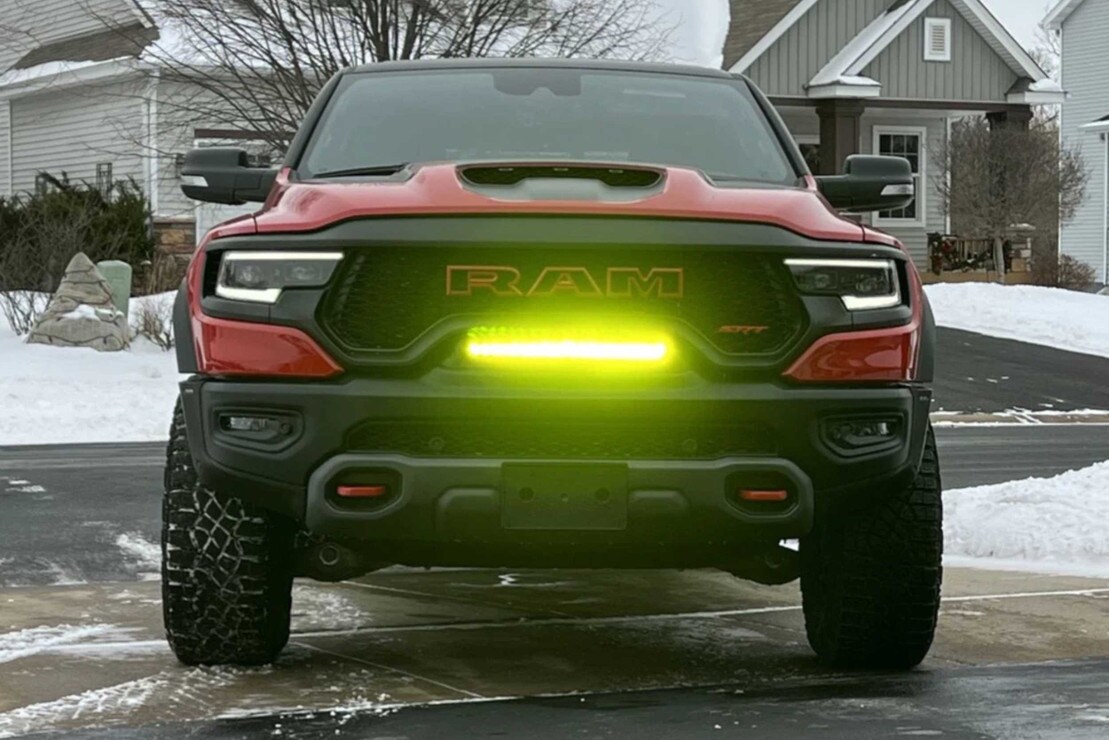

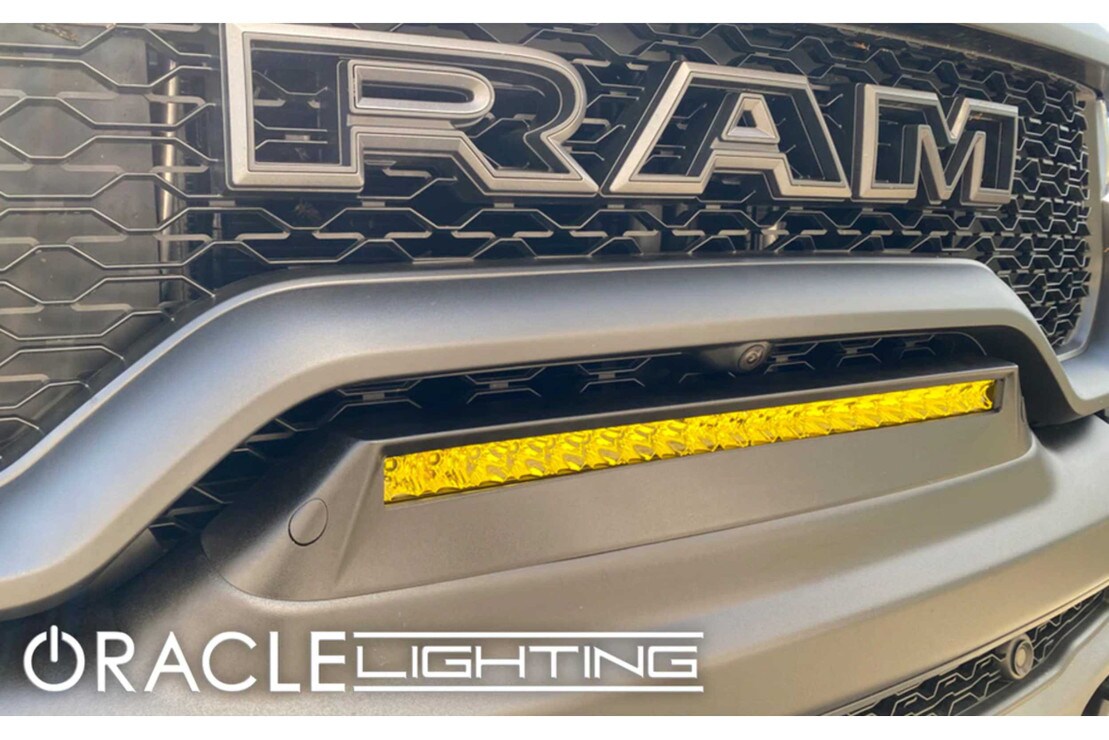

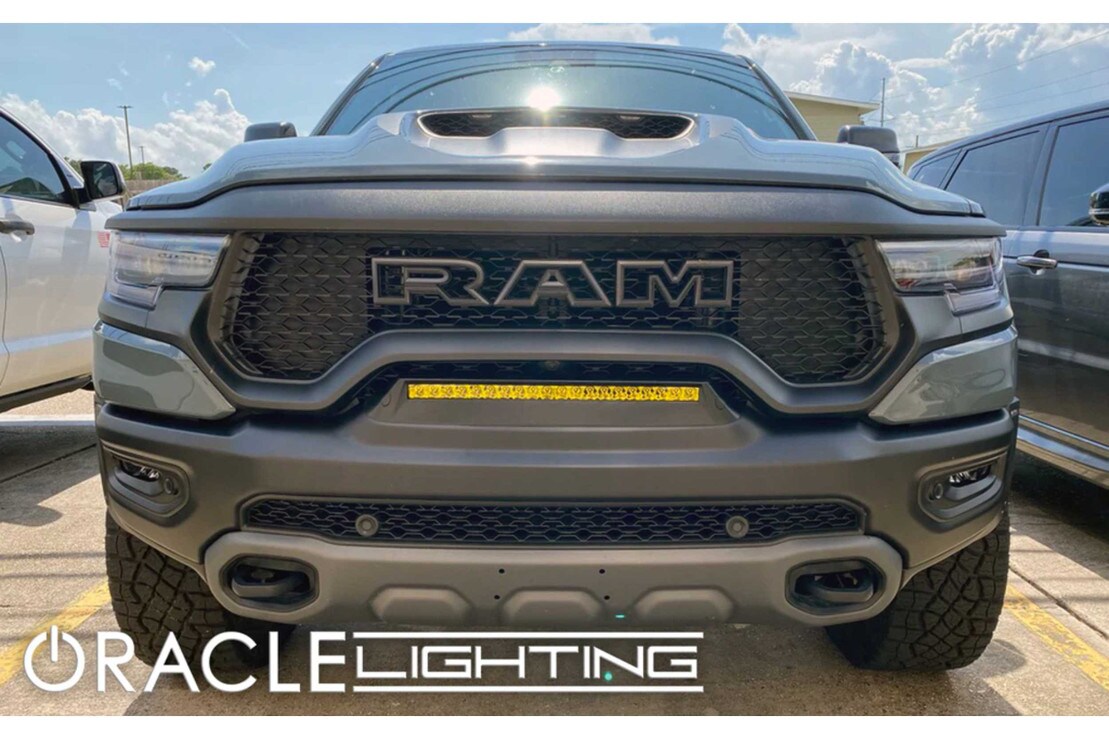

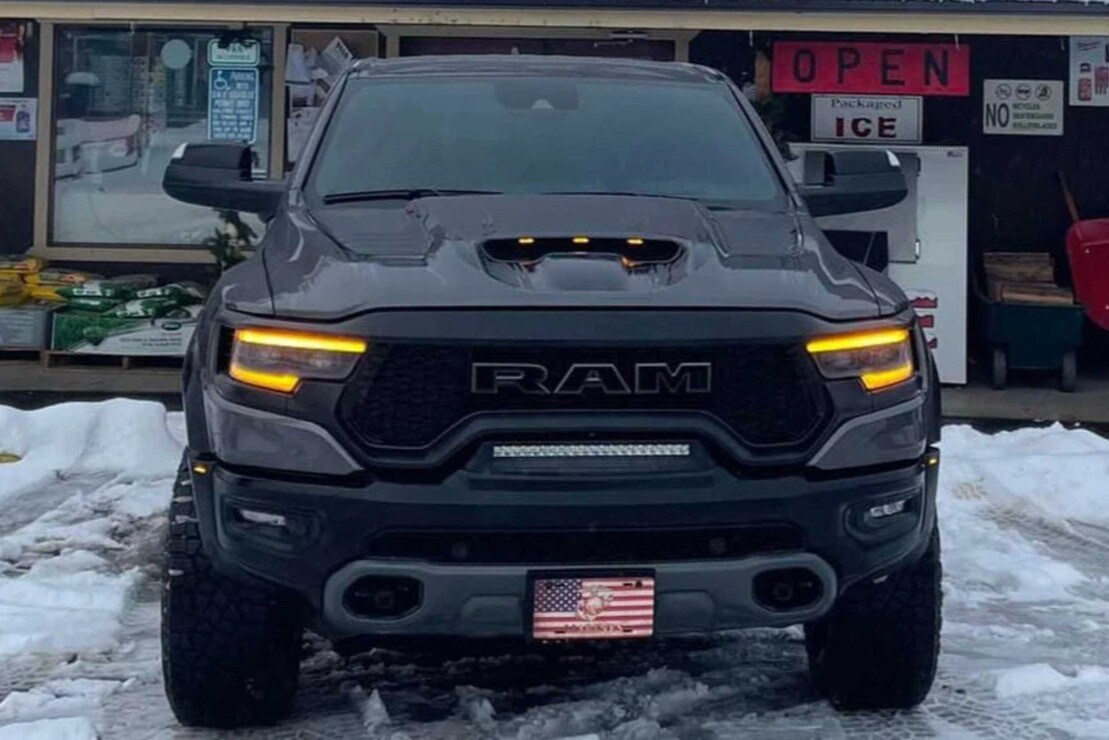

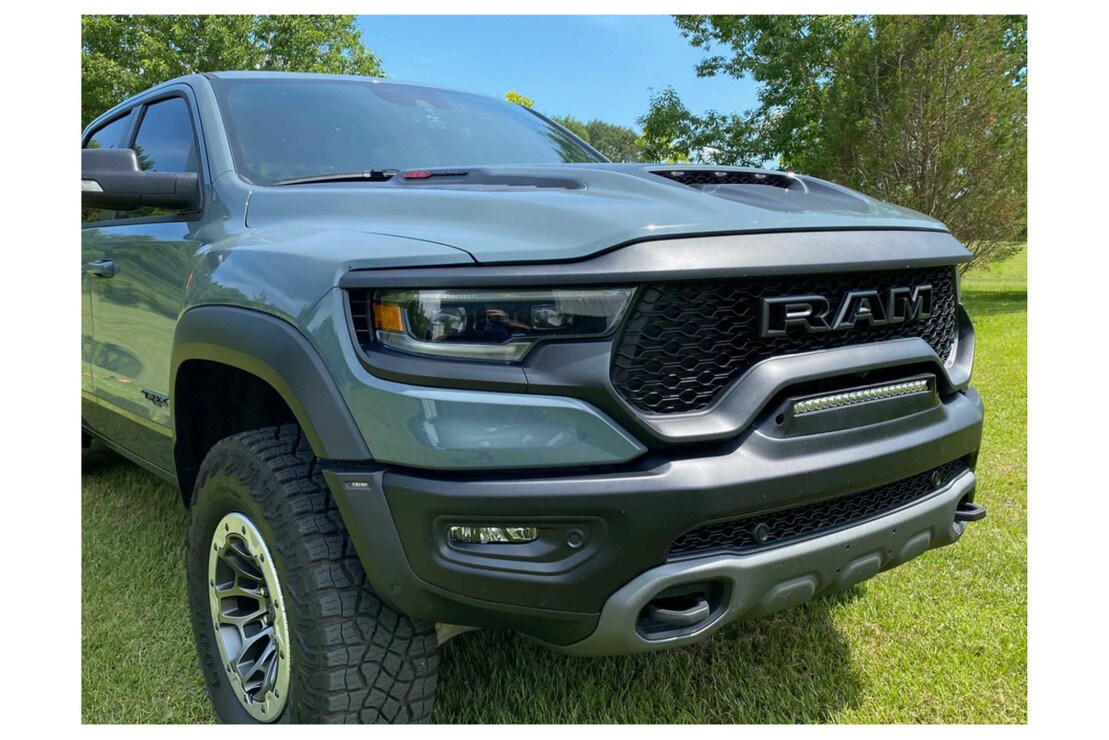

New from Oracle: Looking for a 2019+ RAM 1500 light bar system with a seamless look? This unique new lighting system from ORACLE provides functional forward LED lighting while maintaining a factory appearance. Our high-powered 100W LED light bar is fitted into a housing that is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel.
Options: Choose between pure white LED emitters or yellow LED emitters for a custom lighting solution. The rugged construction of the RAM light bar provides durability in any condition, and the expertly designed system exhibits high-performance illumination with a seamless appearance.
Output: The projection of the RAM light bar is a mixed beam with 8 of the LEDs using a flood (45° angle) beam and 12 of the LEDs using a spot (25° angle) beam so the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33° (8x45° + 12x25°) and calculating based on 14000Lm, the total candela of the light is 54107.70cd.
Installation: The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches. If your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504.
