Morimoto Rock Light Kit: Color Changing RGB (6 pc)

(0) No Reviews yet
Questions?

Brand: Morimoto

B-HLO-MMROCKRGB6-HR

$280.00 Original Price:$350.0020% OFF

PRODUCT OPTIONS

PART #: 1 x XRL25



Easy Return

DESCRIPTION

Introducing the Morimoto RGB Rock Light Kit – your ticket to a brighter and more dynamic driving experience! This rock-solid kit is designed for performance, intensity, and reliability, making it a must-have for truck and SUV enthusiasts. With 6x 3W RGB LEDs in each puck, you'll have intense illumination on any trail or city street. Take control with the RGB Bluetooth Controller, easily managing zones, colors, and effects from your smartphone. Installation is a breeze with integrated mounting options and rubberized magnetic mounts, while the plug-and-play wire harness ensures hassle-free setup. Built to last with a lifetime limited warranty, this bash-proof kit boasts diecast housings and a tough 2mm thick lens. Elevate your vehicle's lighting game with the Morimoto RGB Rock Light Kit – your ultimate choice for style, reliability, and performance!

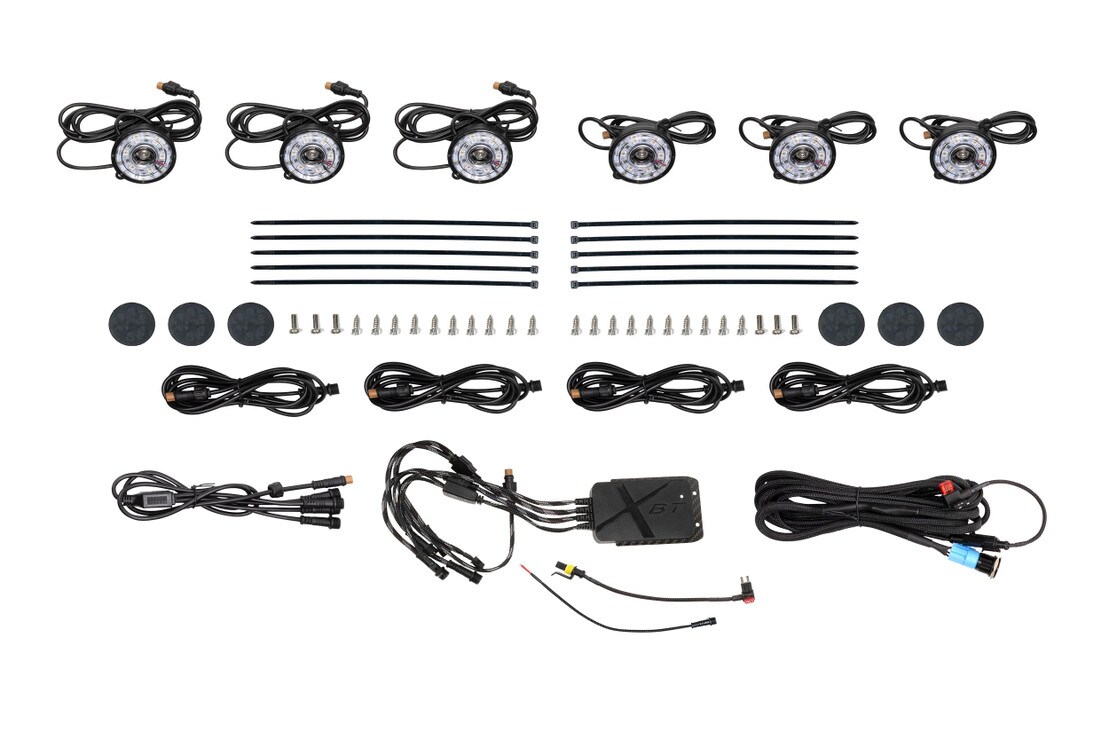

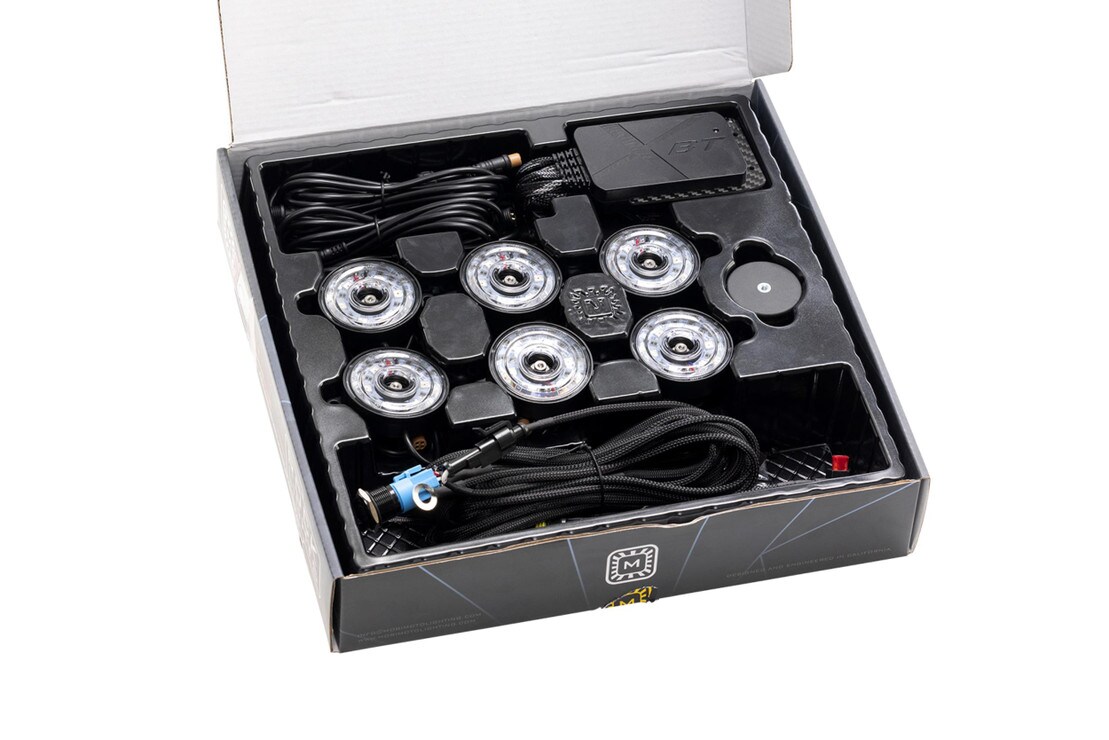

WHAT’S INCLUDED

  • Rock Lights: 6x Morimoto V2 Color Changing

  • RGB Controller: 1x Morimoto XBT-V2 Bluetooth

  • Main Harness: Plug n Play w/ In-Cabin push button

  • Fuse Box Harness: Mini and Micro Fuse Adapters

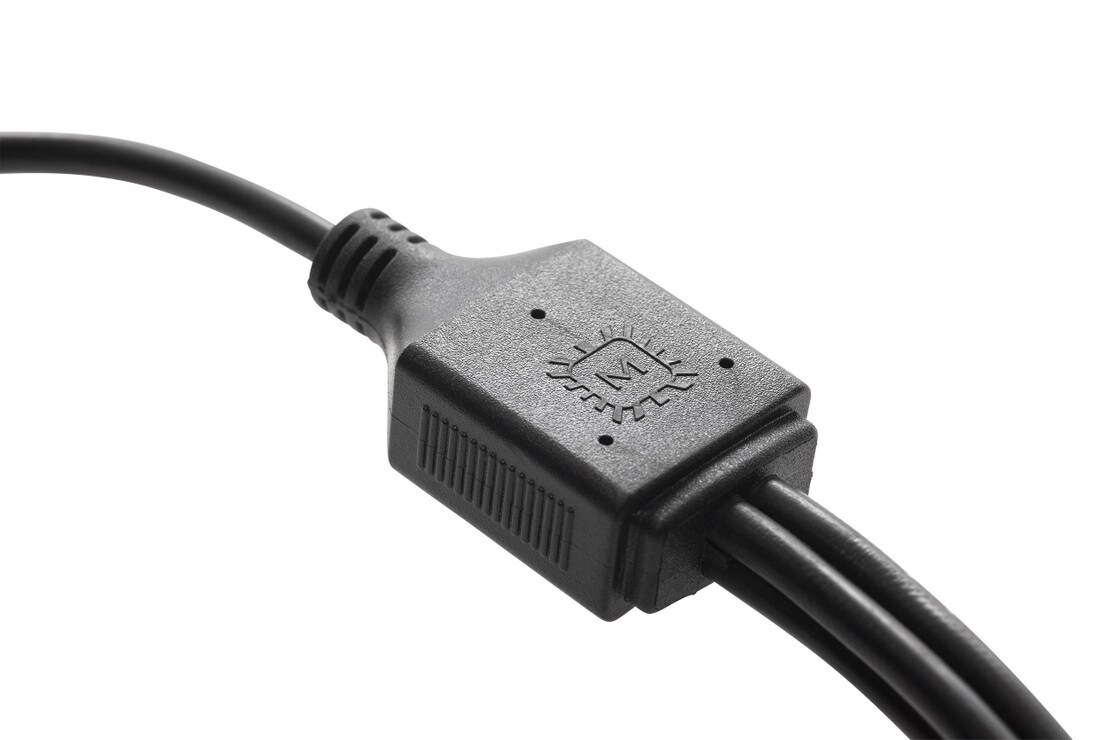

  • Splitter: 1x Over-molded two-way splitter

  • Extensions: 4x Over-molded Extension Cables (6ft / 185cm)

  • Magnetic Mounts: 6x Screw-on 8kg/17.6lb Magnet mounts

  • Accessories: Screws, Zip Ties, User-Guide

  • Warranty: Limited Lifetime

TECHNICAL SPECIFICATIONS

  • Housings: Black Powdercoated Cast AL

  • Lenses: Makrolon Polycarbonate

  • LEDS: Six 3W RGB Color Changing 5050

  • Lifespan: 50,000 hours

  • 12V Inputs: Mini or Micro fuse taps

  • Switch: Illuminated Push Button / Black CNC Face

  • 3-Zone Controller: Bluetooth for iOS 16+ and Android Devices

  • Zone 1 and 2: Rock Lights (Barrel Connectors)

  • Zone 3: Free for Additional RGB/RGBW Accessories (JST Connector)

  • Switch Wiring Length: 150in / 381cm

  • Splitter Wiring Length: 40in / 101cm (total)

  • Extension Length: 6ft / 183cm (each)

LINE DRAWINGS

COMPATIBILITY

  • Perfect For: Trucks, Jeeps, SUVs and Powersports

  • Cars too?: Yes, but only because neon Underglow is so 2002

  • Wheel Wells: Yes

  • Frame Rails: Yes

  • Engine Compartment: Yes

  • Interior Lighting: Yes

  • Electrical Systems: 09-18V

  • Bluetooth System: Works with latest iOS and Android smart phones

INSTALLATION DOCUMENTS

Rock On: This is the setup that delivers the performance, intensity, and reliability that Morimoto customers have come to expect. Designed and engineered for the most popular trucks and SUVs here in the USA, our rock light system includes everything needed to complete the install, but without the guess work that plagues too many big brand rock light kits on the market today.

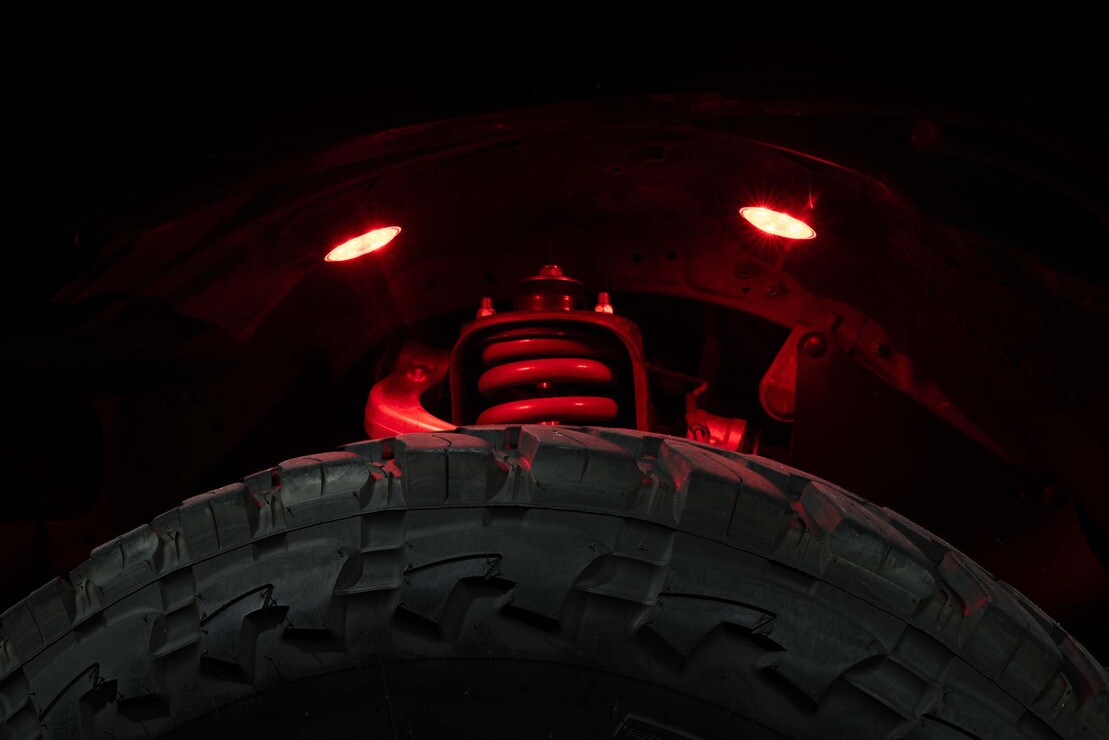

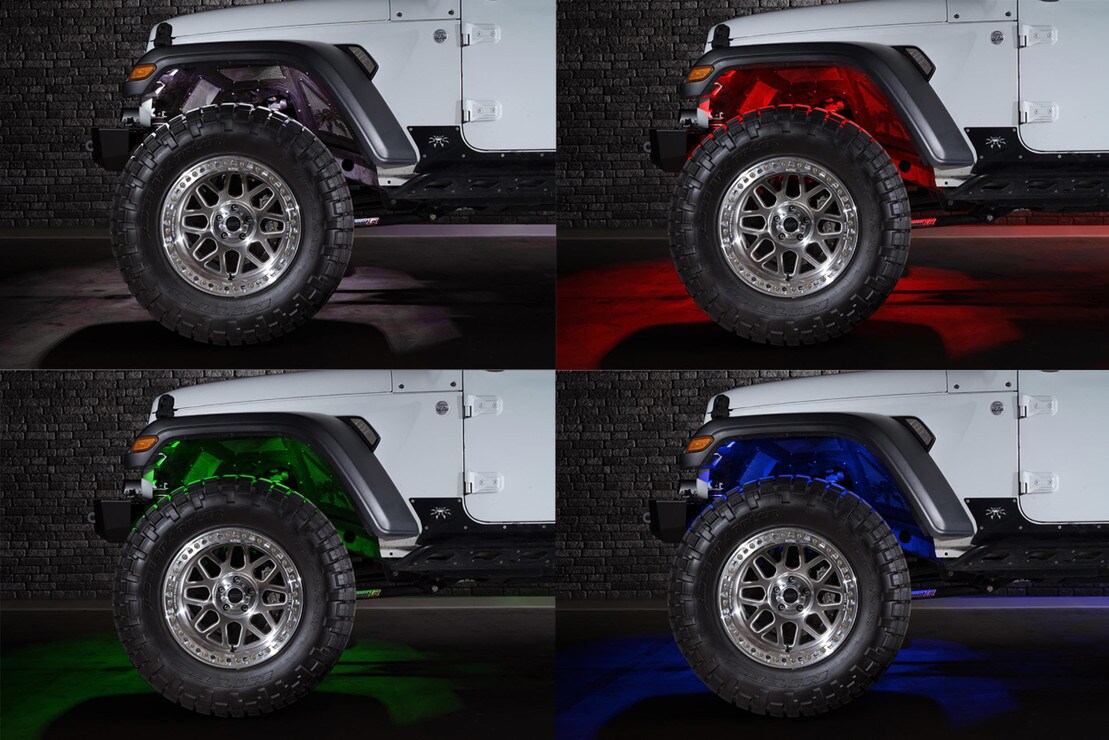

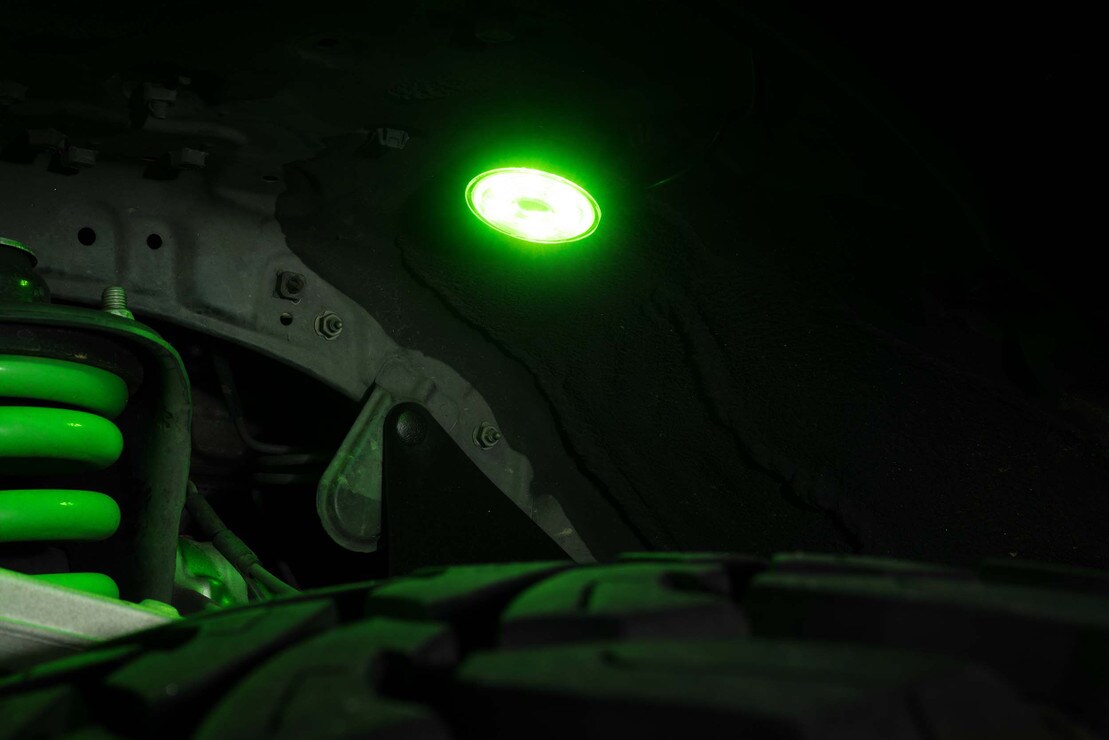

Brighter: Our proprietary second gen rock lights are designed to maximize intensity for well-lit trails and city streets alike. Each puck uses 6x 3W RGB LEDs projecting through a high clarity polycarbonate lens, so no matter how you are using them, you can easily see and be seen. While theres nothing wrong with two, one puck will easily illuminate the entire wheel well with a virtually infinite variety of colors.

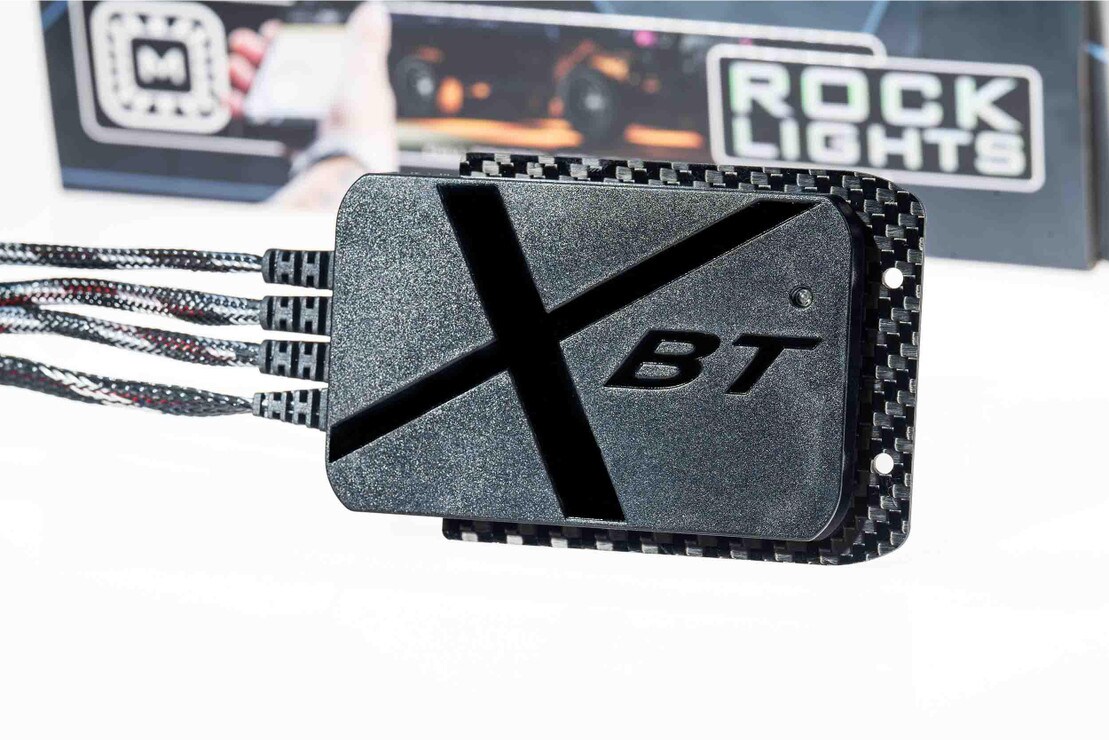

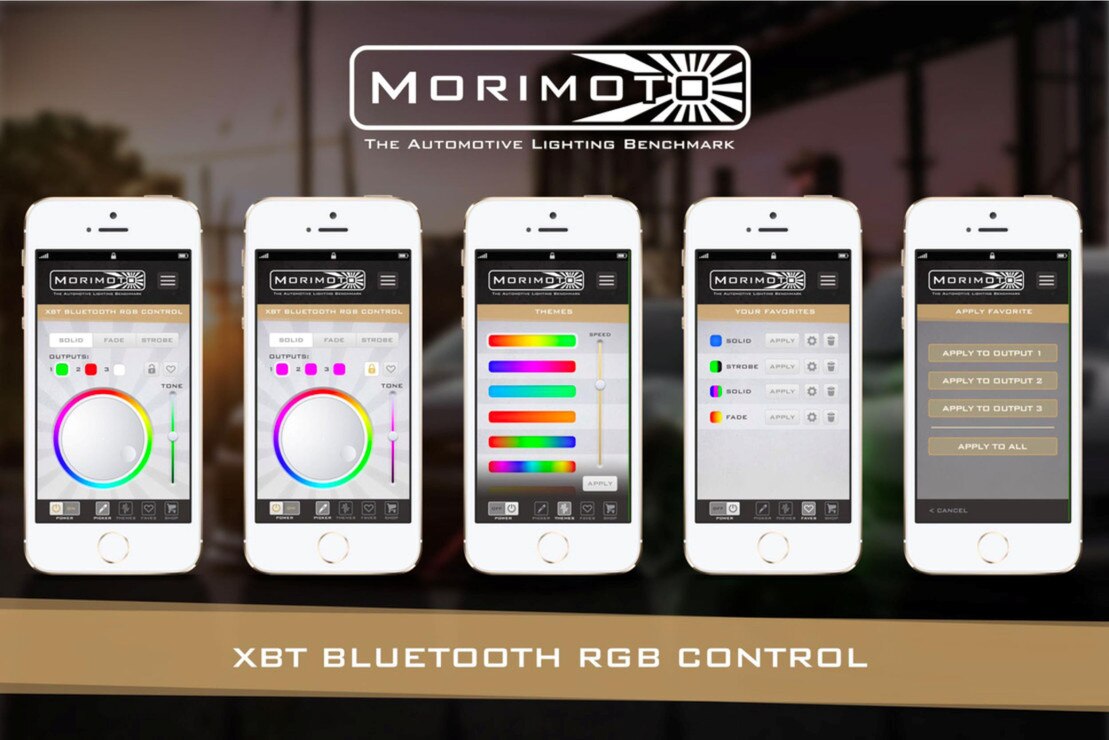

RGB Bluetooth Controller: You can easily manage the zones, colors, effects, pre-sets, and save favorites from the Morimoto XBT Color Control app, which is compatible the latest Android and iOS phones. The RGBW-capable controller has an extra output channel (un-used by the rock light kits) which will allow you to add and control an additional set of RGB or RGBW lights from the same app. Its mounting bracket is also made out of carbon fiber. Why? Why not?

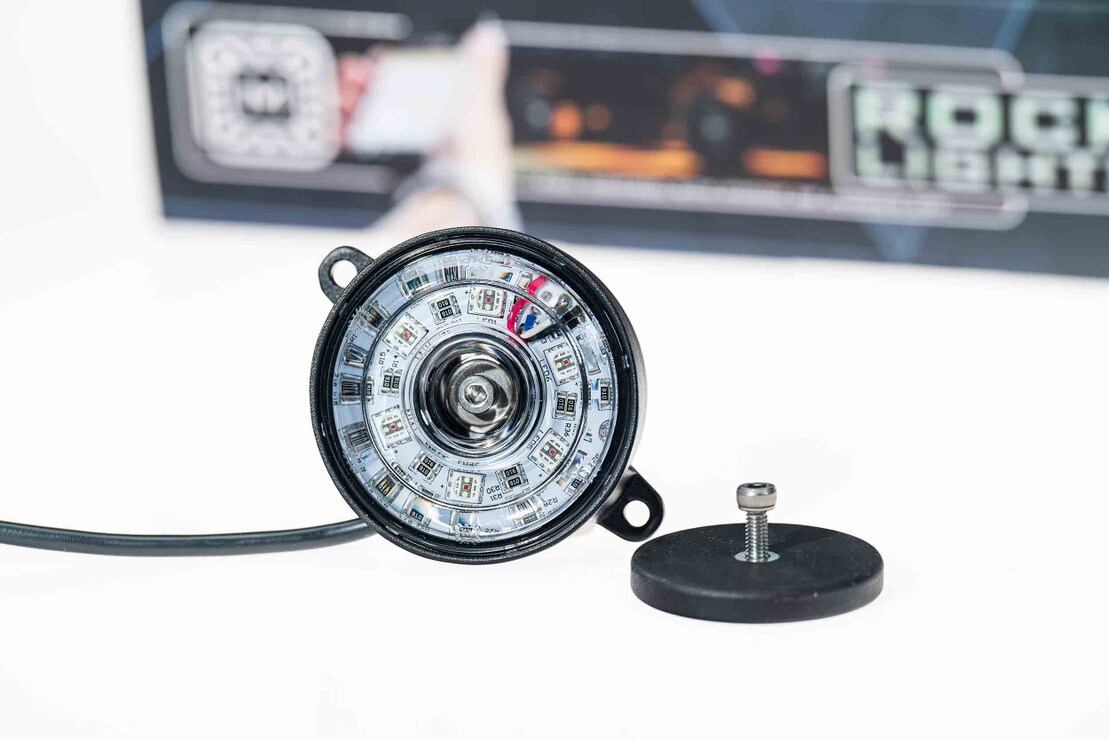

Easy Install: We've integrated two different mounting options to make for an easy-install. The shell has integrated mounting points on each side if you have a hard surface to screw into. Each kit includes also rubberized magnetic mounts that are easily strong enough to make for a reliable no-drill installation. Each magnet is rated for an 8kg (17.6lbs) load, which is approximately 40 times more than the weight of each rock light.

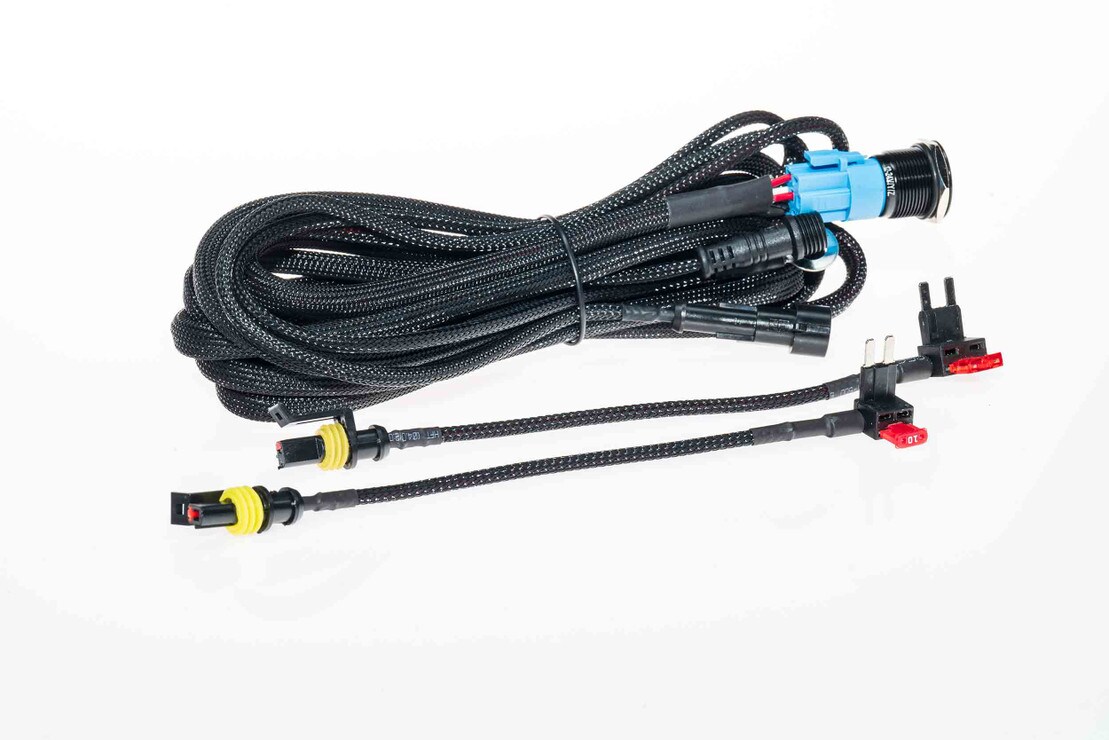

Plug n Play: The kit comes complete with a wire harness to control the system. Controlled by an in-cabin push button switch, the harness will pull 12V from any position inside the fuse box, and includes all splitters and extensions to neatly route the wiring to each corner of your vehicle. Each kit also includes a set of convenient extension cables to help ensure your wiring lengths are just right, regardless of an install on a two-door Jeep or modern HD truck. With over-molded splitters and fully sealed barrel connections from end to end, long-term reliability won't be a concern either.


Bash Proof: Backed with a lifetime limited warranty, the Morimoto Rock Light system is built to last. The beefy diecast housings have been powder-coated with the same finish as our Banger off road LED pods, and the 2mm thick lens is molded from Makrolon Polycarbonate, known for its strength in tough automotive applications.
