DESCRIPTION
FEATURES & BENEFITS

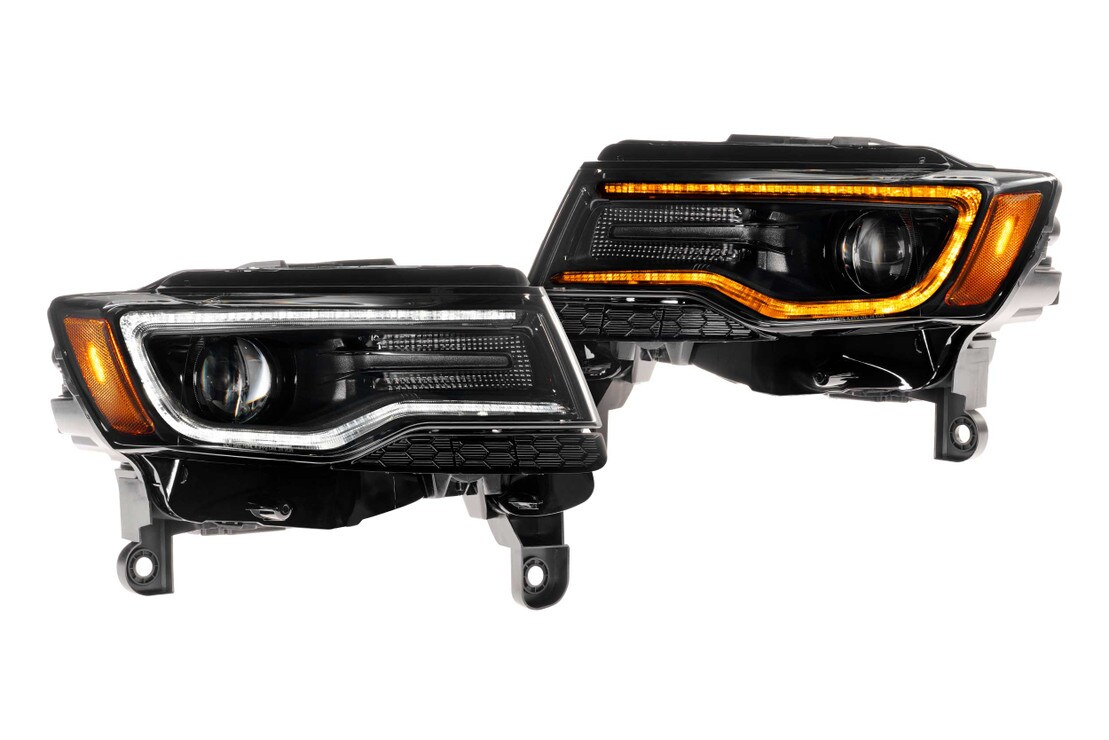

- Max Performance: The XB LED Gen II headlights use high output Bi-LED projectors to create an incredibly bright and wide low and high beam for excellent visibility at night.
- DRL Optics: Easily outshine low-tech found in other aftermarket headlights, while providing a high-end OEM look.

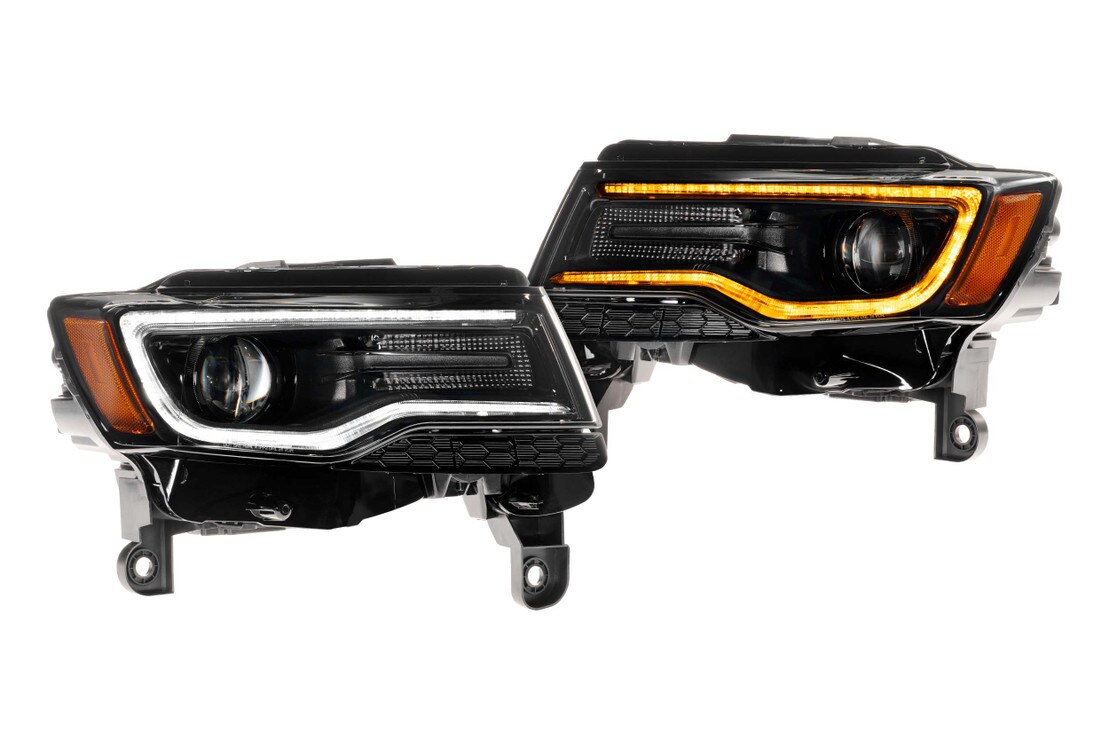

- Signal Swap: The DRL color can be configured to run in either white or amber, while the turn signals can operate sequentially or in a more traditional on-off mode with an elegant fade-off effect.
- Start-Up Sequence: When starting your Grand Cherokee, the optics will automatically illuminate in a multi-stage sequence while coming to life.
- OE Fit & Installation: The XB Gen II headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation on all trim levels.
- 5 Year Warranty: Morimoto headlights are not inexpensive, but they are skillfully built to an OEM+ standard and should easily last the life of your Jeep Grand Cherokee!

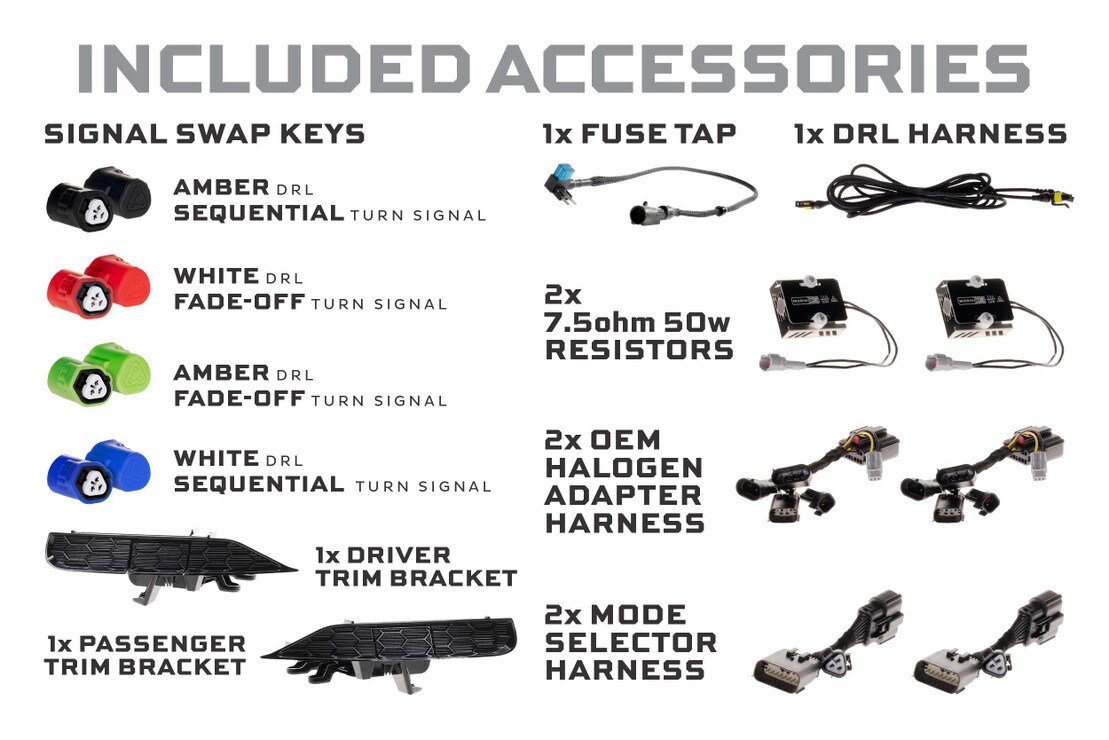

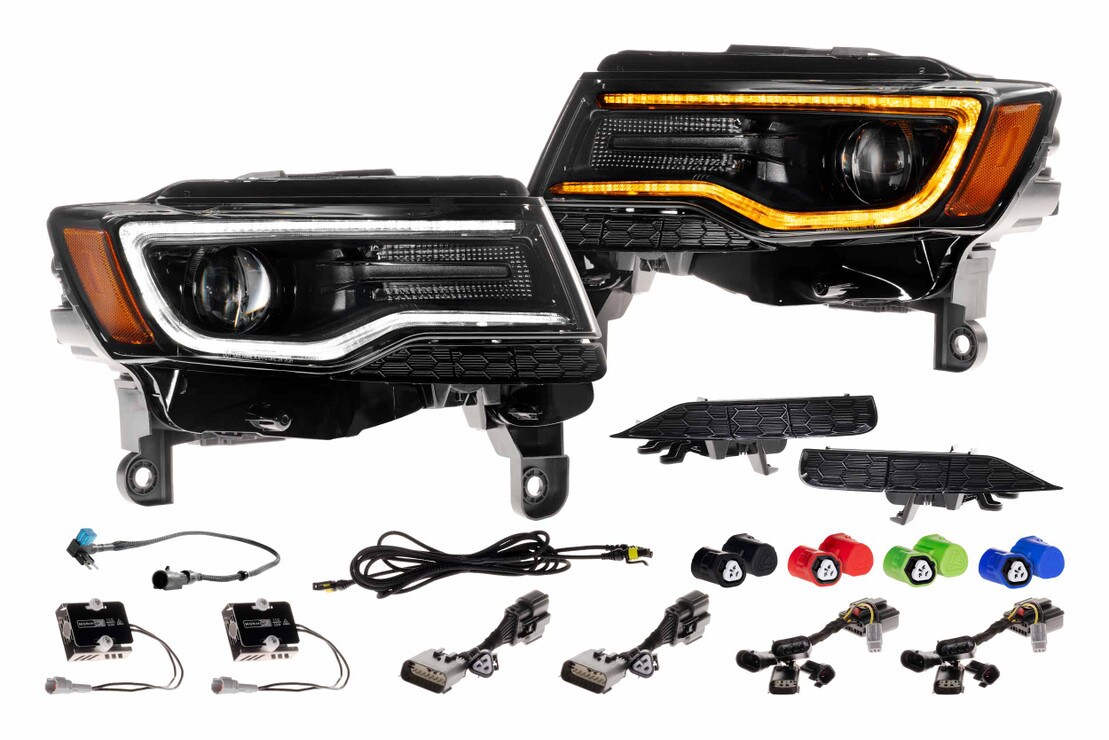

WHAT’S INCLUDED
Headlights: 2x (One Pair) Jeep Grand Cherokee XB Gen II LED Headlights
Trim Brackets: 2x (One Pair) for 2014-2016 Model Years
Wiring: 2x Mode Selector Harnesses, 2x OEM Halogen Adapter Harnesses, 1x DRL Harness, 1x Fuse Tap Harness
Mode Selectors: 8x (Four Pair) DRL Color and Turn Signal Mode Keys
WARRANTY INFORMATION

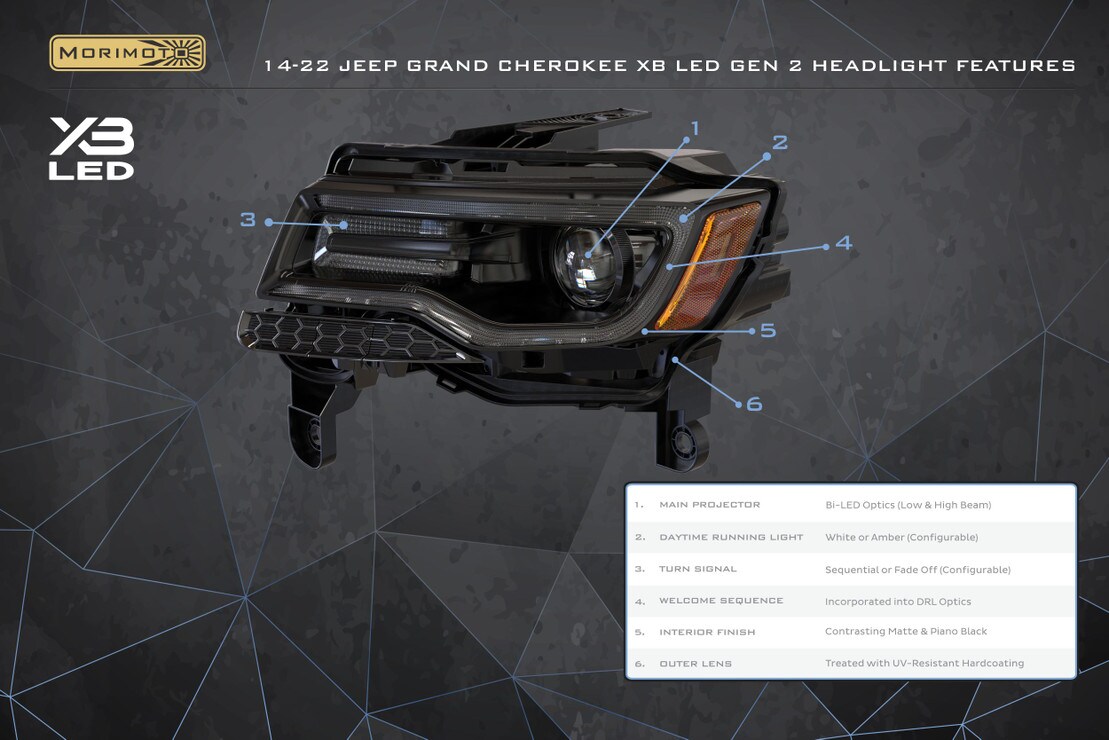

TECHNICAL SPECIFICATIONS
Traffic Pattern: LHD (US Standard)
Input: Mopar Multi-pin
DRL: White or Amber (Configurable)

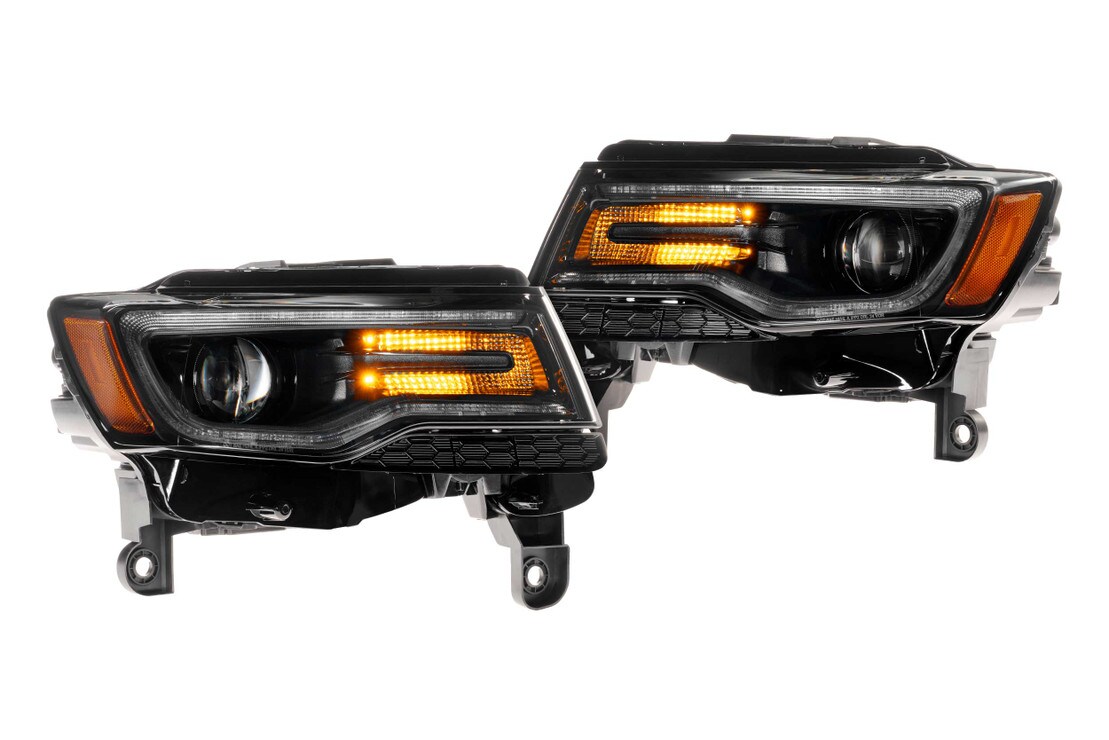

Turn Signal: Sequential or Fade Off (Configurable)
Optic: 1x Morimoto Bi-LED Projector (Per Housing)

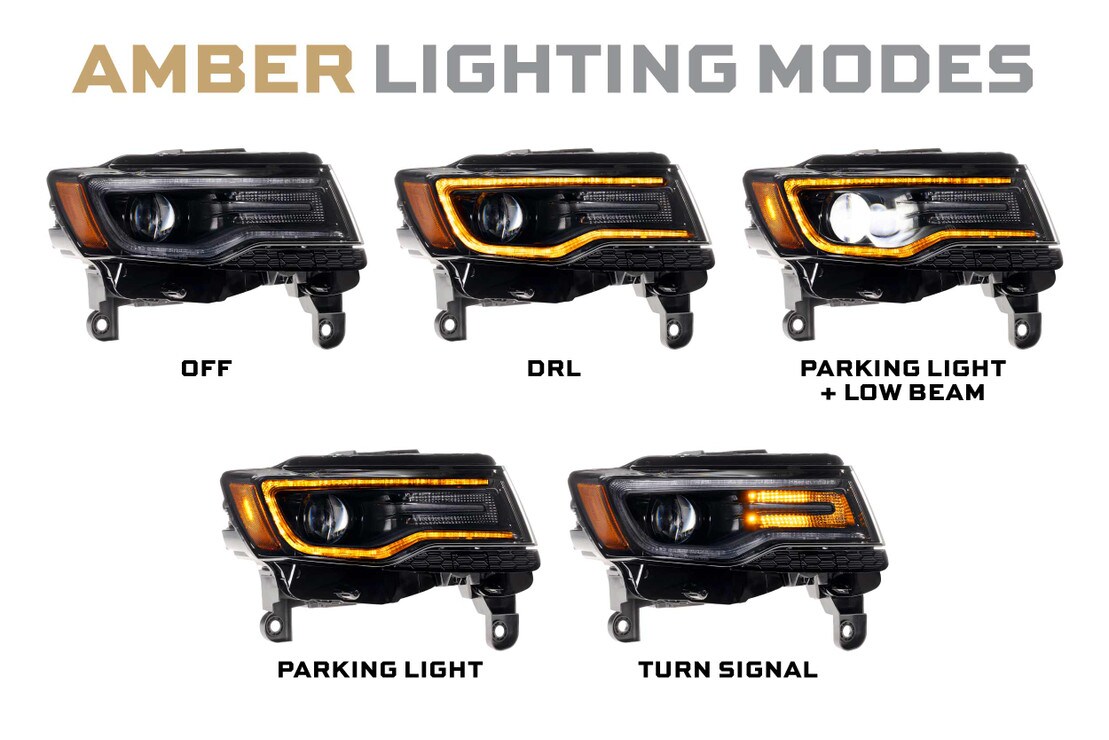

Functions: Low, High, Park, DRL, Turn
Interior Color: Gloss Black, Matte Black
Side Marker: DOT Compliant Amber
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Lens Coating: Proprietary OEM+ Anti-UV Hard Coating
COMPATIBILITY
Jeep Grand Cherokee WK2: 2014-2022 (All*)
*Canadian Trucks: Requires PWM module tapped into low beam for proper function
2014-2016 Years: Use Included Lower Trim Brackets
Replaces OE Headlights: OE Halogen, OE Bi-xenon, OE Bi-Xenon with AFS (turning)**
**Note: While AFS trucks won't retain this feature with the Morimoto headlights, there are no error codes on the dash.
COMPLIANCE
INSTALLATION DOCUMENTS
Evolutionary: The Second Gen of the XB LED headlights for the Grand Cherokee share many of the same core components designed for the top-of-the-line XB series from Morimoto, without some of the features that make them considerably more expensive. That said, these are hardly a compromise for GC owners looking for a considerable upgrade over the stock headlights; With true TIR optics for the LED DRL, selectable DRL color, killer light output from the powerful Bi-LED projectors, OEM+ looks, all wrapped up in a high-quality housing that will plug n play and is backed with a Five-Year Warranty.

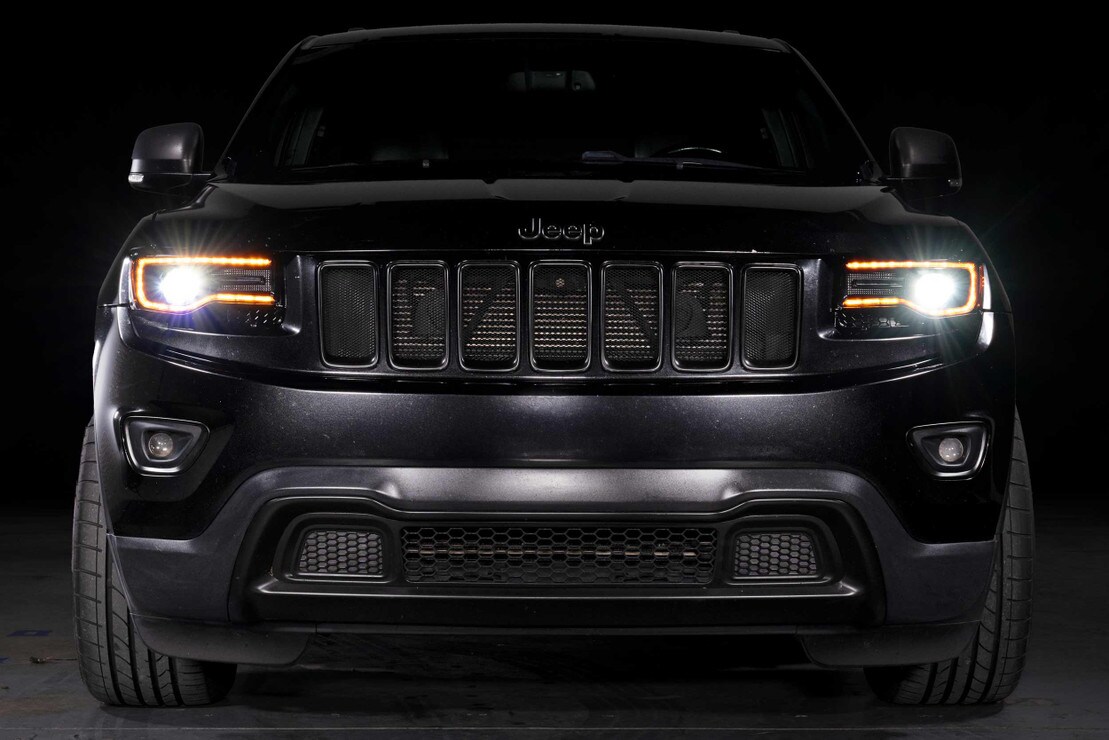

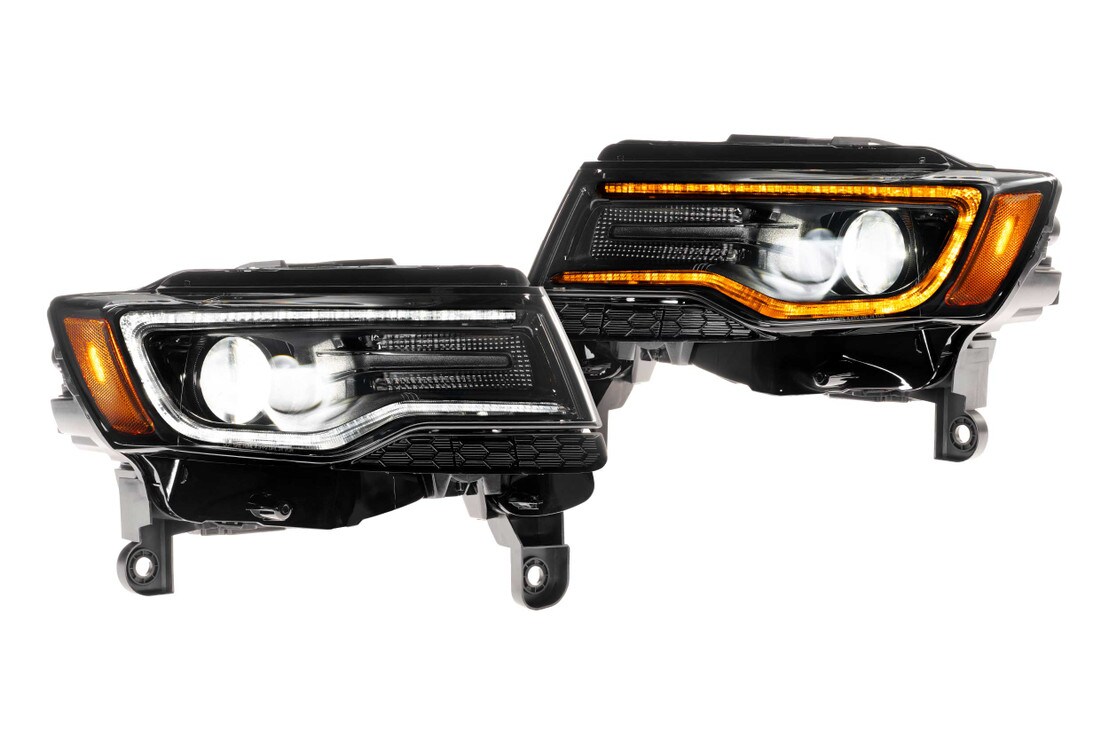

Maximum Performance: Using the same high-performance Bi-LED projector we have deployed in many recent products, the XB Gen IIs for the Grand Cherokee will meet & exceed the highest expectations in the performance department. Not only will they smoke most other aftermarket headlights for the GC, but they'll also easily deliver a huge boost in light output over the OEM Bi-Xenon headlights for the Grand Cherokee too, with an incredibly bright and wide low beam, and a high beam that destroys darkness. The Morimoto Gen II Headlights are DOT compliant with all FVMSS108 regulations for on-road use in the USA.

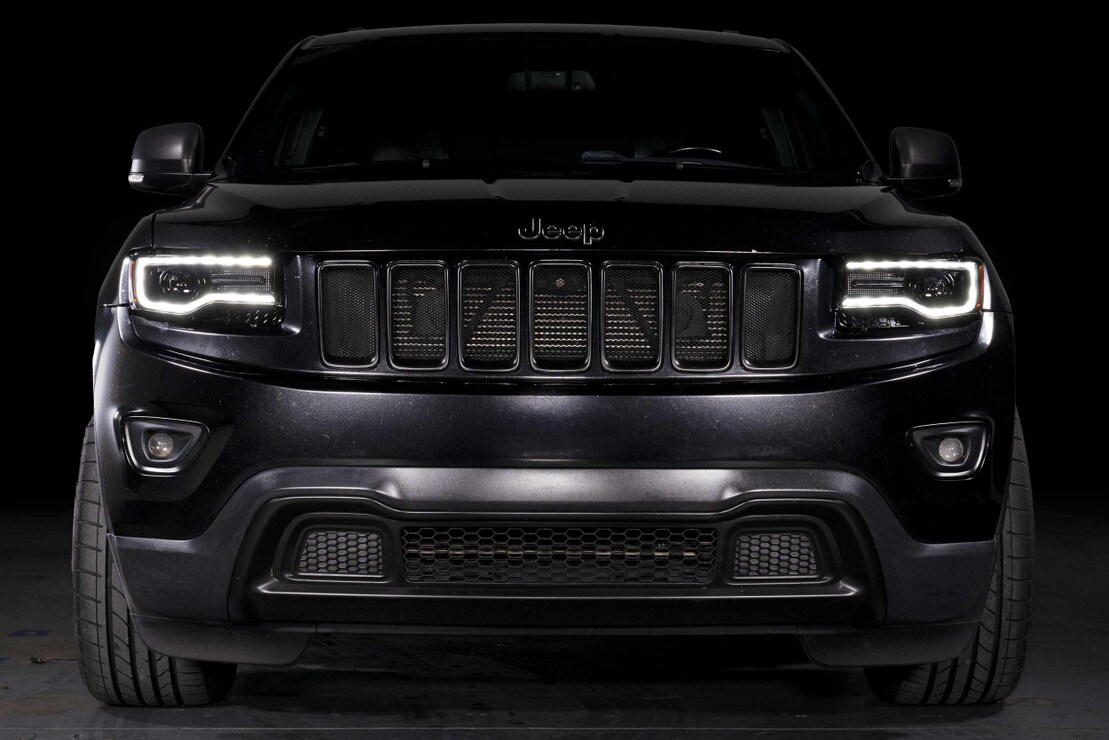

DRL Optics: The turn signals and daytime running lights illuminate modern 3D-TIR optics with special optical surface textures that enhance intensity at a distance, no matter day or night. These easily out-shine the low-tech daytime running lights found in most every other aftermarket headlights for the Grand Cherokee since they are essentially copies of the optics from the well-engineered OEM Bi-Xenon headlights--making them appear identical on the road.

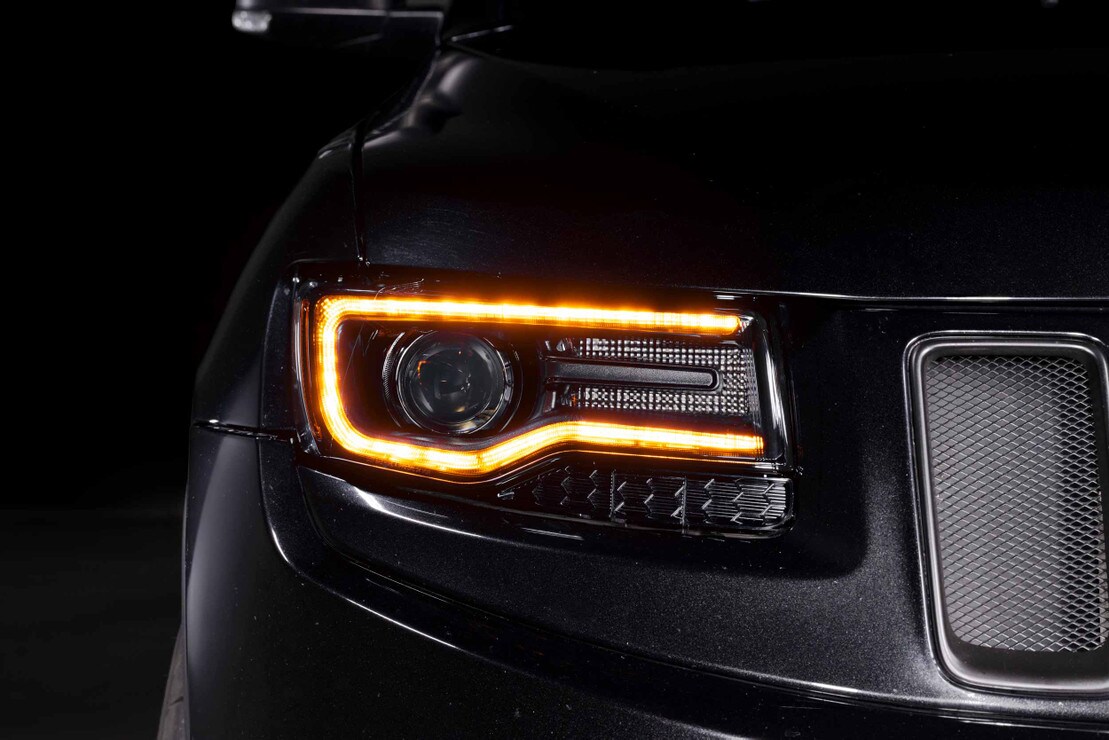

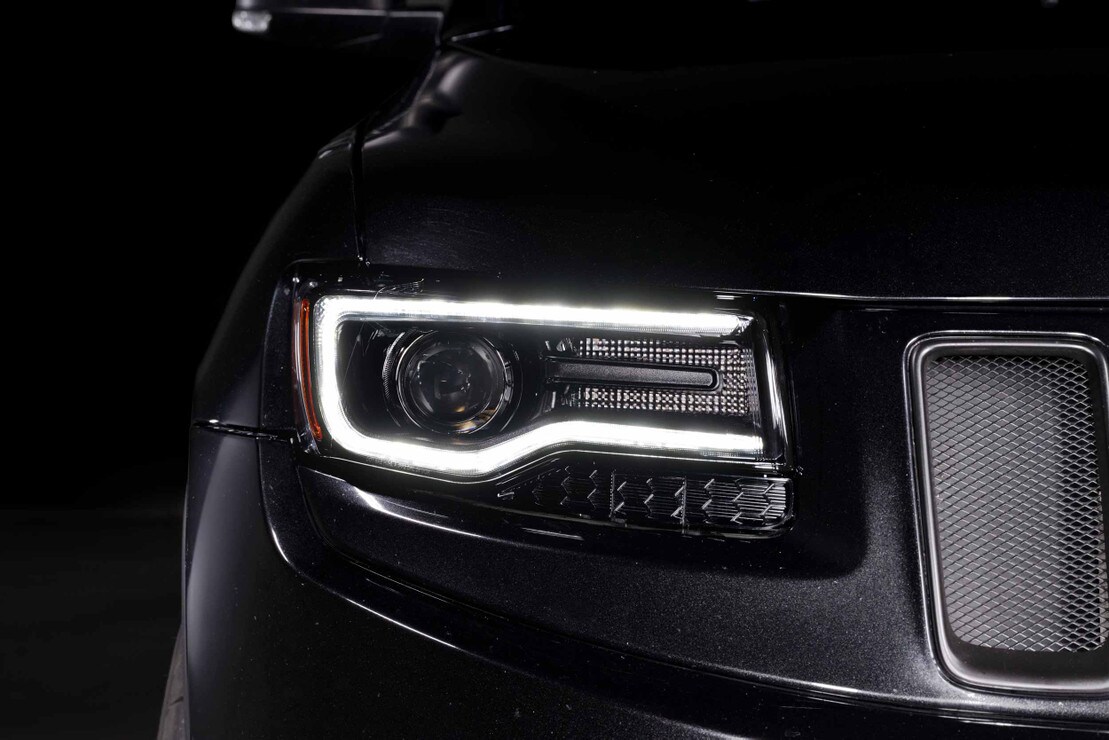

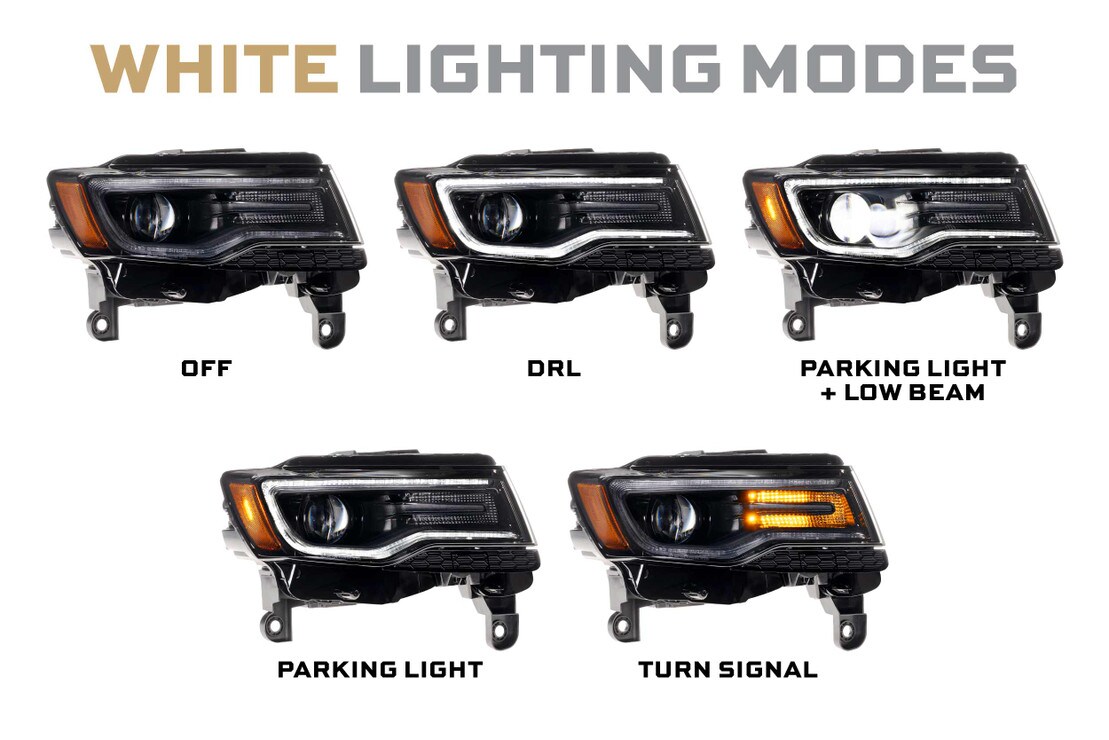

Easy to Personalize: Forget the fact that these are a more affordable Gen II model, we have packed them with features like our signal swap system, which allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. The DRL can be configured to run full-time in either white or amber with no compromise in intensity either way. The turn signal, though seemingly unexciting, can operate sequentially or in a more traditional on-off mode with an elegant fade-off effect. Either way, your turn signals will get noticed!
Start-up Sequence: When starting your Jeep, the DRL Optics will automatically illuminate in a multi-stage sequence when coming to life. Unlike every other feature baked into the headlights, this does absolutely nothing to improve performance. But executed properly, it does look cool, and there's nothing wrong with that!

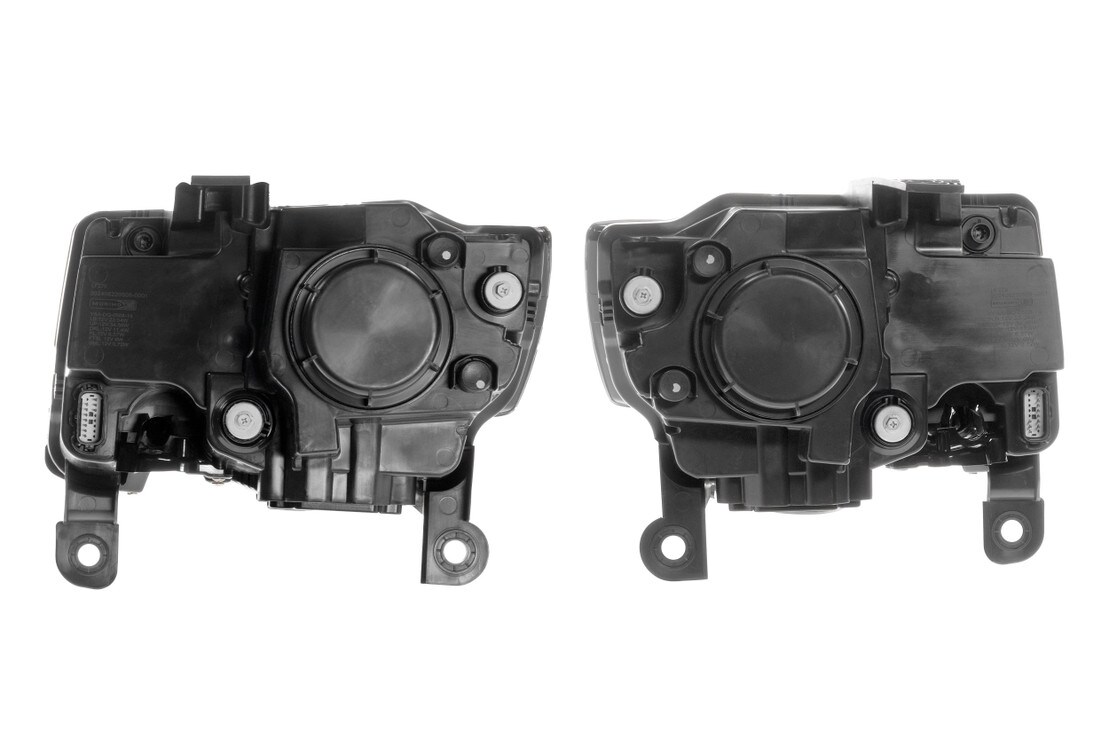

OE Fit & Installation: All Morimoto headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging, and then plug into the factory wire harness and then work without errors on the dash, flickering, flashing, or radio interference. Thoughtfully engineered for a modification-free install. No factory warranties void. No headaches. These are compatible with all 14-22 Grand Cherokees, whether yours has OEM Halogen headlights, OEM Bi-Xenon, or OEM Bi-Xenon with AFS (turning)*. All wiring and adapters are in the box. *While AFS trucks won't retain this feature with the Morimoto headlights, there's no error codes or dummy lights either.
Well-Built: This product is completely designed, engineered & tested by the Morimoto team to meet the high expectations of our customers. High quality OE-grade LEDs used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are industry-best, which is why we've formulated a new hard coating that exceeds their 3,000-hour standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on but as the saying goes: you get what you pay for. Morimoto headlights aren't the most affordable, but they are built to a high standard and should easily last the life of your Jeep! We're proud to stand behind the product with an industry-leading five-year warranty.
