DESCRIPTION
FEATURES & BENEFITS
- Gravity LED G6 Inserts Patented design for maximum brightness.
- GRD Technology Enhanced light positioning for clarity.
- Versatile Beam Patterns Spot, Driving, and Wide-40 options.
- Universal Ball Mount Adjustable and suited for multiple applications.
- Protective Cover Every Pro6 light includes a KC light cover for safety.
WHAT’S INCLUDED
Light Pod: 1x Gravity LED Pro6 LED Light Pod
Hardware: Mounting Hardware, Light Cover
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity: 2,300lm
Power: 20w
Current: 1.63A @ 12V DC
Light Source: CREE XPL HD 5000K
Dimensions: 7.0in H, 6.0in W, 3.13w D
COMPATIBILITY
91302: Gravity LED Pro6 Pod: Pedestal Mount (Each / Driving Beam)
91300: Gravity LED Pro6 Pod: Pedestal Mount (Each / Spot Beam)
91304: Gravity LED Pro6 Pod: Pedestal Mount (Each / Wide Beam)
COMPLIANCE

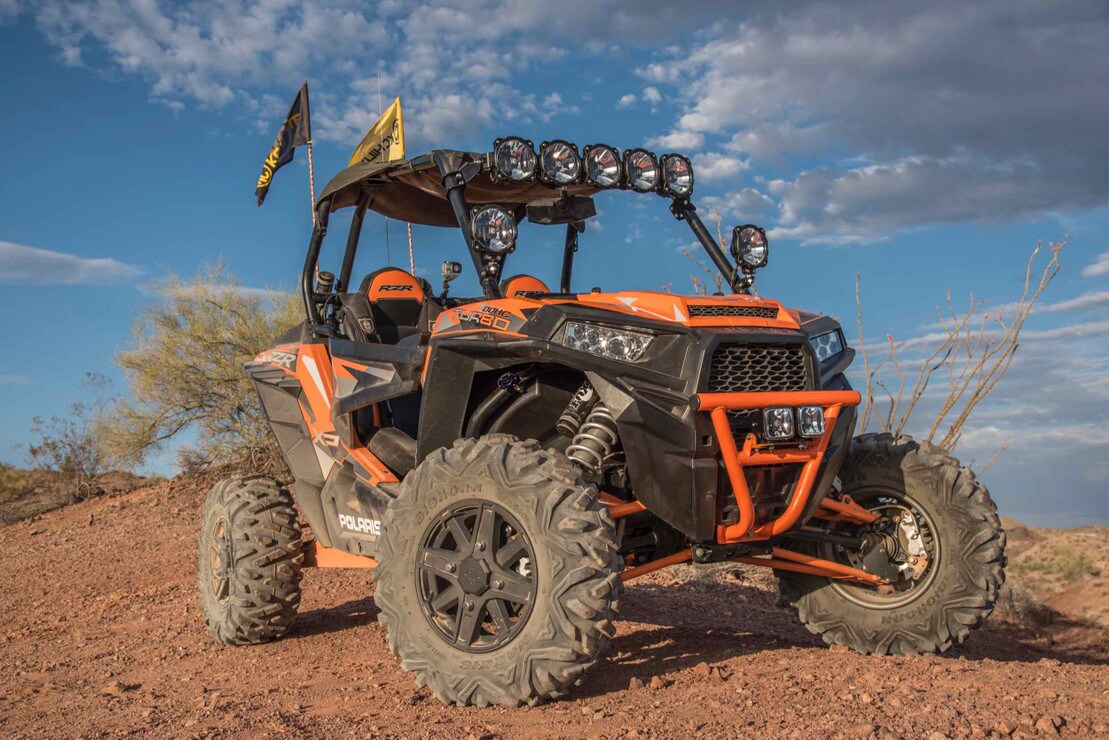

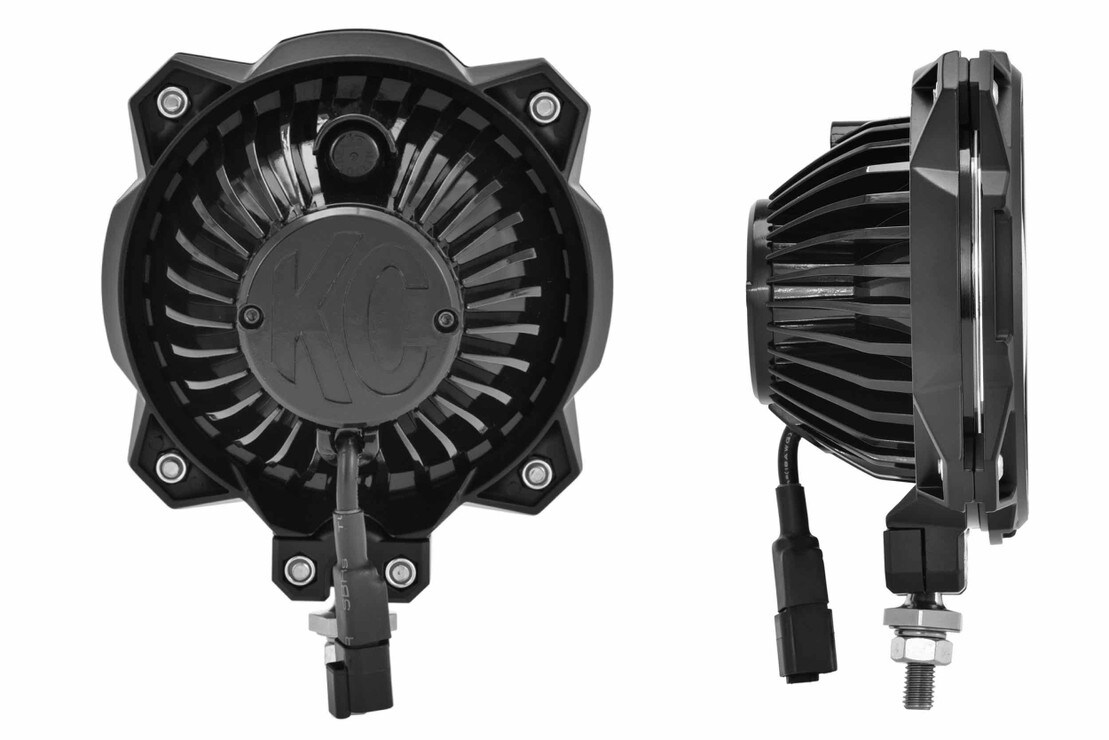

The Gravity LED Pro6 Single uses a durable UV treated composite housing design powered by patented 20W Gravity LED G6 optical inserts available in Spot, SAE/ECE Driving and Wide-40 Beam patterns. Each Pro6 LED single light uses a unique ball mount system that offers easy installation and adjustable light aim to suit your exact lighting needs. Gravity LED Pro6 Singles are perfect for front bumpers, light bars and a-pillar applications. Every Gravity LED Pro6 single light includes a protective KC light cover.

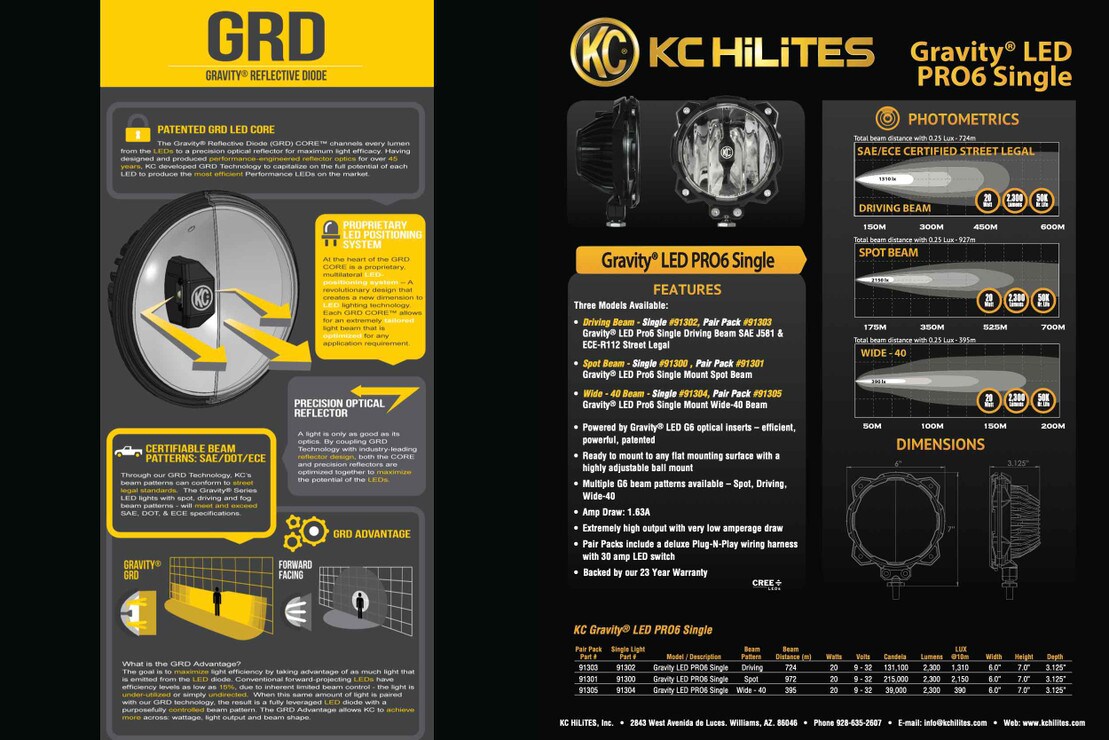

Patented Gravity Reflective Diode Technology:Each Gravity LED Pro6 light is powered by KC's G6 LED optical insert, featuring patented Gravity Reflective Diode (GRD) technology. This unique industry leading technology and reflector design assures that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday on or off road use. Unlike traditional forward facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that the all light output is being carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance and beam shape.
SAE/ECE Driving Beam:Provides a wide evenly distributed rectangular beam shape to greatly improve lighting distance directly in front of your vehicle while creating ample visibility along the side of roadways with a wider beam angle than standard driving lights and OEM headlights. This beam pattern is also street legal compliant, making them great for everyday use on or off the road. Driving Beam lights are best used on front bumpers, a-pillars and overhead sections of your vehicle for improved lighting directly in front of your vehicle.
Spot Beam:Lights produce a tight, focused circular beam pattern (often referred to as a pencil beam) that provides maximum forward distance for off-road use. Because the light pattern is generally very narrow, there is minimal peripheral lighting fill or side-to-side lighting. For this reason, Spot beam lights are best used in conjunction with other beam patterns to provide additional width and illuminating areas closer to the vehicle for a more complete beam coverage.
Wide-40 Beam:Provides a extremely wide beam pattern, delivering a wider area of coverage to improve side-side visibility and areas closer to your vehicle. Although not street legal, these are best used on a-Pillars, as well outer sections of front bumpers and overhead applications to provide ample peripheral visibility when used on conjunction with Driving, Spot or Fog Beam lights.
UNIVERSAL BALL MOUNT:The Pro6 Single comes ready to mount to any flat mounting surface with a highly adjustable ball mount. This universal ball mount easily attaches to your Jeep, Truck or UTV while offering quick adjustability for easy light aim.
