4Banger LED Drift Light System: Ford Mustang (18-23)

(0) No Reviews yet
Questions?

Brand: Morimoto

B-4B-PILR-BAF254-HR

$430.00 Original Price:$537.5020% OFF

PRODUCT OPTIONS

PART #: 1 x BAF254, 1 x BAF001.2, 2 x BAF046, 1 x BAF000H



*Guaranteed Fitment
Easy Return

DESCRIPTION

The Morimoto Drift Light system is a bolt-on solution to make your sports car lights brighter and safer for nighttime driving. This kit is designed for 2018-2023 Ford Mustang models and fits perfectly without any modifications. The brackets are made from tough stainless steel and coated for durability, making them strong enough for off-road conditions. The lights are available in white or yellow, with the yellow version being especially effective in bad weather like rain, fog, or snow. The LED pods are designed to handle high power and heat, thanks to their special copper core and strong aluminum shell. They are also fully weather-resistant. Wiring is made easy with special mounts and clips to keep everything neat and secure. You can choose from different beam patterns like Wide/Fog, Spot, Combo, and Flood, depending on your needs. Each option is designed to provide the best light for different situations, whether you're driving fast, need to see far ahead, or need wide coverage. The optional wire harness is high-quality, with extra seals and a durable design to ensure a reliable connection.

FEATURES & BENEFITS

  • Perfect Fit Brackets: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA for the 2018-2023 Ford Mustang.
  • Smart Design: These brackets are designed with wire routing clips for the cleanest installation, no zip ties here!
  • Durable Build: Laser-cut stainless steel brackets are powdercoated to ensure longevity in any environment.
  • Optimal Lighting: 4Bangers are designed around the ultra high performance Nichia NCS or Osram HX Boost LEDs for incredible output.
  • All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
  • Optional Wiring: Your choice of a premium plug-and-play wire harness or standard input pigtails allow you to wire the lights as you see fit.

WHAT’S INCLUDED

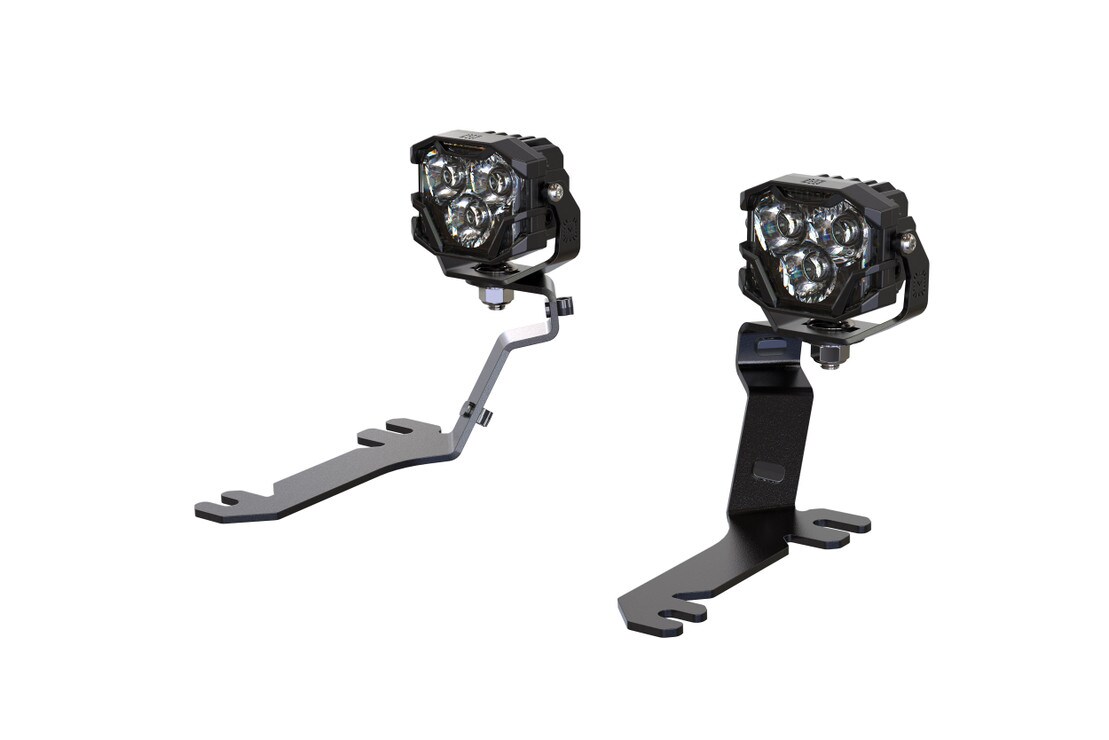

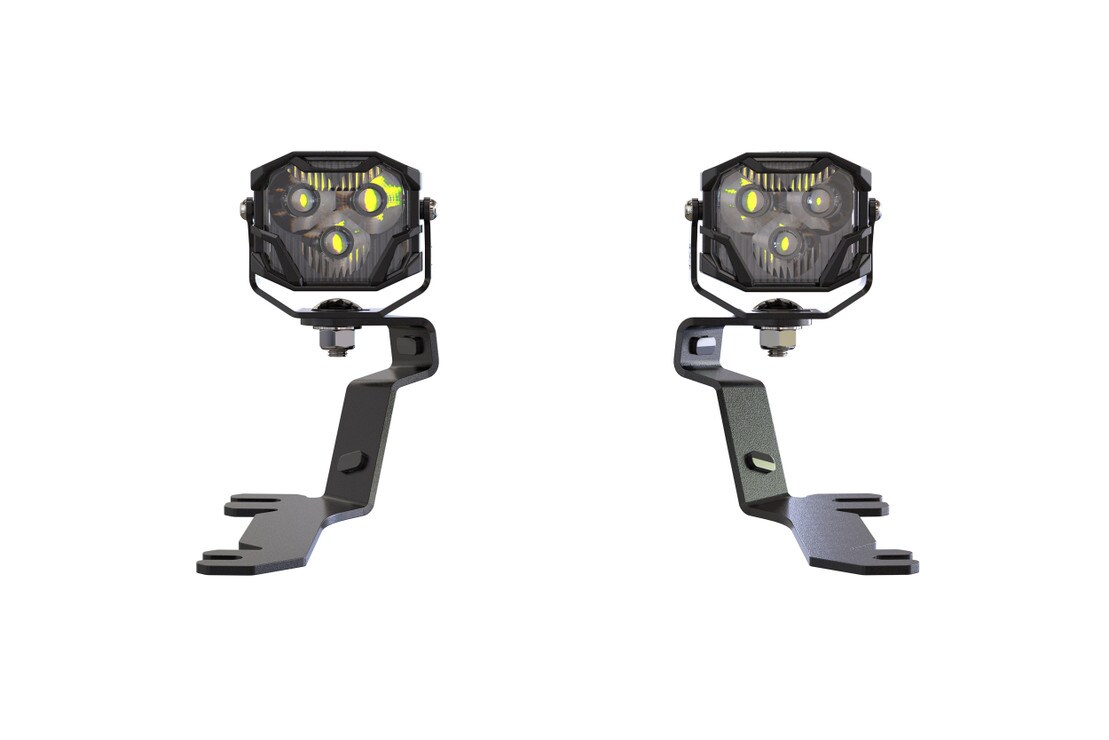

  • Drift Brackets: 2x (One Pair) BAF254 Brackets

  • Hardware: 4x Plastic cable clips

  • U-Mount Brackets: 2x BAF046 Brackets

  • Optional LED Pods: 2x Morimoto 4Banger (Optional Color / Beam)

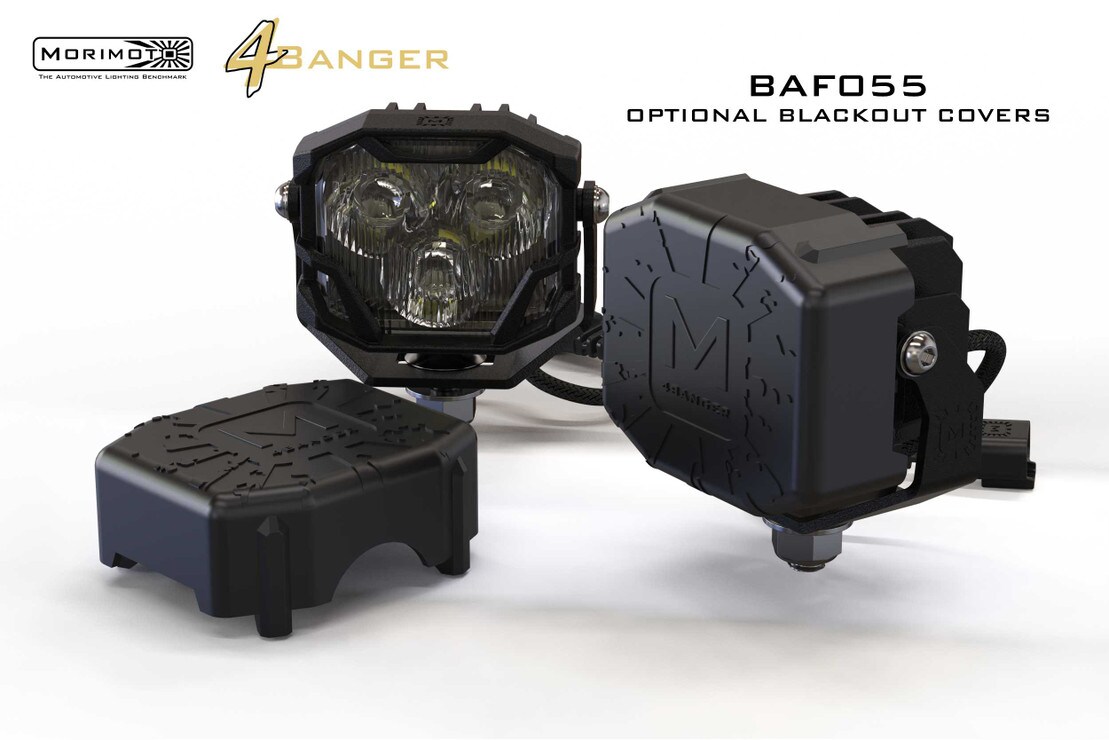

  • Optional Covers: 2x Blackout Covers

  • Optional Wiring: 1x Morimoto Power Harness or 2x Deutsch DT pigtails

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity:

  • NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)

  • NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)

  • NCS Combo White: 55,500 Cd (Post Warm-Up) (555lux @ 10m)

  • NCS Spot Yellow: 73,500 Cd (Post Warm-Up) (735lux @ 10m)

  • NCS Spot White: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)

  • HXB Wide Yellow: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)

  • HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)

  • HXB Combo Yellow: 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)

  • HXB Combo White: 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)

  • HXB Spot Yellow: 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)

  • HXB Spot White: 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)

  • Input Voltage: 9-18V DC

  • Power: 15.6w (NCS) 42w (HXB)

  • Current: 1.5A (NCS) or 3.2A (HXB)

  • Dimensions: 82mm W, 67mm H, 60mm D

  • Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)

  • Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))

  • Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

  • Input: Proprietary Overmolded Deutsch DT 2-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS

COMPATIBILITY

  • Ford Mustang S550.2: 2018-2023 (all*)

  • *Ford Mustang GT350/GT500: Not Compatible

  • Morimoto LED Pods: 4Banger (all)

COMPLIANCE

IP69K (Dust / High Pressure Water Resistant)

INSTALLATION DOCUMENTS

Bolt on Brighter: The Morimoto Drift Light system is the perfect bolt-on solution to drastically boost light output for your sports car in the dark. Whoever declared that this was only appropriate for trucks forgot that sports cars are faster, meaning the drivers need to see further. They are often driven on the track or backroads at night, both of which call for maximum visibility for your safety, and so that Bambi can make it home too. Simply select a set of high-performance Banger LED pods in your choice of beam pattern, pair that with the brackets to make installation a breeze, and power it properly with our switched wire harness!

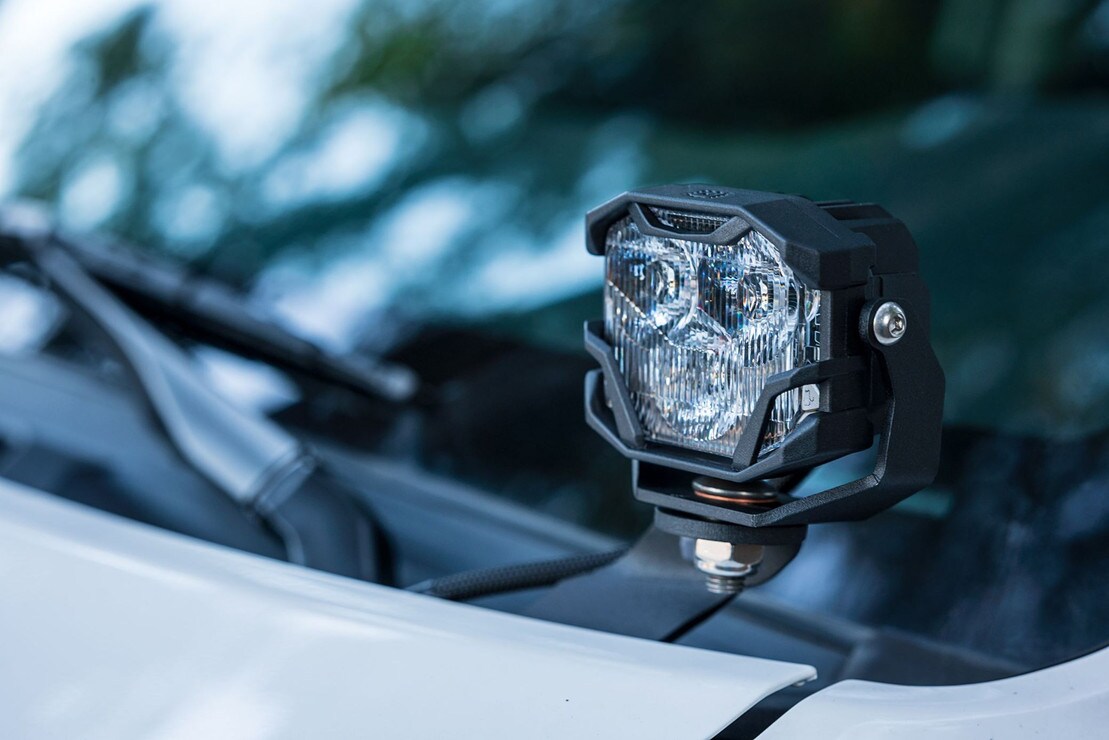

Engineered Fitment: Morimoto's drift light kit for the 2018-2023 Ford Mustang (S550.2) has been through numerous rounds of design, prototyping and testing directly on the car to ensure perfect compatibility. Everything lines up with pre-existing mounting points under the hood to create an installation that is truly modification-free.


Bomb Proof: Each bracket is laser cut from 304 stainless steel, then powder coated. Put simply, the fenders on your car are going to rip off way before our drift light kit even flexes a muscle. These are off-road tough.


All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

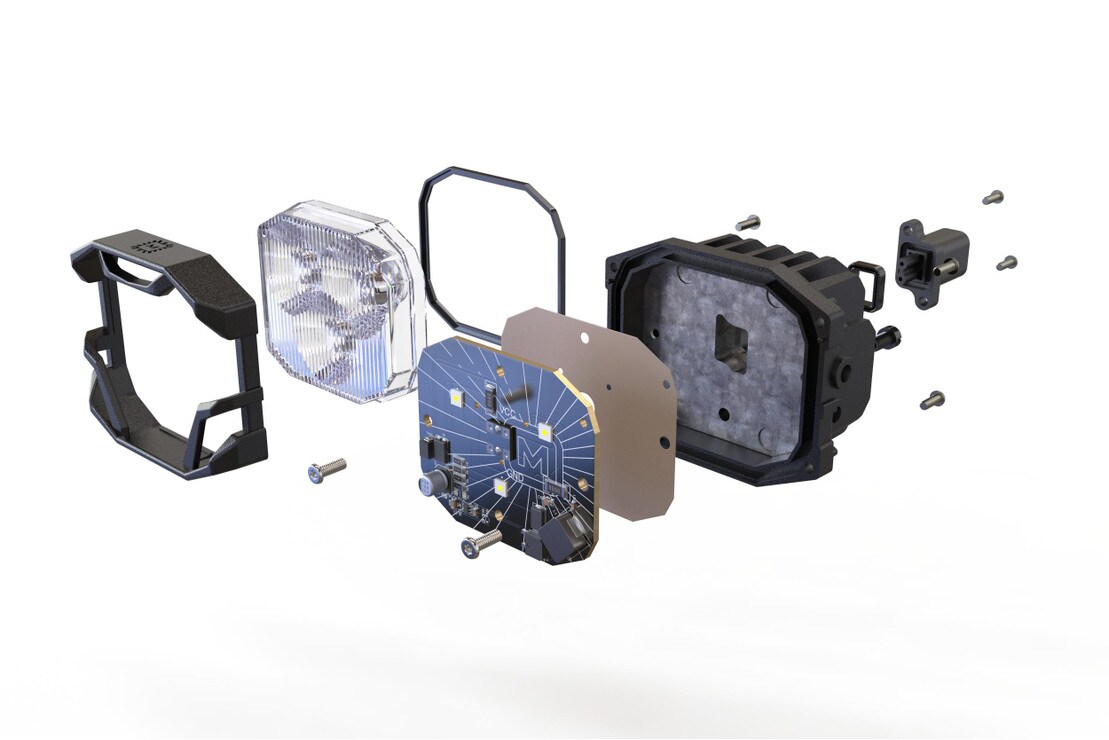

Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the pods. High power means high heat, which is why our Banger LED pods feature a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.


Wiring & Cable Management: No sloppy wiring allowed. We have incorporated several mounting locations and cable routing clips on the stem of the bracket to direct the input wiring from your LED pods down into the engine bay. From there, you can plug n play with Morimoto's switched relay wire harness for a clean and reliable install.

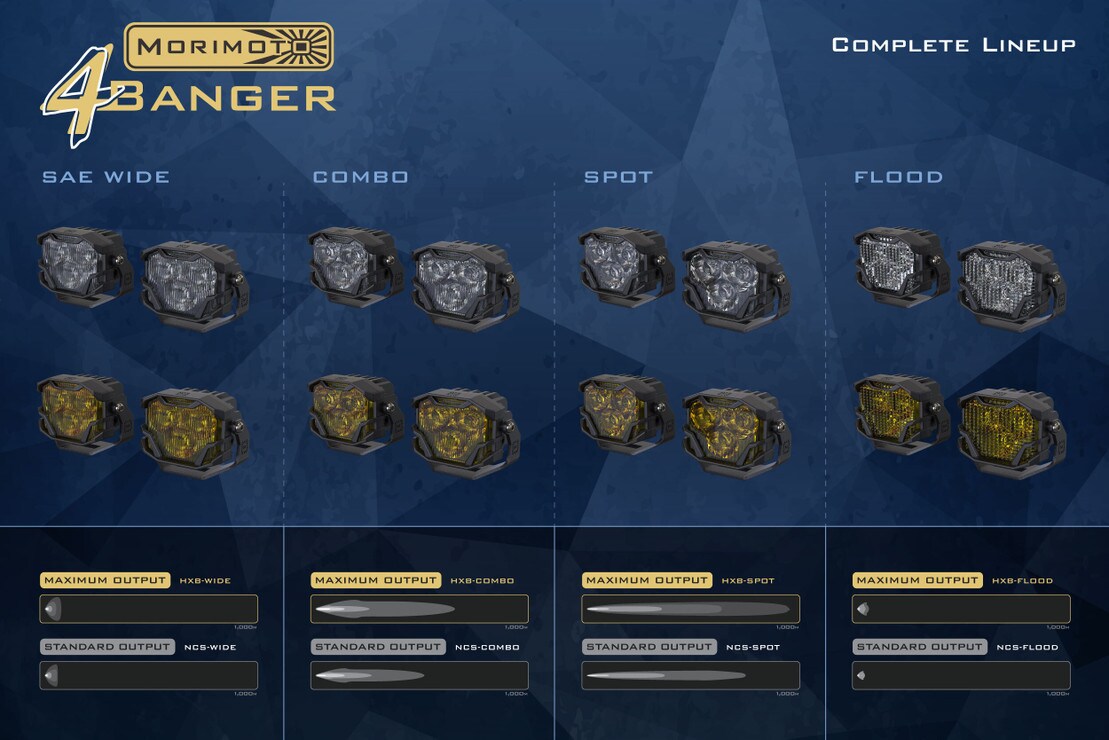

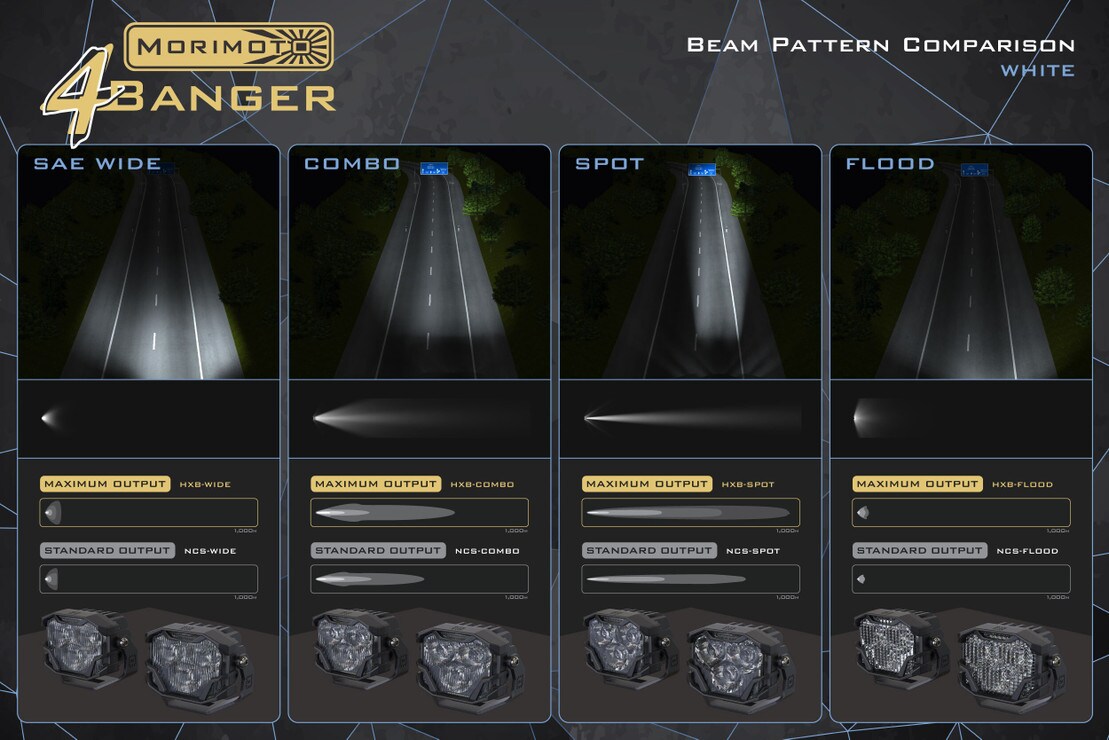

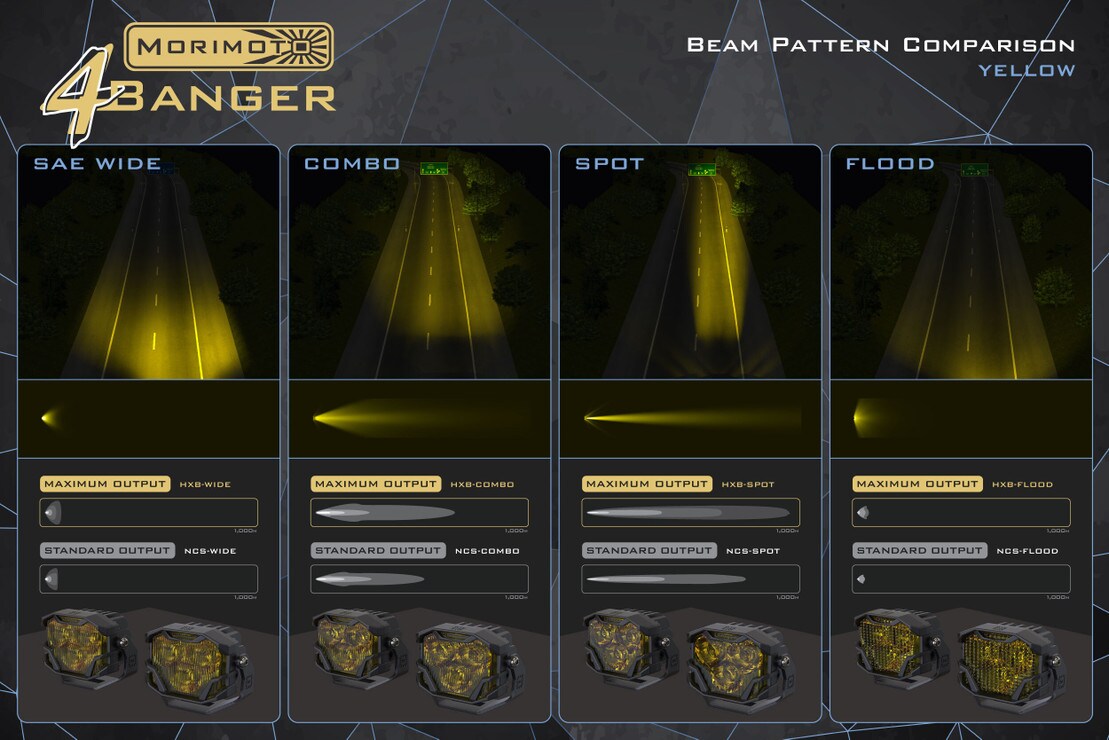

Performance: Just like the brackets, every element of the patented line of LED pods is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia and Osram. Optics are produced according to world-class standards. Thermal dynamics have been optimized using SolidWorks. They are available with five industry-leading beam patterns to suit every need. Wide/Fog, Spot, Combo, Flood, and Trail.

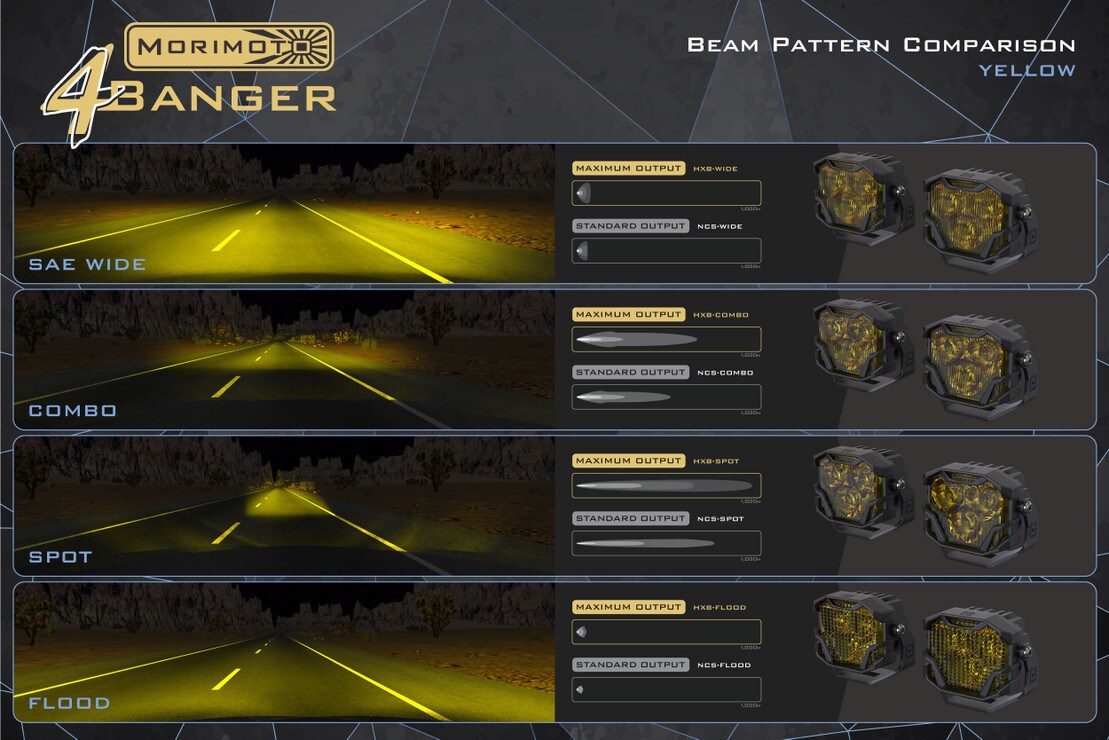

Combo Beam: Illuminates a clear path with medium range. The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The Combo pattern is an excellent aid to any set of high-performance headlights.


Spot Beam: Illuminates far into the distance unlike anything else on the market. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with the optics produces a beam pattern capable of penetrating up to 800 meters into your future. No matter the speed, you'll never outrun your ability to see with the Banger Spot beams.


SAE Wide Beam: Illuminates the ground directly in front of the vehicle. The optics feature dual axis control: 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient and sharp cutoff has proven SAE-Compliant for use on road as a fog light. The wide beam delivers the best combination of width, intensity, and control -- making it the most effective LED fog light in the world.

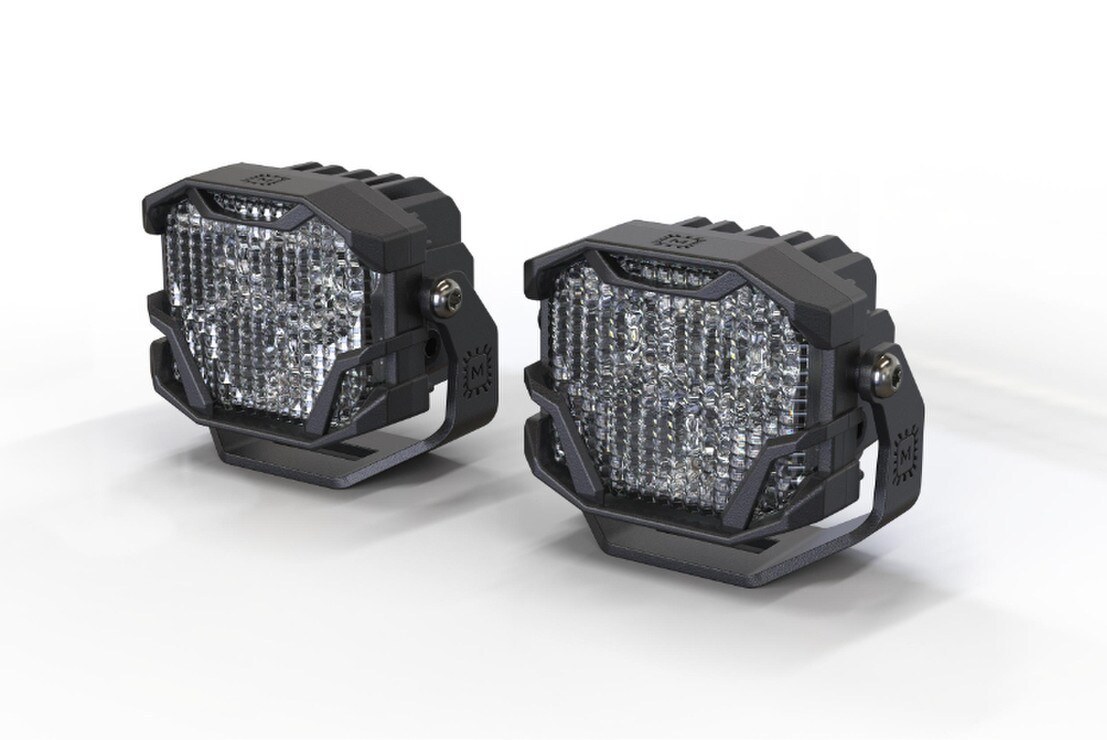

Flood Beam: When focus is irrelevant and broad output to illuminate everything in your immediate locale is priority number one, the Flood beam is where it's at. Designed to diffuse the output of the potent Nichia or Osram chips within, the flood lens emits a very broad (but shallow) range of output.


Power Up: The Morimoto Banger LED pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
