  • LED Ditch Light System: Ford Super Duty (17-22)

LED Ditch Light System: Ford Super Duty (17-22)

(0) No Reviews yet
Questions?

Brand: ProComp

B-EXP-PILRKIT15-HR

$161.70 Original Price:$231.0030% OFF

PRODUCT OPTIONS

PART #: 1 x EXP76413P, 1 x BAF039



DESCRIPTION

Introducing the ProComp A-Pillar LED System! Illuminate your path with precision and power. This versatile kit offers long-range spotlights for high-speed driving, side-road ditch lights, and a hassle-free installation experience. Crafted from laser-cut 304 stainless steel and powder-coated for durability, these pods won't let you down. The ProComp is designed for performance, with proprietary elements optimized for maximum output and efficiency. Whether you need a wide beam, a focused spotlight, or a combo of both, we've got you covered. Plus, our pods can be easily linked together to create a custom light bar. Don't compromise on reliability. Our copper DTP PCB and IP69K-rated components ensure your lights withstand the elements. And guess what? We've got the street legality covered too! So, upgrade your visibility and conquer the darkness with the ProComp LED System -- the ultimate lighting solution.

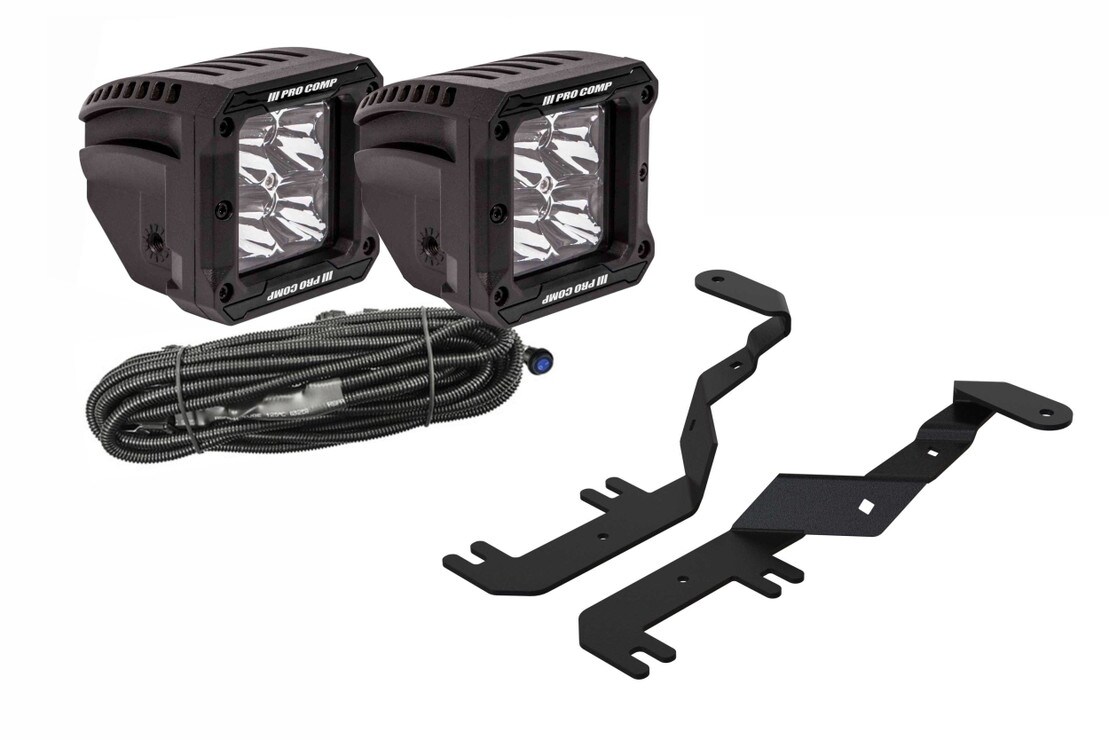

WHAT’S INCLUDED

  • Ditch Light Brackets: 2x (One Pair) Ditch Brackets (BAF039 / Ford Super Duty)

  • Hardware: Stainless bolts & plastic cable clips

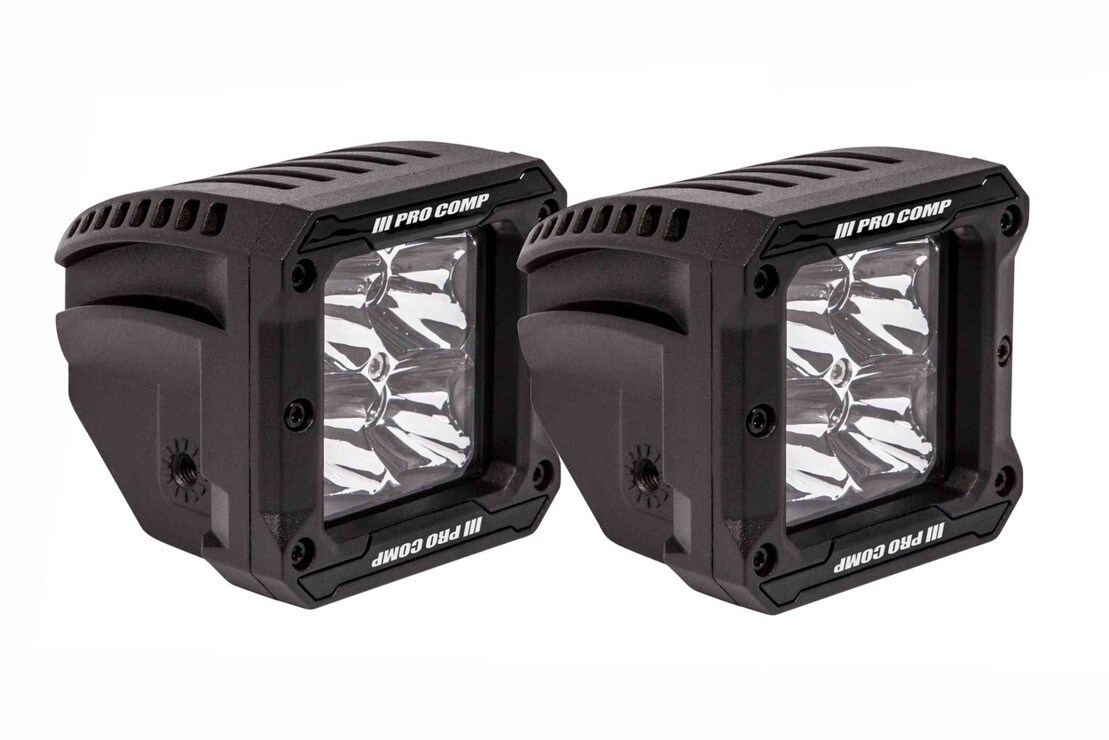

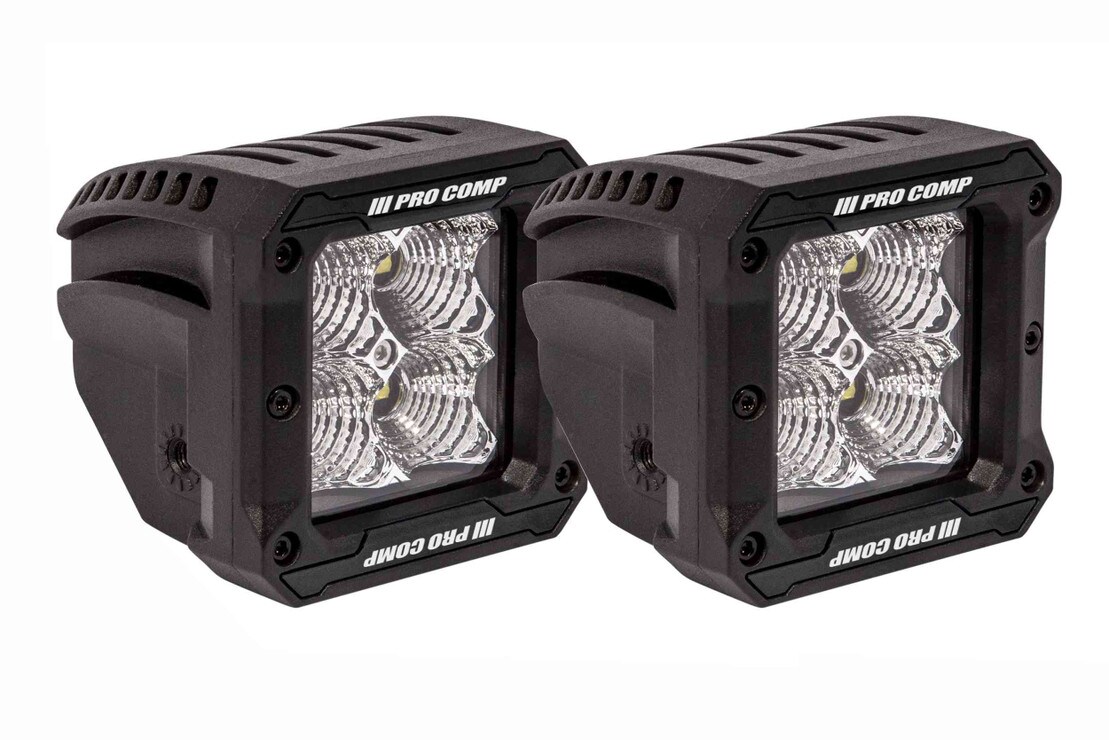

  • LED Pods: 2x ProComp Gen 3 Pods (Flood or Spot Beam)

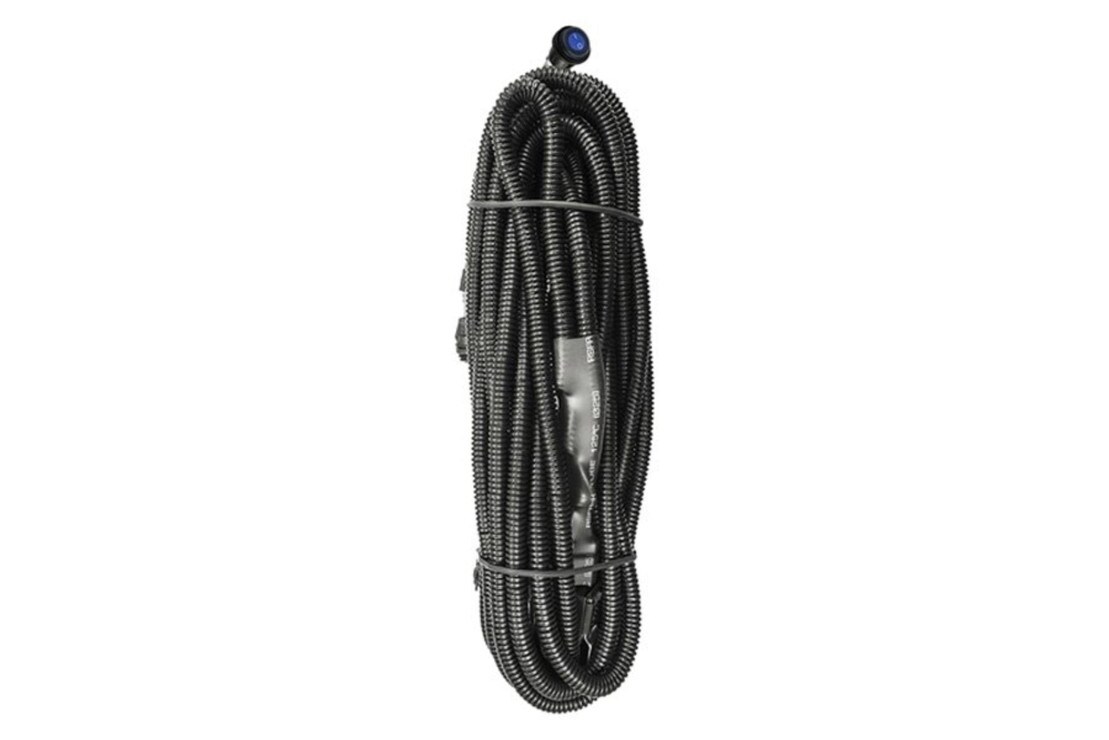

  • Wiring: 1x ProComp Relay Harness

  • Warranty: Lifetime Limited

WARRANTY INFORMATION

This product includes a Lifetime Limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (lm, Raw): 1,680 lm

  • Input Voltage: 12-24V DC

  • Power: 12w (Each)

  • Current: 1.37A @ 12V DC, 0.68A @ 24V DC

  • Input: Deutsch DT 2-Pin

  • Dimensions: 3.25in W, 3.75in H, 3.1in D

  • Light Source: 4x Osram 6000K LED

  • Material: Aluminum (Housing), Polycarbonate (Lens)

  • Compliance: IP10

COMPATIBILITY

  • Ford F-250 Super Duty: 2017-2022

  • Ford F-350 Super Duty: 2017-2022

  • Ford F-450 Super Duty: 2017-2022

COMPLIANCE

IP67 Rated

INSTALLATION DOCUMENTS
