4Banger LED Fog Lights: Jeep JL / JT

(0) No Reviews yet
Questions?

Brand: Morimoto

B-4B-FOGKIT15-HR

$323.00 Original Price:$380.0015% OFF

PRODUCT OPTIONS

PART #: 1 x BAF078W



*Guaranteed Fitment
Easy Return

DESCRIPTION

Introducing the Morimoto 4Banger Fog Lights, the ultimate choice for superior illumination and style on the road. SAE compliant and street legal, both the NCS & HXB Wide Beam outperform the competition, meeting the latest SAE F regulations for safe, street-legal fog lights. With easy bolt-on installation and fully adjustable brackets, you'll enjoy optimal control over your beam's intensity, keeping you safe and glare-free on the road. But that's not all -- the 4Banger Fog Lights are designed with precision and engineered for a sleek fit, ensuring they look just right on your Jeep. The air-cooled design eliminates heat-soak, enhancing longevity, and maintaining peak performance. Whether you prefer white or yellow output for different weather conditions, these fog lights have got you covered. Experience the next level of brightness and control with the Morimoto 4Banger Fog Lights today!

FEATURES & BENEFITS

  • SAE Compliant: Street-legal, SAE-compliant fog lights ensure safety.
  • Bright HXB Option: Osram HX Boost LEDs are 80% brighter than the competition.
  • Easy Install: Bolt-on setup fits all bumpers for hassle-free installation.
  • Fully Adjustable: Customize beam direction with +/- 6 degrees of vertical adjustability.
  • All-Weather: Choose white or yellow-output versions for versatile, all-weather performance.

WHAT’S INCLUDED

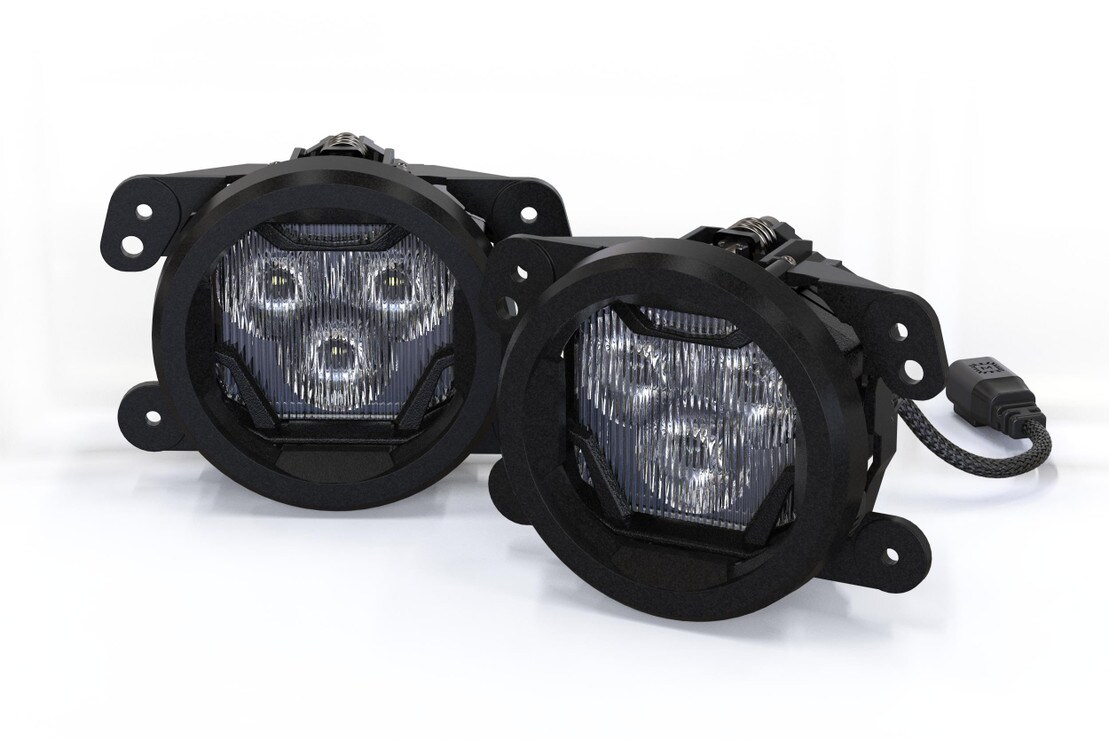

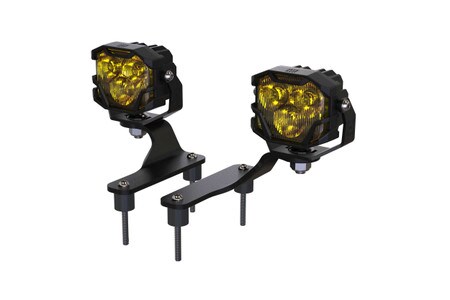

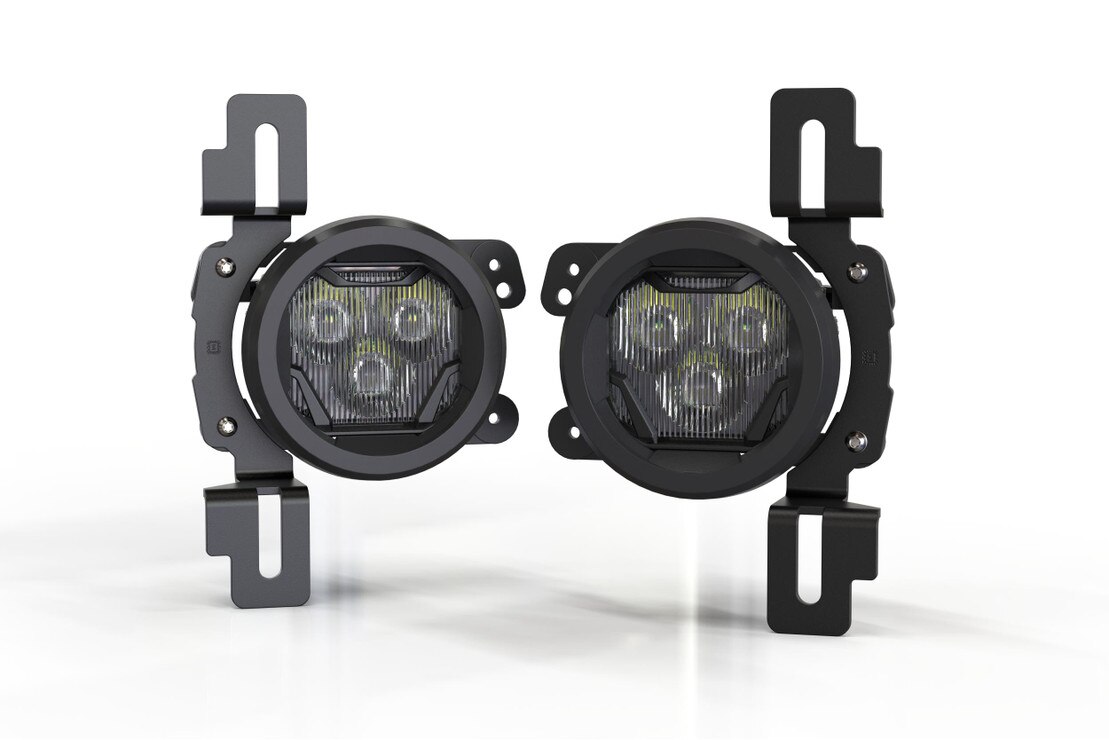

  • Fog Light Brackets: 2x (One Pair) Morimoto Steel or Plastic Brackets

  • LED Pods: 2x (One Pair) Morimoto 4Banger NCS Wide (Optional Color)

  • Hardware: Complete Pack (Stainless Steel)

  • Wiring: Plug N Play Connection Kit

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity:

  • NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)

  • NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)

  • Power: 20w (Each)

  • Current: 1.5A (Each)

  • Dimensions: 82mm W, 67mm H, 60mm D

  • Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))

  • Light Source: 3x Nichia NCSY131F or Nichia NCSW131F

  • Input: Proprietary Overmolded Deutsch DT 2-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

COMPATIBILITY

  • JEEP WRANGLER JL: 2018+ (Sahara/Rubicon. Does not fit Sport)

  • Jeep Gladiator JT: 2020+ (Sahara/Rubicon. Does not fit Sport)

  • REPLACES MOPAR PART #: 68304049AA, 68304048AA, 82415163, 68307273AE

COMPLIANCE

Wide beam photometrics are SAE F 20 compliant: (NCS Report)

INSTALLATION DOCUMENTS

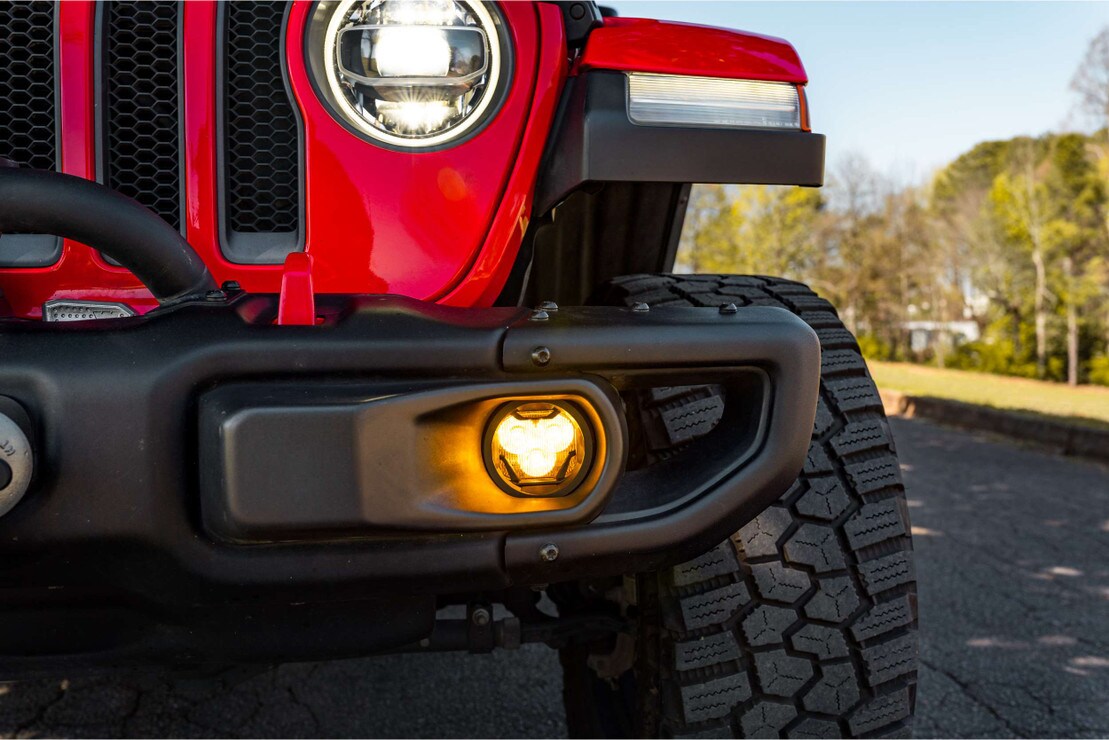

SAE Compliant Fog Lights: The Morimoto 4Banger NCS SAE Wide Beam out-performs the competition while complying with the latest SAE F regulations for a street legal fog light. But what's better than producing the best and brightest beam patterns that are safe for use on public roads as a fog light? The best fog-light specific mounting brackets for your Jeep, of course.

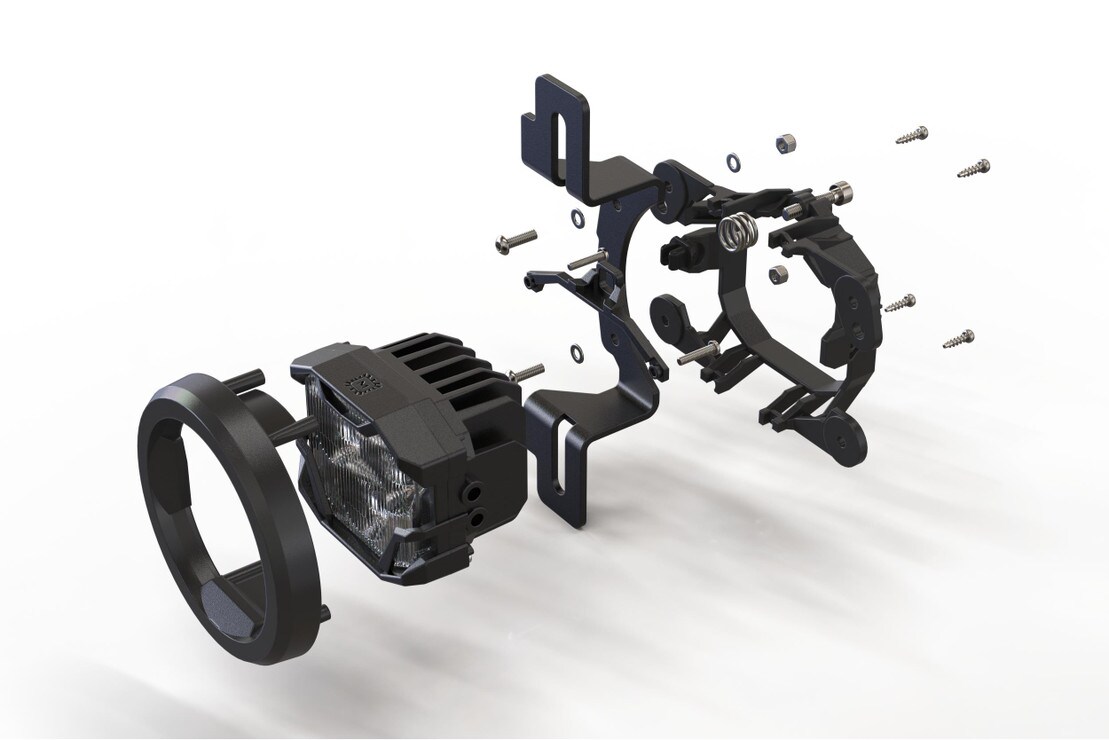

Engineered Solution: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right. Other adapter kits for more traditionally-sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a Wrangler JL or Gladiator JT owner could ask for.

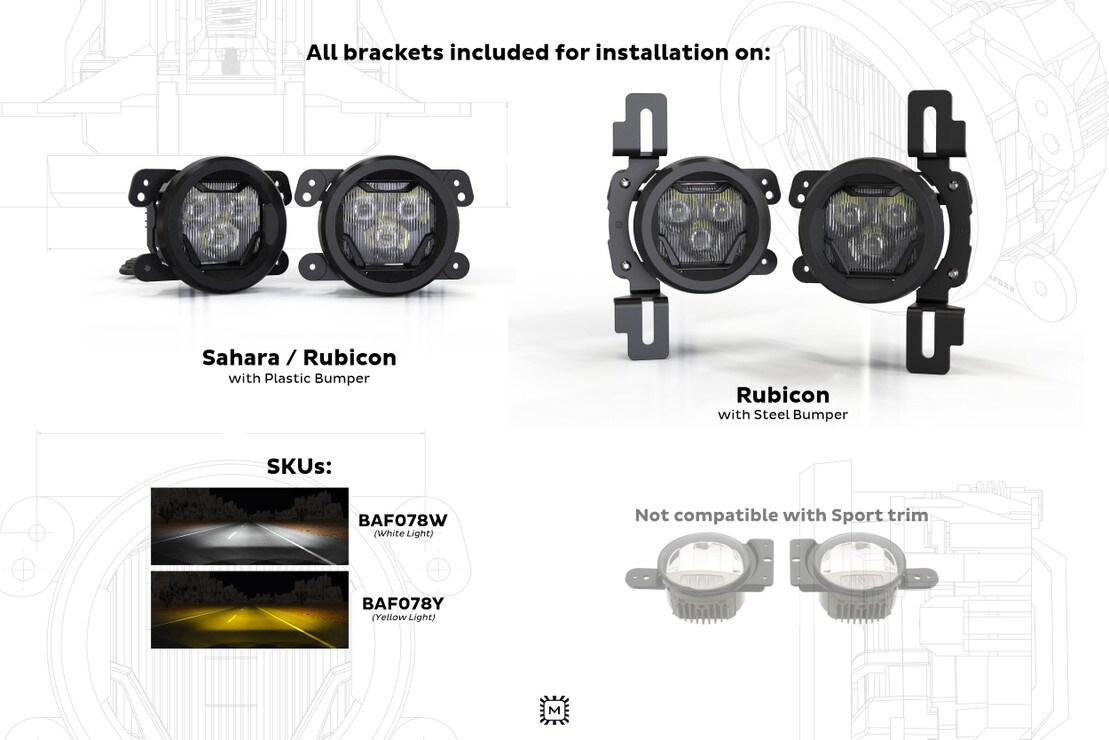

Easy Setup: Everything is designed to bolt-on and plug-n-play for both factory plastic and factory steel bumpers. No modifications are required to your vehicle or its wiring to install the 4Banger off-road lights in your fogs. Each kit includes all the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. Note, your vehicle must have stock fog lights.


Fully Adjustable: These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic.


Air Cooled: As if the style, the fitment, the adjustability aren't enough, we have incorporated duct work into each bracket to actively cool the LED pods. This improves lumen maintenance by eliminating heat-soak, which is common in other LED Pod fog light kits that have no ventilation for the heat sink.

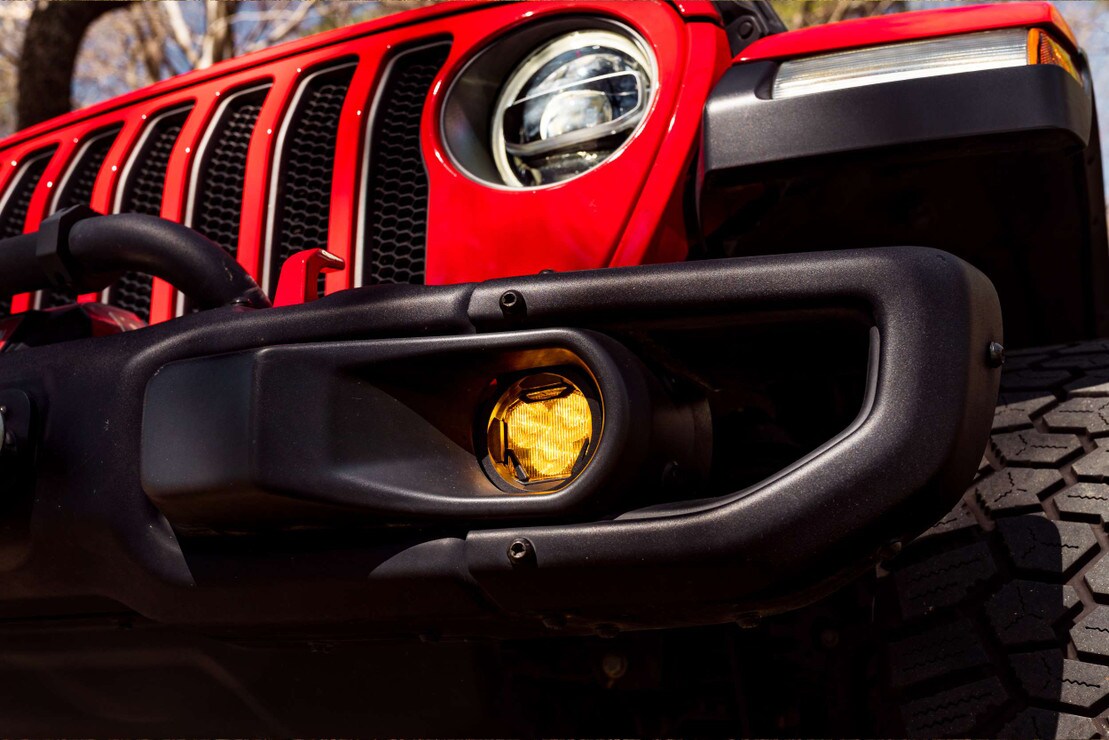

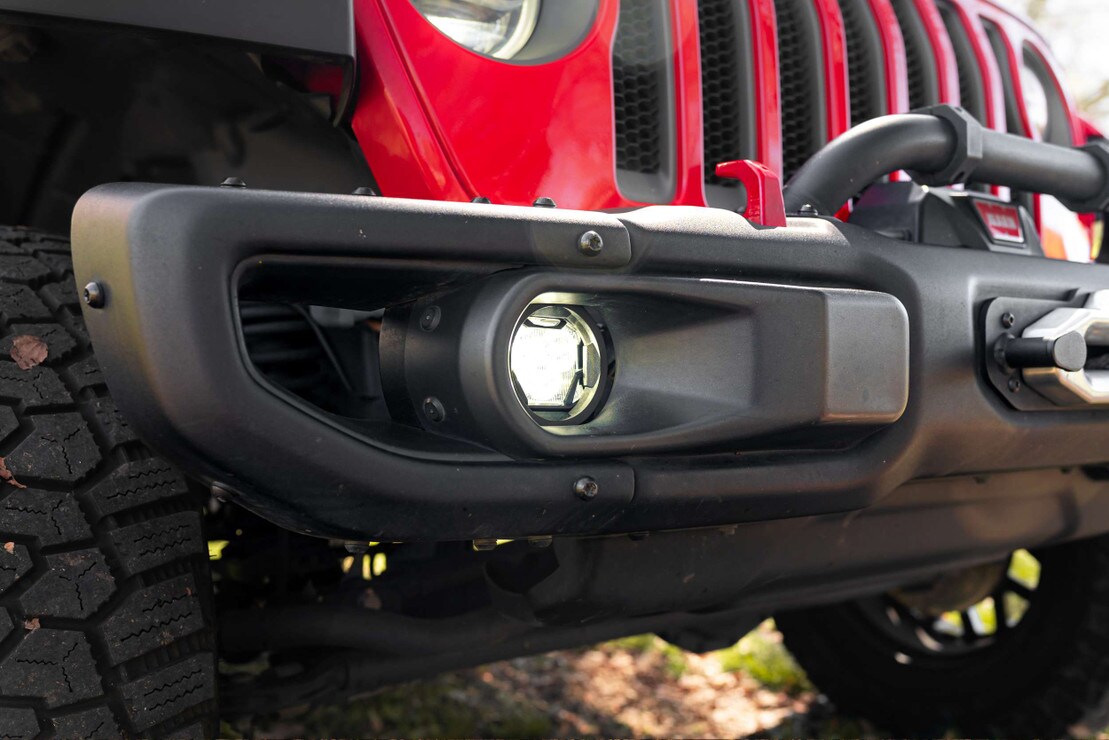

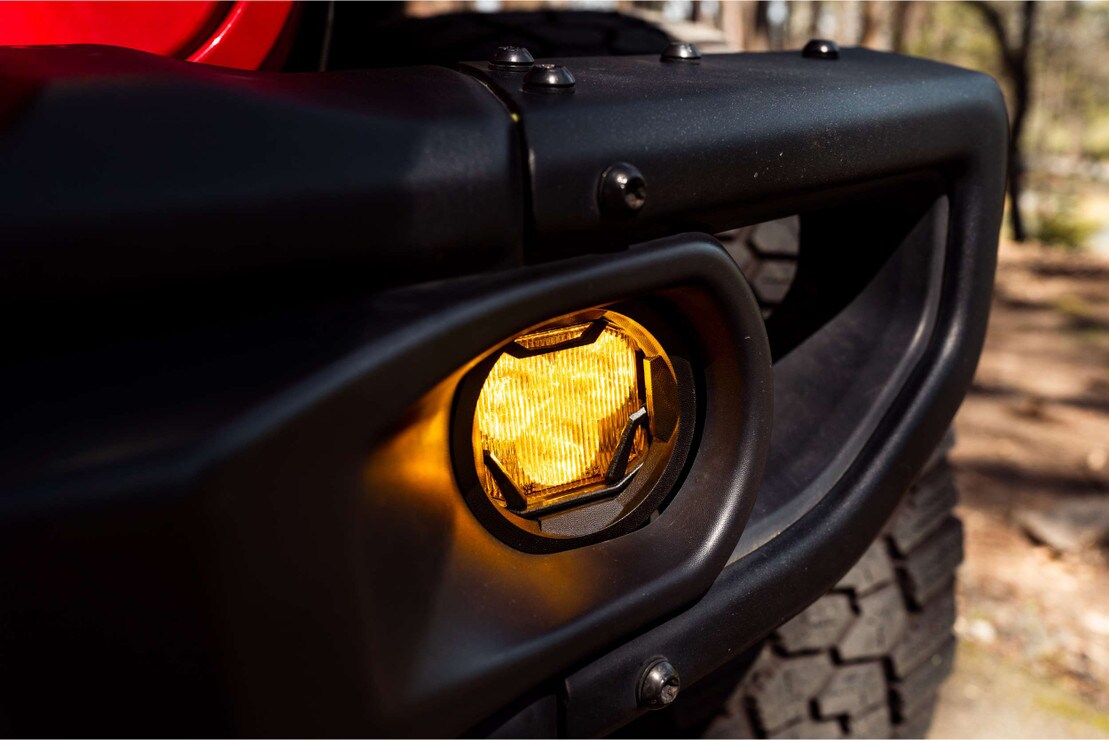

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog --the Yellow-output version will slay in sour weather.

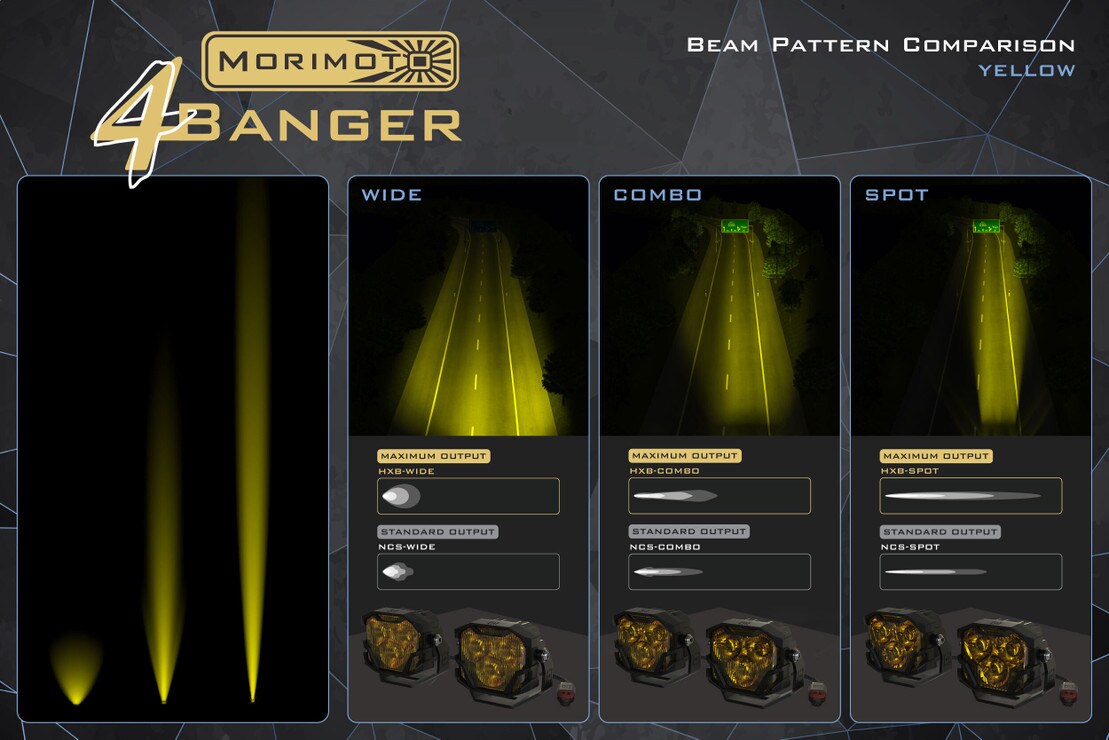

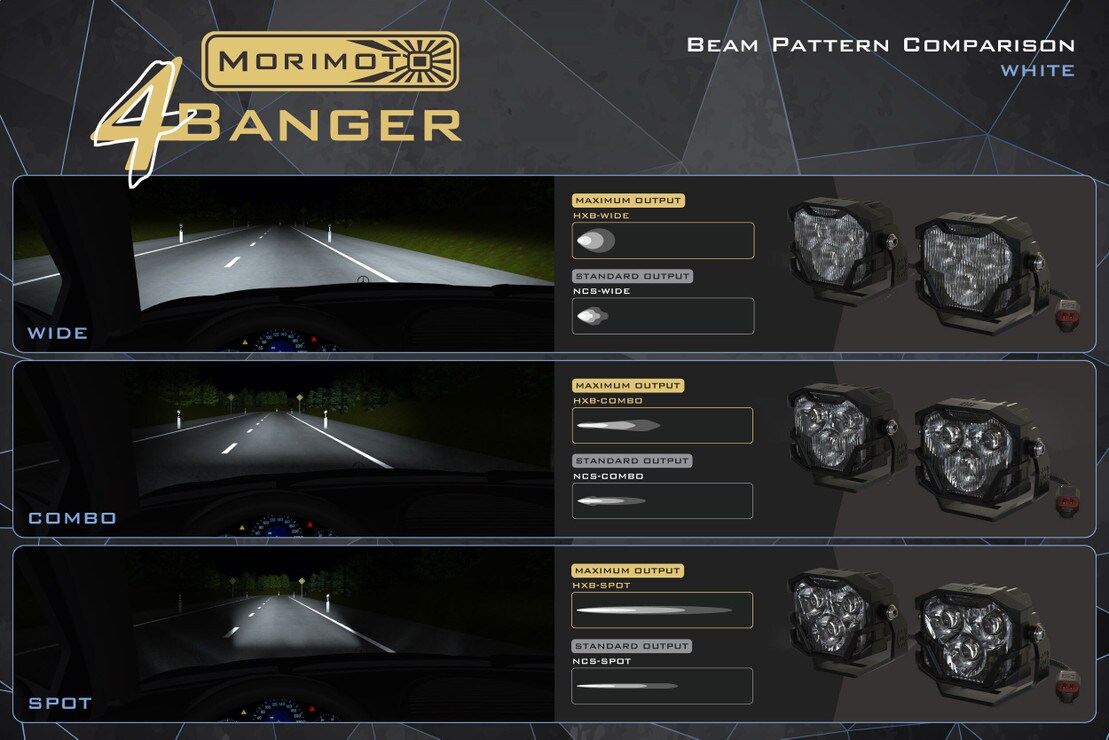

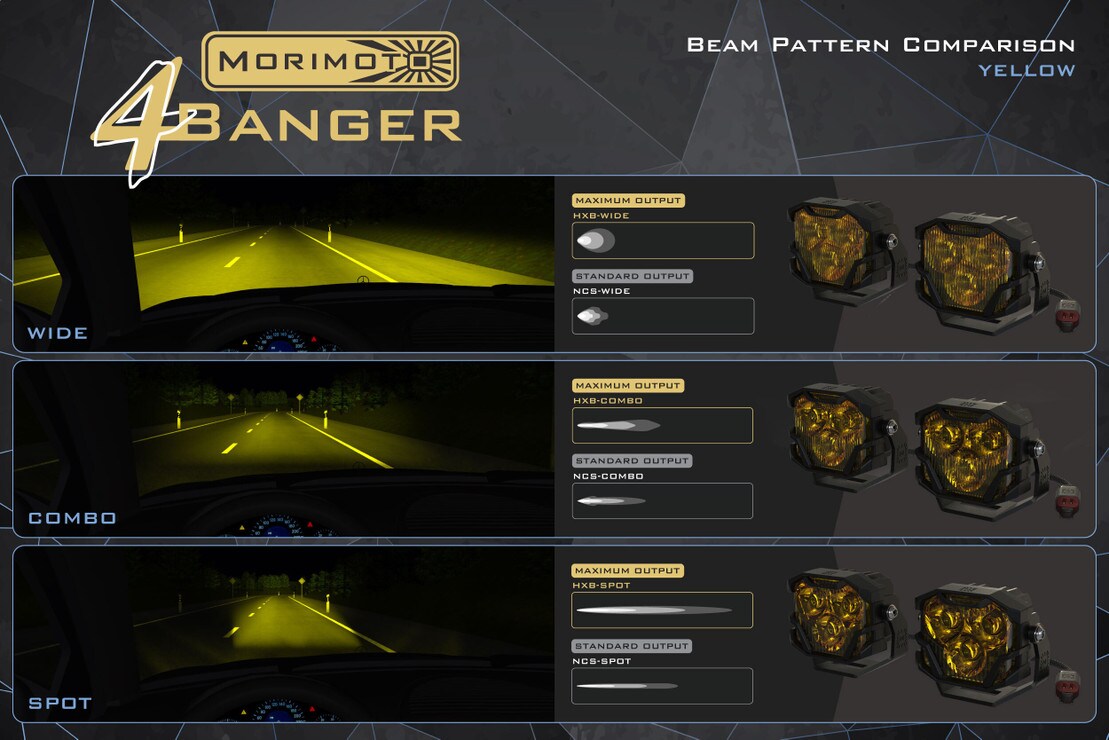

NCS Wide Beam: Offers the same super wide beam pattern backed with LEDs from Nichia. Their superior vertical gradient control also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light, making them highly effective on the ground and glare-free for oncoming traffic. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W).
