DESCRIPTION
FEATURES & BENEFITS
- Bright Illumination: Morimoto XB LED Headlights offer superior brightness and precise beam patterns.
- Safety Compliant: They meet SAE, DOT, and FMVSS108 regulations for legal road use.
- Easy Installation: Plug-and-play design for quick installation without modifications.
- Durable Build: UV-coated lens and sturdy housing ensure long-lasting performance.
- Warranty Assurance: Backed by an unbeatable warranty for added confidence.
WHAT’S INCLUDED

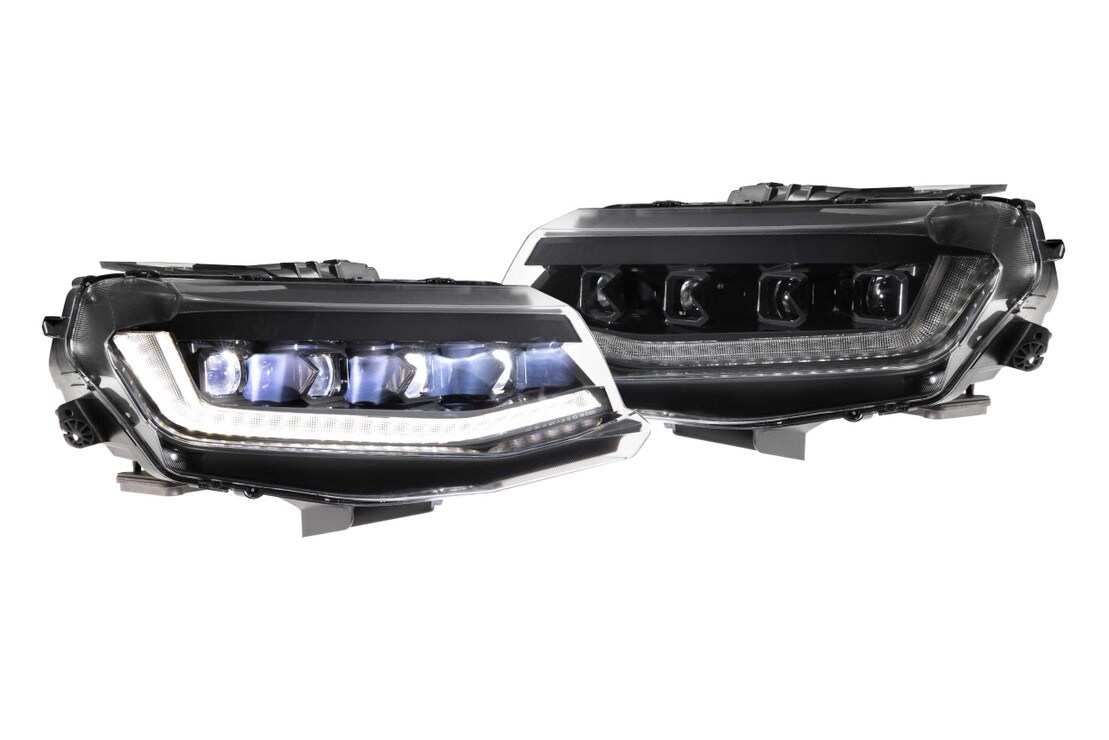

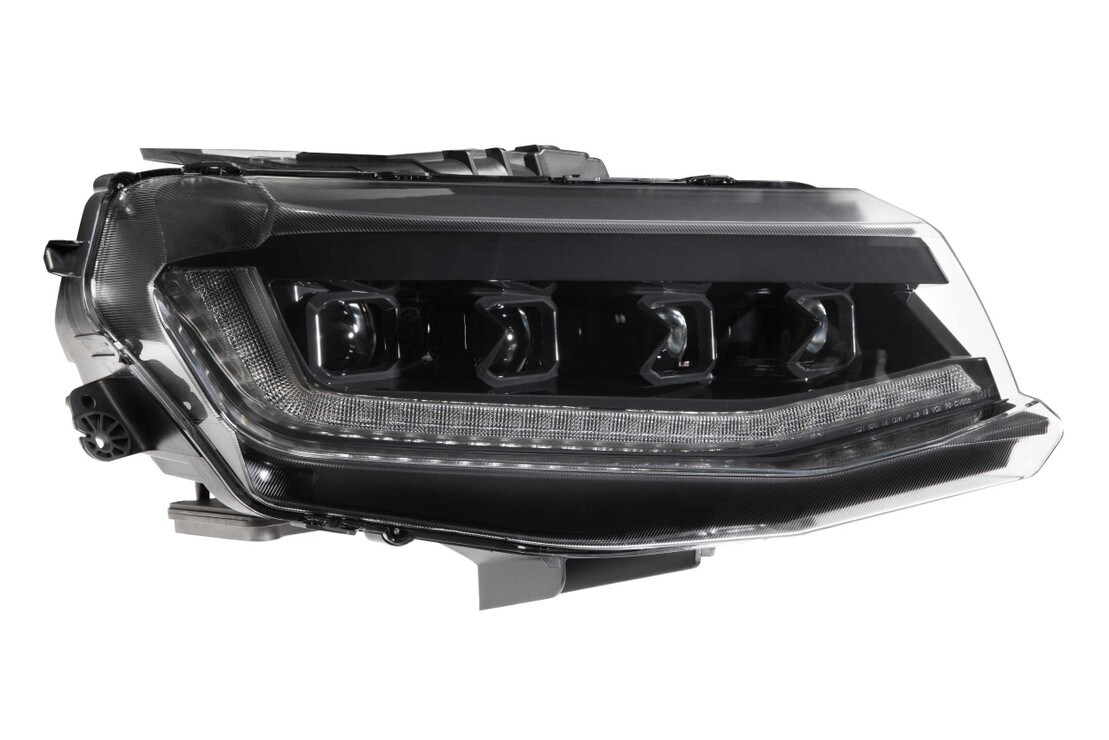

Headlights: 2x (One Pair) 16-18 Camaro XB LED Headlights
Wiring: Plug and Play Harness, Fuse Tap
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity: 2,600lm (Raw; each)
Traffic Pattern: LHD Only
Input: GM Multi-Pin OEM
Functions: DRL (White), Parking, Low, High
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic: Kuria Optic BI-LED
UV Coating: Momentive UVHC3000

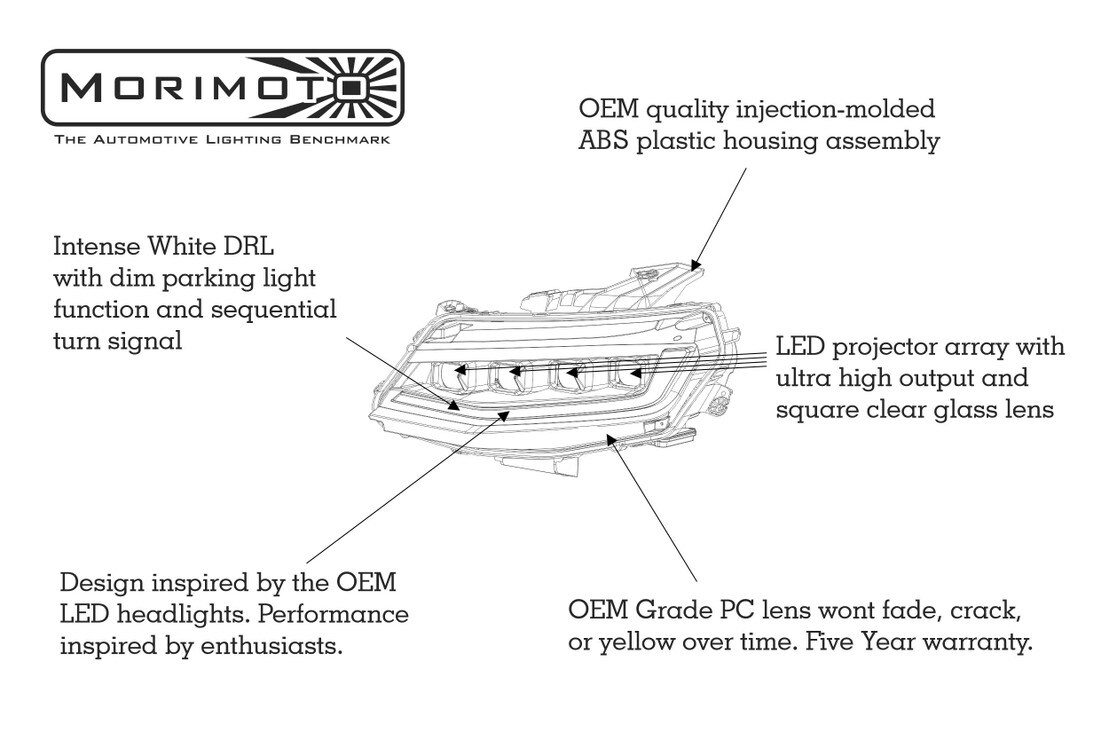

LINE DRAWINGS
COMPATIBILITY

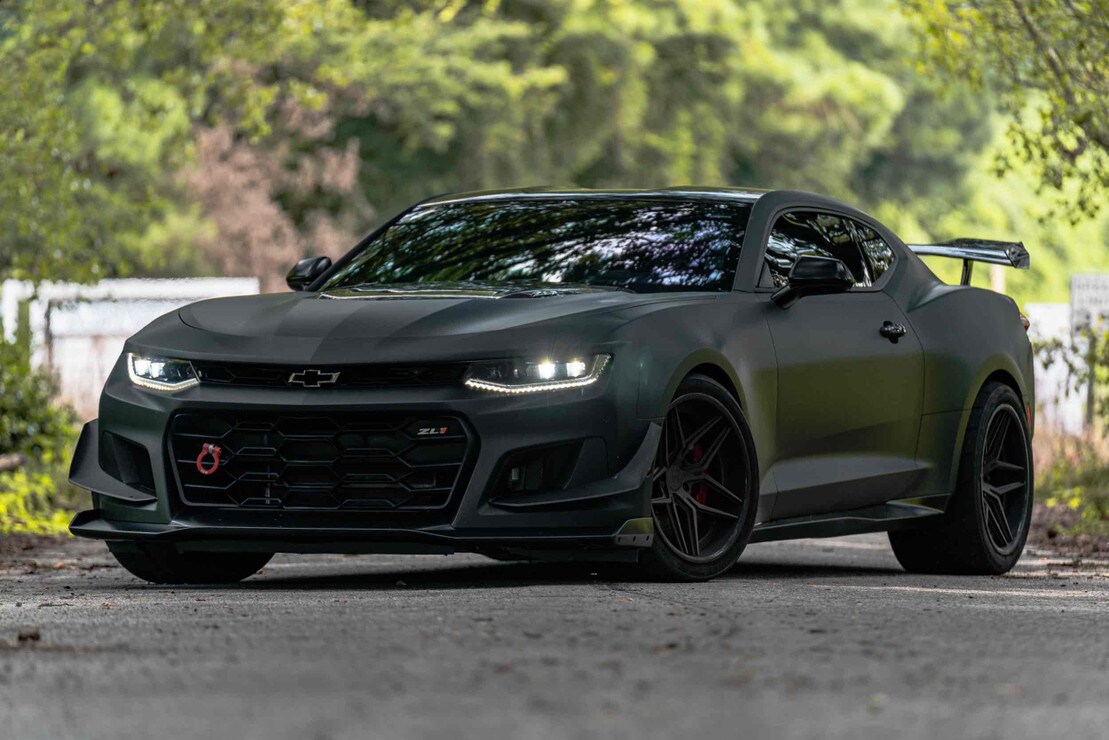

Chevrolet Camaro: 2016-2018
Replaces GM Part #: 84078850, 84078851
NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
COMPLIANCE
INSTALLATION DOCUMENTS
No Substitutes: Yeah the HID headlights that came on the Camaros perform well enough, but as the saying go: stock sucks! Upgrade your setup to a full LED setup with Morimoto! Thankfully the new Morimoto XB LED headlights: Look great. Are well-built. Have a virtually infinite life span. An unbeatable warranty, and out-perform the alternatives. They are the first and last aftermarket option that the Camaro Community needs, because when it comes to headlights: there is nowhere else to upgrade from here.

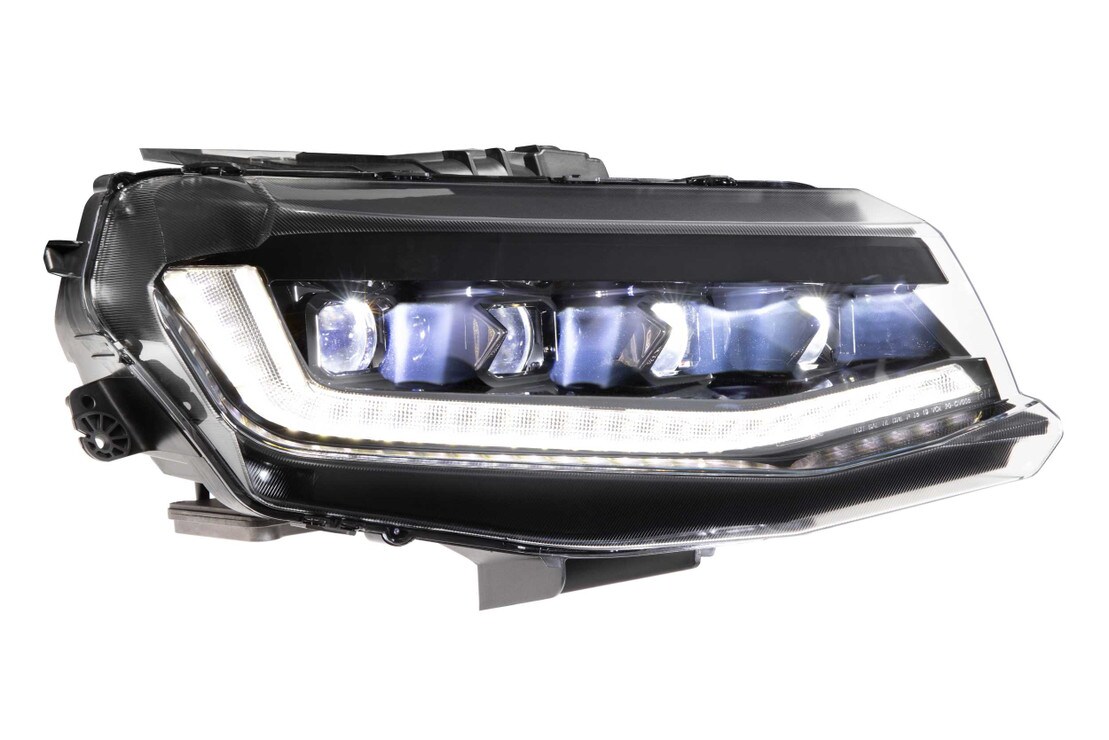

Performance: We've always been blown away by the fact that even though the Camaro came from the factory with OEM HID headlights, the performance was sub-par. The low quality optics inside the lights were not only poorly designed to begin with, but often lose 50% or more of their intensity over time due to de-lamination of the reflector bowl inside - leaving you with next to no light output to illuminate the road. The good news is that Morimoto's Camaro headlights produce a well defined beam pattern with a great amount of width, intensity, and a proper distribution of light that will far out-perform the stock setup.

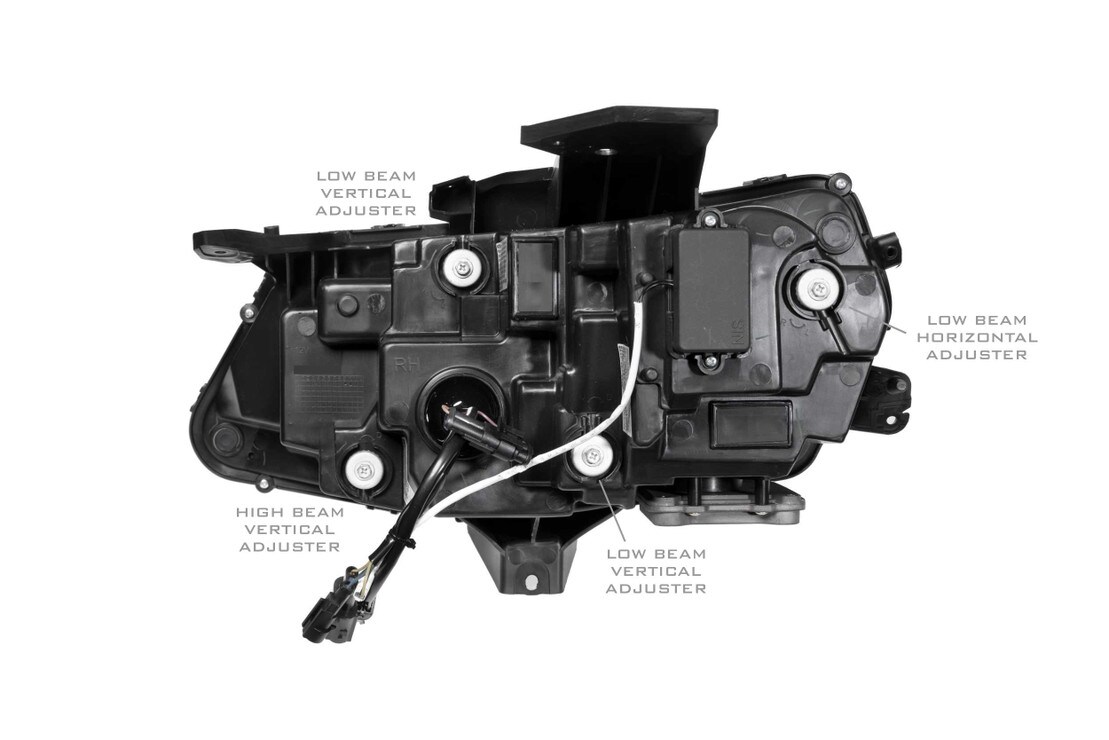

DOT Approved: Make no mistake, these will produce a much different [better] result than slapping some LED replacement bulbs into your stock housings. Their projector optics meet & exceed all SAE, DOT, and FMVSS108 regulations when aimed properly...and that's easy to do with their integrated adjusters.
Plug-n-Play: Wiring is easy too! This LED projector headlight kit is designed to work on your Camaro without any modifications. They will plug into the factory connectors for the stock headlights and each assembly includes all necessary connectors, rubber seals, and pigtails for a plug n play install. No error codes, no flickering, hyper-flashing, or radio interference. They can easily be removed, and will not void your factory warranty.

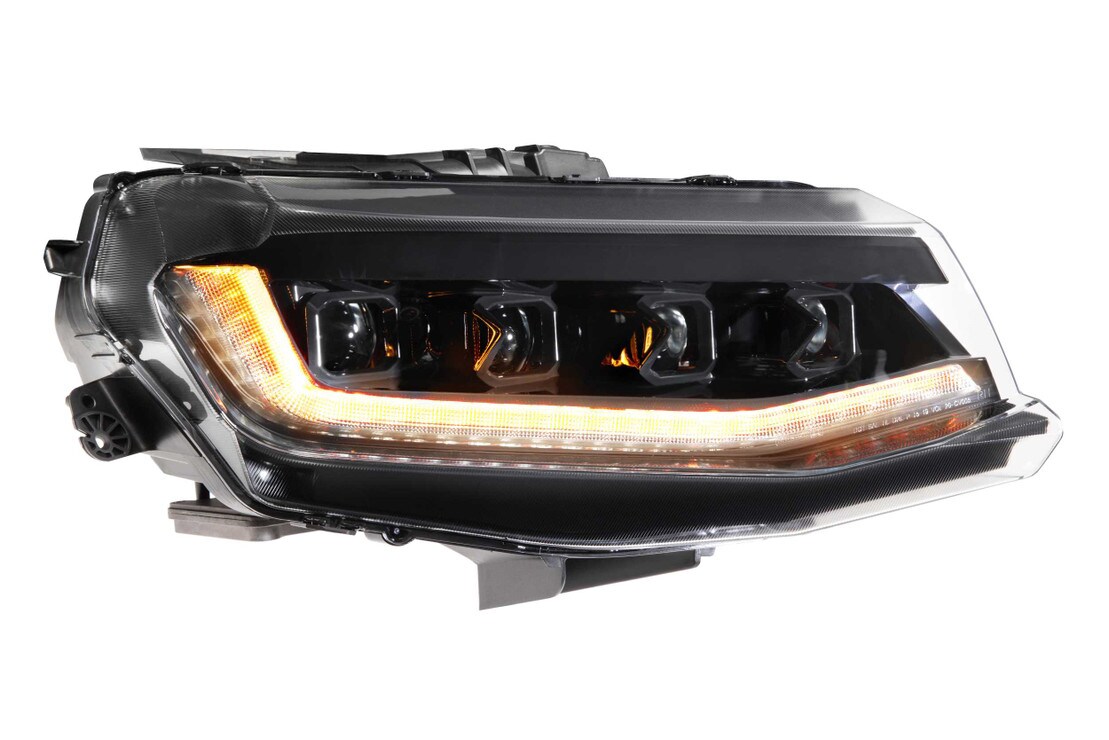

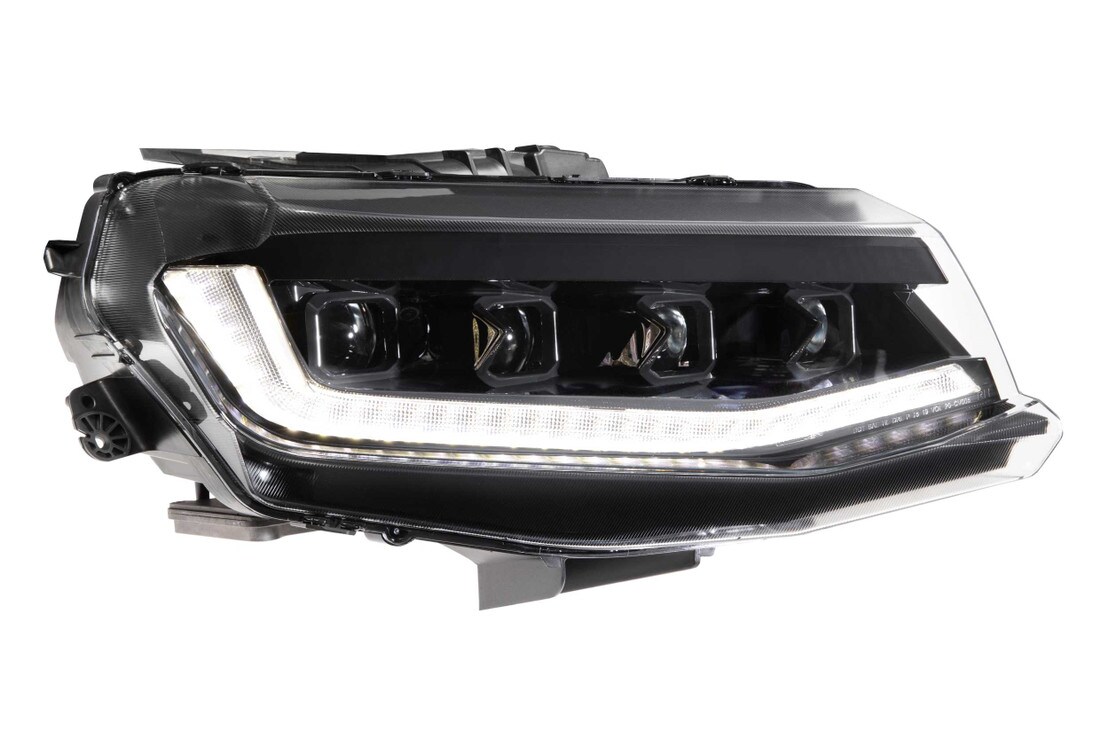

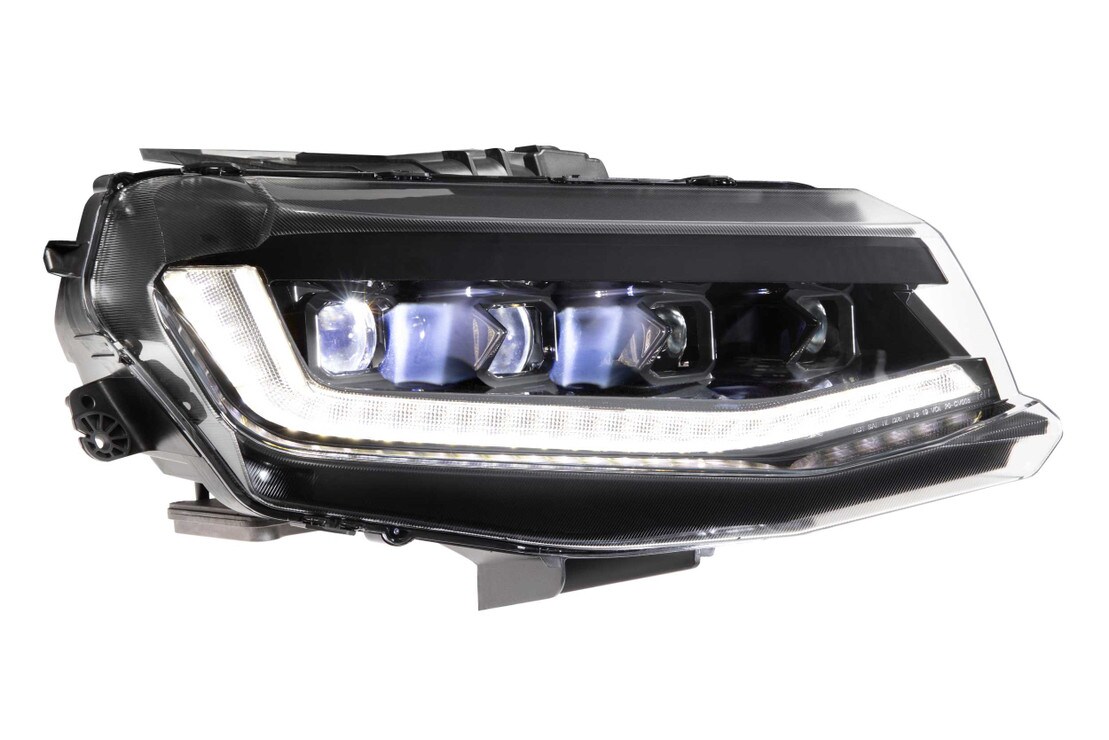

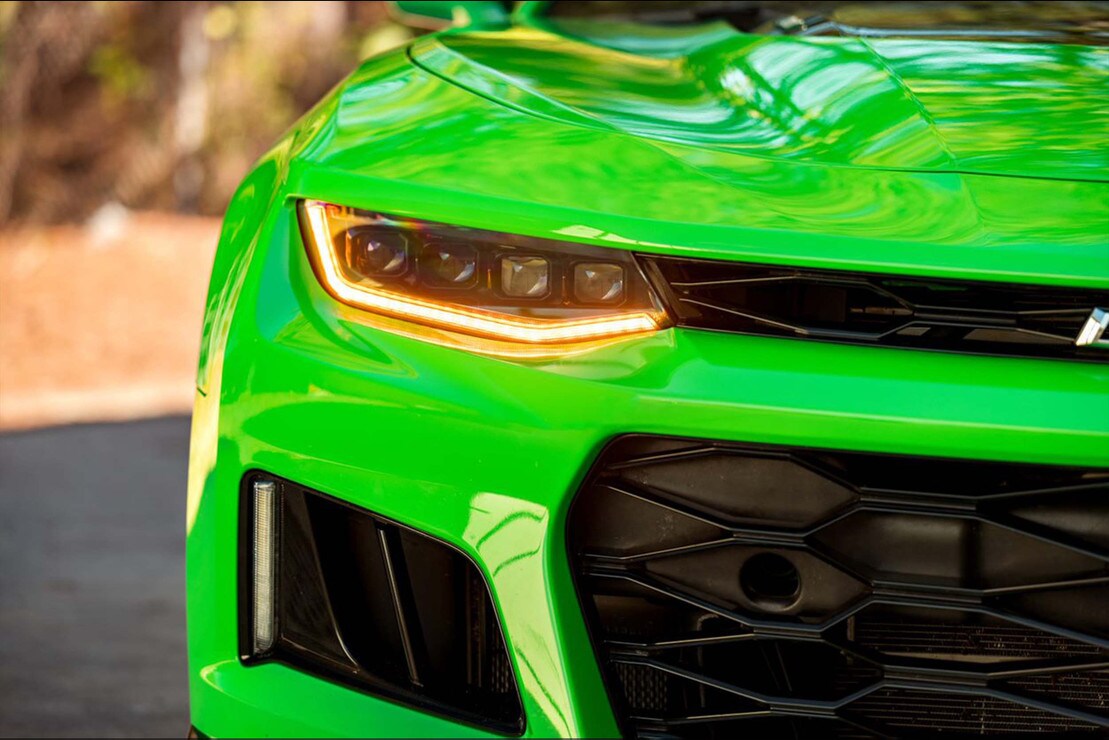

Sequential LED DRL: Game Changer! Their LED daytime running light is powered by Osram 5000K LEDs and is insanely bright, easily visible during the day. They have a fully sequential LED turn signal behind modern "3D" type optics on the outside edge of the headlight too.
Well-Built: Their UV-coated polycarbonate lens will resist the test of time, ensuring your Camaro's new headlights will look good as new for many years to come. The PPS plastic housing is light-weight and much stronger than comparable alternatives. The die-cast aluminum heat-sinks inside the housings provide more than an adequate amount of cooling for the OEM grade Osram LED chips that produce the light. These complete headlights may be new to the market, but Morimoto's XB LED fog lights have proven themselves perfect after 5+ years out now, which is confidence inspiring.
