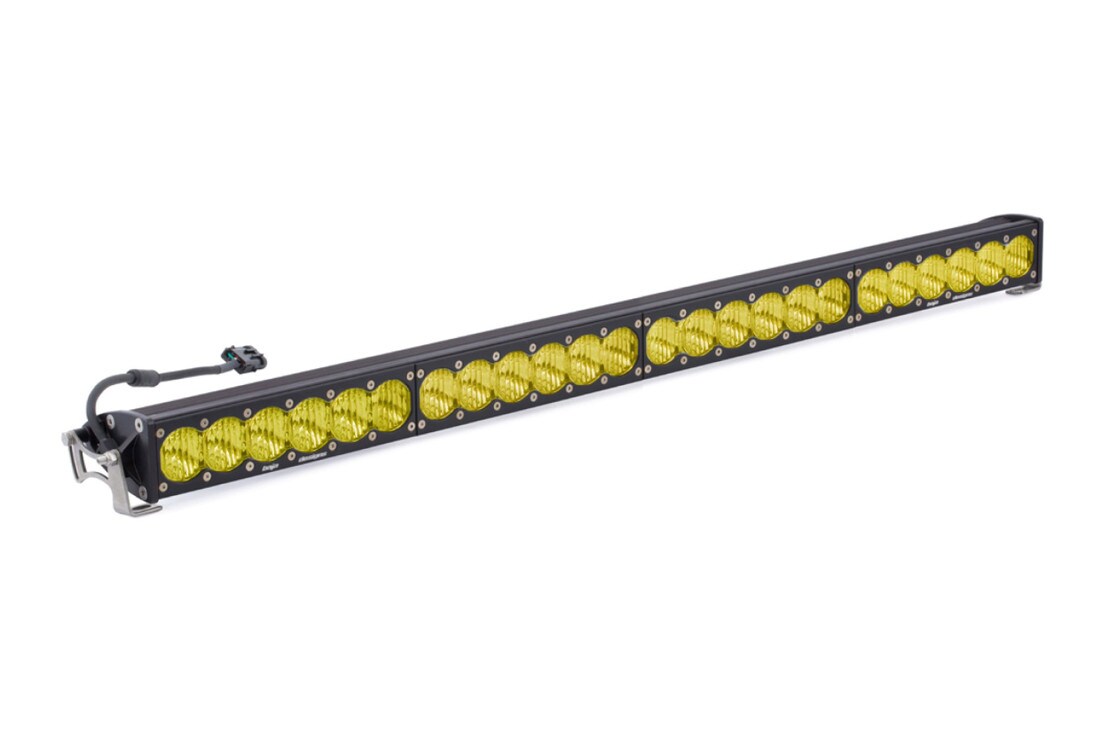

OnX6 LED Light Bar (40in)

(0) No Reviews yet
Questions?

Brand: Baja Designs

3P-BD14-HR

$1,441.95

PRODUCT OPTIONS

PART #: 1 x 454003



DESCRIPTION

Experience the power and performance with Baja Designs' 40in OnX6+ LED Light Bar. Designed for the extreme conditions of race day, this light bar is equipped with the same High-Speed Spot Reflector used by Baja's Team Enlightened Racers. It boasts an impressive 39,220 lumens, ensuring unparalleled brightness and projection. With advanced Battery Management Technology, customizable lenses through uService, and MoistureBlock for water protection, it's the epitome of durability and versatility. guarantees satisfaction with an industry-first 30-day guarantee and a limited lifetime warranty.

FEATURES & BENEFITS

  • Race Day Ready Trusted by Baja's Team Enlightened Racers.
  • High-Speed Spot Reflector Maximum light projection.
  • Battery Management Technology Eliminates flickering and protects vehicle systems.
  • uService & MoistureBlock Customizable optics and full water protection.
  • Guaranteed Satisfaction 30-day guarantee and limited lifetime warranty.

WHAT’S INCLUDED

  • Light Bar: 1x OnX6 40in LED Light Bar

  • Wiring: 1x Hi-Low Dongle

  • Hardware: Mounting Brackets

WARRANTY INFORMATION

This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 38,900lm (High), 32,440lm (Low)

  • Power: 346w (High), 290w (Low)

  • Current: 26.8A (High), 22.4A (Low)

  • Weight: 11.45lbs

  • Light Color: 5000K (Pure White)

  • Material: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)

COMPATIBILITY

  • 454014: 40" OnX6 LED Light Bar: (Amber / Wide Driving Beam)

  • 524003DC: 40" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern / Arc Series)

  • 464014: 40" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern)

  • 414002: 40" OnX6 LED Light Bar: (White / High Speed Spot Beam / Arc Series - Racer Edition)

  • 524001: 40" OnX6 LED Light Bar: (White / High Speed Spot Beam / Arc Series)

  • 454001: 40" OnX6 LED Light Bar: (White / High Speed Spot Beam)

  • 424003: 40" OnX6 LED Light Bar: (White / Wide Driving Beam / Arc Series - Racer Edition)

  • 524004: 40" OnX6 LED Light Bar: (White / Wide Driving Beam / Arc Series)

  • 454004: 40" OnX6 LED Light Bar: (White / Wide Driving Beam)

  • 454003: 40" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam )

  • 524003: 40" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam / Arc Series)

COMPLIANCE

IP69K, IK10, MIL-STD810G

Race Day: When Baja Designs goes racing their Team Enlightened Racers take with them a bar featuring the same High-Speed Spot Reflector as the one found in this 40in OnX6+ LED Light Bar. That reflector helps ensure that this stout light can output a whopping 39,220 lumens without breaking a sweat. It also means that you're getting the furthest projecting LED Lightbar on the market today. Don't settle, go further with Baja Designs OnX6+.


This bar is equipped with BMT: Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes.


uService from Baja Designs: uService is one of the coolest modular programs we've seen from any lighting company and it's no surprise that Baja Designs has pioneered it. With uService you have the freedom to change your lenses and optics with ease at a moment's notice. Gone are the days of being locked into one style or beam pattern. In addition, there's no need to worry about water, these have MoistureBlock baked in so H2O doesn't stand a chance no matter how deep in the creek you may get.


Warranty: Don't settle for less! Baja Designs features their industry-first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty on this light.
