Jeep Grand Cherokee (14-22) XB LED Headlights (Gen I)

3 Reviews
Questions?

Brand: Morimoto

B-ASY-LF278-HR

$1,800.00

PRODUCT OPTIONS

PART #: 1 x LF278



*Guaranteed Fitment
Easy Return

DESCRIPTION

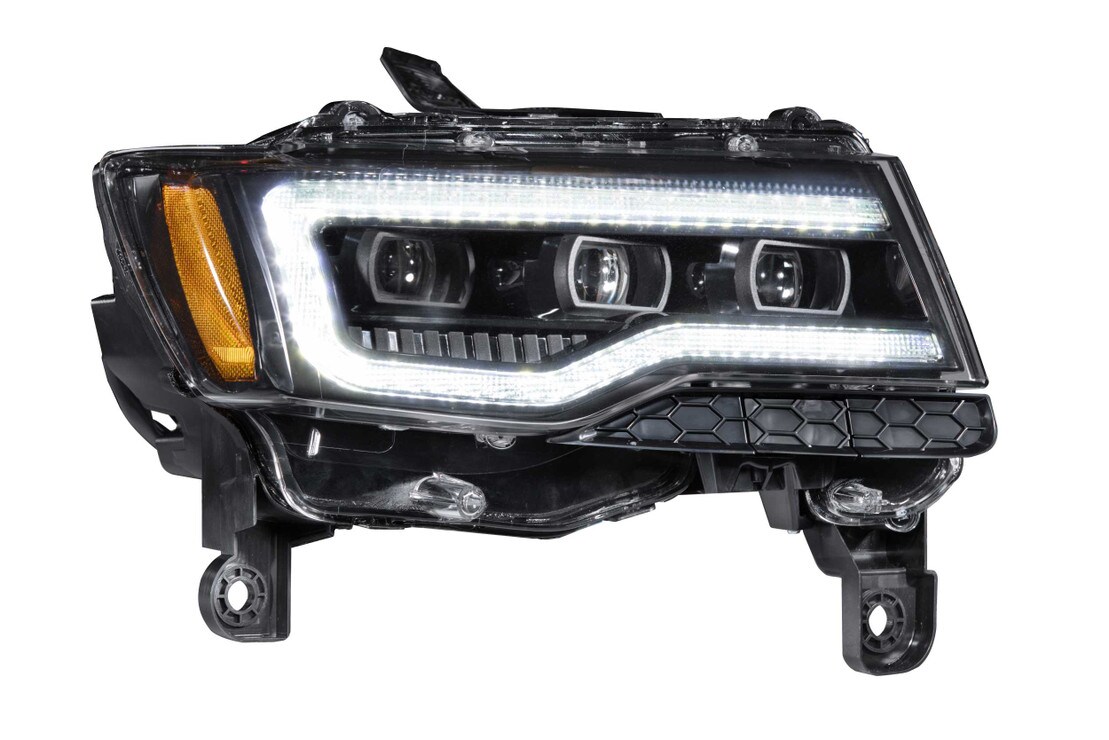

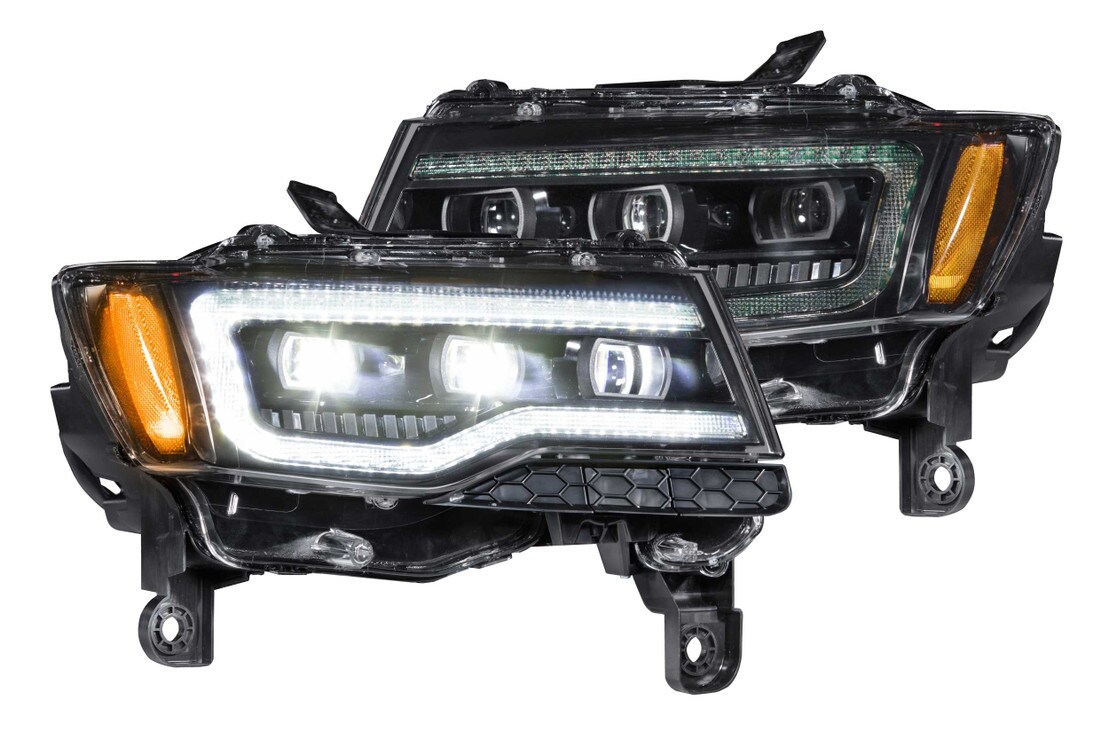

Introducing the Morimoto XB LED Headlights for the 14-22 Jeep Grand Cherokee – the ultimate upgrade for your vehicle's lighting system. These headlights feature a triple Bi-LED design with three high-output LED projectors per headlight, offering a total of 6x low beams and 6x high beams for exceptional road illumination. The LED daytime running lights, powered by Osram 5000K LEDs, are not only bright but also dim down when parking lights or low beams are engaged for compliance. What sets these headlights apart is the trademark sequential turn signal, which adds a stylish touch to your Jeep. The plug-and-play installation ensures compatibility with all Grand Cherokees, including various OEM configurations. Built to last, these headlights feature UV-coated polycarbonate lenses, lightweight PPS plastic housing, and efficient die-cast aluminum heat-sinks. Upgrade your vehicle's aesthetics and performance with Morimoto XB LEDs – the future-proof choice for your Grand Cherokee.

FEATURES & BENEFITS

  • Triple Bi-LED Projectors: Six low beams and six high beams for superior illumination.
  • Sequential LED Turn Signals: Stylish and safe signaling for added visibility.
  • Bright Daytime Running Lights: Osram 5000K LEDs ensure high daytime visibility.
  • Durable Construction: UV-coated polycarbonate lens, PPS plastic housing, and aluminum heat-sinks for longevity.
  • Easy Installation: Compatible with various Grand Cherokee models, including OEM Halogen and Bi-Xenon setups.

WHAT’S INCLUDED

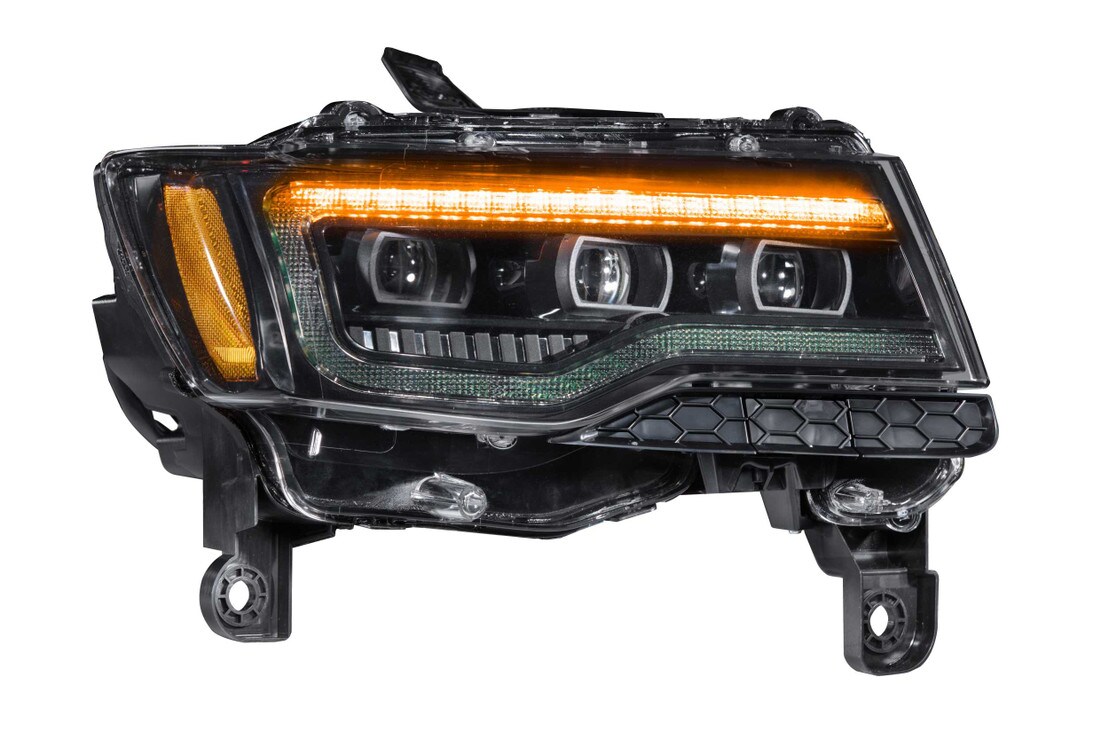

  • Headlights: 2x (One Pair) 14-22 Grand Cherokee WK2 XB LED Headlights

  • Lower Trim: 2x (One Pair) Black Plastic Trim for 14-16 GC Bumpers

  • Wiring: Plug and Play Harness, Fuse Tap

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

TECHNICAL SPECIFICATIONS

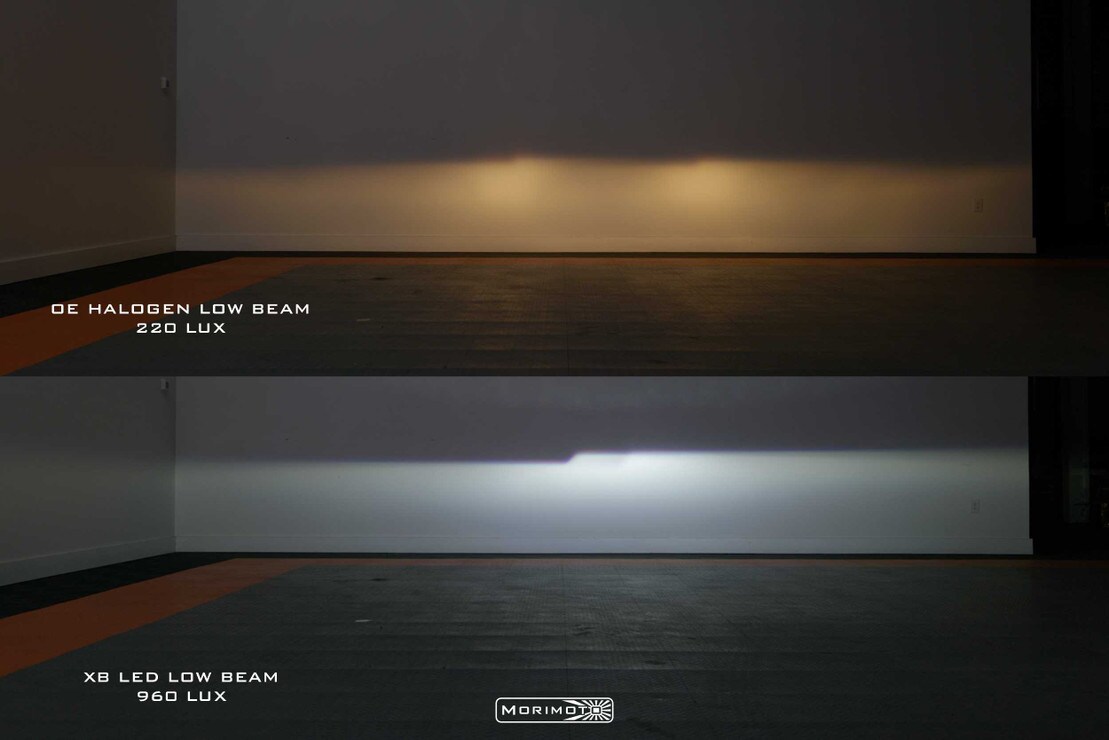

  • LOW BEAM PERFORMANCE: +336% (220lux [Halogen] to 960lux)

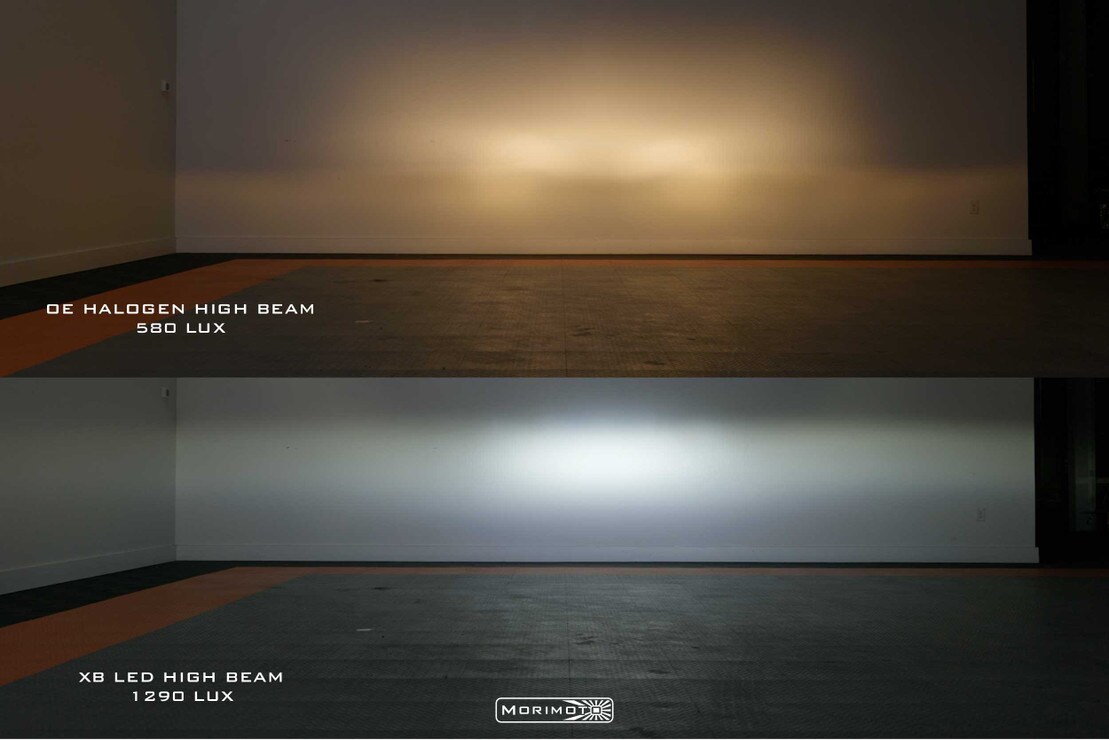

  • High BEAM PERFORMANCE: +239% (580lux [Halogen] to 1290lux)

  • INTENSITY: 3,200lm (Raw; each)

  • INPUT: Jeep Multi-Pin OEM

  • FUNCTIONS: DRL (White), Sequential LED Turn, Parking, Low, High

  • BEZEL COLOR: Gloss / Matte Black

  • SIDEMARKER: Amber

  • MATERIAL: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • OPTIC: Triple Kuria Optic Bi-LED

  • UV COATING: Momentive UVHC3000

LINE DRAWINGS

COMPATIBILITY

  • Jeep Grand Cherokee: 2014-2016 (with included lower trim adapters)

  • Jeep Grand Cherokee WK2: 2017-2022 (direct fit)

  • Jeep Grand Cherokee WL: Not Compatible

  • OE Headlamp Style: OE Halogen, Bi-xenon, Bi-xenon w/ AFS

  • NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

COMPLIANCE

Compliant with DOT, SAE, FMVSS108 Standards

INSTALLATION DOCUMENTS

INSTALLATION VIDEO

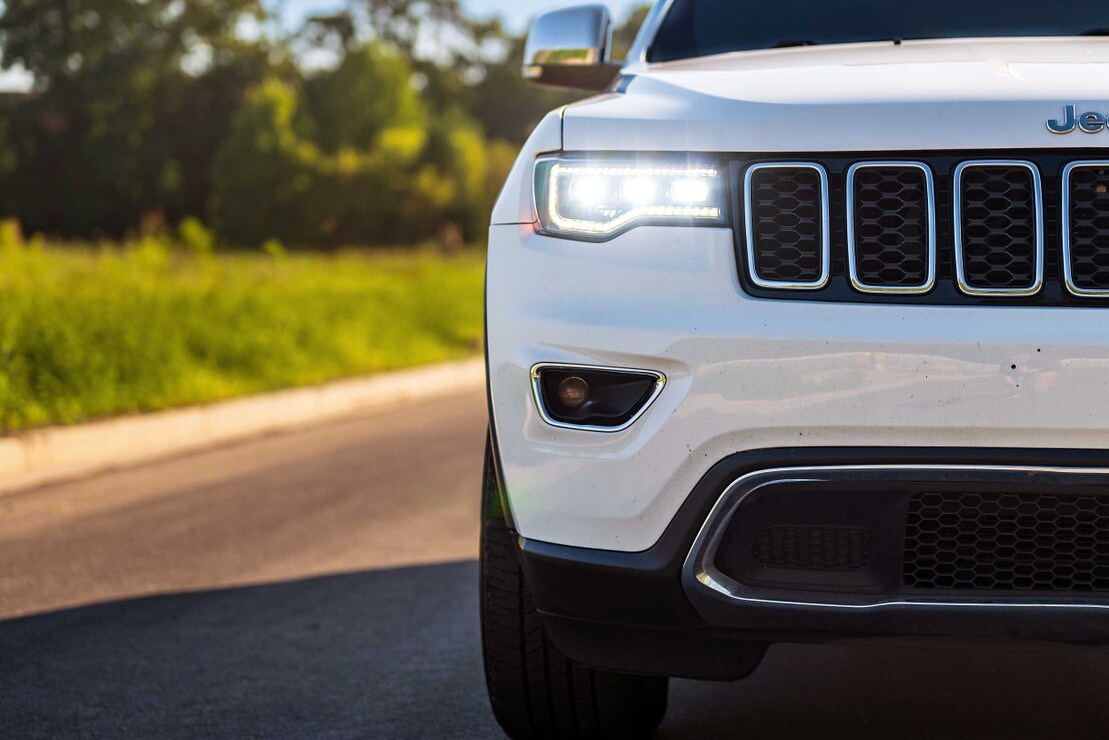

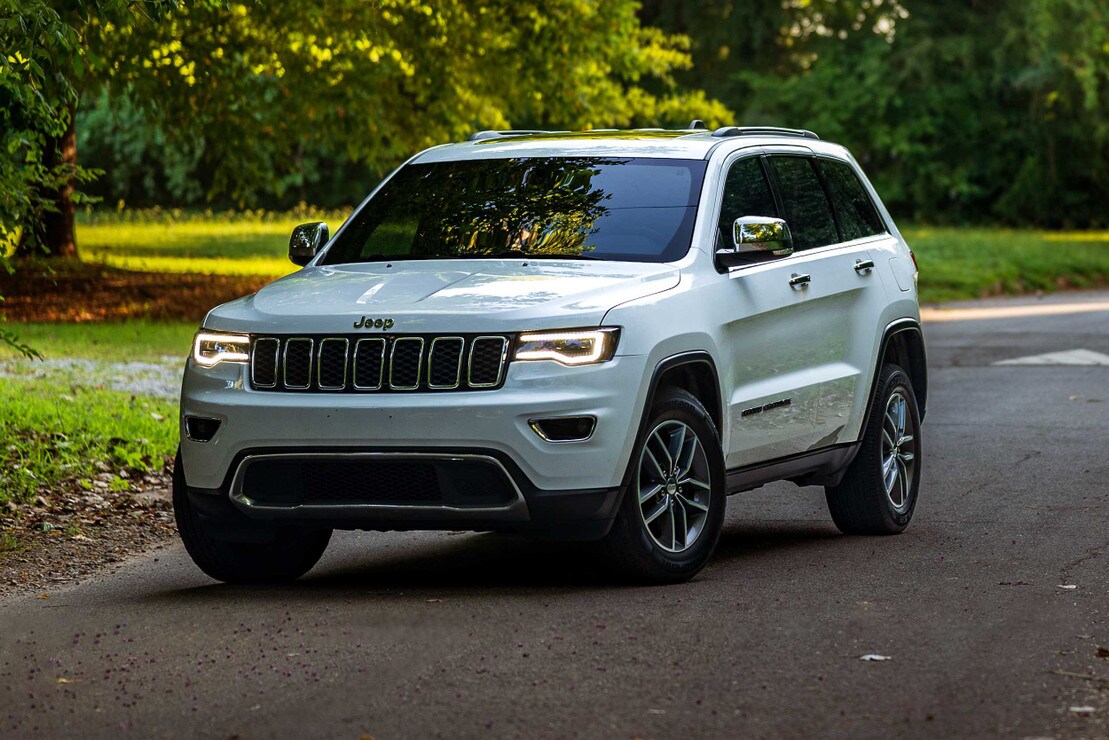

More Modern: The 14-22 Grand Cherokee has aged gracefully over the last decade, with very little changes needed to keep the Jeep on par with todays best SUVs. A number of updates to the OEM lighting options along the way have helped in preventing the headlights from becoming too far outdated --but the fact is that none of those options will come close to the modernization and performance that the new Morimoto XB LEDs deliver. From the triple Bi-LED projectors to the sequential LED turn signals, these headlights are as future-proof as the Grand Cherokee itself!

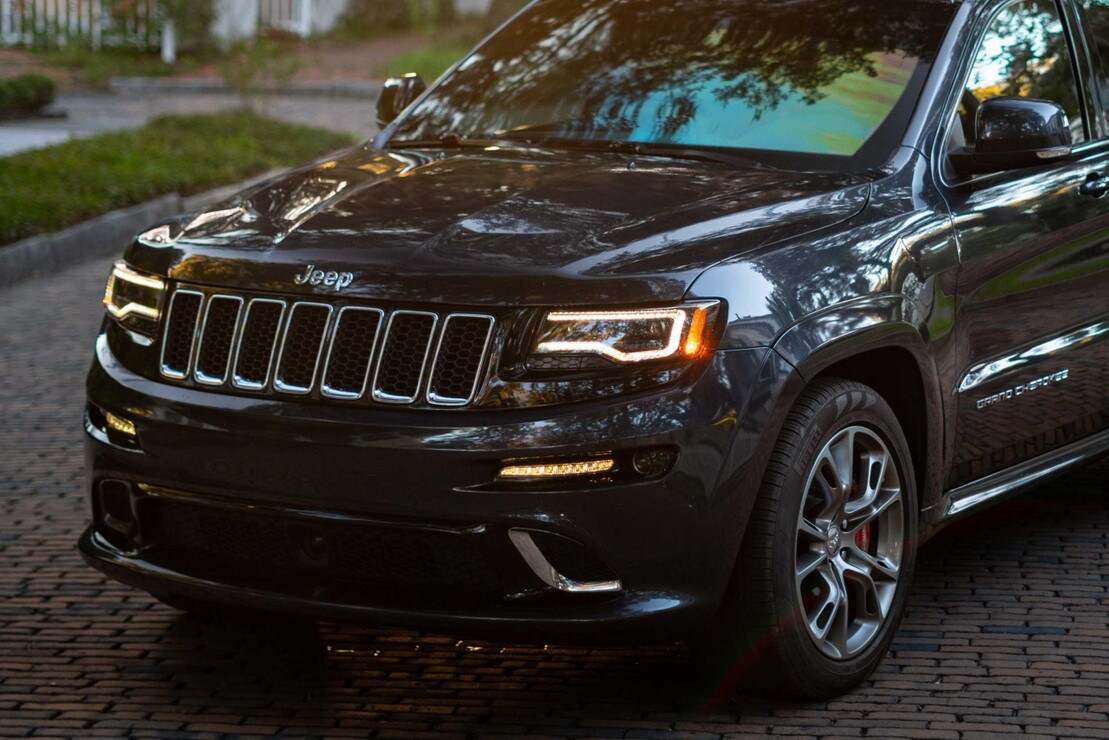

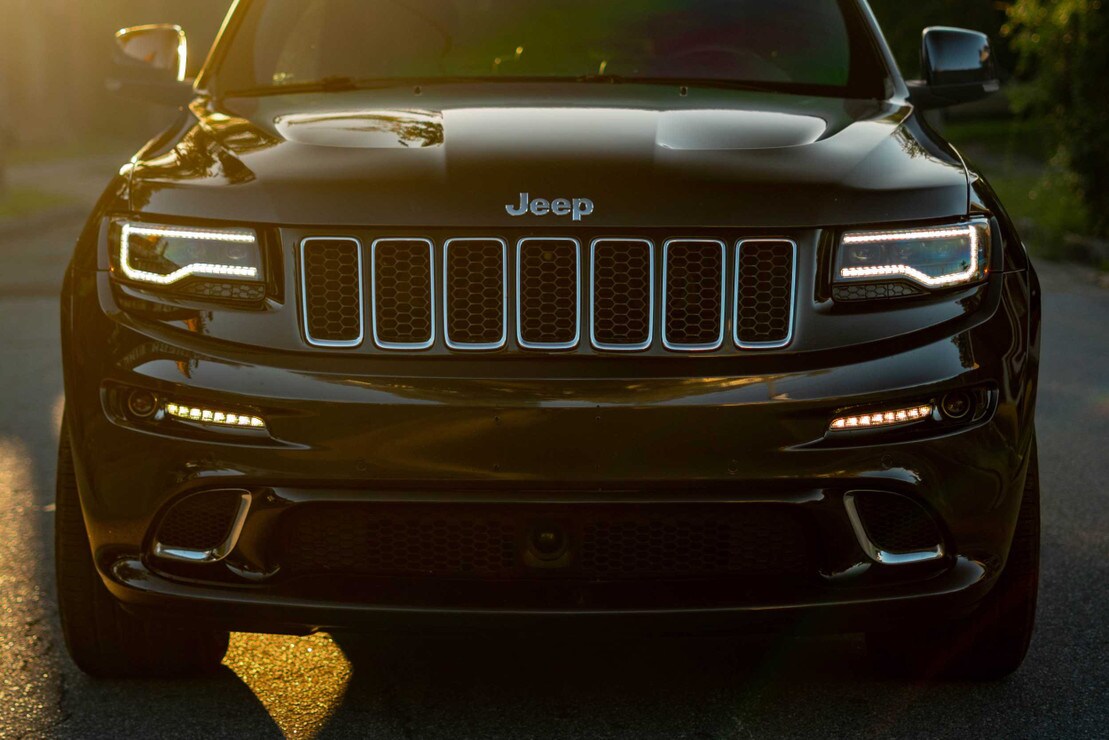

DAYTIME RUNNING LIGHT: The design of the DRL on the Morimoto XB LED heads for the Grand Cherokee is almost identical to the latest OEM HID headlights from Jeep- which is fitting to the overall design of these trucks. The LED daytime running light is powered by Osram 5000K LEDs and is insanely bright, easily visible during the day! The DRL will also dim down when the parking lights or low beams are on for compliance reasons. When the DRL activates, each of the three projectors illuminate in a unique dual-intensity start-up sequence which looks killer!

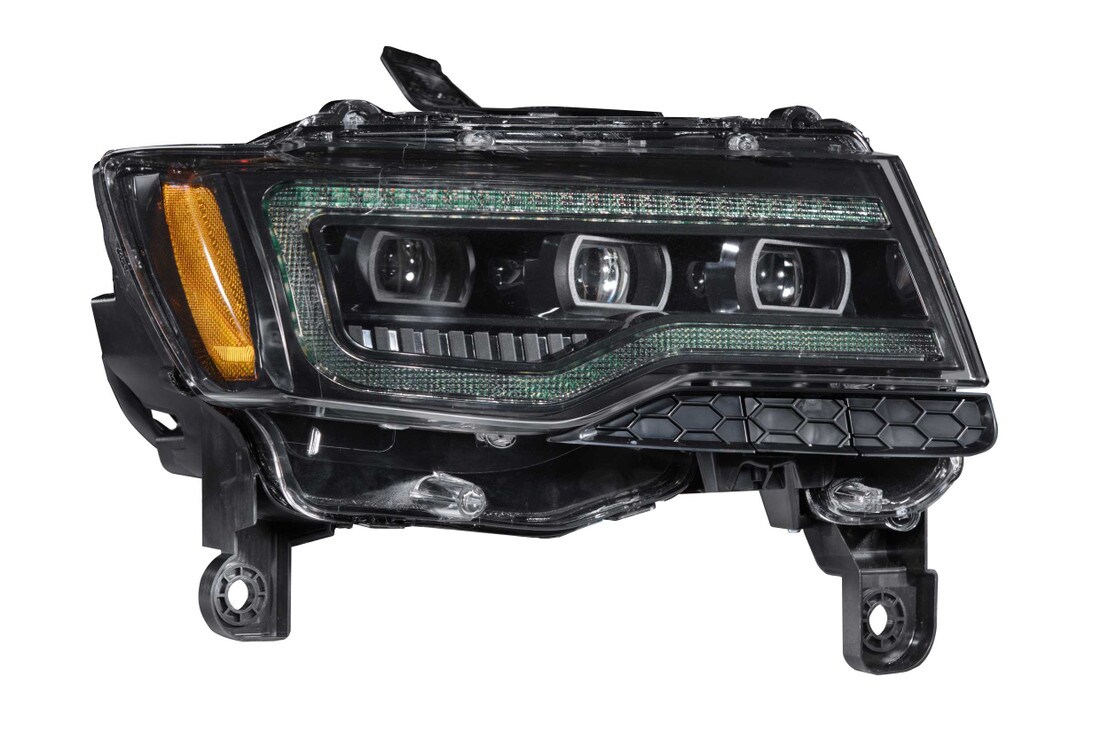

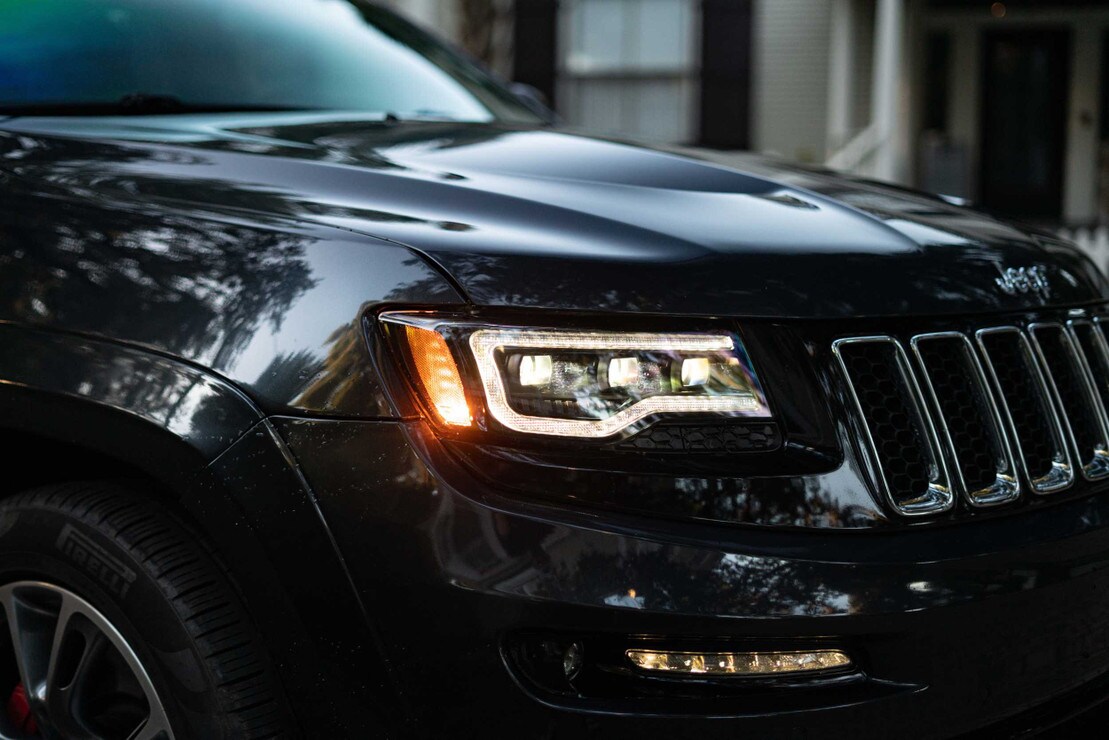

Sequential: The trademark sequential turn signal that we've grown to love on so many of the other models in the Morimoto lineup has been incorporated into the new GC XBs. If you're not a fan of the sequential effect, no problem. You can run the blinker in standard mode too. All wrapped upside a housing that's been delicately trimmed with a combination of matte and glosses finishes, these things would be a killer aesthetic upgrade for any Jeep! But the real beauty here is that it's not ALLLLL about looks. These things are quite functional too.

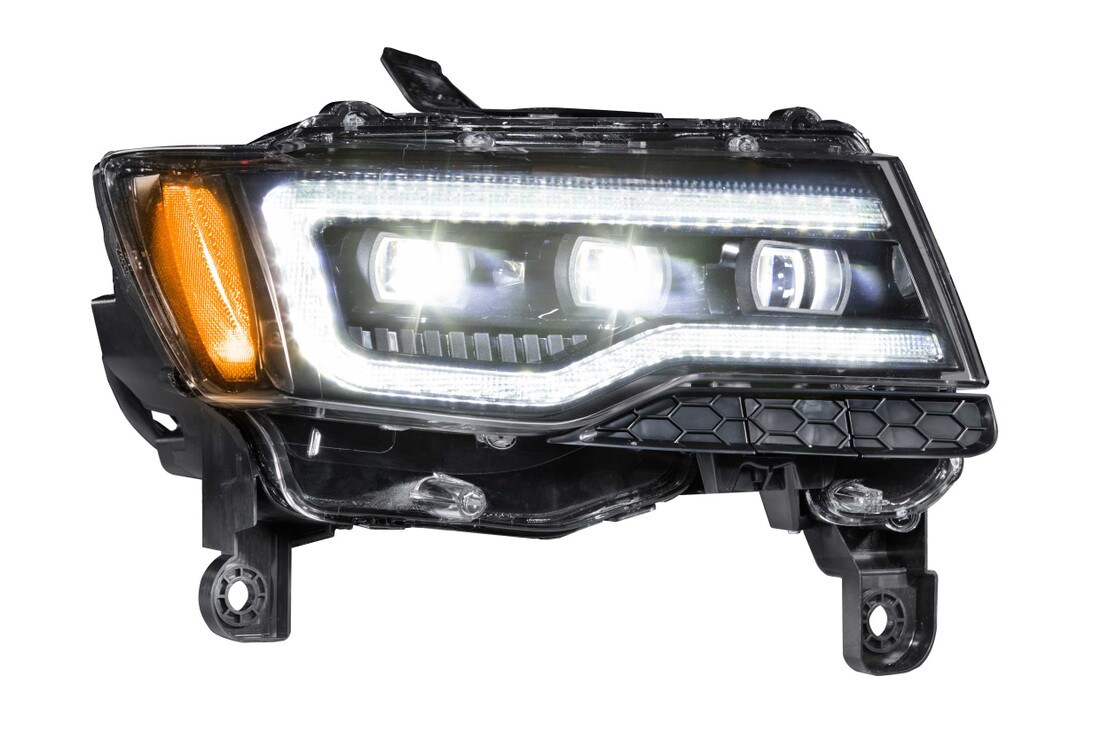

Triple Bi-LED: The Morimoto XB LED headlights for the 14-22 Jeep Grand Cherokee come standard with three high-output LED projectors per headlight. Yes, that's a total of 6x low beams and 6x high beams to illuminate the road ahead. Thanks to their uniquely shaped projector lenses paired with modern optics within, they're going to perform even better than they look. The full LED low and high beam are an instant upgrade over stock, with a wider, brighter low beam, and a high beam that will penetrate far into the distance with ease. To top it all off, these optics meet & exceed all SAE, DOT standards when aimed properly, which is easy to do with their integrated aiming adjusters.


PLUG-N-PLAY: As for wiring: Morimoto's LED headlights are designed to work on your Jeep without any modifications. They are compatible with all Grand Cherokees including OEM Halogen, OEM Bi-Xenon, and OEM Bi-Xenon with AFS.


WELL-BUILT: Their UV-coated polycarbonate lens will resist the test of time, ensuring your truck's new headlights will look good as new for many years to come. The PPS plastic housing is light-weight and much stronger than comparable alternatives. The die-cast aluminum heat-sinks inside the housings provide more than an adequate amount of cooling for the OEM grade LED chips that produce the light.
